BUS-65112-300 datasheet, PDF - EEWORLD Datasheet

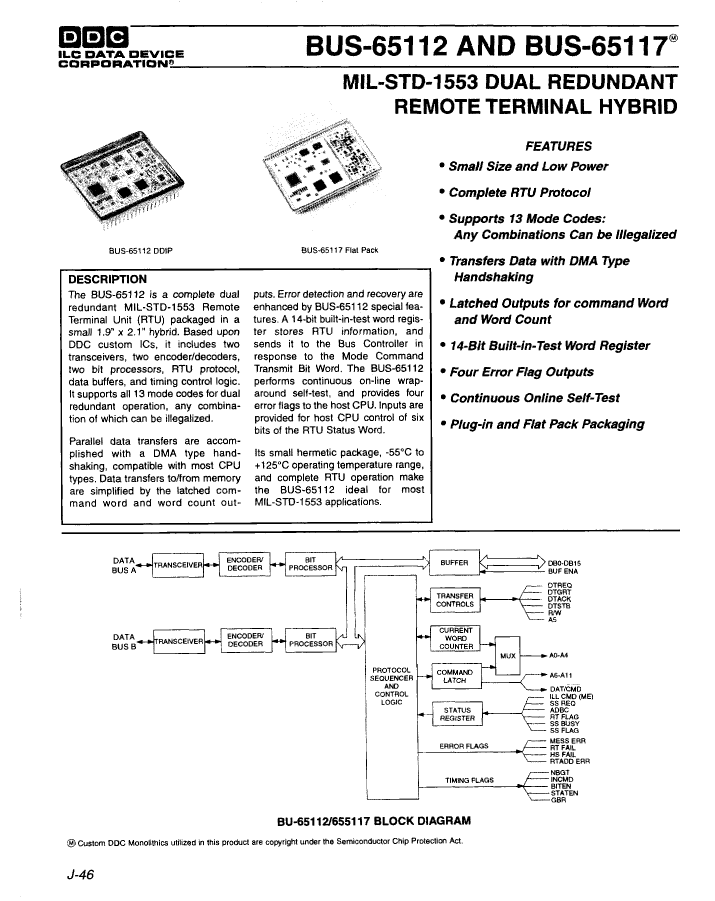

BUS-65112-300: DescriptionMil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size127KB，3 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

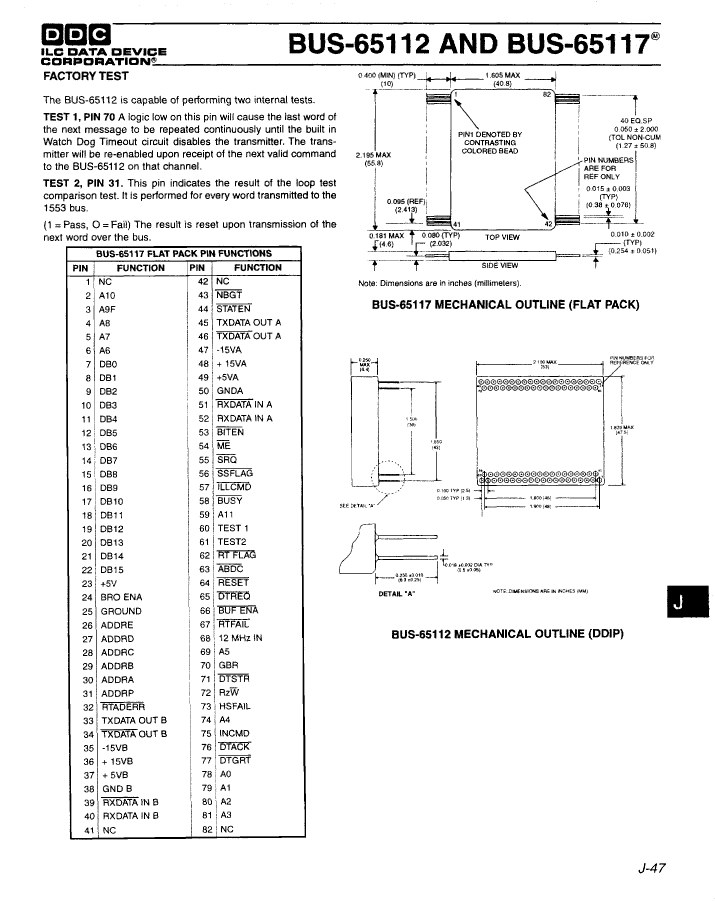

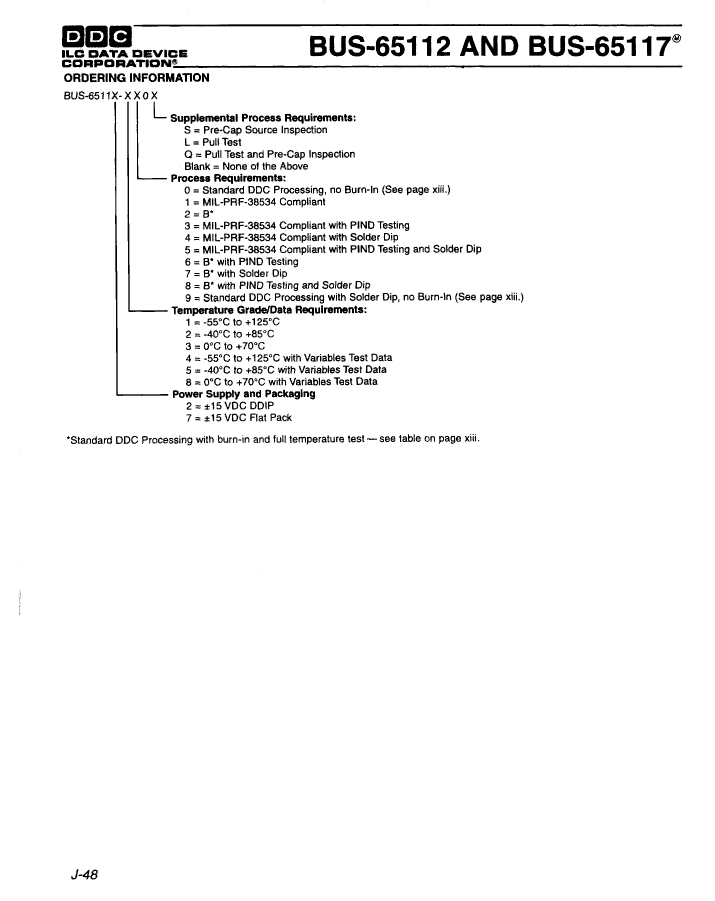

BUS-65112-300 Overview

Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QIP
package instruction	1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78
Contacts	78
Reach Compliance Code	unknown
Address bus width	12
boundary scan	NO
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	NRZ
External data bus width	16
JESD-30 code	R-CQIP-P78
low power mode	NO
Number of serial I/Os	2
Number of terminals	78
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	6.35 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

	BUS-65112-300	BUS-65117-300
Description	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), CMOS, CDFP82, HERMETIC SEALED, FP-82
Maker	Data Device Corporation	Data Device Corporation
Parts packaging code	QIP	DFP
package instruction	1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78	DFP,
Contacts	78	82
Reach Compliance Code	unknown	unknown
Address bus width	12	12
boundary scan	NO	NO
letter of agreement	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	NRZ	NRZ
External data bus width	16	16
JESD-30 code	R-CQIP-P78	R-CDFP-F82
low power mode	NO	NO
Number of serial I/Os	2	2
Number of terminals	78	82
Maximum operating temperature	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum seat height	6.35 mm	4.6 mm
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	PIN/PEG	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
