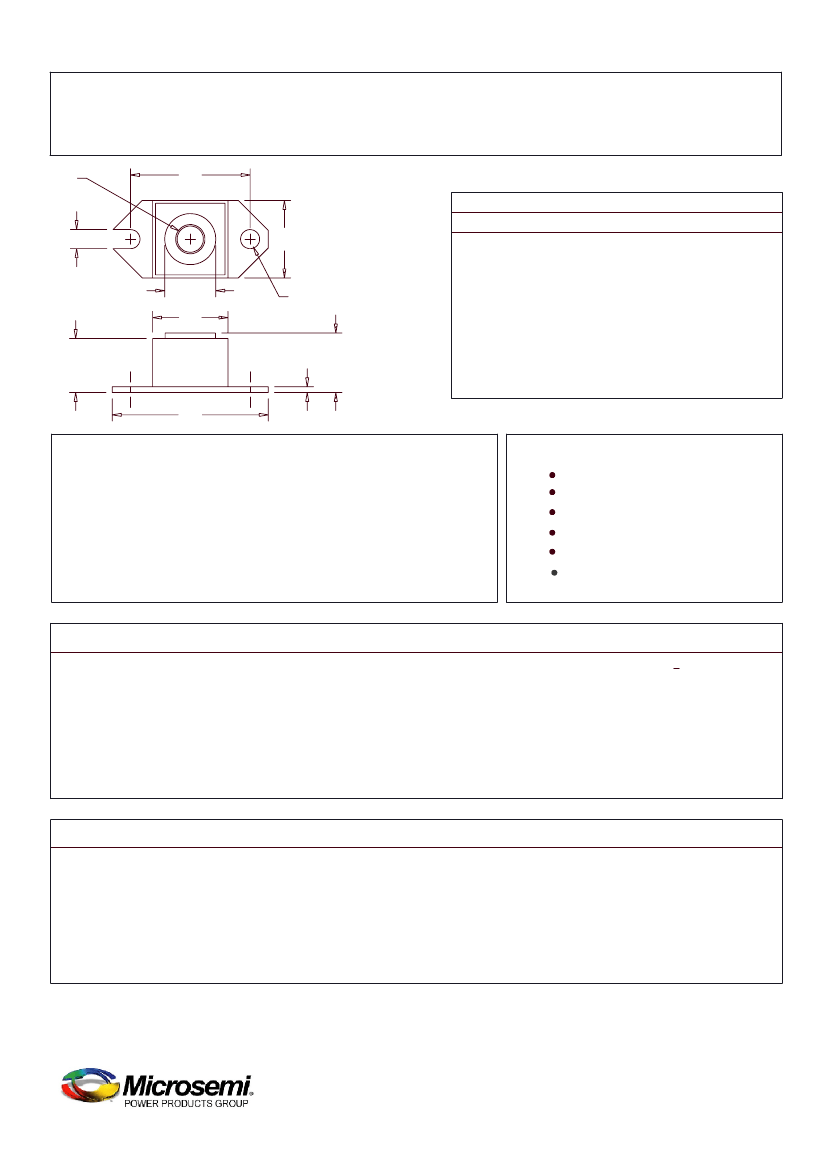

HS24135 - HS24145
G
J
B
D
Std. Polarity
Base is Cathode
Rev. Polarity
Base is Anode
Dim. Inches
Millimeter
Minimum Maximum Minimum Maximum Notes
A
B
C
D
E
F
G
H
J
K
L
1.52
.725
.605
1.182
.745
.152
.525
.156
.495
.120
38.61
1.56
18.42
.775
15.37
.625
30.02
1.192
18.92
.755
3.86
.160
1/4-20 UNC-2B
13.34
.580
3.96
.160
12.57
.505
3.05
.130
39.62
19.69
15.88
30.28
19.18
4.06
14.73
4.06
12.83
3.30
240 Amp Schottky Rectifier
K
H
E
F
C
Sq.
Dia.
Dia.
A
L
Microsemi
Catalog Number
HS24135*
HS24140*
HS24145*
Industry
Part Number
241NQ035
241NQ040
241NQ045
Repetitive Peak
Working Peak
Reverse Voltage Reverse Voltage
35V
40V
45V
35V
40V
45V
Schottky Barrier Rectifier
Guard ring protection
240 Amperes/ 45 Volts
175°C junction temperature
Reverse energy tested
ROHS Compliant
*Add suffix R for Reverse Polarity
Electrical Characteristics
Average forward current
Maximum surge current
Max repetitive peak reverse current
Max peak forward voltage
Max peak forward voltage
Max peak reverse current
Max peak reverse current
Typical junction capacitance
I
F(AV) 240 Amps
IFSM
3400 Amp
I
R(0V) 2 Amps
V
0.60 Volts
FM
V
0.69 Volts
FM
I
RM
200mA
I M
R
10 mA
C
9500 pF
J
TC = 133°C, square wave, R 0JC = 0.24°C/W
8.3 ms, half sine T J = 175°C
f = 1 KHz, 25°C, 1µsec square wave
T
I FM = 240A: J = 175°C*
T
I FM = 240A: J = 25°C *
VRRM, T J = 125°C *
VRRM, T J = 25°C
VR = 5.0V, T J = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Maximum thermal resistance
Typical thermal resistance (greased)
Terminal torque
Mounting Base torque
Weight
T STG
TJ
R OJC
R OCS
-55°C to 175°C
-55°C to 175°C
0.24°C/W Junction to case
0.12°C/W Case to sink
35-40 inch pounds
20-25 inch pounds
1.1 ounces (32 grams)
www.microsemi.com
January, 2011 - Rev. 5

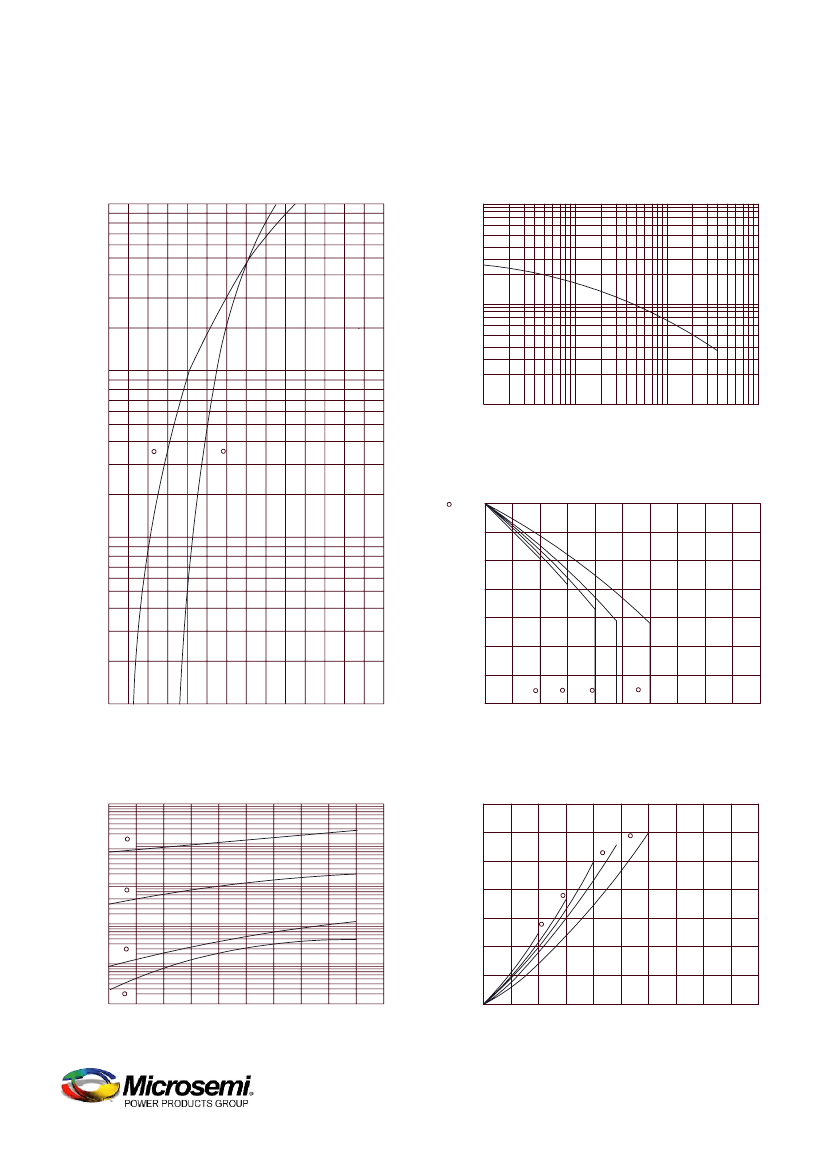

HS24135 - HS24145
Figure 1
Typical Forward Characteristics
1000
Figure 3
Typical Junction Capacitance
100000
50000
Junction Capacitance - pF
500
20000
10000
5000
200
100
50
150 C
Instantaneous Forward Current - Amperes
20
25 C
1000
0.1
0.5
1.0
5.0
10
50
100
Reverse Voltage - Volts
Figure 4
Forward Current Derating
175
165
155
145
135
125
115
105
60
0
90 120
200
180
DC
300
400
500
10
5
2
1
0
.2
.4
.6
.8
1.0
1.2
1.4
Instantaneous Forward Voltage - Volts
Maximum Allowable Case Temperature - C
100
Average Forward Current - Amperes
Figure 5
Maximum Forward Power Dissipation
Maximum Power Dissipation - Watts
210
180
150
120
90
60
30
0
0
100
200
300
400
500
Average Forward Current - Amperes
60
90
120
180
DC
Typical Reverse Current - mAmperes
Figure 2
Typical Reverse Characteristics
1000
100 175 C
10
1
75 C
125 C
0.1
0.01
25 C
0
10
20
30
40
50
Reverse Voltage - Volts
www.microsemi.com
January, 2011 - Rev. 5
