LN8797JF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LN8797JF

LN8797JF: Description16-BIT, OTPROM, 4MHz, MICROCONTROLLER, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，20 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

LN8797JF Overview

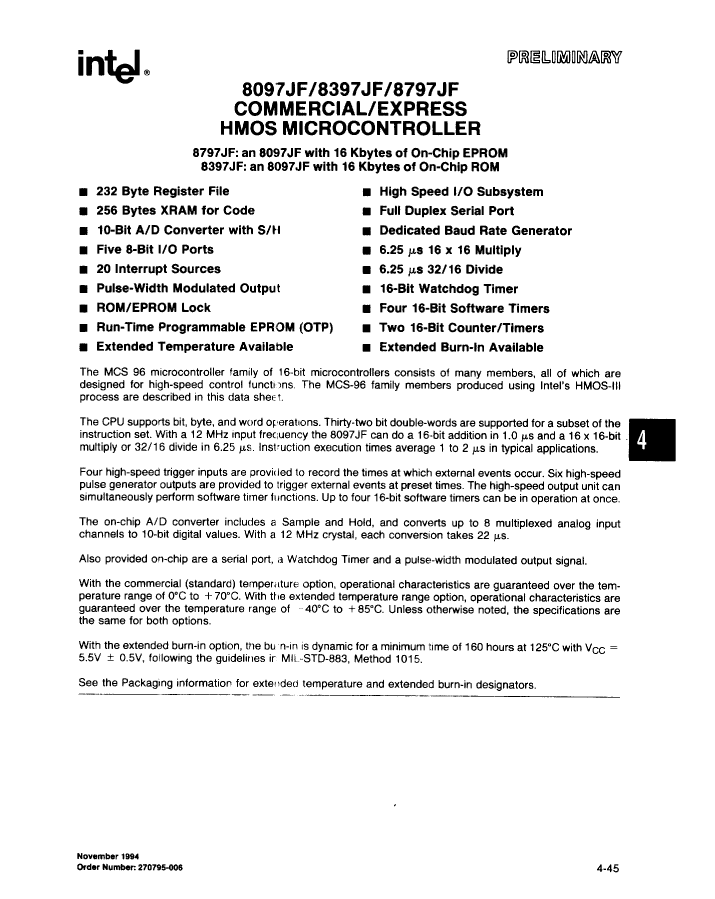

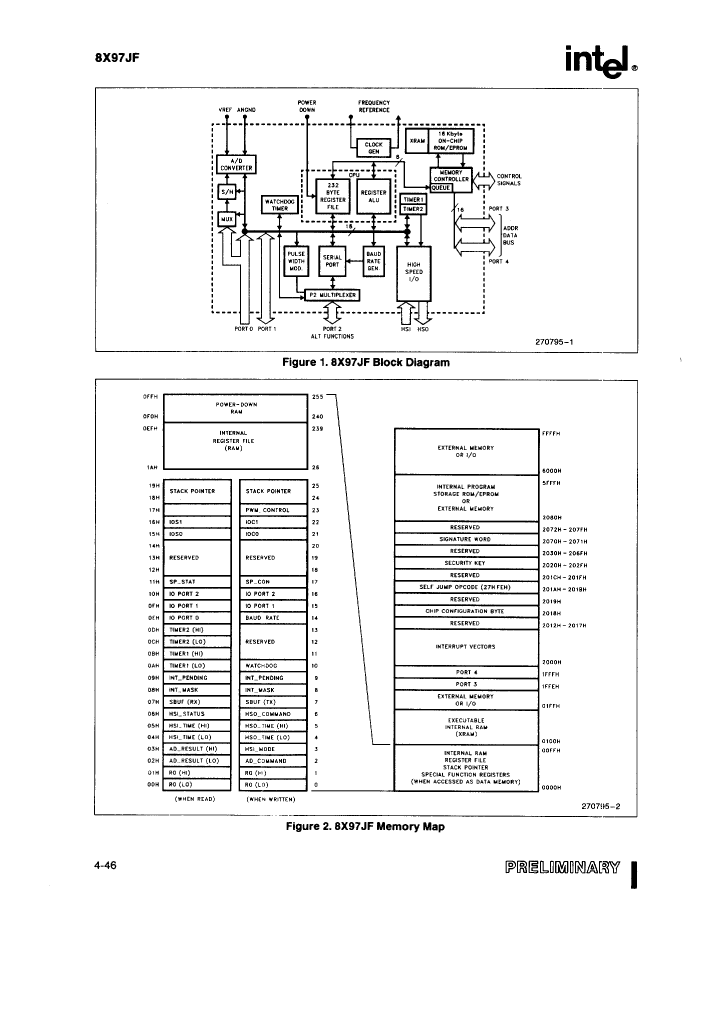

16-BIT, OTPROM, 4MHz, MICROCONTROLLER, PQCC68, PLASTIC, LCC-68

LN8797JF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	LCC

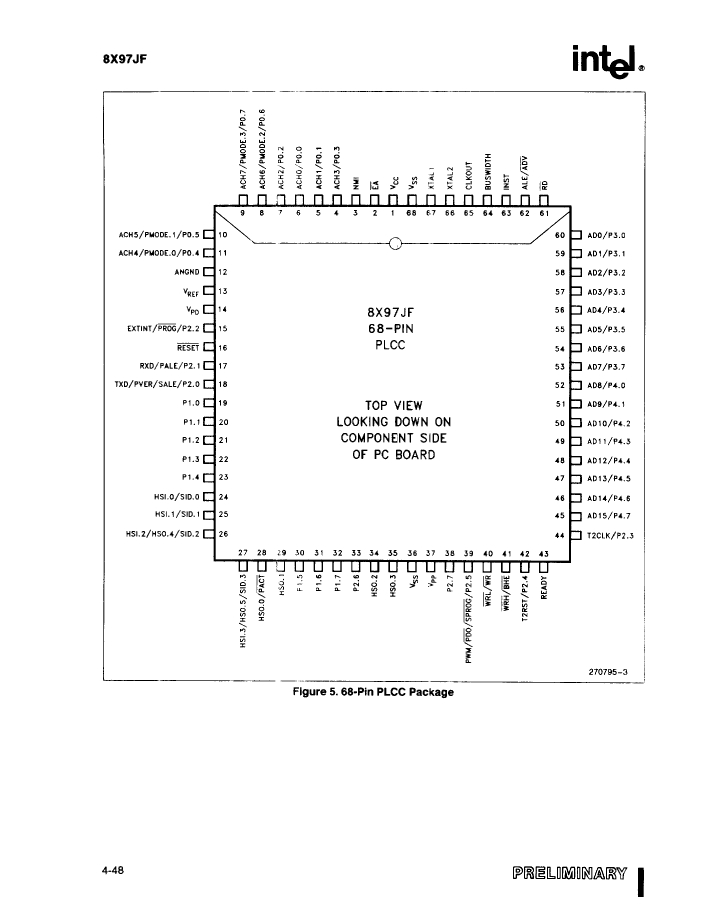

package instruction	PLASTIC, LCC-68
Contacts	68
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	16
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.2 mm
Number of I/O lines	40
Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
ROM programmability	OTPROM
Maximum seat height	4.83 mm
speed	4 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.2 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
