NF03RH302 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> NF03RH302

NF03RH302: DescriptionSingle Phase EMI Filter, 250V, 50HzHz,; CategoryAnalog mixed-signal IC filter; File Size78KB，1 Pages; ManufacturerFDK AMERICA

Download Datasheet Parametric Compare View All

NF03RH302 Overview

Single Phase EMI Filter, 250V, 50HzHz,

NF03RH302 Parametric

Parameter Name	Attribute value
Maker	FDK AMERICA
Reach Compliance Code	unknown
Other features	INDUCTANCE 3 MILLI HENRY
filter type	SINGLE PHASE EMI FILTER
high	27 mm
high potential	2000 V
Minimum insulation resistance	100 MΩ
length	26 mm
Installation type	THROUGH HOLE MOUNT
working frequency	50Hz Hz
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
physical size	L26XB20XH27 (mm)
Rated current	3 A
Rated voltage	250 V
width	20 mm

NF03RH302 Preview

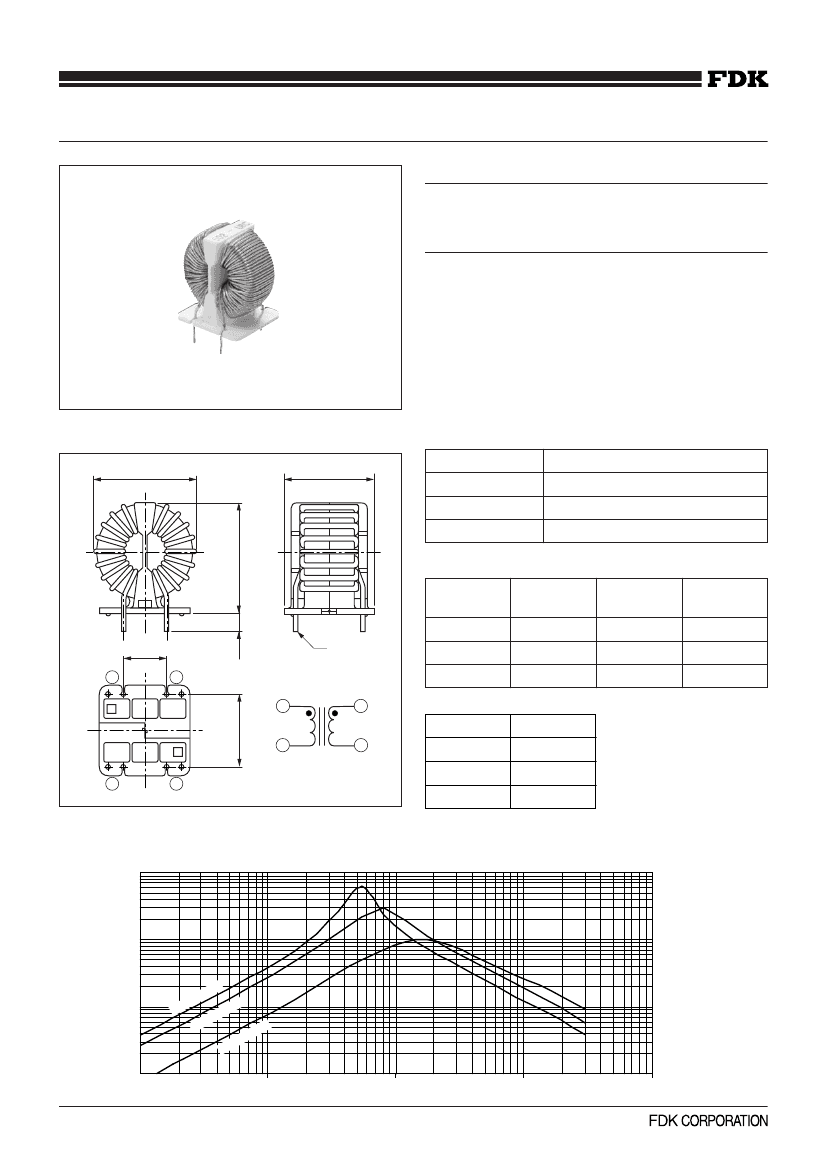

CD-TCE007-0304

Common mode noise suppression coils NF-RH series

Features

¡Conformity

with safety standards

¡Superb

mountability

Applications

¡TVs,

display terminals

¡Faxes,

copiers, printers

¡Inverter

¡Car

electronic equipment

Shapes and dimensions

26max.

20max.

Unit: mm

Specifications

Rated voltage

Withstand voltage

Insulation resistance

AC250V

AC2000V, 1 min.

DC500V 100MΩmin.

Operating temperature –25°C ~ +105°C (including self-temperature rise)

27max.

Standard models

Model No.

NF02RH502

NF03RH302

NF05RH102

Rated current

[A]

2.0

3.0

5.0

Inductance

[mH] min.

(1KHz, 20°C)

5.0

3.0

1.0

DC resistance

[mΩ] max.

120

065

030

(10)

4±1

(15)

Model No.

d [mm]

0.60

0.65

0.80

NF02RH502

NF03RH302

NF05RH102

Impedance characteristics

Z(Ω)

100k

10k

100

0.01

0.1

100

Freq(MHz)

http://www.fdk.co.jp

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

NF03RH302 Related Products

	NF03RH302	NF02RH502	NF05RH102
Description	Single Phase EMI Filter, 250V, 50HzHz,	Single Phase EMI Filter, 250V, 50HzHz,	Single Phase EMI Filter, 250V, 50HzHz,
Maker	FDK AMERICA	FDK AMERICA	FDK AMERICA
Reach Compliance Code	unknown	unknown	unknown
Other features	INDUCTANCE 3 MILLI HENRY	INDUCTANCE 5 MILLI HENRY	INDUCTANCE 1 MILLI HENRY
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	27 mm	27 mm	27 mm
high potential	2000 V	2000 V	2000 V
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ
length	26 mm	26 mm	26 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
working frequency	50Hz Hz	50Hz Hz	50Hz Hz
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
physical size	L26XB20XH27 (mm)	L26XB20XH27 (mm)	L26XB20XH27 (mm)
Rated current	3 A	2 A	5 A
Rated voltage	250 V	250 V	250 V
width	20 mm	20 mm	20 mm
