SSR05C60S.5HR: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon Carbide, HERMETIC SEALED, SMD0.5, 3 PIN; CategoryDiscrete semiconductor diode; File Size144KB，3 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SSR05C60S.5HR Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon Carbide, HERMETIC SEALED, SMD0.5, 3 PIN

SSR05C60S.5HR Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	R-CBCC-N3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON CARBIDE
Diode type	RECTIFIER DIODE
JESD-30 code	R-CBCC-N3
Maximum non-repetitive peak forward current	12.5 A
Number of components	1
Phase	1
Number of terminals	3
Maximum output current	5 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Maximum power dissipation	36.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	YES
technology	SCHOTTKY
Terminal form	NO LEAD
Terminal location	BOTTOM

Preview

Download Datasheet

View All

SOLID STATE DEVICES, INC.

14830 Valley View Blvd * La Mirada, Ca 90638

Phone: (562) 404-7855 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

SSR05C60

SERIES

5 AMP

600 VOLTS

SILICON CARBIDE

SCHOTTKY RECTIFIER

FEATURES:

• 600V Silicon Carbide Schottky Rectifier

• New Semiconductor Material

• Switching Behavior Benchmark

• No Reverse Recovery

• No Forward Recovery

• No Switching Time Change over Temperature

• Hermetic Packages Available

DESIGNER'S DATA SHEET

Part Number /Ordering Information

SSR05C 60 D1 HR

Screening:

Package:

S.5

Voltage:

= Not Screened

= High Rel

= TO-252 (D-Pack)

= Cerpack

= SMD .5

= 500V

= 600V

Maximum Ratings

Peak Repetitive Reverse and

Peak Surge Reverse Voltage

Average Rectified Forward Current.

(Resistive load, 60Hz, Sine Wave)

SYMBOL

SSR05C50

SSR05C60

RRM

RSM

FSM

& Tstg

2JC

Cerpack (G)

VALUE

500

600

12.5

0.78

36.5

-55 TO +175

4.1

SMD.5 (S.5)

UNITS

Volts

Amps

Non Repetitive Peak Surge Current

(8.3 ms Pulse, Half Sine Wave Superimposed on Io)

t Value

Power Dissipation

Operating and Storage Temperature

Maximum Thermal Resistance

Junction to Case

C/W

TO-252 (D1)

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #:

RS0016B

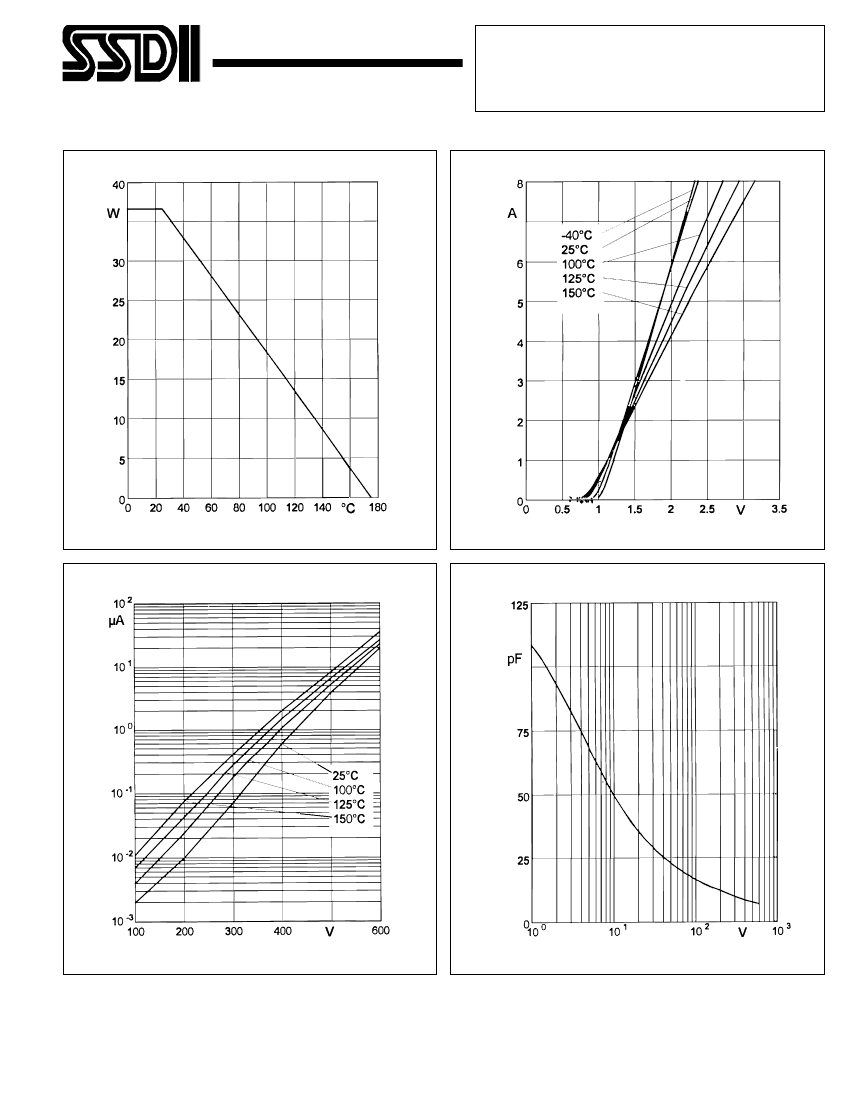

SSR05C60S.5HR Related Products

	SSR05C60S.5HR	SSR05C50D1HR	SSR05C50GHR	SSR05C60D1HR	SSR05C60GHR	SSR05C50S.5HR
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon Carbide, HERMETIC SEALED, SMD0.5, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 500V V(RRM), Silicon Carbide, TO-252, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 500V V(RRM), Silicon Carbide, HERMETIC SEALED, CERPACK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon Carbide, TO-252, DPAK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 600V V(RRM), Silicon Carbide, HERMETIC SEALED, CERPACK-3	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 500V V(RRM), Silicon Carbide, HERMETIC SEALED, SMD0.5, 3 PIN
Maker	SSDI	SSDI	SSDI	SSDI	SSDI	SSDI
package instruction	R-CBCC-N3	R-PSSO-G2	R-CSSO-G2	R-PSSO-G2	R-CSSO-G2	HERMETIC SEALED, SMD0.5, 3 PIN
Contacts	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON CARBIDE	SILICON CARBIDE	SILICON CARBIDE	SILICON CARBIDE	SILICON CARBIDE	SILICON CARBIDE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-CBCC-N3	R-PSSO-G2	R-CSSO-G2	R-PSSO-G2	R-CSSO-G2	R-CBCC-N3
Maximum non-repetitive peak forward current	12.5 A	12.5 A	12.5 A	12.5 A	12.5 A	12.5 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	3	2	2	2	2	3
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER
Maximum power dissipation	36.5 W	36.5 W	36.5 W	36.5 W	36.5 W	36.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	500 V	500 V	600 V	600 V	500 V
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	GULL WING	GULL WING	GULL WING	GULL WING	NO LEAD
Terminal location	BOTTOM	SINGLE	SINGLE	SINGLE	SINGLE	BOTTOM
Maximum forward voltage (VF)	-	1.9 V	1.9 V	1.9 V	1.9 V	-
Maximum operating temperature	-	175 °C	175 °C	175 °C	175 °C	-
