N8270F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> N8270F

N8270F: DescriptionParallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size671KB，4 Pages; ManufacturerLansdale; Websitehttp://www.lansdale.com/

Download Datasheet Parametric Compare View All

N8270F Overview

Parallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, CDIP14, CERAMIC, DIP-14

N8270F Parametric

Parameter Name	Attribute value
Maker	Lansdale
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	compliant
Counting direction	RIGHT
series	8270
JESD-30 code	R-CDIP-T14
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	15 MHz

Preview

Download Datasheet

View All

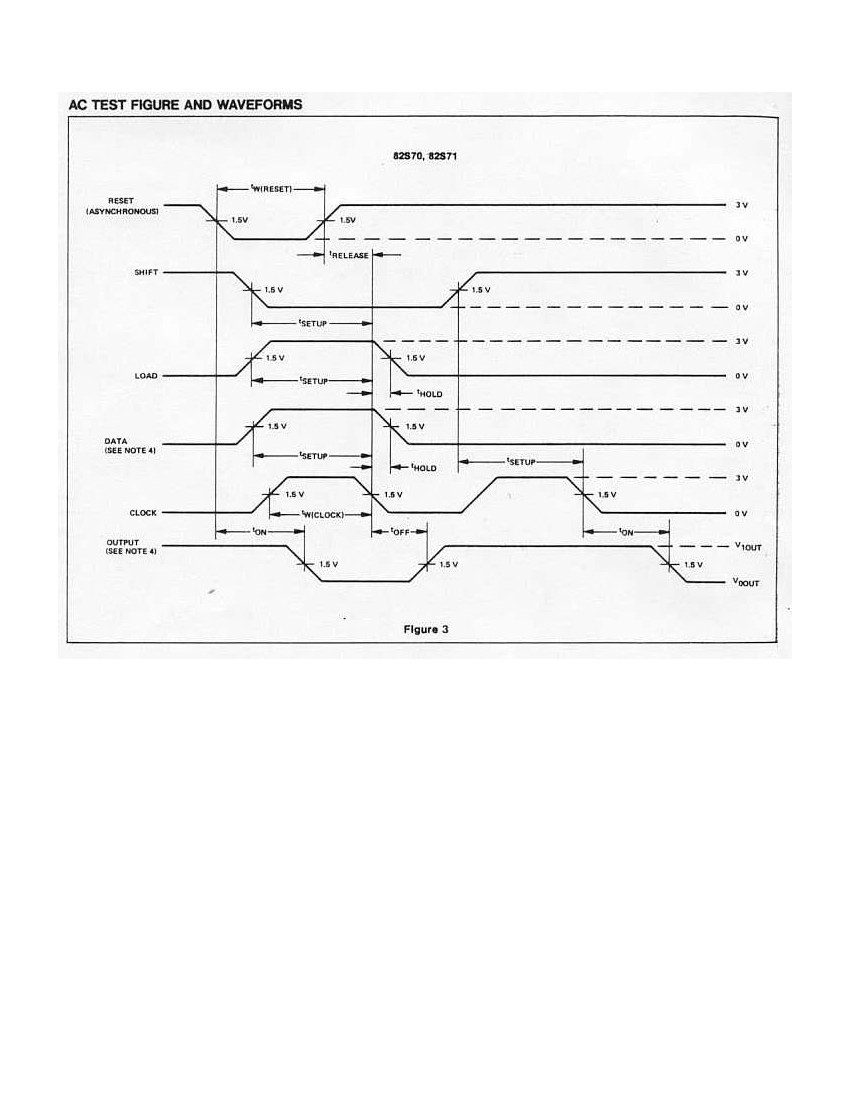

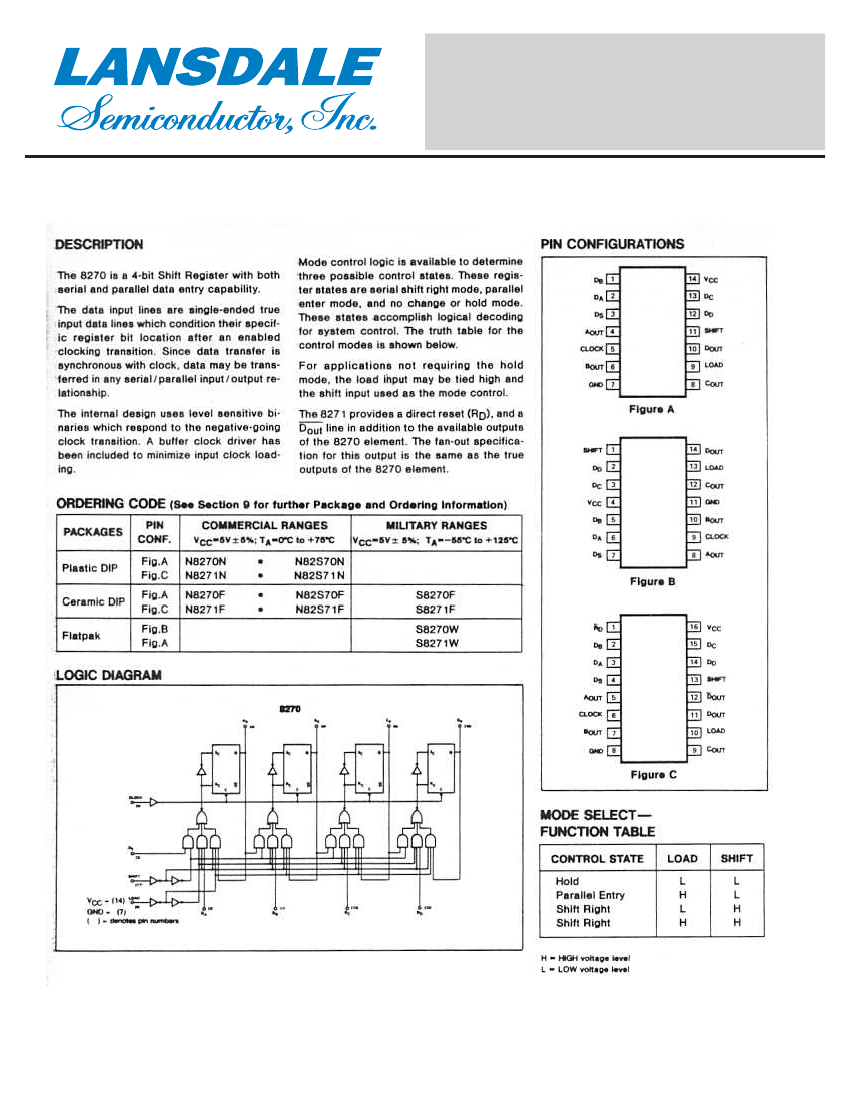

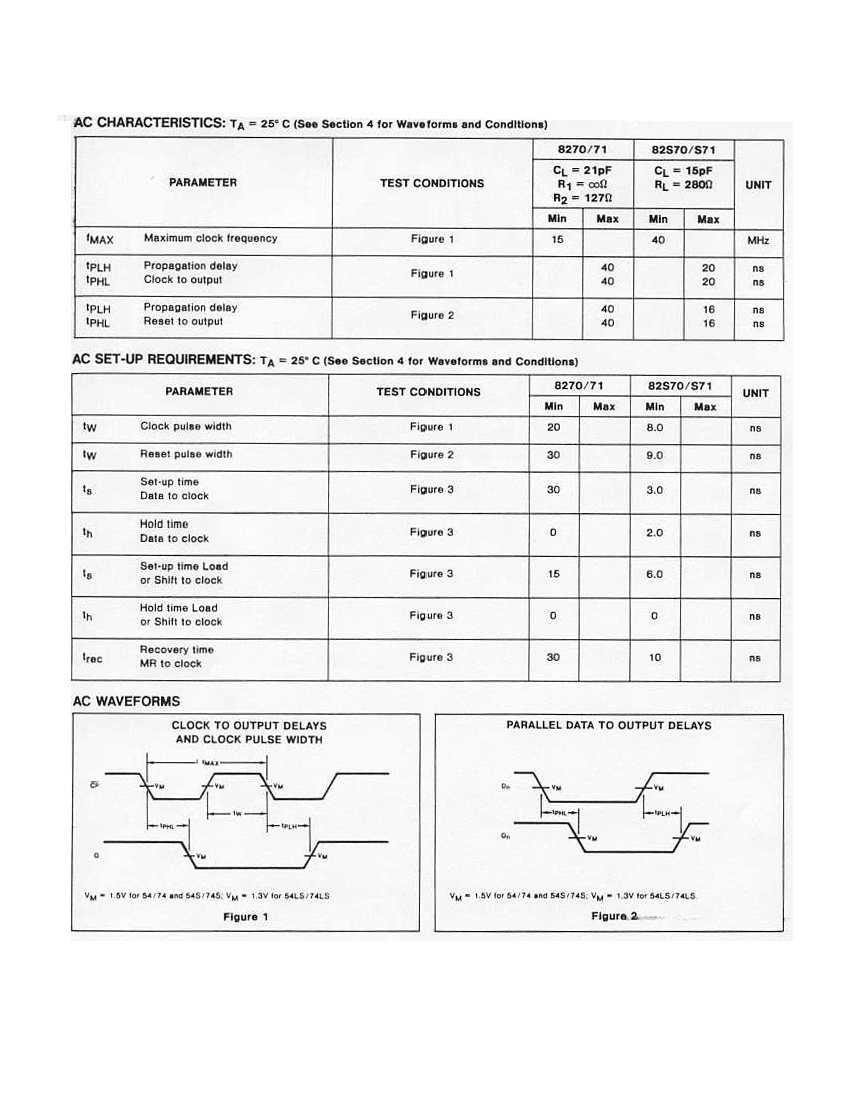

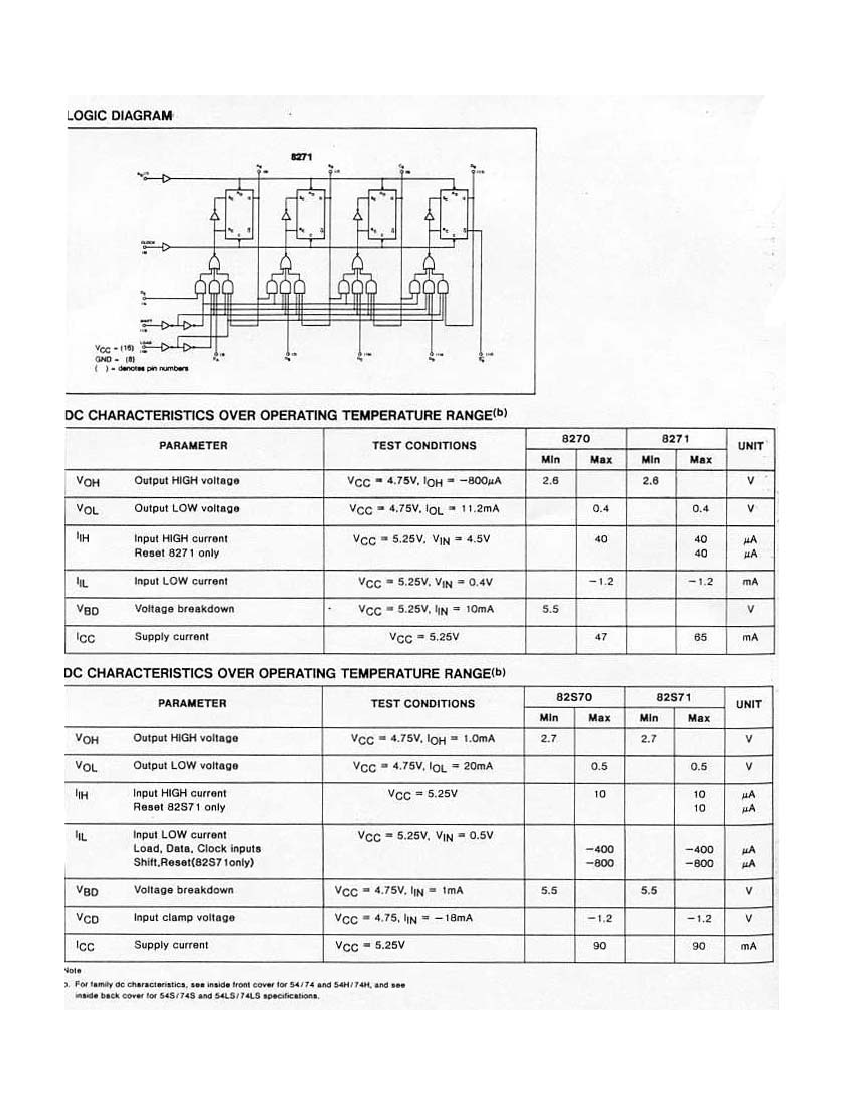

SL8270, SL8271

Legacy Device:

Signetics S8270, S8271

Page 1 of 4

www.lansdale.com

Issue 0

N8270F Related Products

	N8270F	S8271W	N82S71N	N8271F	S8270F	N8270N	S8270W	N8271N	S8271F	N82S71F
Description	Parallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, CDIP14, CERAMIC, DIP-14	Parallel In Parallel Out, 8271 Series, 4-Bit, Right Direction, True Output, PDFP14, DFP-14	Parallel In Parallel Out, AS Series, 4-Bit, Right Direction, True Output, PDIP16, PLASTIC, DIP-16	Parallel In Parallel Out, 8271 Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16	Parallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, CDIP14, CERAMIC, DIP-14	Parallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, PDIP14, PLASTIC, DIP-14	Parallel In Parallel Out, 8270 Series, 4-Bit, Right Direction, True Output, PDFP14, DFP-14	Parallel In Parallel Out, 8271 Series, 4-Bit, Right Direction, True Output, PDIP16, PLASTIC, DIP-16	Parallel In Parallel Out, 8271 Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16	Parallel In Parallel Out, AS Series, 4-Bit, Right Direction, True Output, CDIP16, CERAMIC, DIP-16
Parts packaging code	DIP	DFP	DIP	DIP	DIP	DIP	DFP	DIP	DIP	DIP
package instruction	DIP,	DFP,	DIP,	DIP,	DIP,	DIP,	DFP,	DIP,	CERAMIC, DIP-16	CERAMIC, DIP-16
Contacts	14	14	16	16	14	14	14	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	8270	8271	AS	8271	8270	8270	8270	8271	8271	AS
JESD-30 code	R-CDIP-T14	R-PDFP-F14	R-PDIP-T16	R-CDIP-T16	R-CDIP-T14	R-PDIP-T14	R-PDFP-F14	R-PDIP-T16	R-CDIP-T16	R-CDIP-T16
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	14	14	16	16	14	14	14	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	125 °C	70 °C	125 °C	70 °C	125 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DIP	DIP	DIP	DFP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	40 ns	40 ns	20 ns	40 ns	40 ns	40 ns	40 ns	40 ns	40 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	NO	YES	NO	NO	NO
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	15 MHz	15 MHz	40 MHz	15 MHz	15 MHz	15 MHz	15 MHz	15 MHz	15 MHz	40 MHz
Maker	Lansdale	Lansdale	-	Lansdale	Lansdale	Lansdale	Lansdale	Lansdale	Lansdale	Lansdale
