SCS480N
Elektronische Bauelemente
VOLTAGE 45 V, 1 A
Small Signal Schottky Plastic-Encapsulate Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
SOT-353
FEATURES
♦
♦
Low current rectification
High reliability
C
5
C
4
A
E
L
B
MARKING
3T
F
DG
H
K
C
J
1 2
A N/A
3
A
REF.
A
B
C
D
E
F
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
°
C ambient temperature unless otherwise specified.
TYPE NUMBER
Peak Reverse Voltage
DC Reverse
Peak Forward Current
Mean Rectifying Current
Junction & Storage Temperature
Millimeter
Min.
Max.
2.00
2.20
2.15
2.45
1.15
1.35
0.90
1.10
1.20
1.40
0.15
0.35
REF.
G
H
J
K
L
Millimeter
Min.
Max.
0.100 REF.
0.525 REF.
0.08
0.15
8°
0.650 TYP.
SYMBOL
V
RM
V
R
I
FM
I
O
T
J
,T
STG
VALUE
45
40
1
0.1
125, -40~125
UNIT
V
V
A
A
°
C
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
°
C ambient temperature unless otherwise specified.
PARAMETER
Reverse Current
Forward Voltage
Capacitance between Terminals
SYMBOL
I
R
V
F
C
T
TYP
MAX
1
5
450
600
25
UNIT
µA
µA
mV
mV
pF
pF
TEST CONDITION
V
R
=10V
V
R
=40V
I
F
=10mA
I
F
=100mA
V
R
=0V
V
R
=10V, f=1MHz
6
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2009 Rev. A
Page 1 of 2
SCS480N
Elektronische Bauelemente
VOLTAGE 45 V, 1 A
Small Signal Schottky Plastic-Encapsulate Diode

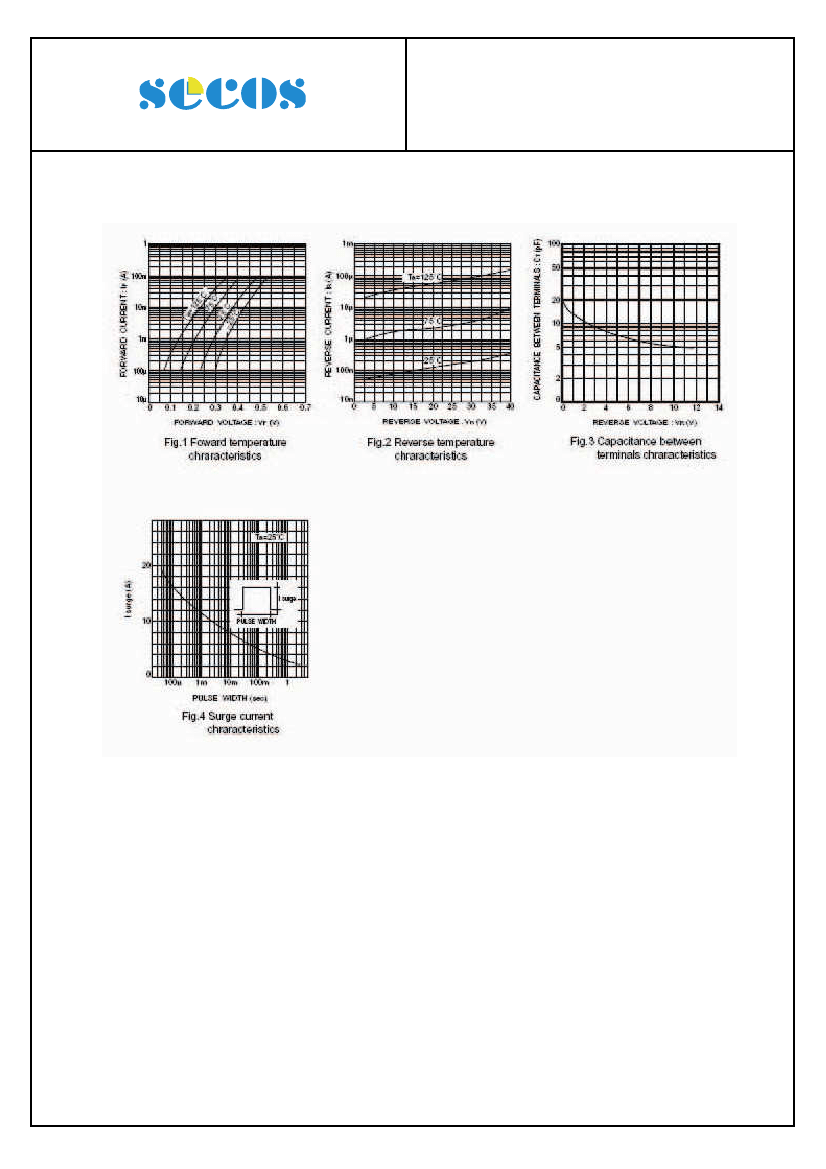

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2009 Rev. A
Page 2 of 2
