SEF101MH~SEF107MH
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
1.0 Amp High Efficiency Recovery Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen-free
FEATURES
SOD-123MH
A
B
F
D
Batch process design, excellent power dissipation offers
better reverse leakage current and thermal resistance.
Low profile surface mounted application
in order to optimize board space.
High current capability.
Ultrafast recovery time for high efficiency.
Glass passivated chip junction.
MECHANICAL DATA
C
E
E
Case: Molded plastic, SOD-123MH
Epoxy: UL94-V0 rated flame retardant
Terminals: Plated terminals, solderable per MIL-STD-750,
Method 2026.
Polarity: Indicated by cathode band
Mounting Position: Any
Weight: 0.011 gram (Approximately)
Millimeter
REF.
Min.
A
B
C
3.30
1.40
0.60
Max.
3.70
1.80
1.00
D
E
F
REF.
Millimeter
Min.
Max.
3.10 (Max.)
0.80 (Typ.)
0.30 (Typ.)
MARKING CODE
Part Number
Marking Code
Part Number
Marking Code
SEF101MH
SEF102MH
SEF103MH
SEF104MH
H1
H2
H3
H4
SEF105MH
SEF106MH
SEF107MH
H5
H6
H7
PACKAGE INFORMATION
Package
SOD-123MH
MPQ
3K
LeaderSize
7’ inch
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified.)
Part Number
Parameter
Repetitive Peak
Reverse Voltage (Max.)
RMS Voltage (Max.)
Continuous Reverse Voltage(Max.)
Symbol
V
RRM
V
RMS
V
R
SEF
101MH
50
35
50
SEF
102MH
100
70
100
SEF
103MH
200
140
200
SEF
104MH
400
280
400
SEF
105MH
600
420
600
SEF
106MH
800
560
800
SEF
107MH
1000
700
1000
Unit
V
V
V
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
09-Feb-2011 Rev. A
Page 1 of 3
SEF101MH~SEF107MH
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
1.0 Amp High Efficiency Recovery Rectifiers
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Part Number
Parameter
Forward Voltage (Max.)
Average Forward
Rectified Current (Max.)
Symbol
V
F
I
O
SEF
101
MH
SEF
102
MH
SEF
103
MH
SEF
104
MH
SEF
105
MH
SEF
106
MH
SEF
107
MH
Unit
V
A
Testing
Condition
1
1.3
1
1.7
Ambient
Temperature =50°C
8.3ms single half
sine-wave
superimposed on
rated load (JEDEC
method)
Forward Surge Current
I
FSM
25
A
DC Reverse Current at
Rated DC Blocking Voltage (Max.)
Thermal Resistance
Junction to Ambient (Typ.)
Diode Junction Capacitance (Typ.)
Storage and Operating
Temperature Range
Reverse recovery time
5
I
R
150
R
JA
C
J
T
STG
, T
J
T
RR
50
42
70
-65 ~ 175, -55 ~ 150
75
A
°C/W
pF
°C
nS
V
R
=V
RRM
, T
A
=25°C
V
R
=V
RRM
,T
A
=100°C
f=1MHz and applied
4V DC reverse voltage
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
09-Feb-2011 Rev. A
Page 2 of 3
SEF101MH~SEF107MH
Elektronische Bauelemente
VOLTAGE 50 ~ 1000 V
1.0 Amp High Efficiency Recovery Rectifiers

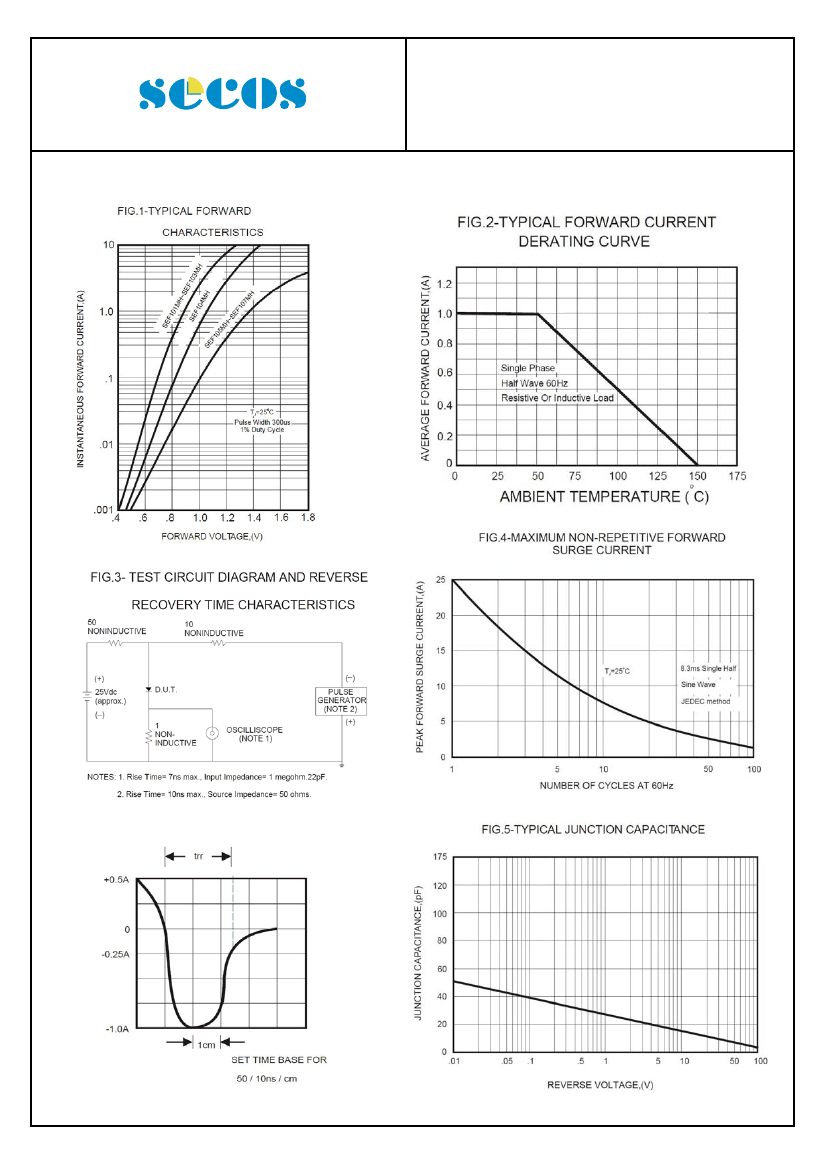

RATINGS AND CHARACTERISTIC CURVES
