REVISION N
4 POWER POS ONLY:
{(No OF SIGNAL POS x .100)
+ (4 POWER POS x .200) + .080} .010
LESS THAN 4 POWER POS:
{(No OF SIGNAL POS x .100)
+ (No OF POWER POS x .200) + .050} .010
C2
C1
HPMC-1XX-XX-XX-X-XX
No OF POSITIONS
-02 THRU -24
(PER ROW)
LEAD STYLE
-01, -03, *-05: THROUGH HOLE
-02, -04, *-06: SURFACE MOUNT
(T-1S6-XX-XX-2 & T-1S8-04-XX)
[SEE TABLE 1]
PLATING SPECIFICATION
-T: TIN (USE T-1S6-XX-T-2 & T-1S8-04-T)
-L: LIGHT SELECTIVE GOLD
(USE T-1S6-XX-L-2 & T-1S8-04-T)
-TM: MATTE TIN (USE T-1S6-XX-T-2 & T-1S8-04-T)
-LM: LIGHT SELECTIVE GOLD, MATTE TIN TAIL
(USE T-1S6-XX-L-2 & T-1S8-04-T)
N
POWER POSITIONS
-02 THRU -04
(USE T-1S8-04-XX)
DO NOT
SCALE FROM
THIS PRINT
.060 REF
(No OF POSITIONS -1) x .1000
.200
REF
ROW SPECIFICATION
-D: DOUBLE (USE HPMC-XX-D-X)
* = NOT TOOLED
63
01
01
.200 REF
64
02
04
N
.100 REF
C3
(No OF POWER POSITIONS -1) x .2000
2 MAX SWAY
(ANY DIRECTION)
90°
- 0°
+5°
"B"
.190 (SEE NOTE 7)
C4
"A"
C5
.050±.010
SEE NOTE 2
.100
.025 SQ REF
.045 SQ REF
.280 REF
SURFACE MOUNT: IN-PROCESS 1
FOR POWER END
SURFACE MOUNT: STYLES -02, -04, -06
"B"
.095±.010
"L"
.100±.010
(SEE NOTE 7)
NOTES:
SURFACE MOUNT: IN-PROCESS 2
FOR POWER END
[DIFFERENT AS SHOWN, OTHERWISE SAME AS SURFACE MOUNT]
THROUGH HOLE: STYLES -01, -03, -05
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY (SEE TABLE 2)
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.
7. POWER END TAILS SHEARED TO ACHIEVE DIMENSION SHOWN.
8. TIN PLATED PINS MUST BE FILLED IN THE SAME WAY AS THE SELECTIVE PLATED
C6
PINS TO REDUCE THE NUMBER OF BAND MARKS IN THE POST AREA.
PACKAGING VIEW
SURFACE
MOUNT
THROUGH
HOLE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
DESCRIPTION:
DWG. NO.
* = FOR BOTTOM MOUNT & PASS THROUGH
TUBE: PT-1-24-15-29
PLUG: TP-07
TUBE: PT-1-24-02-53
PLUG: TP-03
INSULATOR: VECTRA E130i
COLOR: BLACK
SIGNAL TERMINAL: PHOS BRONZE
POWER TERMINAL: CDA 7025
c:\enterprisevault\DWG\MISC\MKTG\HPMC-1XX-XX-XX-X-XX-MKT.SLDDRW

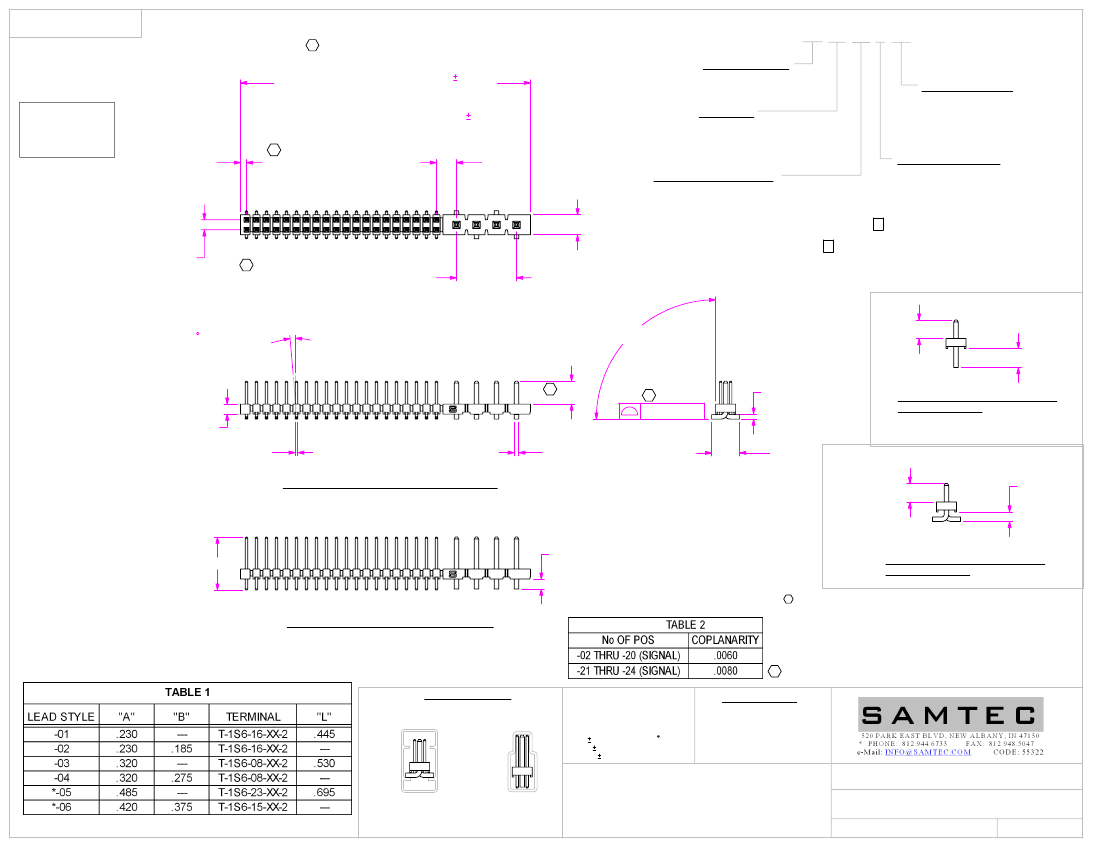

HI POWER MALE COMBO
HPMC-1XX-XX-XX-X-XX
2/15/1999
SHEET
1
OF
1
BY:
DEAN P
Embedded System
