54246-0300 datasheet, PDF - EEWORLD Datasheet

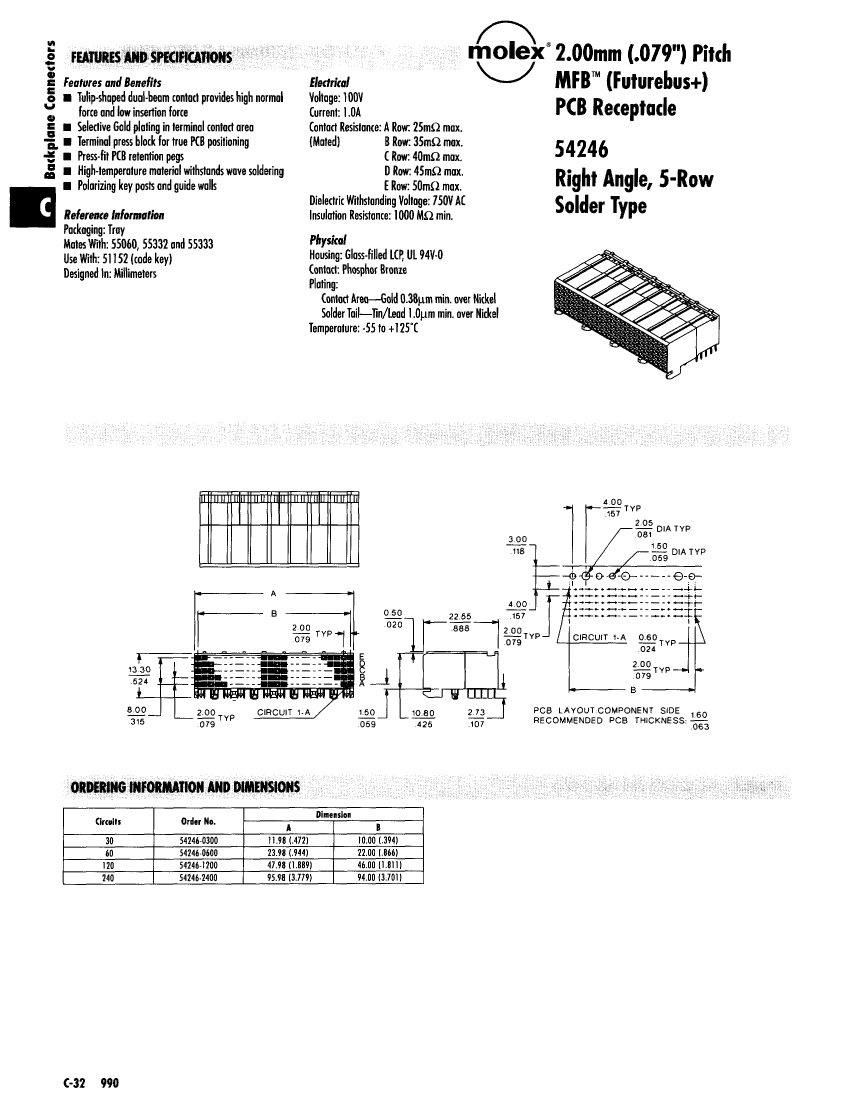

54246-0300: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54246-0300 Overview

Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	MFB, POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54246
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0

	54246-0300	54246-0600	54246-2400	54246-1200
Description	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	MFB, POLARIZED	MFB, POLARIZED	MFB, POLARIZED	MFB, POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	54246	54246	54246	54246
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	60	240	120
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
