SM5100B
Elektronische Bauelemente
Voltage 100V
5.0Amp Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SMB
High Current Capability
Extremely Low Thermal Resistance
For Surface Mount Application
Higher Temp Soldering : 250°C for 10 Seconds at Terminals
Low Revise Current
A
B
C
MECHANICAL DATA
Case: Molded Plastic
Epoxy: UL 94V-0 Rate Flame Retardant
Lead: Axial Leads, Solderable per MIL-STD-202
method 208 Guaranteed
Polarity: Color Band Denotes Cathode End
Mounting Position: Any
H
D
G
E
F
Millimeter
Min.
Max.
-
0.203
5.08
5.59
0.76
1.52
0.15
0.305
PACKAGE INFORMATION
Package
SMB
MPQ
3K
Leader Size
13’ inch
REF.
A
B
C
D
Millimeter
Min.
Max.
1.91
2.20
4.06
4.70
3.30
3.94
2.13
2.44
REF.
E
F
G
H
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
Parameter
Peak Repetitive Peak reverse voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Average Forward Current @T
J
=25°C
Peak Forward Current @ 8.3 ms Half Sine
Maximum Instantaneous Forward
Voltage
Maximum DC Reverse Current
At Rated DC Blocking Voltage
4
Typical Junction Capacitance
Typical Thermal Resistance
2
Typical Thermal Resistance
3
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
V
F
I
FM
= 5.0 A, T
A
= 25°C
I
FM
= 5.0 A, T
A
= 75°C
I
FM
= 5.0 A, T
A
= 125°C
T
J
= 25°C
T
J
= 100°C
I
R
C
J
R
θJA
R
θJC
dv/dt
T
J
T
STG
Ratings
100
100
100
5
125
0.82
0.73
0.65
100
800
350
60
20
1000
-50~150
-65~150
Unit
V
V
V
A
A
V
μA
pF
°C/W
°C/W
V /
μs
°C
°C
Voltage Rate of Chance (Rated V
R
)
Operating Temperature Range
Storage temperature
Notes:
1.
2.
3.
4.
Measured at 1MHz and applied reverse voltage of 5.0 V D.C.
Thermal Resistance Junction to Ambient.
Thermal Resistance Junction to Case.
Pulse Test：Pulse Width
≦
300
μs,
Duty Cycle
≦
2.0%.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
29-Apr-2011 Rev. C
Page 1 of 2
SM5100B
Elektronische Bauelemente
Voltage 100V
5.0Amp Schottky Barrier Rectifiers

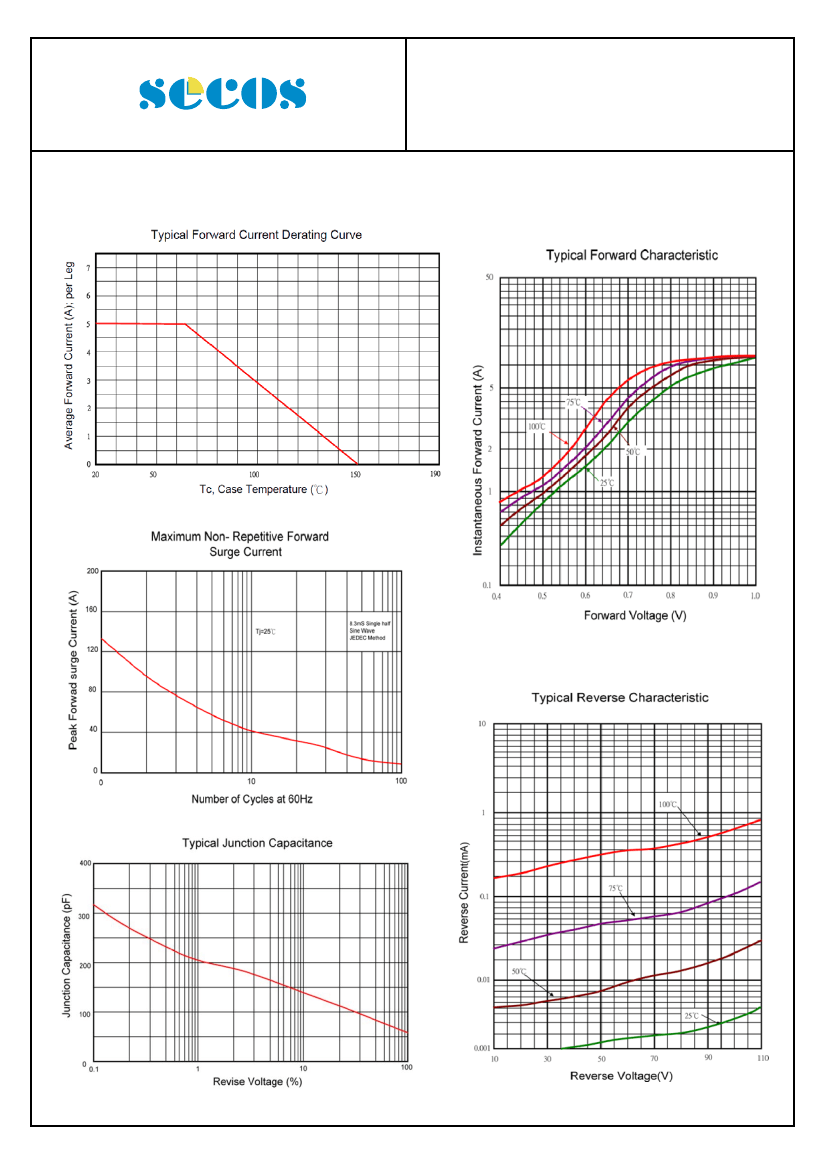

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
29-Apr-2011 Rev. C
Page 2 of 2
