SM220B
THRU
SM2100B
Elektronische Bauelemente
VOLTAGE 20V ~ 100V
2.0 AMP Surface Mount Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
FEATURES
DO-214AA (SMB)
.
RoHS Compliant Product
.
Ideal for surface mount applications
.
Easy pick and place
.
Built-in strain relief
.
Low forward voltage drop
MECHANICAL DATA
.083(2.11)
.075(1.91)
.155(3.94)
.130(3.30)
.185(4.70)
.160(4.06)
.012(0.31)
.006(0.15)
.096(2.44)
.083(2.13)
.050(1.27)
.030(0.76)
.008
MAX.
(.203)
.220(5.59)
.200(5.08)
.
Case: Molded plastic
.
Epoxy: UL 94V-0 rate flame retardant
.
Metallurgically bonded construction
.
Polarity: Color band denotes cathode end
.
Mounting position: Any
.
Weight: 0.102 grams
Dimens ions in inches and (millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
O
SM220B
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
20
Working Peak Reverse Voltage
20
Maximum DC Blocking Voltage
20
Maximum Average Forward Rectified Current,
See Fig. 1
Peak Forward Surge Current, 8.3 ms single half
sine-wave superimposed on rated load
(JEDEC method)
Maximum Instantaneous Forward Voltage at 2.0A
Maximum DC Reverse Current
Ta=25
C
At Rated DC Blocking Voltage
Ta
=100 C
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance R JA (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Valid provided that terminals are kept at ambient temperature.
SM230B
SM240B
SM260B
SM2100B
30
30
30
40
40
40
2.0
60
60
60
60
100
100
100
UNITS
V
V
V
A
A
0.52
0.2
15
170
24
- 50 ~ + 150
- 65 ~ + 175
0.65
0.1
10
0.83
0.1
4
V
mA
pF
/W
http://www.SeCoSGmbH.com/
01-Jun-2009 Rev.
C
Any changing of specification will not be informed individual
Page 1 of 2
SM220B
THRU
SM2100B
Elektronische Bauelemente
VOLTAGE 20V ~ 100V
2.0 AMP Surface Mount Schottky Barrier Rectifiers

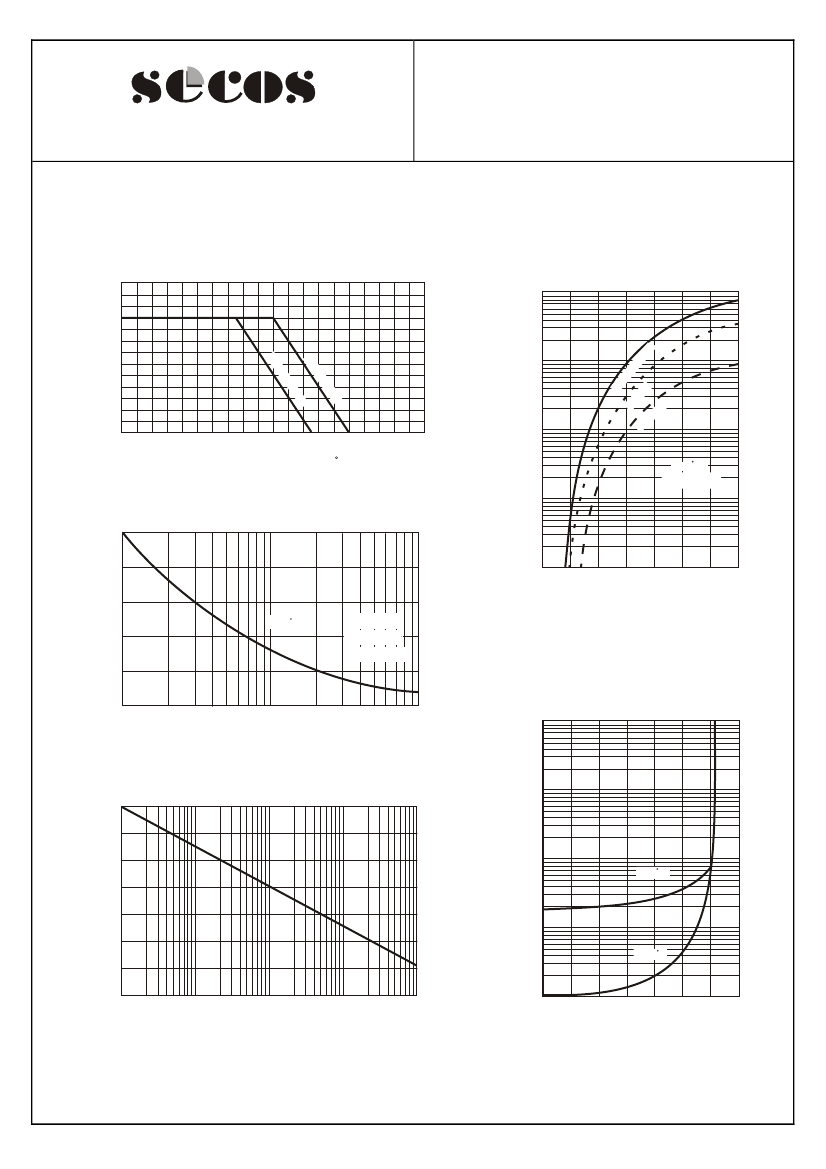

RATING AND CHARACTERISTIC CURVES (SM220B THRU SM2100B)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
2.4
2.0
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
50
INSTANTANEOUS FORWARD CURRENT,(A)
1.6
SM
SM
SM
3.0
1.0
26
0B
0.8
0.4
SM
22
0B
~S
M
1.2
10
24
0B
26
22
0B
M
~S
24
0B
0B
M
~S
21
00
B
SM
21
00
B
0
20
40
60
80
100
120
140
160
180
200
AMBIENT TEMPERATURE ( C)
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWAARD SURGE CURRENT,(A)
50
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0.1
40
.01
.1
.3
.5
.7
.9
1.1
1.3
1.5
30
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
FORWARD VOLT
AGE,(V)
20
10
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
350
300
250
200
150
100
50
0
JUNCTION CAPACITANCE,(pF)
REVERSE LEAKAGE CURRENT, (mA)
10
1.0
Tj=75 C
.1
T j=25 C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENTAGE RATED PEAK REVERSE VOL
TAGE
http://www.SeCoSGmbH.com/
01-Jun-2009 Rev.
C
Any changing of specification will not be informed individual
Page 2 of 2
