BHS-104-T-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BHS-104-T-H

BHS-104-T-H: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size996KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BHS-104-T-H Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

BHS-104-T-H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL (50)
Contact completed and terminated	TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BHS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

BBS–116–G–C

F-210

BDL–120–T–F

BBL

(3.89mm)

.153"

(2,54mm) .100"

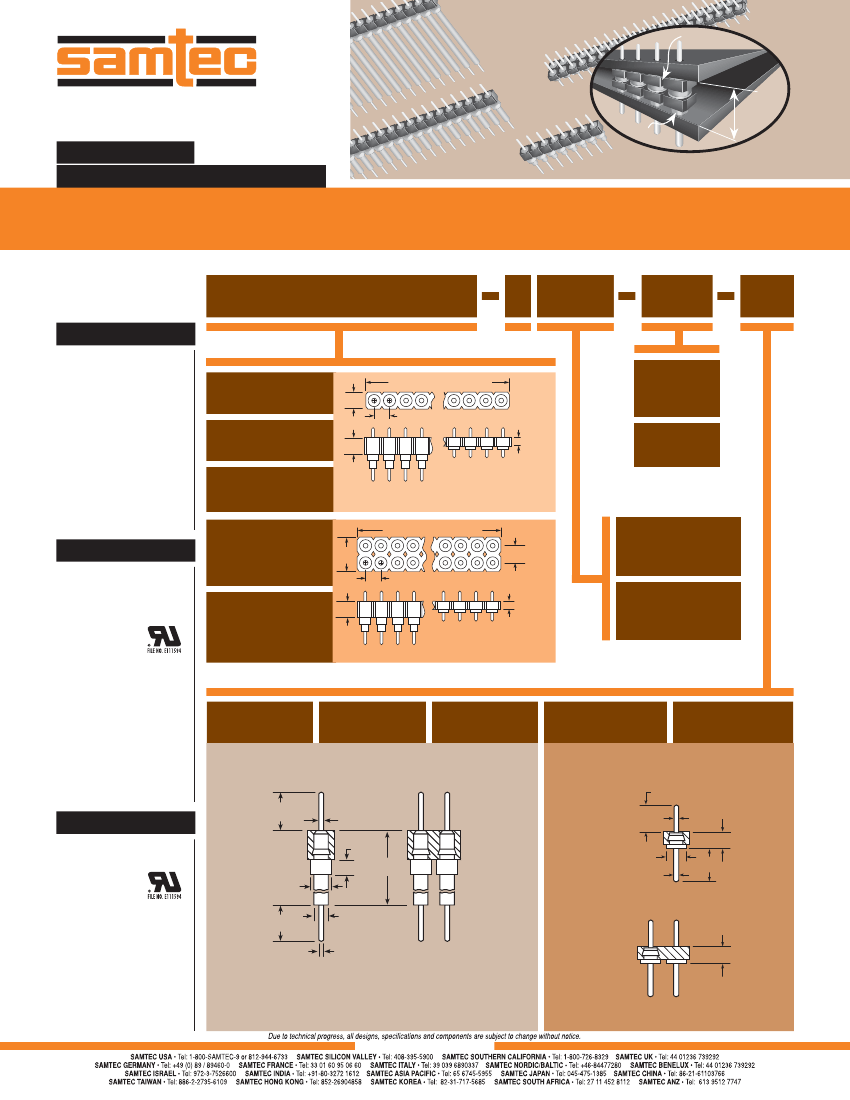

BBS, BBL, BHS, BBD, BDL SERIES

BBS–120–T–B

BBS–108–T–A

MACHINED BOARD STACKING STRIPS

Mates with:

SS, SD, HSS, SL, SDL,

ESS, ESD

TYPE

STRIP

NO. PINS

PER ROW

PLATING

OPTION

LEAD

STYLE

FEATURES

•

Low proﬁle design

achieves (3,89mm)

.153" board spacings

when mated with SL

series.

•

Choice of precision

machined (BXX Series)

or coined (LBS Series)

terminals.

•

Approach the reliability

of a permanent

connection with the

ﬂexibility of a separable

connection.

BBS

= Standard Single Row

(2,54) .100 x No. of Positions

(2,54)

.100

(2,54) .100 TYP

(1,27)

.050

–G

=20µ" (0,51µm)

Gold

BBL

= Low Proﬁle Single Row

(2,54)

.100

–T

=Tin

BBL body available with

Styles –E & –F only.

BHS

= High Temp Single Row

BBS

BHS

BBL

(2,54) .100 x No. of Positions

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?BBS,

www.samtec.com?BBD,

www.samtec.com?BBL or

www.samtec.com?BDL

BBD

= Standard Double Row

(5,08)

.200

(2,54) .100 TYP

(2,54)

.100

(1,27)

.050

01 thru 32

= BBS & BBL

BDL

= Low Proﬁle Double Row

(2,54)

.100

01 thru 36

= BBD, BDL & BHS

BDL body available with

Styles –E & –F only.

BBS, BBD,

BBL, BDL

Insulator Material:

Black Glass Filled Polyester

(BBS, BBD, BBL)

Black High Temp Nylon (BDL)

Temperature Range:

-55°C to +125°C

Terminal Material:

Phosphor Bronze or Brass

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Current Rating:

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

BBD

BDL

–A

Z = (5,33) .210

–B

Z = (8,51) .335

–C

Z = (14,86) .585

–E

Z = (1,78) .070

–F

Z = (2,16) .085

Style E:

(2,74)

.108

Style F:

(3,18)

.125

(0,46)

.018 DIA

(3,18)

.125

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?BHS

(0,46)

.018

DIA

(1,27)

.050

(1,78)

.070 DIA

(0,46)

.018 DIA

(3,18)

.125

BHS

Same as BBS

except:

Insulator Material:

Black Liquid Crystal Polymer

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

with all Au

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave, or reﬂow with all Au

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(1,78)

.070

DIA

(1,27)

.050 DIA

(0,46)

.018

DIA

BBL

Series

(3,18)

.125

BBD

Series

BDL

Series

BBS and BHS

Series

WWW.SAMTEC.COM
