TA8420 datasheet, PDF - EEWORLD Datasheet

TA8420: DescriptionBRUSHLESS DC MOTOR CONTROLLER, 2 A, PDSO10; Categoryaccessories; File Size433KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

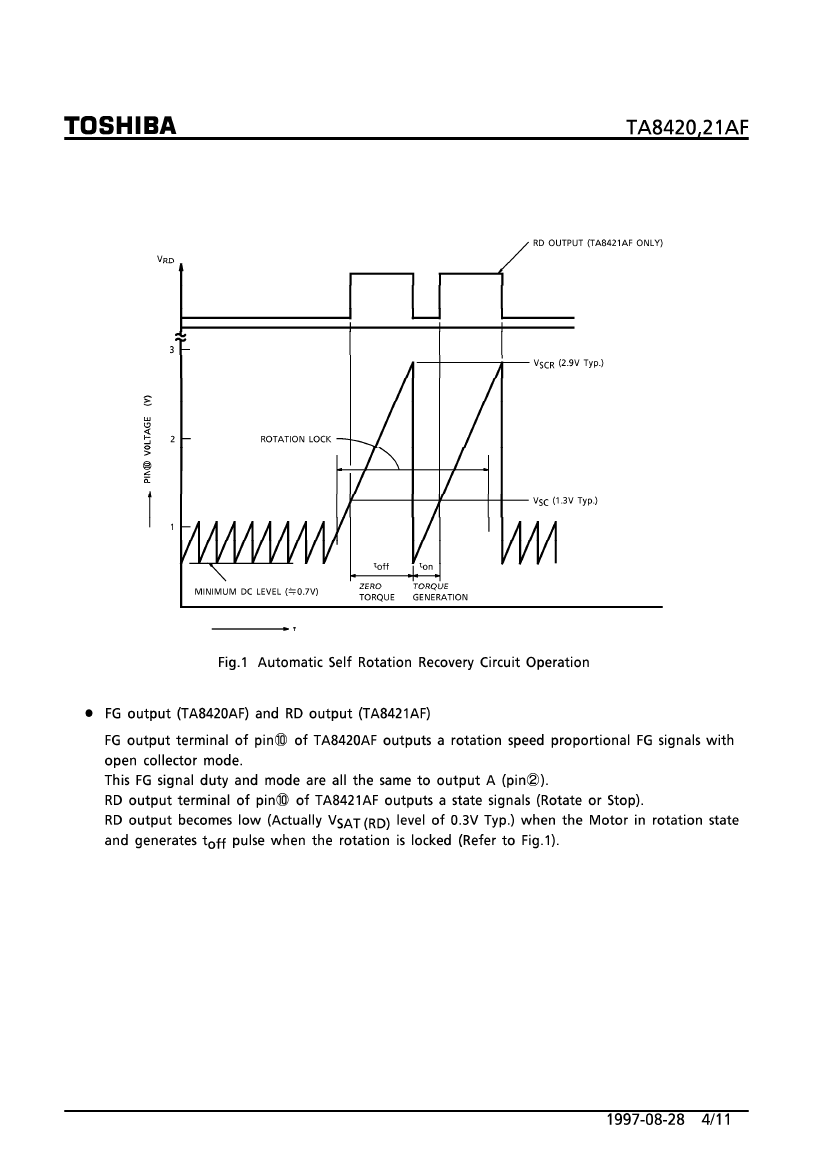

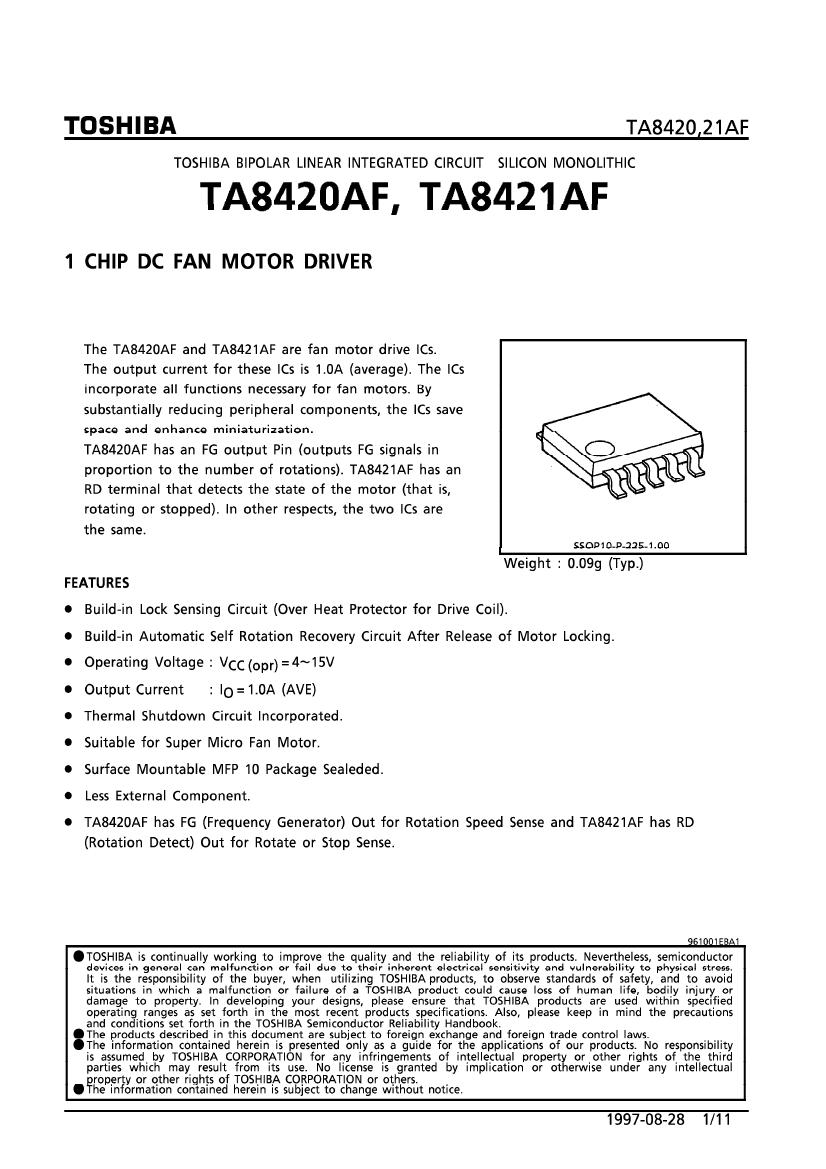

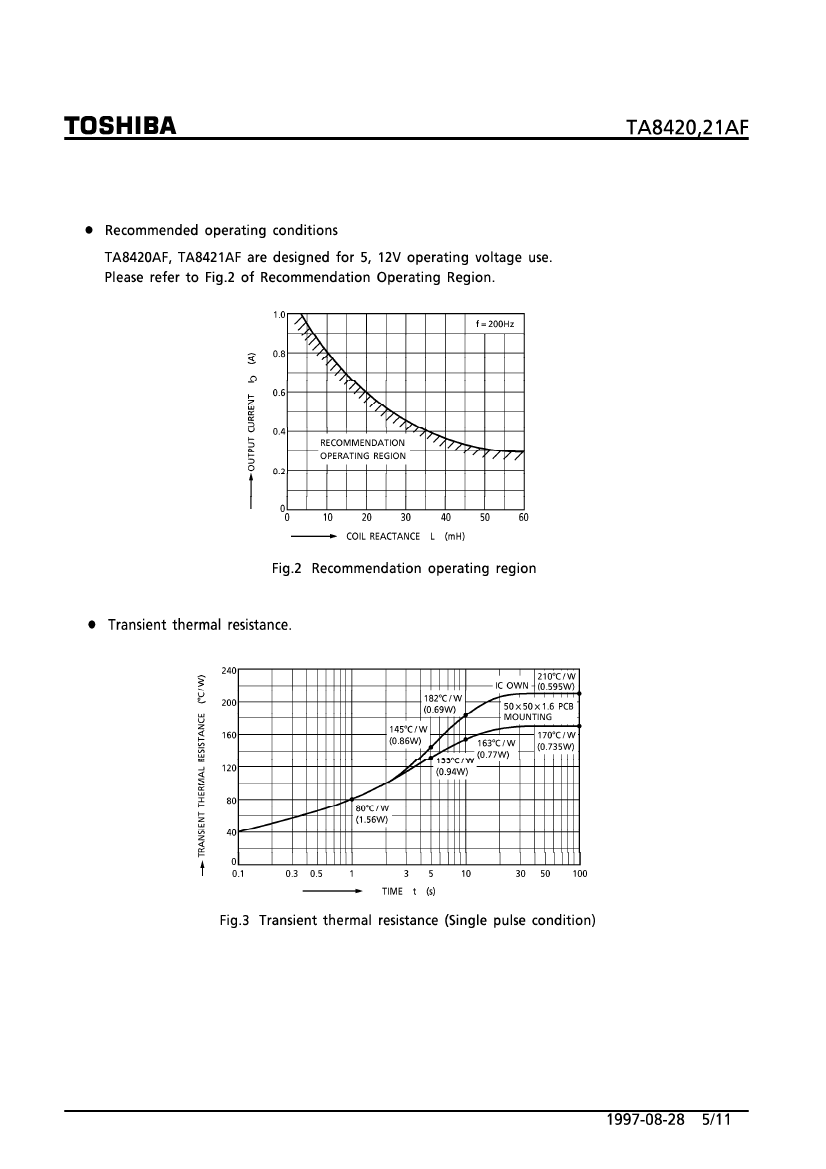

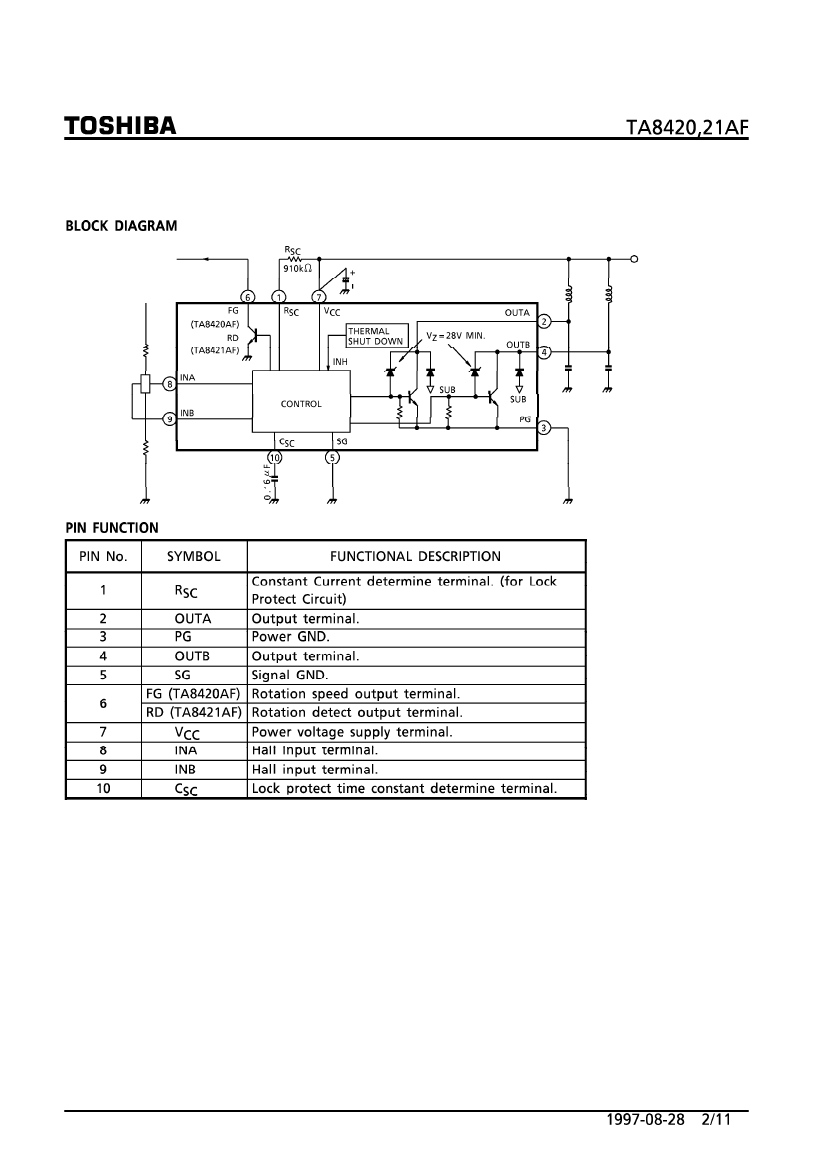

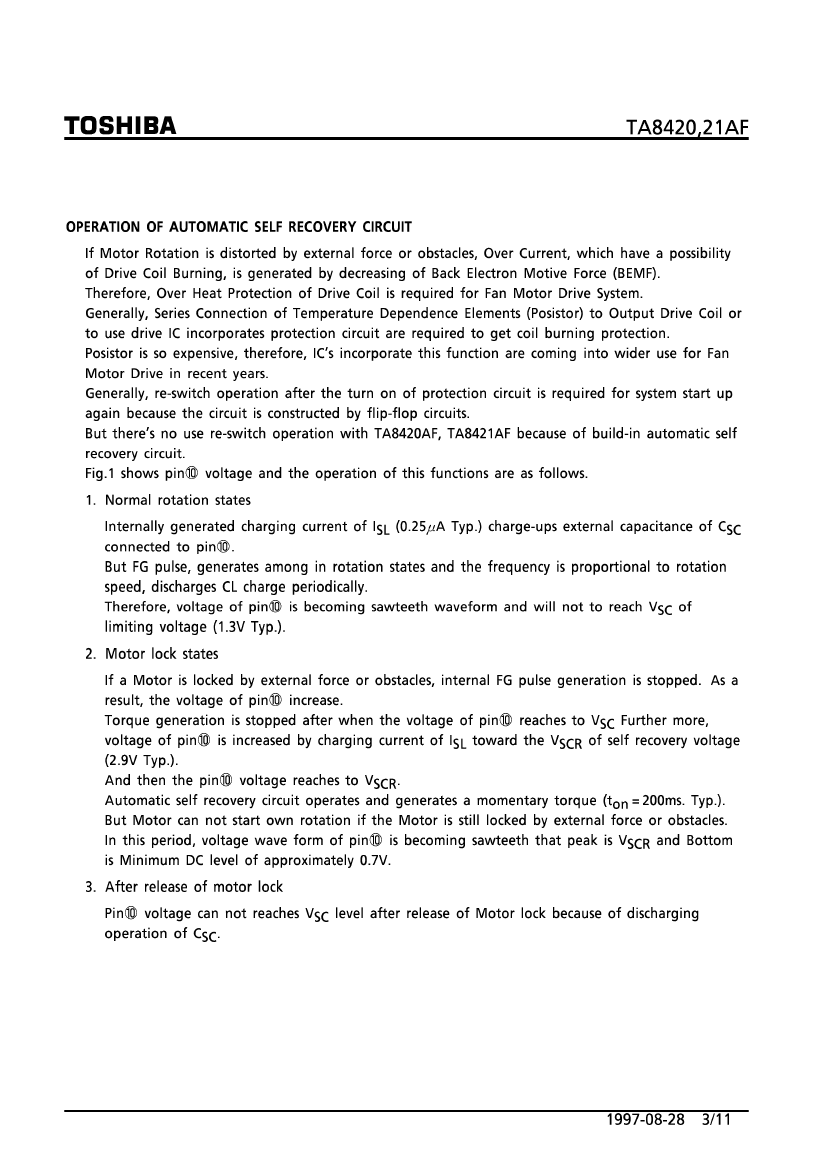

TA8420 Overview

BRUSHLESS DC MOTOR CONTROLLER, 2 A, PDSO10

	TA8420	TA8420AF	TA8421AF
Description	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PDSO10	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PDSO10	BRUSHLESS DC MOTOR CONTROLLER, 2 A, PDSO10
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	-	SSOP	SSOP
package instruction	-	0.225 INCH, 1 MM PITCH, PLASTIC, SSOP-10	0.225 INCH, 1 MM PITCH, PLASTIC, SSOP-10
Contacts	-	10	10
Reach Compliance Code	-	unknow	unknow
Analog Integrated Circuits - Other Types	-	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	-	R-PDSO-G10	R-PDSO-G10
JESD-609 code	-	e0	e0
length	-	5.2 mm	5.2 mm
Number of functions	-	1	1
Number of terminals	-	10	10
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-30 °C	-30 °C
Maximum output current	-	2 A	2 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SSOP	SSOP
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	-	15 V	15 V
Minimum supply voltage (Vsup)	-	4 V	4 V
Nominal supply voltage (Vsup)	-	12 V	12 V
surface mount	-	YES	YES
Temperature level	-	OTHER	OTHER
Terminal surface	-	TIN LEAD	TIN LEAD
Terminal form	-	GULL WING	GULL WING
Terminal pitch	-	1 mm	1 mm
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	4.4 mm	4.4 mm
