55492ADM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 55492ADM

55492ADM: DescriptionDisplay Driver, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size179KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

55492ADM Overview

Display Driver, BIPolar, CDIP14,

55492ADM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMMON-CATHODE
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Humidity sensitivity level	2A
Number of digits/characters	6-DIGIT
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	20 V
Certification status	Not Qualified
Nominal supply voltage	20 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

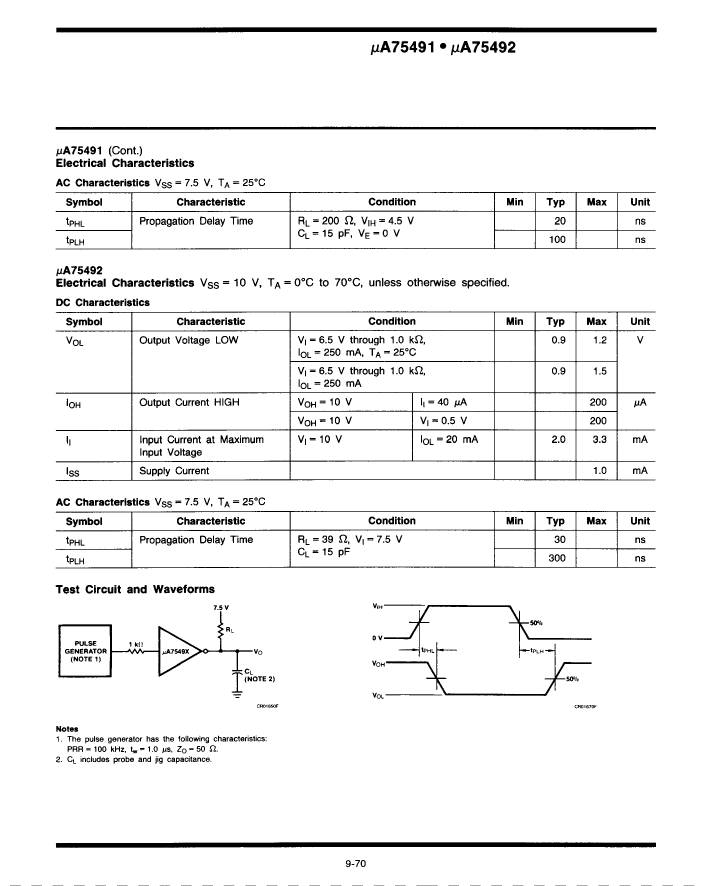

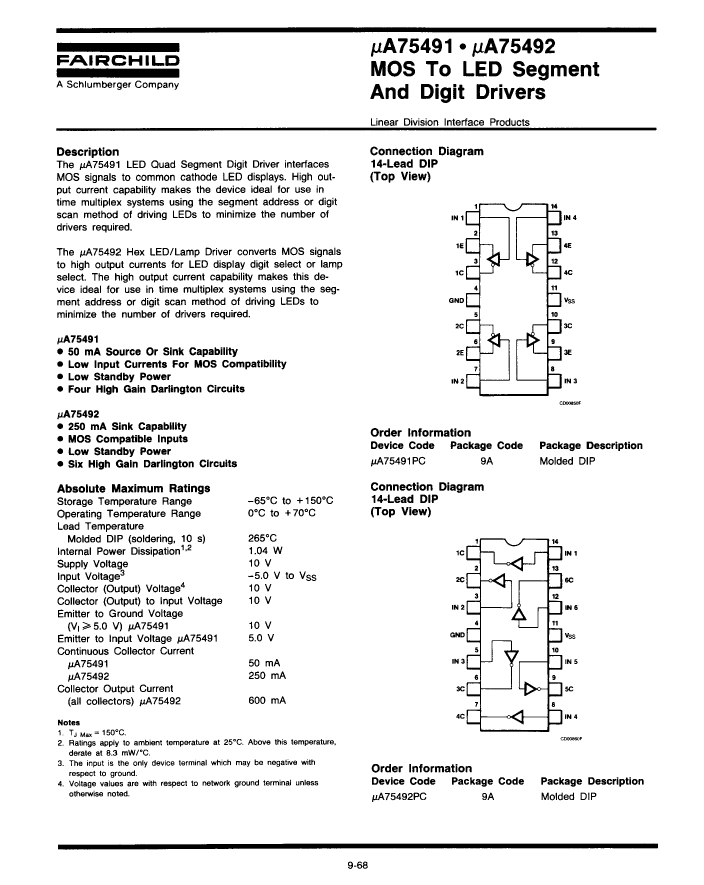

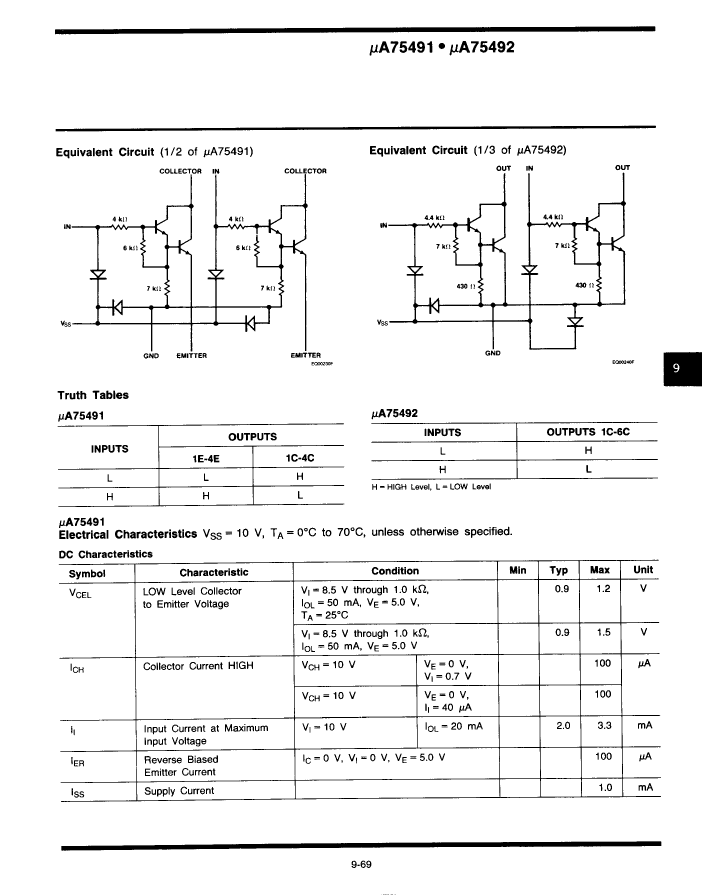

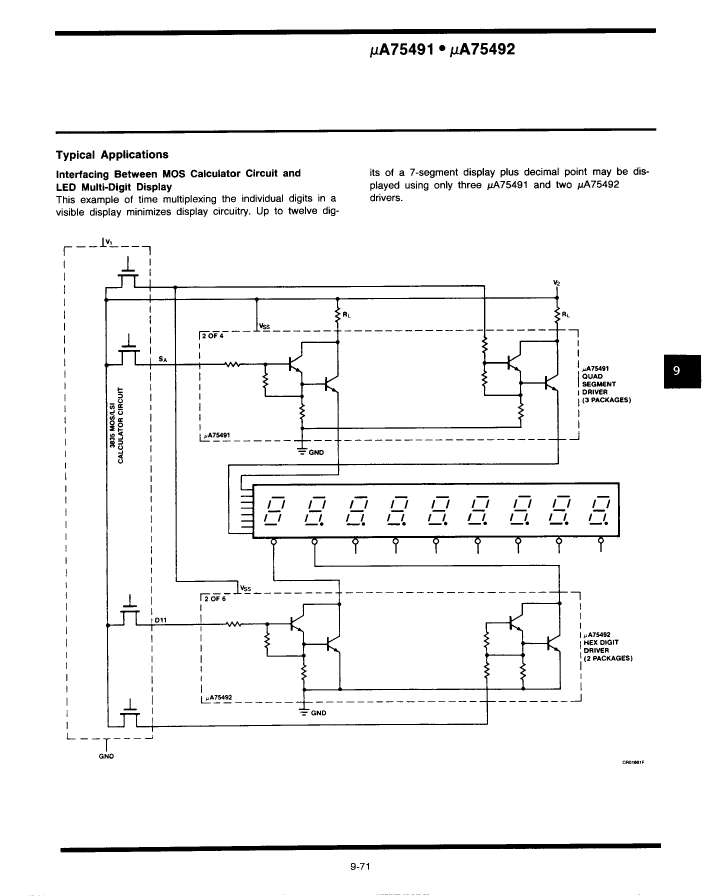

Preview

Download Datasheet

View All

55492ADM Related Products

	55492ADM	5962-01-182-1440	55492DM	55492ADMQB	75492APCQR	5962-01-017-9067
Description	Display Driver, BIPolar, CDIP14,	Display Driver, BIPolar, PDIP14,	Display Driver, BIPolar, CDIP14,	Display Driver, BIPolar, CDIP14,	Display Driver, BIPolar, PDIP14,	Display Driver, BIPolar, PDIP14,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
Other features	COMMON-CATHODE	COMMON-CATHODE	COMMON-CATHODE	COMMON-CATHODE	COMMON-CATHODE	COMMON-CATHODE
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14
Humidity sensitivity level	2A	2A	2A	2A	2A	2A
Number of digits/characters	6-DIGIT	6-DIGIT	6-DIGIT	6-DIGIT	6-DIGIT	6-DIGIT
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250
power supply	20 V	10 V	10 V	20 V	20 V	10 V
Nominal supply voltage	20 V	10 V	10 V	20 V	20 V	10 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
JESD-609 code	e0	-	e0	e0	e0	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
