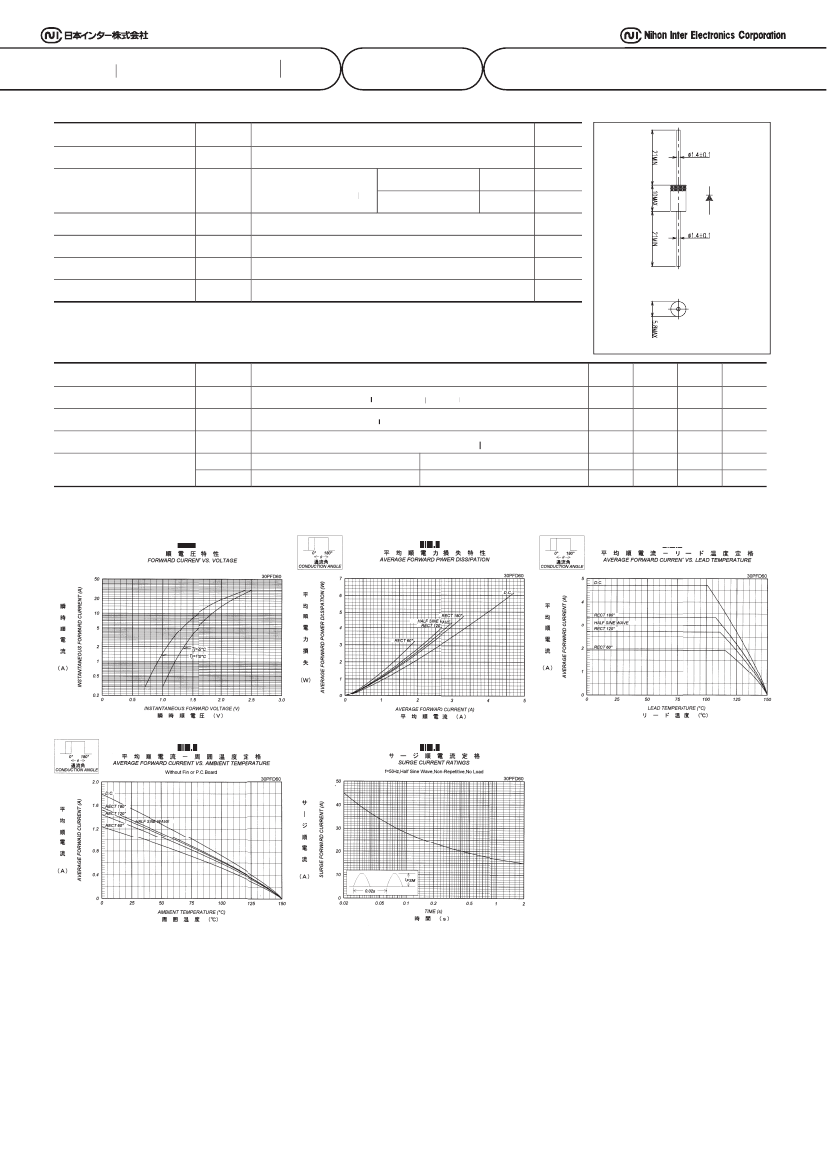

30PFD60_15

Description
FRED
File Size394KB,1 Pages
ManufacturerNI
Websitehttps://www.ni.com
Download Datasheet Compare View All

30PFD60_15 Overview

FRED

3A Avg.
A
■最大定格
Item
く り 返 し ピ ー ク 逆 電 圧
Repetitive Peak Reverse Voltage
Average Rectified Forward Current
R.M.S. Forward Current
Surge Forward Current
動 ½ 接 合 温 度 範 囲
Operating Junction Temperature Range
Storage Temperature Range
600 Volts
V
Symbol
V
RRM
I
O
I
F(RMS)
I
FSM
T
jw
T
stg
45A
50Hz、正弦半波通電抵抗負荷
50Hz Half Sine Wave Resistive Load
L
FRED
Conditions
600
Ta=25℃
Tl=113℃
Tl=Lead Temperature
30PFD60
■OUTLINE DRAWING(mm)
Unit
V
1.3
3.0
A
A
A
A
Maximum Ratings
4.71
50Hz正弦半波,1サイクル,非くり返し
50Hz Half Sine Wave,1cycle, Non-repetitive
−40∼+150
−40∼+150
■電気的・熱的特性 Electrical/ Thermal Characteristics
Item
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
■APPROX. NET WEIGHT:1.24g
Symbol
I
RM
V
FM
tr r
R
th(j-a)
R
th(j-l)
Conditions
T
j
=25℃, V
RM
=V
RRM
T
j
=25℃, I
FM
=3A
I
FM
=3A, −di/dt=50 A/μs, T
j
=25℃
di/dt=50
接合部・周囲間
Junction to Ambient
接合部½リード間
Junction to Lead
Min.
Typ.
Max.
20
1.45
45
80
8
Unit
μA
V
ns
℃/W
℃/W
単½フイン無し
*単½フイン無し / Without Fin or P.C. Board mounted
■定格・特性曲線
FIG.1
FIG.2
FIG.3
FIG.4
FIG.5
47
