PA112 datasheet, PDF - EEWORLD Datasheet

PA112: DescriptionNarrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size408KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

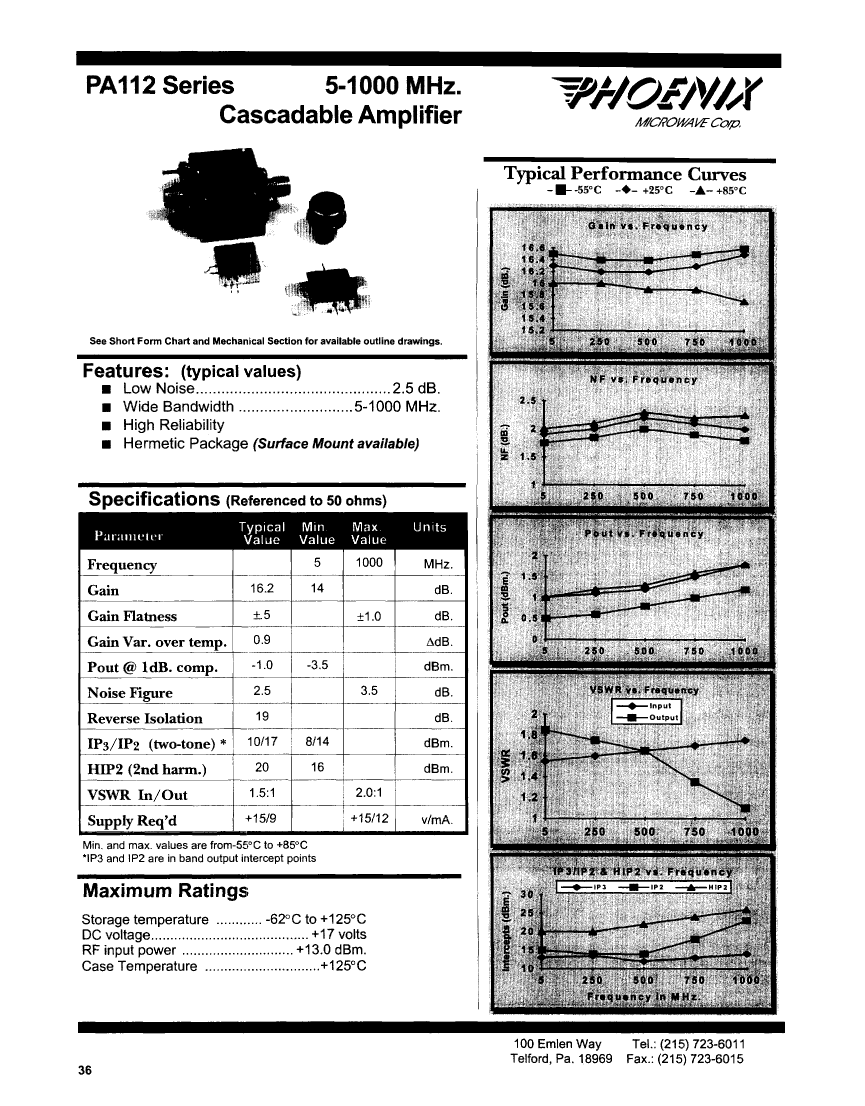

PA112 Overview

Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2

	PA112	PA112CS	PA112C	PA112FH	PA112F	PA112MH	PA112M
Description	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,	Narrow Band Low Power Amplifier, 5MHz Min, 1000MHz Max,
Maker	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM	MACOM
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER	NARROW BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
