PN7170

Description
10 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size197KB,4 Pages
ManufacturerSpectrum Microwave
Download Datasheet Parametric Compare View All

PN7170 Overview

10 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN

PN7170 Parametric

Parameter NameAttribute value
MakerSpectrum Microwave
Reach Compliance Codeunknown
Other featuresI/P POWER-MAX (PEAK)=27DBM
structureCOMPONENT
Gain7.5 dB
Maximum input power (CW)13 dBm
Maximum operating frequency250 MHz
Minimum operating frequency10 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum voltage standing wave ratio2

PN7170 Preview

Cross Reference Guide
PN7170 / SPN7170*
* Part number for additional environmental screening.
Performance Data
Frequency
Gain
Noise Figure
P
1dB
3
rd
Order Intercept
2
nd
Order Intercept
VSWR
Reverse Isolation
Power Supply
Operating Temperature
10.0 - 250.0 MHz
8.5 dB Typical
7.5 dB Min
1.5 dB Typical
2.5 dB Max
10.0 dBm Typical
9.0 dBm Min
26.0 dBm Typical
38.0 dBm Typical
1.8/2.0 Input Typ/Max
1.5/2.0 Output Typ/Max
-9.5 dB Typical
-9.0 dB Min
15.0 Volts
11.5 mA
-55.0 - 85.0 °C

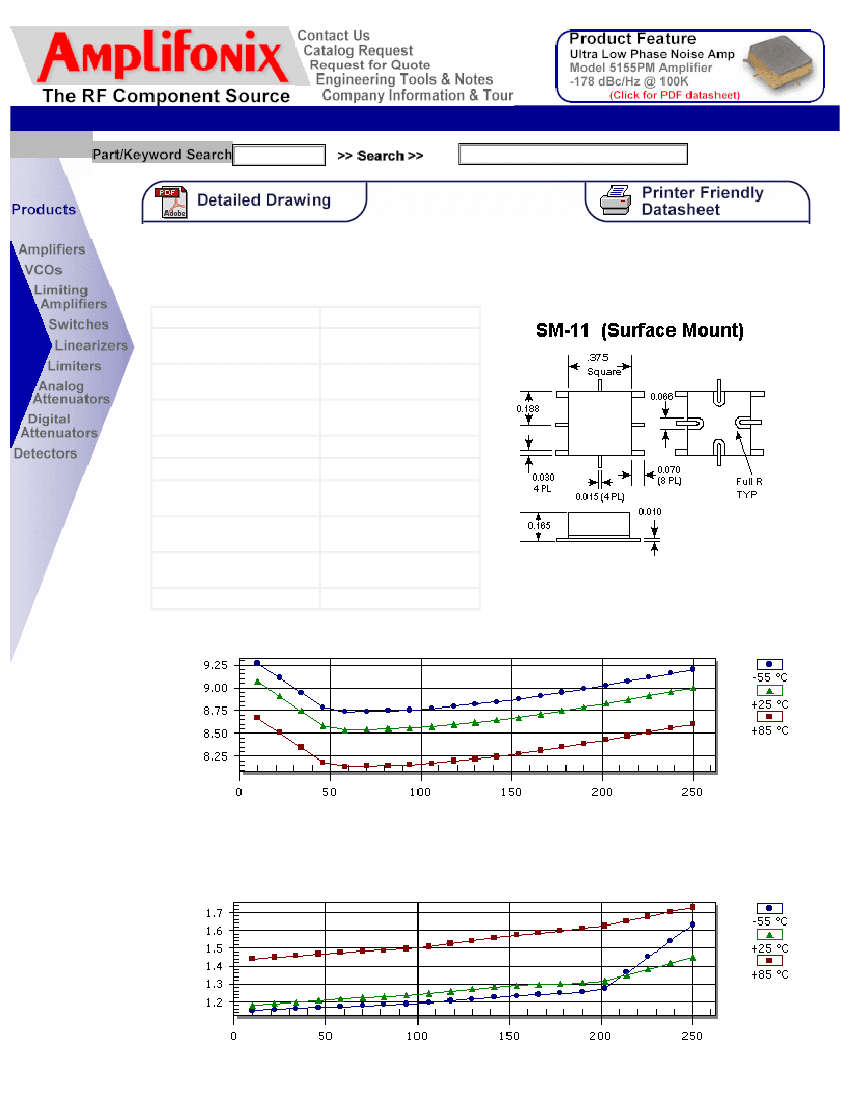

Package Drawing
Gain
dB
Frequency (MHz)
Noise Figure
dB
Frequency (MHz)
P
1dB
Compression Point
dBm
Frequency (MHz)
Reverse Isolation
dB
Frequency (MHz)
Input VSWR
Frequency (MHz)
Output VSWR
Frequency (MHz)
S-Parameters
Frequency S11 Mag S11 Ang S21 Mag S21 Ang S12 Mag S12 Ang S22 Mag S22 Ang
10.0
50.0
100.0
150.0
200.0
250.0
0.230
0.220
0.230
0.230
0.240
0.260
179.00
173.00
168.00
164.00
161.00
158.00
2.840
2.670
2.680
2.710
2.760
2.820
3.00
-8.00
-18.00
-27.00
-37.00
-47.00
0.270
0.270
0.280
0.260
0.250
0.240
3.00
-7.00
-16.00
-25.00
-33.00
-43.00
0.180
0.190
0.190
0.190
0.200
0.200
10.00
-8.00
-22.00
-35.00
-51.00
-69.00
Absolute Maximum Conditions
Maximum Operating Temperature
Maximum Case Temperature
Continuous RF Input Power
Maximum Peak Power
(3 µsec max)
-55.0 - 100.0 °C
125.0 °C
13.0 dBm
0.5 W
Maximum Storage Temperature
Maximum Supply Voltage
Short Term RF Input Power
(1 minute max)
-62.0 - 125.0 °C
18.0 Volts
50.0 mW
Amplifonix | 2707 Black Lake Place | Philadelphia, PA 19154
Tel: 215.464.4000 | FAX: 215.464.4001 | Email:
info@amplifonix.com
i2 Technologies US, Inc.
15445 Innovation Drive
San Diego, CA 92128
i2 Technologies US, Inc.
HTML Pages converted to PDF Document
This document contain component information from the
manufacturer's website which are not available in a revision
controlled document from the manufacturer. To facilitate the
addition of these parts into the Electronics Database, we are
converting the HTML pages related to that part, from the
manufacturer's website into Adobe PDF format. The contents of this
document is based on the information provided on the
manufacturer's website, therefore the information may have been
changed by the manufacturer since this was created.
Powering the Bottom Line ®

PN7170 Related Products

PN7170 SPN7170
Description 10 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN 10 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN
Maker Spectrum Microwave Spectrum Microwave
Reach Compliance Code unknown unknown
Other features I/P POWER-MAX (PEAK)=27DBM I/P POWER-MAX (PEAK)=27DBM
structure COMPONENT COMPONENT
Gain 7.5 dB 7.5 dB
Maximum input power (CW) 13 dBm 13 dBm
Maximum operating frequency 250 MHz 250 MHz
Minimum operating frequency 10 MHz 10 MHz
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C
RF/Microwave Device Types WIDE BAND LOW POWER WIDE BAND LOW POWER
Maximum voltage standing wave ratio 2 2
