8BUS9O22-094SW Overview

MIL Series Connector, 13 Contact(s), Aluminum Alloy, Female, Plug,

8BUS9O22-094SW Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-26482, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	ALUMINUM ALLOY
Housing size	22
Total number of contacts	13

Preview

Download Datasheet

View All

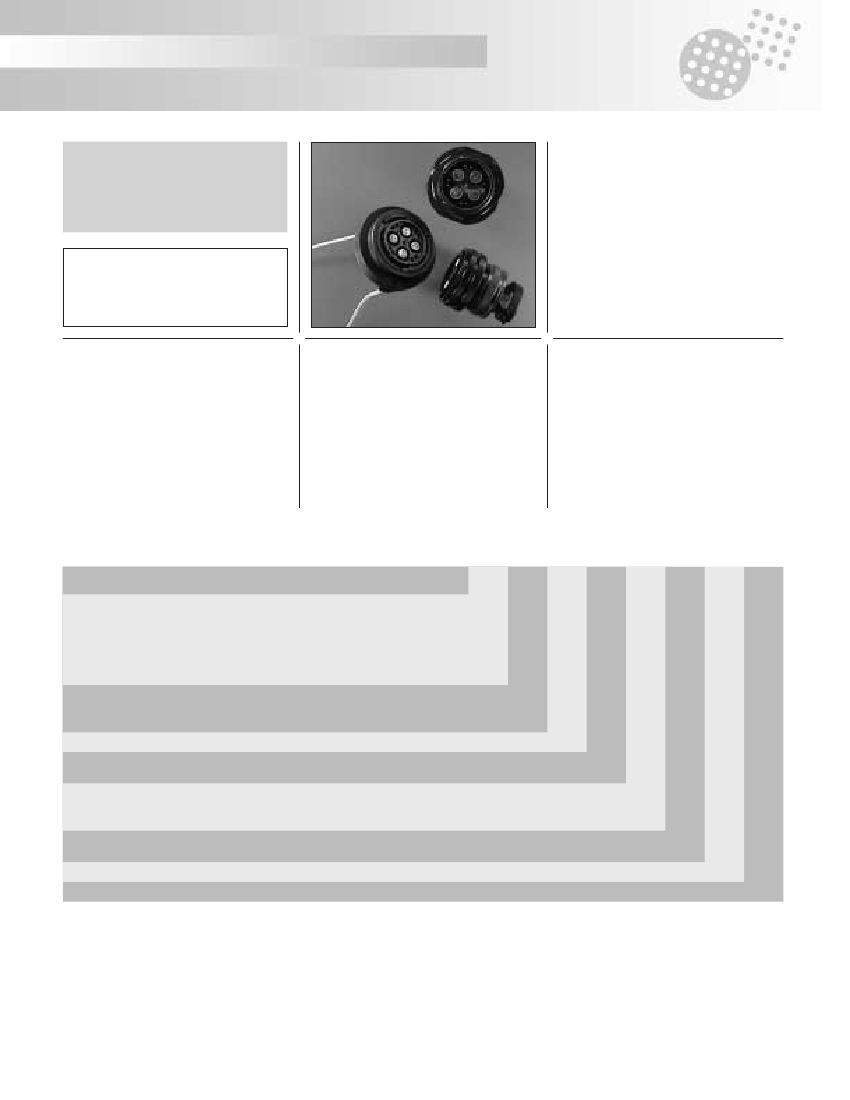

8 BUS Series

Description

Applications

Bifilar BUS lines for multiplex

transmission

• High level RFI / EMI

• Rear removable contacts

• Two contact layouts

- shell 22 : 9 standard contacts + 4 BUS

- shell 24 : 41 standard contacts + 2 BUS

Standards

derivated from

MIL-C 26482 Series II

NFC 93422 HE 312

83723 Serie I

Characteristics

Mechanical

• Shell : aluminum alloy

• Insulator : thermoset

• Contacts : copper alloy

• Vibrations : 10 to 20 000 Hz,

acceleration 20g

• Shock : 100g, 6ms

Electrical

• Withstanding voltage : 1500 Vrms Max

• Current rating : 7,5 A

• Insulation resistance :

≥

5000 MΩ

• Contact resistance : # 20 contact :

≤

4 mΩ

bifilar inner contact :

≤

4 mΩ

• Contact bifilar impedance at 3 GHz

- between central contacts : 68

Ω

- between central contacts and shielding

of the bifilar contact : 42

Ω

Climatic

• Temperature range : - 55°C to +125°C

• Endurance : 500 operations

• Sealing : immersion at low pressure :

33 mbar

• Resistance to salt spray : 48 hours

• Damp heat : 21 days or 10 cycles

according to MIL-STD 202 method 106

Ordering information

basic series

8 BUS

22 - 09

•••

0 -

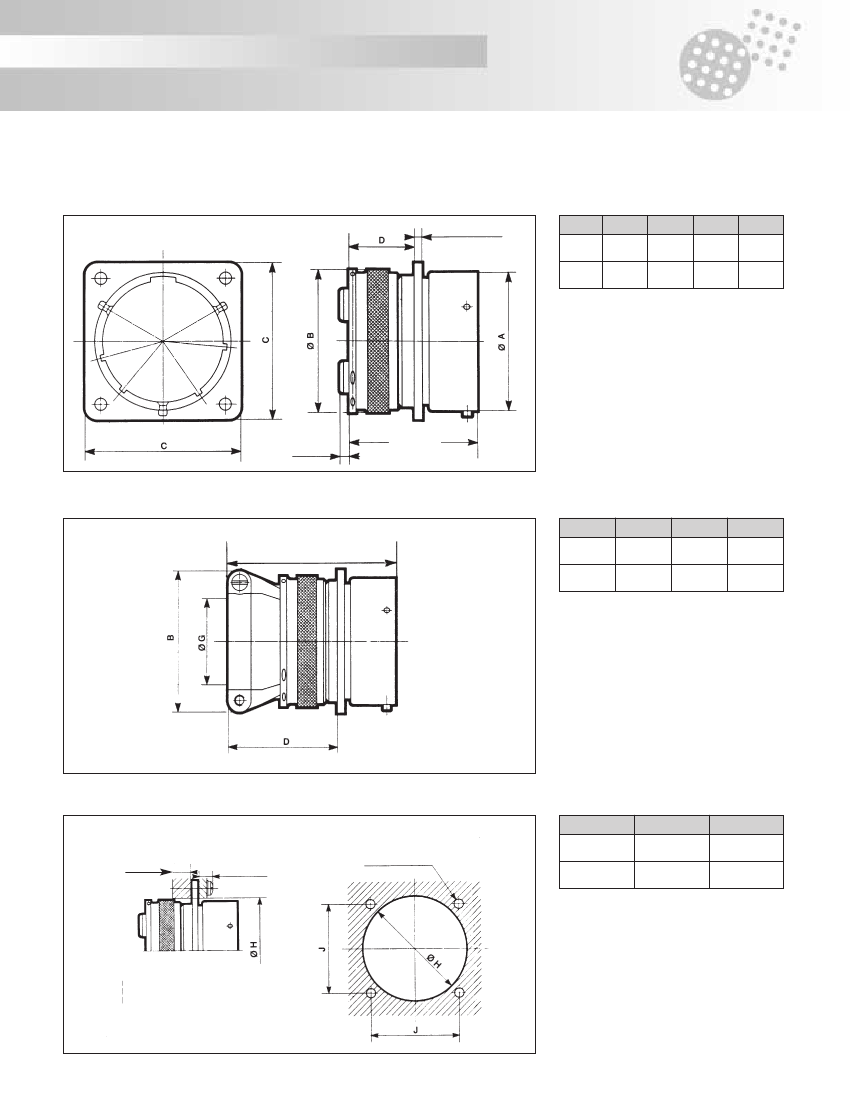

square flange receptacle

(backnut or straight backshell)

6 -

plug with backnut or straight backshell

8 -

plug with elbow backshell

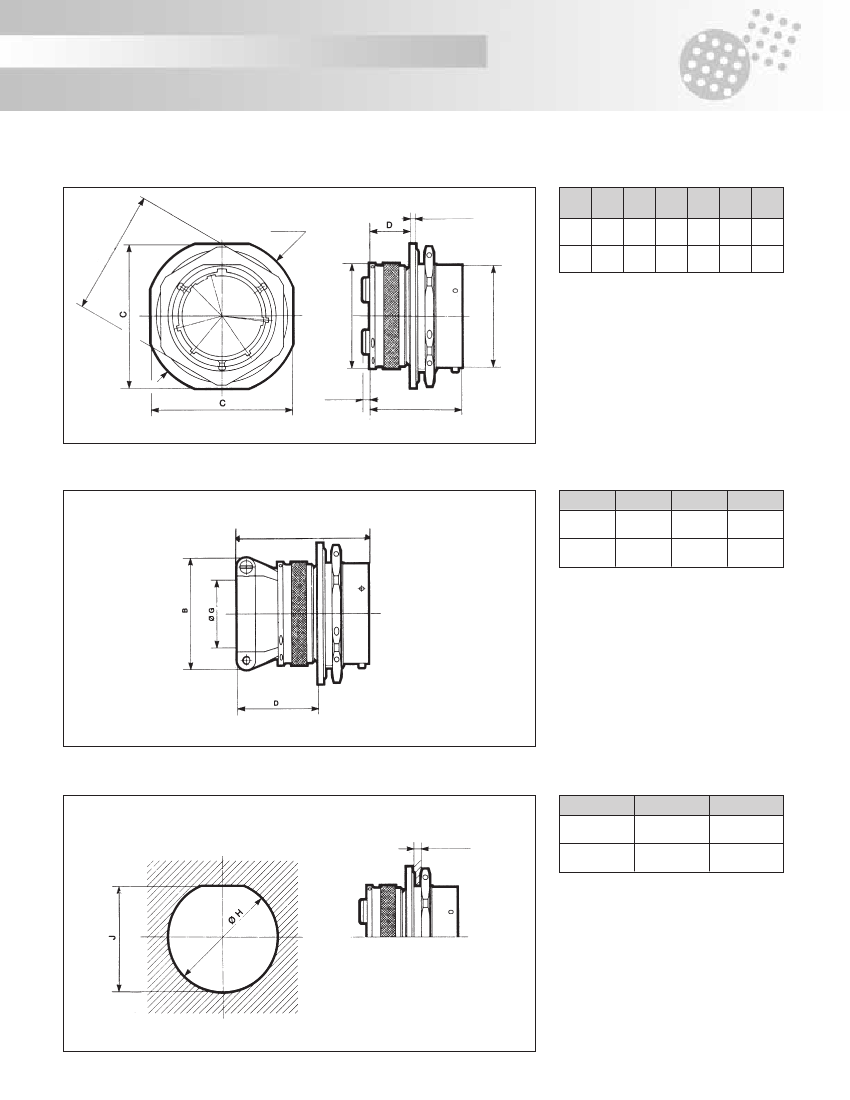

7 -

jam nut receptacle (backnut or straight backshell)

9 -

flange mounted plug with «Twist pull» backshell

R -

backnut

C -

cable clamp

O -

supplied without backshell

shell size

contacts # 20

22 or 24 -

(plug 9 C : shell 22 only)

09 -

shell 22

41 -

shell 24

4 -

shell 22

2 -

shell 24

P -

male contact

S -

female contact

bifilar shielded contacts

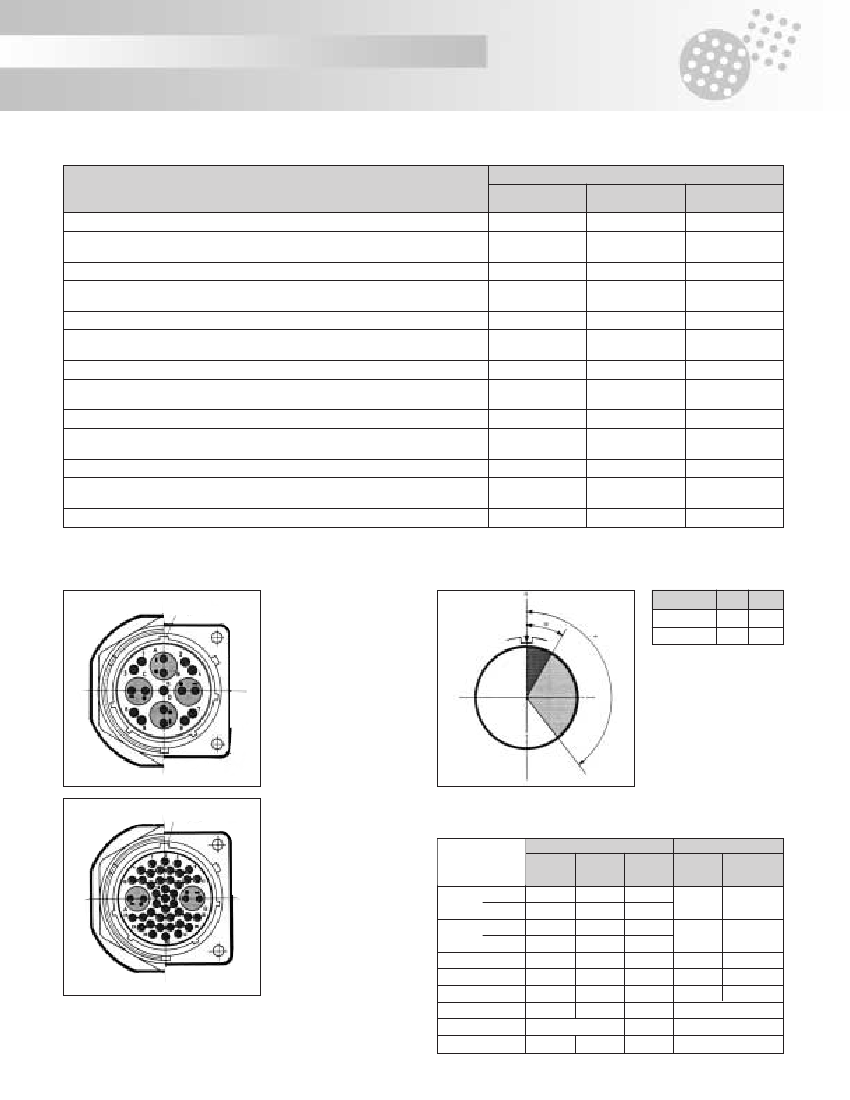

polarization

specifications

N -

normal, W and X (see table next page)

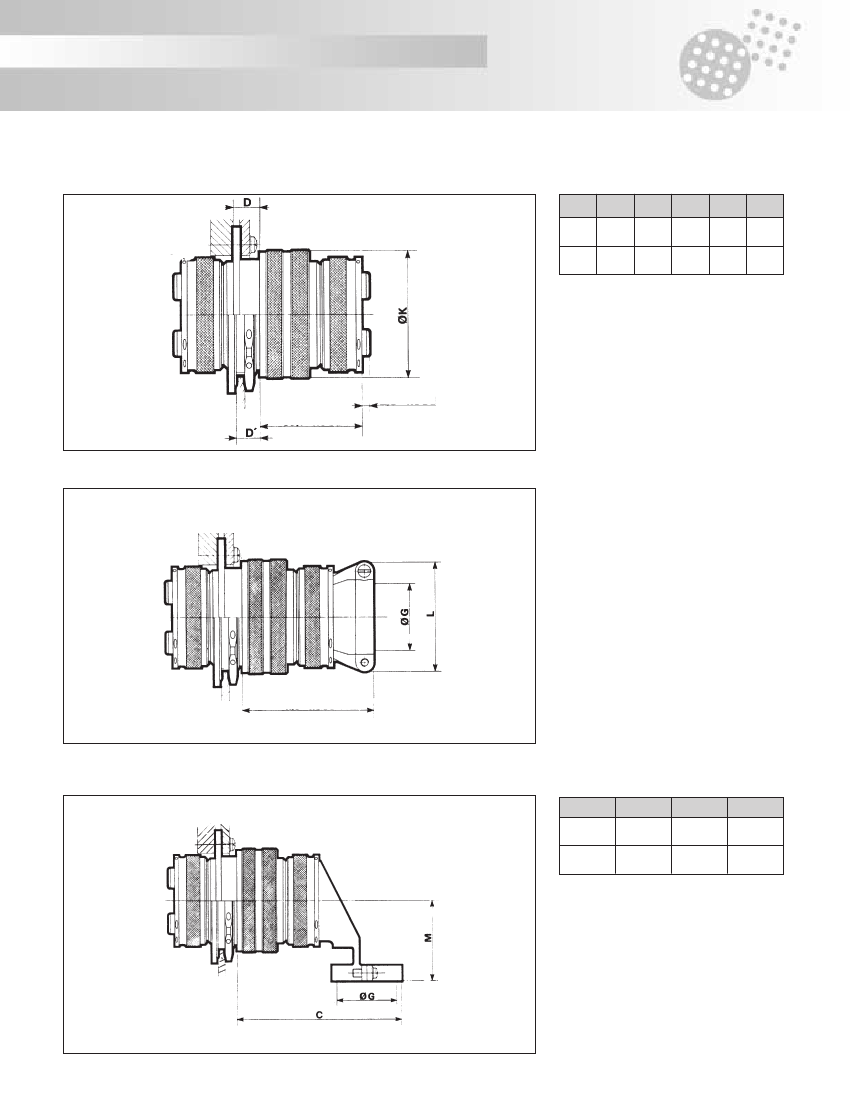

see table next page

366
