L006P20S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> L006P20S

L006P20S: DescriptionPower Transformer, 6VA; CategoryPower management transformer; File Size105KB，1 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric View All

L006P20S Overview

Power Transformer, 6VA

L006P20S Parametric

Parameter Name	Attribute value
Maker	Crydom
Reach Compliance Code	unknown
ECCN code	EAR99
Center click function 1	NO
Center click function 2	NO
high	38 mm
Insulation voltage	3000 V
length	40 mm
Manufacturer's serial number	L006P20S
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	1
Maximum operating temperature	50 °C
Minimum operating temperature	-20 °C
Output voltage 1	20 V
physical size	40mm X 48mm X 38mm
main rating	SINGLE 230V
surface mount	NO
Transformer type	POWER TRANSFORMER
VA rating	6 VA
width	48 mm

Preview

Download Datasheet

View All

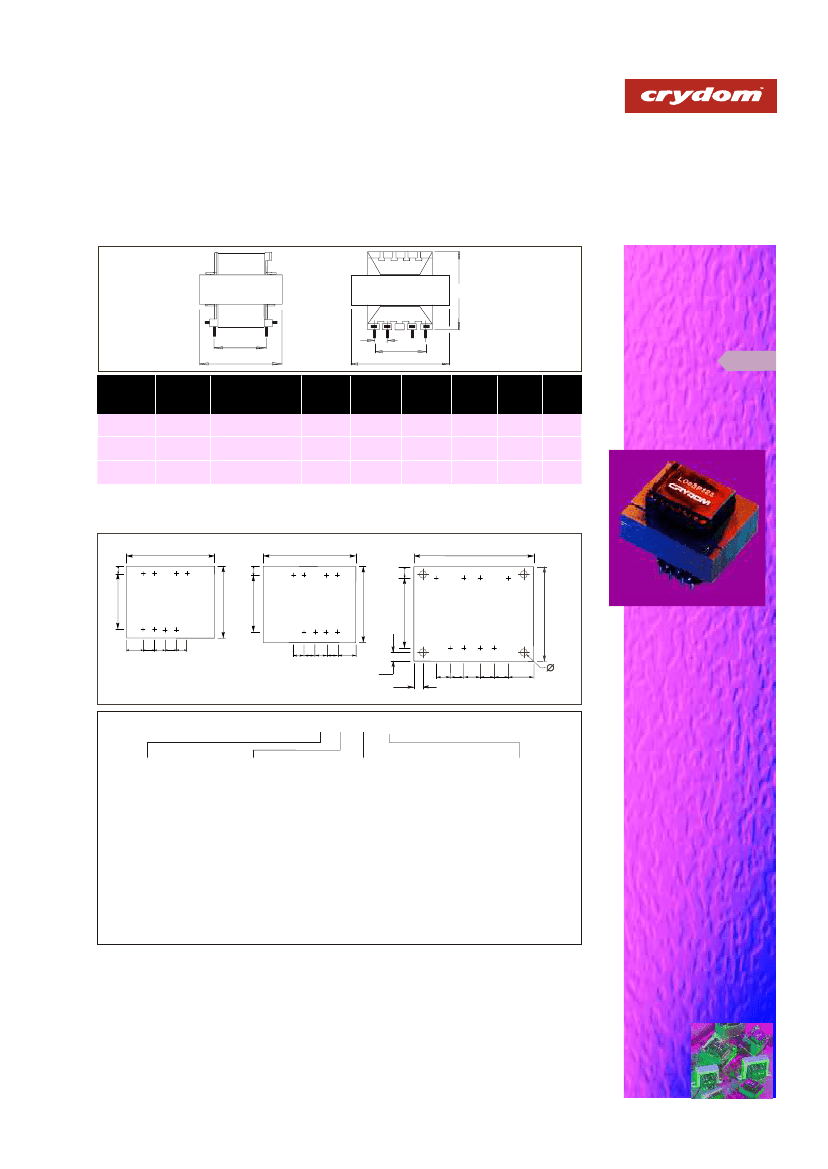

PCB Mounting Transformers

Power

(VA)

Mass

(kg)

0.17

0.23

0.31

Regulation

(%)

(mm)

20.3

25.4

(mm)

5.08

(mm)

23.0

25.4

28.0

230 input : apply to P1 and P4; link P2 to P3

115V input : apply to P1 and P2; link P3 to P1; link P4 to P2

5.5

P1 P2

P3 P4

7.0

P1 P2

P3 P4

8.0

P2 P3

3VA

0VVac 0V Vac

9 E E E E

PIN VIEW

6VA

0V Vac 0V Vac

E E E E 12

PIN VIEW

FOOT PRINT

12VA

0V Vac 0V Vac

4.5

E E

E E E 15

PIN VIEW

3.5x4

• Input voltages, single

230V or dual

115V/230V

50/60Hz

• Reinforced isolation -

tested at 3kVrms

Example - L 003 P 20 S

Output Power

003 = 3VA

006 = 6VA

012 = 12VA

Style

P = pcb

Voltage Output

06 = 2x6V

09 = 2x9V

12 = 2x12V

15 = 2x15V

18 = 2x18V

20 = 2x20V

24 = 2x24V

Finish Options

I = Vacuum impregnation

E = Additional Enveloping*

S = Single 230V Input

• Transformers dip

coated in varnish as

standard

• PCB terminations

• Operational ambient

temperature range

-20°C to +50°C

Example L003P20S = Pcb mounted 230V input, 2x20V output, 3VA transformer with

standard varnish finish and pcb terminations.

* Available for certain sizes - please call for details.

pcb mo

unting

transf

ormers
