2027-15-SM-RP2

Description
Surge Protection Circuit,
CategoryWireless rf/communication    Telecom circuit
File Size174KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Download Datasheet Parametric View All

2027-15-SM-RP2 Overview

Surge Protection Circuit,

2027-15-SM-RP2 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
JESD-30 codeX-XDSS-X2
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Package body materialUNSPECIFIED
Package shapeUNSPECIFIED
Package formSPECIAL SHAPE
Certification statusNot Qualified
surface mountNO
Telecom integrated circuit typesSURGE PROTECTION CIRCUIT
Temperature levelOTHER
Terminal formUNSPECIFIED
Terminal locationDUAL
Base Number Matches1
*R
oH
V E S CO
AV R M
AI SIO PL
LA N IA
BL S NT
E
Features
Surface mount for economical assembly
High surge current rating
Low capacitance and insertion loss
Stable breakdown throughout life
8 mm diameter, 6 mm long
UL Recognized
Applications
Telecommunications
Industrial electronics
Commercial electronics
Automotive, aircraft, military electronics
2027-xx-SM Precision Gas Discharge Tube Surge Protector
Bourns offers an 8 x 6 mm Surface Mount (SM) 2-electrode GDT surge protection device. The industry-leading quality and features
of Bourns
®
2027 Series GDT continue in this new SM version. Compatible with “pick and place” assembly systems, the 2027-SM is
ideal for compact applications such as PCBs for telecommunications, commercial and industrial applications.
Characteristics
Test Methods per ITU-T (CCITT) K.12, IEEE C62.31, RUS PE-80, Telcordia GR 1361
Characteristic
DC Sparkover ±15 %
(±20 % for Models 2027-07-SM &
2027-09-SM) @ 100 V/s
Impulse Sparkover
100 V/µs
1000 V/µs
Characteristic
DC Sparkover ±15 % @ 100 V/s
Impulse Sparkover
100 V/µs
1000 V/µs
Model No.
2027-07-SM
2027-09-SM
2027-15-SM
2027-20-SM
2027-23-SM
2027-25-SM
75 V
90 V
150 V
200 V
230 V
250 V
300 V
500 V
300 V
500 V
350 V
575 V
400 V
600 V
450 V
675 V
475 V
700 V
Model No.
2027-30-SM
2027-35-SM
2027-40-SM
2027-42-SM
2027-47-SM
2027-60-SM
300 V
550 V
800 V
350 V
600 V
875 V
400 V
650 V
925 V
420 V
675 V
950 V
470 V
725 V
1000 V
600 V
850 V
1100 V
Insulation Resistance ...................................... 100 V (50 V for Models 2027–07-SM
& 2027-09-SM) .................................................> 10
10
Ω
Glow Voltage ................................................... 10 mA................................................................~ 70 V
Arc Voltage ...................................................... > 1A ..................................................................~ 10 V
Glow-Arc Transition Current .......................................................................................................< 0.5 A
Capacitance .................................................... 1 MHz ...............................................................< 1 pF
DC Holdover Voltage
**
.................................... 135 V, (52 V for Models 2027-07-SM
& 2027-09-SM; 80 V for Model 2027-15-SM)...< 150 ms
Impulse Discharge Current .............................. 25000 A, 8/20 µs
***
........................................... 1 operation minimum
10000 A, 8/20 µs...............................................> 10 operations
2500 A, 10/350 µs ............................................ 2 operations
500 A, 10/1000 µs ............................................> 400 operations
100 A, 10/1000 µs or 10/700 µs .......................> 1000 operations
Alternating Discharge Current ......................... 65 Arms, 11 cycles
***
........................................ 1 operation minimum
10 Arms, 1 s ......................................................> 10 operations
Operating Temperature............................................................................................................... -55 to +85 °C
Climatic Category (IEC 60068-1) ................................................................................................ 40/90/21
Notes:
• UL recognized component, UL File E153537.
• Model number marking on tube: 27-xxxV.
• Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover
within 24 hours time. It should be noted that there is no quality defect nor change in protection levels during the temporary change
in DCBD.
• Sparkover limits ±20 % after life, IR >10
8
Ω
(-25 %, +30 % for Models 2027-07-SM, 2027–09-SM and 2027–60-SM).
• At delivery AQL 0.65 Level II, DIN ISO 2859.
**
***
Network applied.
DC Sparkover may exceed ±20 % after discharge, but will continue to protect without venting.
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

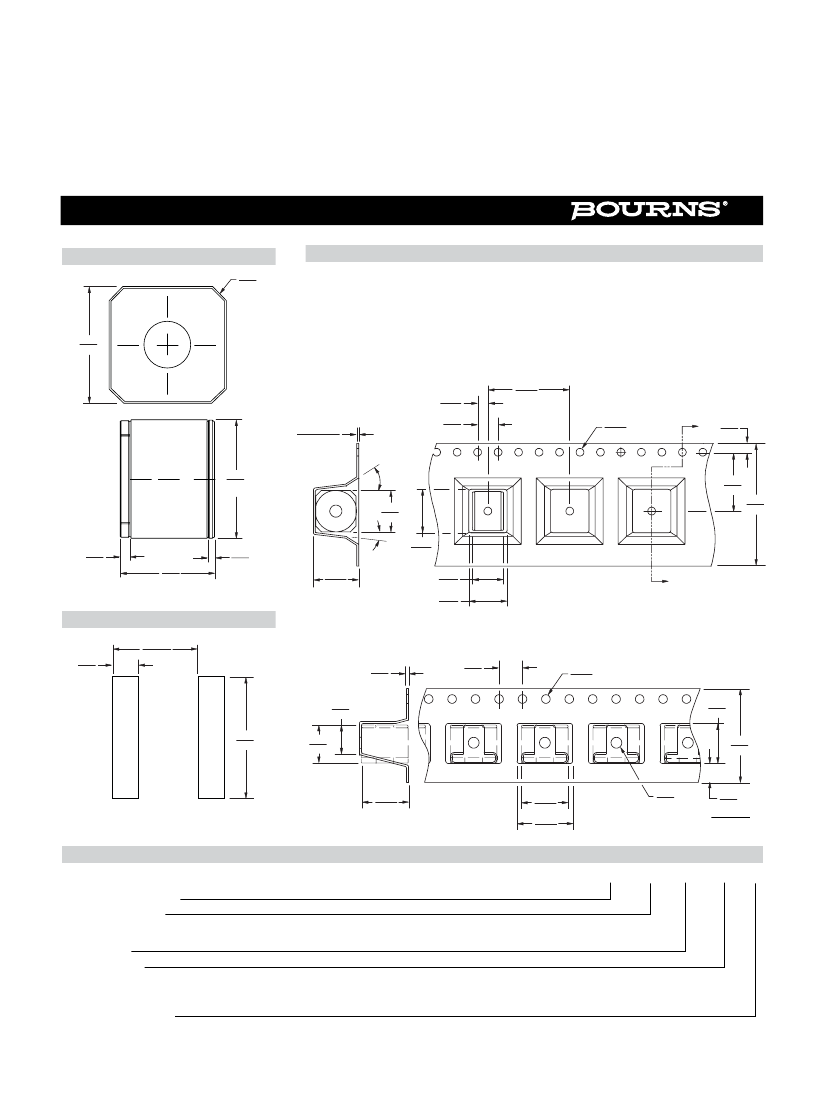

Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
