P74FCT3845CSO datasheet, PDF - EEWORLD Datasheet

P74FCT3845CSO: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOIC-28; Categorylogic logic; File Size204KB，8 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric View All

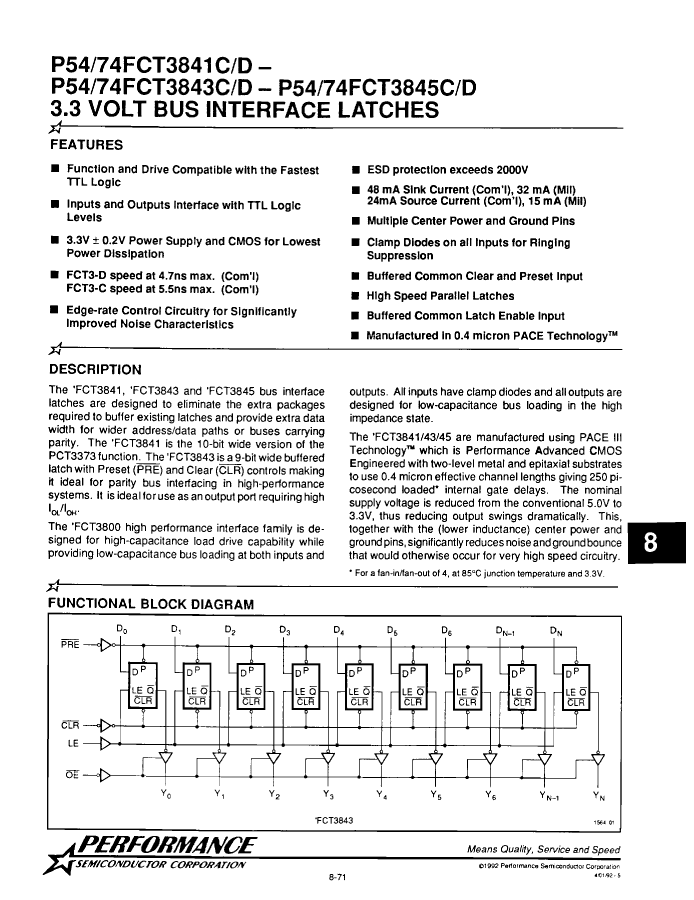

P74FCT3845CSO Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOIC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	SOIC
package instruction	SOP, SOP28,.4

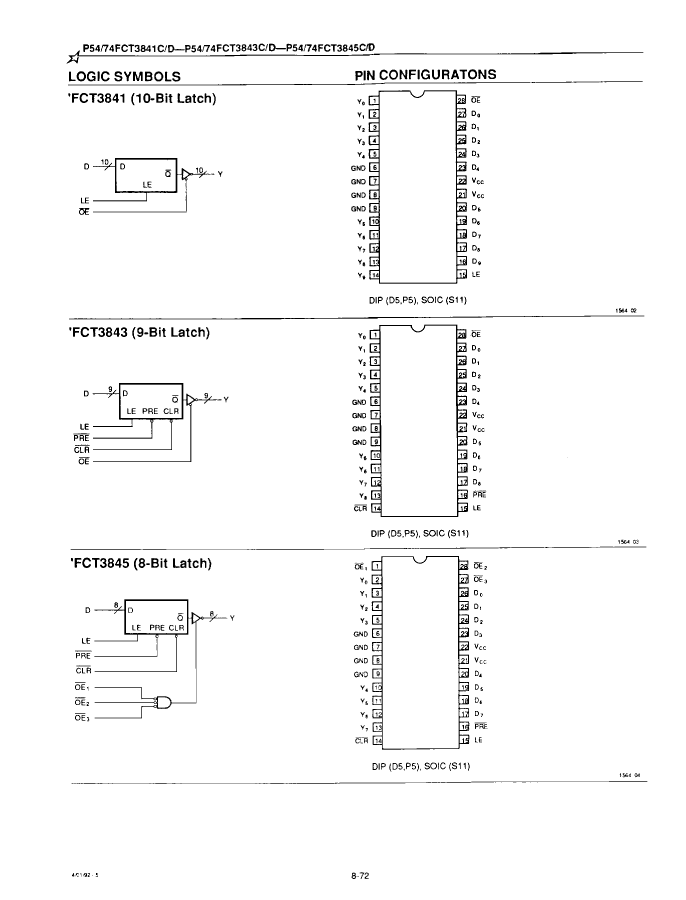

Contacts	28
Reach Compliance Code	unknown

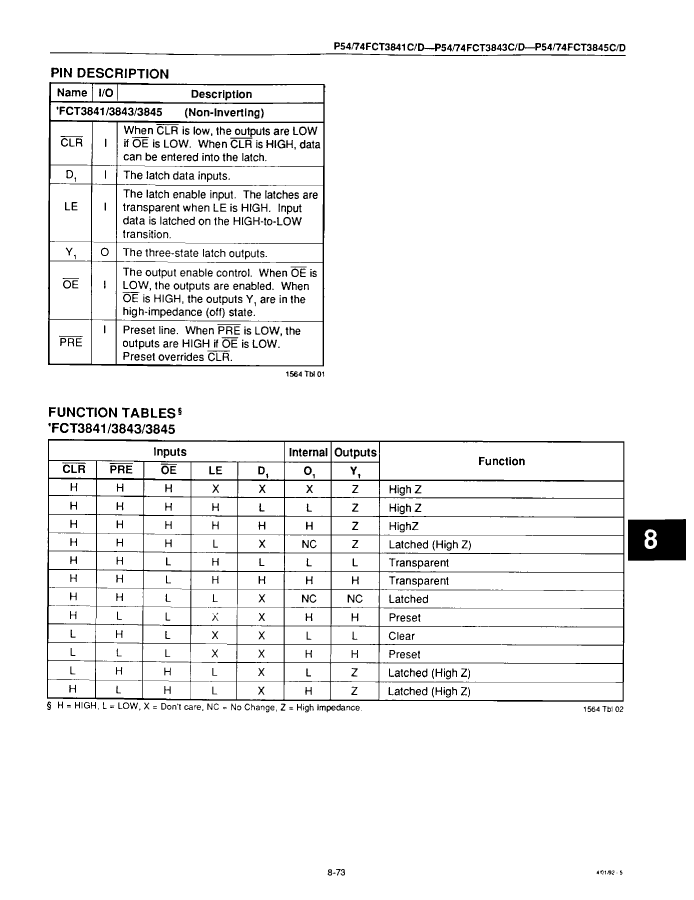

Other features	TRIPLE OUTPUT ENABLE; CLEAR AND PRESET; MULTIPLE CENTER PIN VCC AND GND
series	FCT
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28

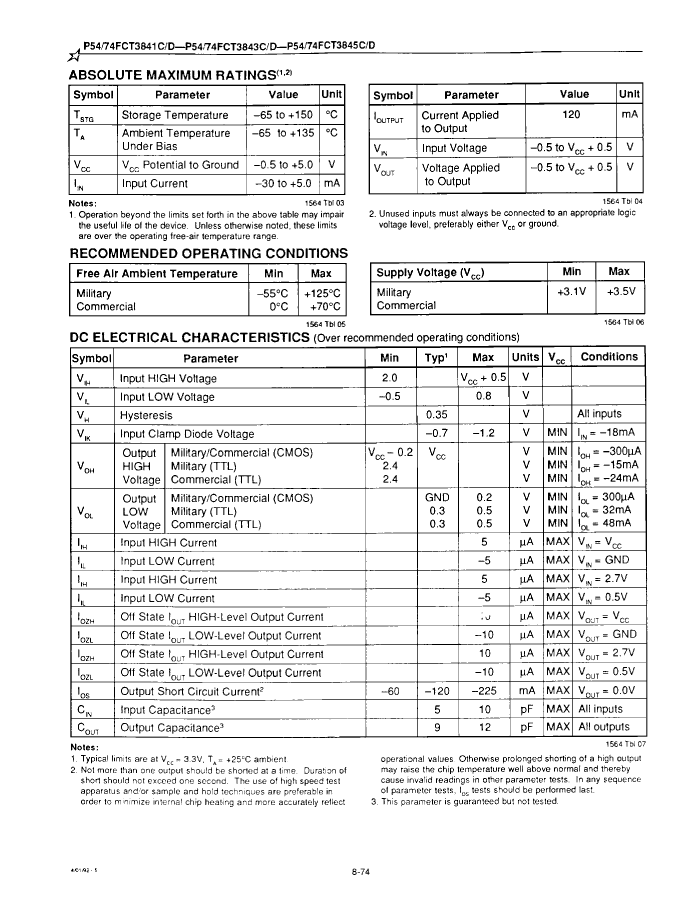

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

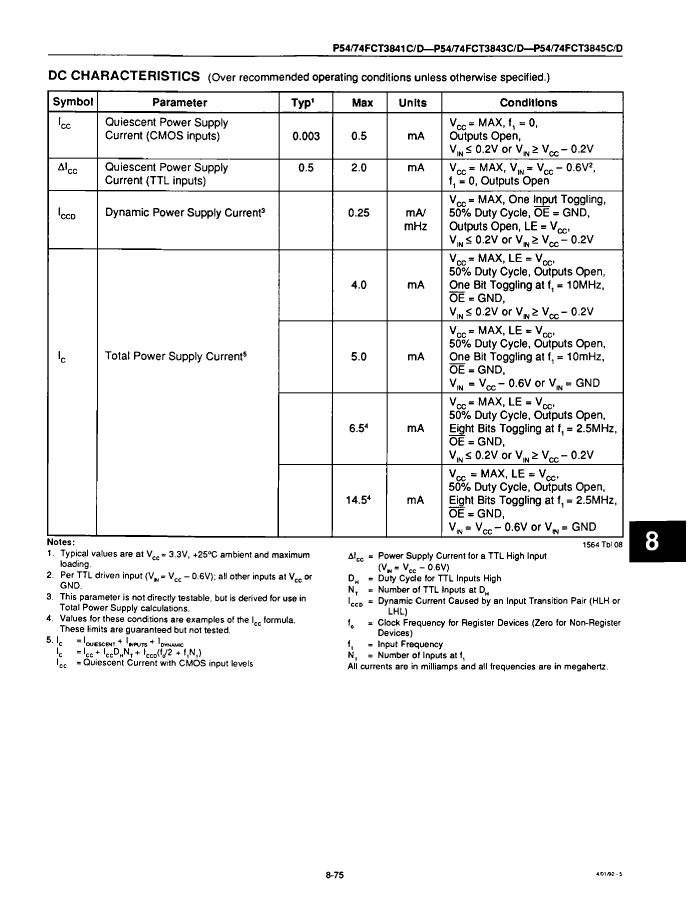

power supply	5 V
Prop。Delay @ Nom-Sup	13 ns
propagation delay (tpd)	6.4 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	3.5 V
Minimum supply voltage (Vsup)	3.1 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
