P74FCT39520CSO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P74FCT39520CSO

P74FCT39520CSO: DescriptionPipeline Register, CMOS, PDSO28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size443KB，5 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P74FCT39520CSO Overview

Pipeline Register, CMOS, PDSO28

P74FCT39520CSO Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
package instruction	SOP, SOP28,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER

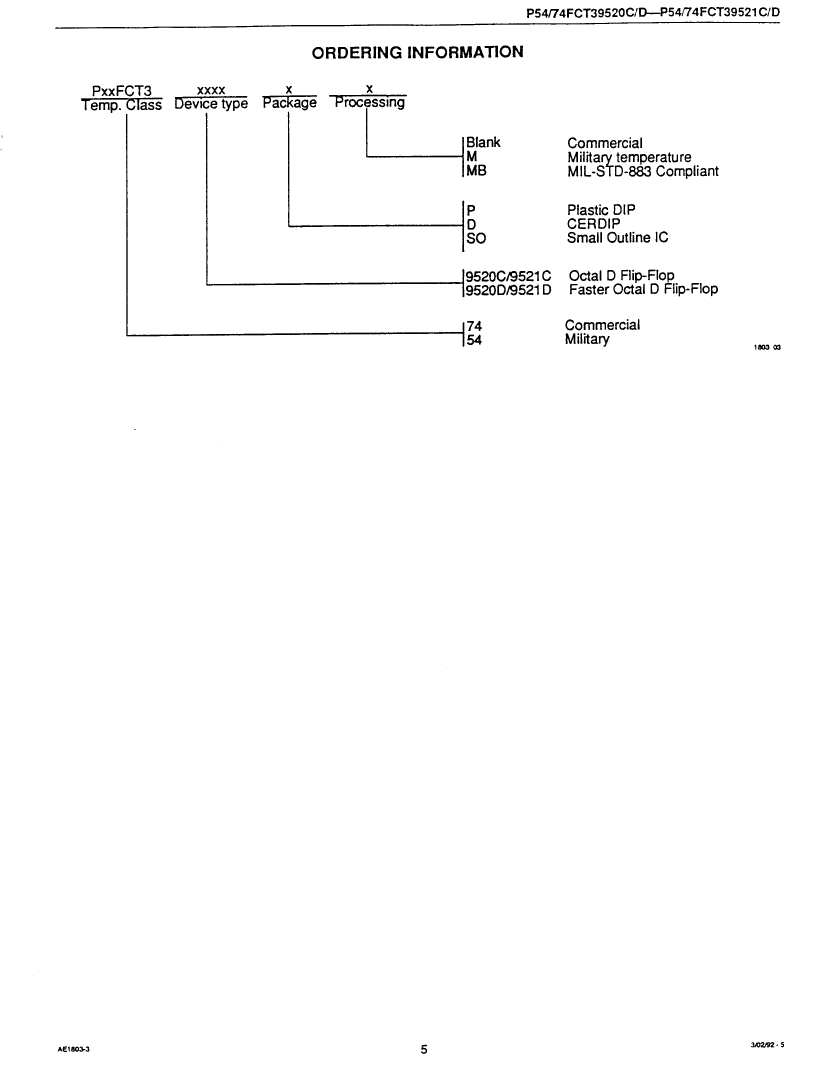

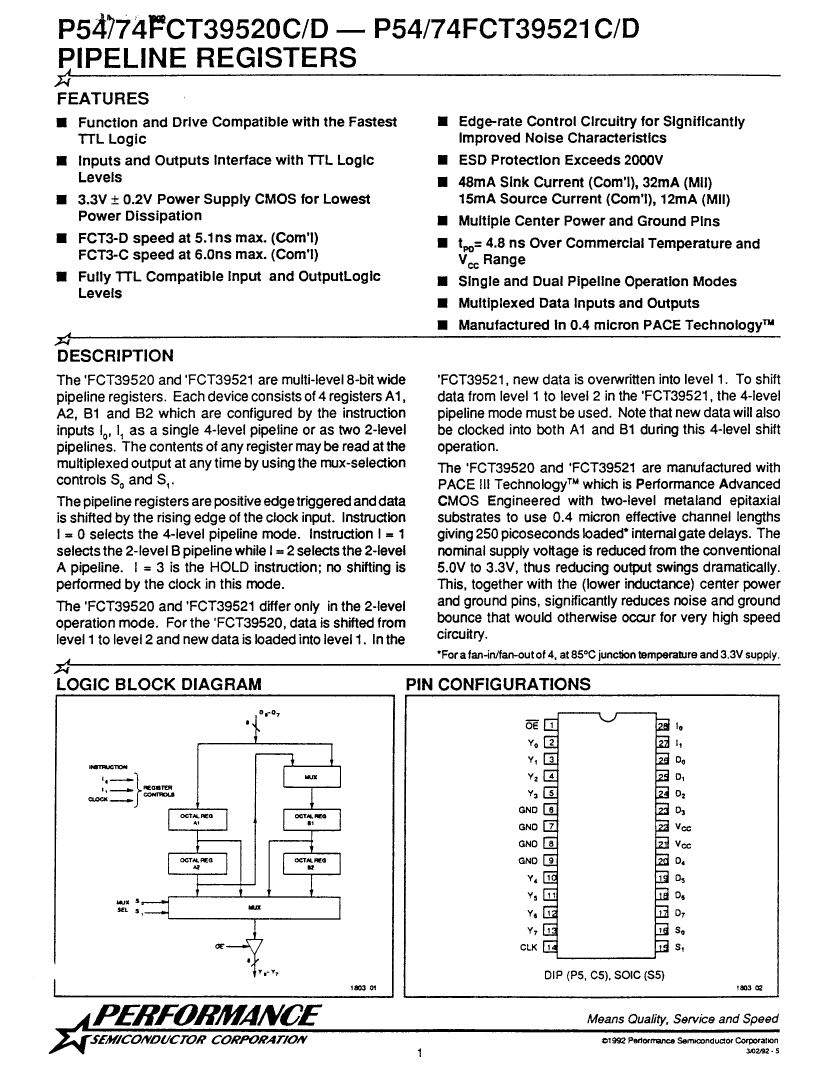

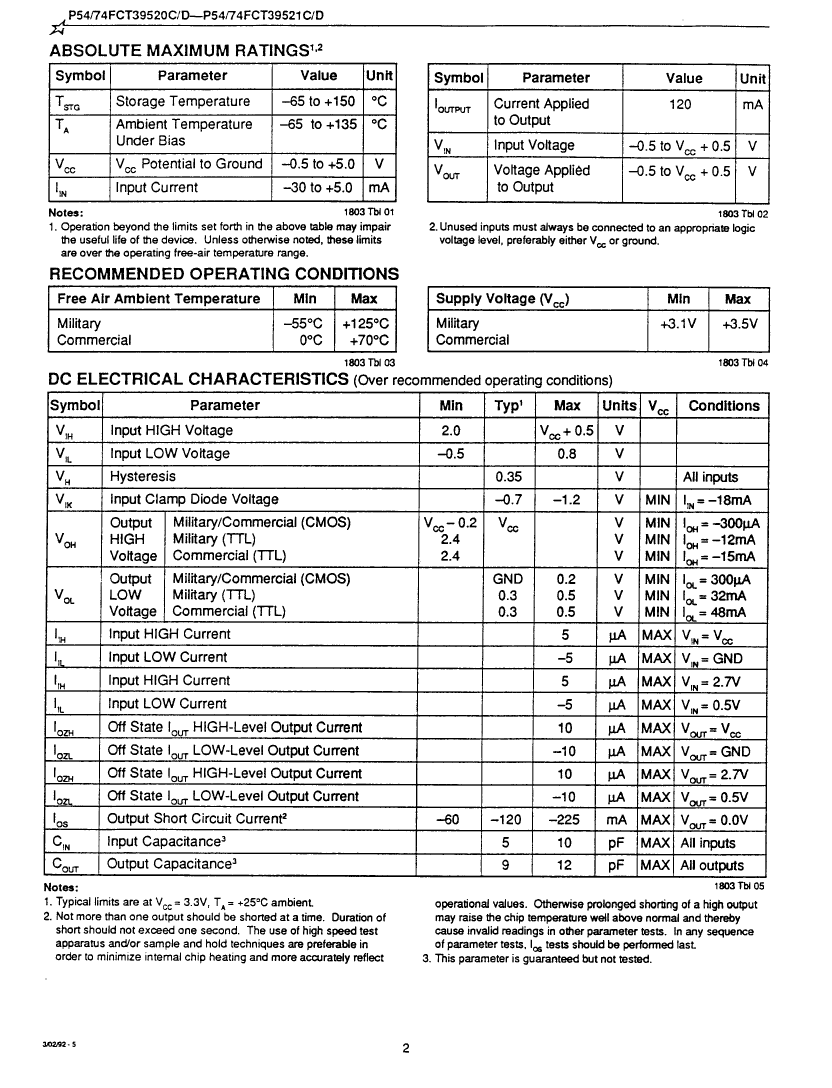

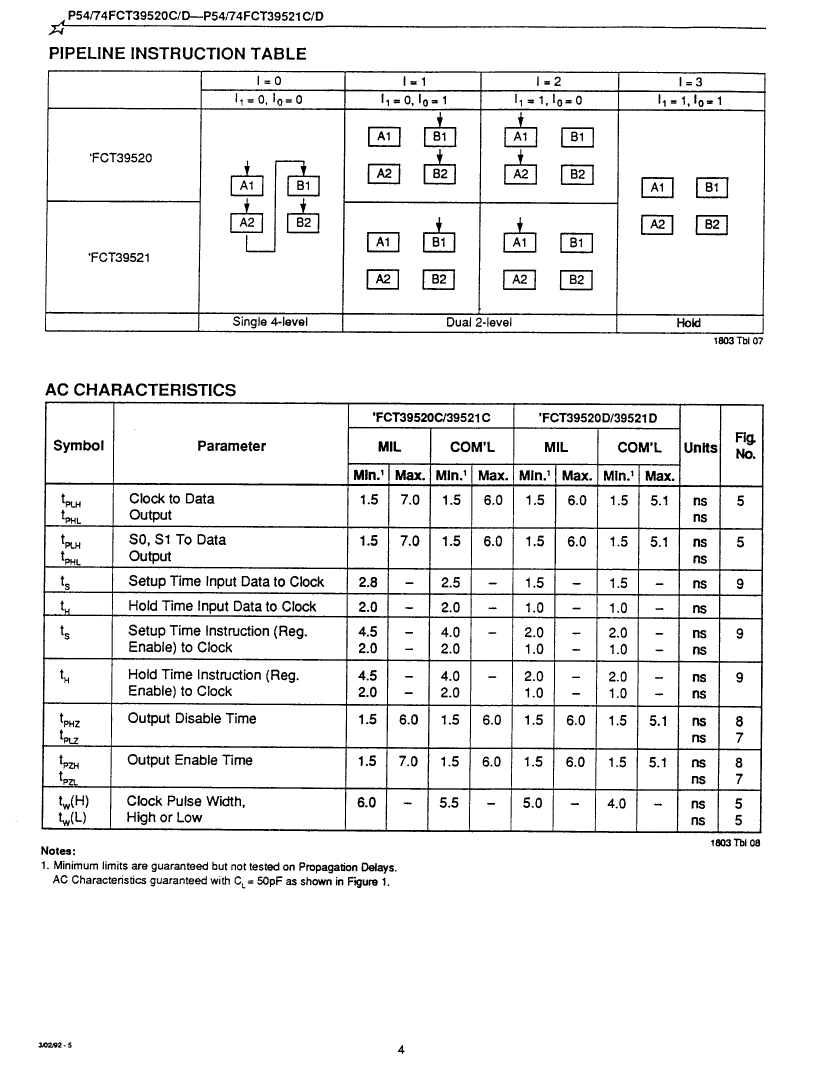

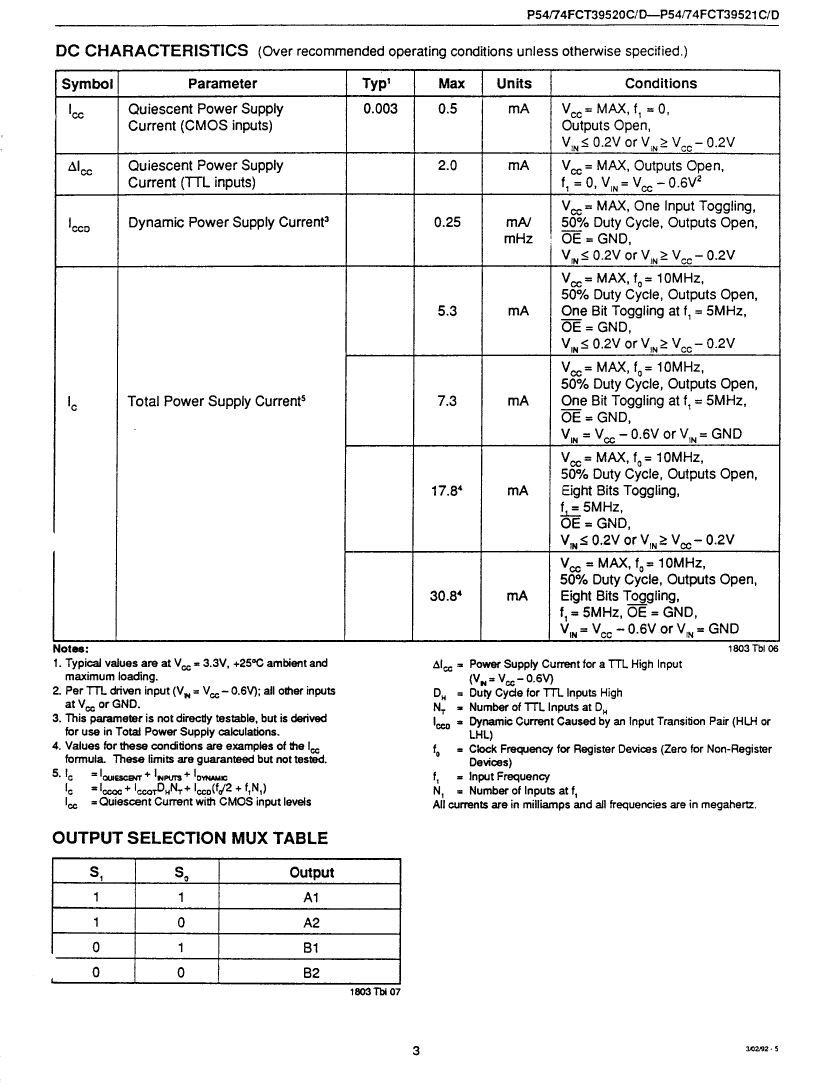

P74FCT39520CSO Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

P74FCT39520CSO Related Products

	P74FCT39520CSO	P74FCT39520DP	P74FCT39520DSO	P74FCT39521CP	P74FCT39521DSO	P54FCT39520CDM	P54FCT39520DDMB	P54FCT39521DDM	P54FCT39521DDMB	P54FCT39520DDM
Description	Pipeline Register, CMOS, PDSO28	Pipeline Register, CMOS, PDIP28	Pipeline Register, CMOS, PDSO28	Pipeline Register, CMOS, PDIP28	Pipeline Register, CMOS, PDSO28	Pipeline Register, CMOS, CDIP28	Pipeline Register, CMOS, CDIP28	Pipeline Register, CMOS, CDIP28	Pipeline Register, CMOS, CDIP28	Pipeline Register, CMOS, CDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
package instruction	SOP, SOP28,.4	DIP, DIP28,.3	SOP, SOP28,.4	DIP, DIP28,.3	SOP, SOP28,.4	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3	DIP, DIP28,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	28	28	28	28	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	SOP	DIP	SOP	DIP	SOP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	SOP28,.4	DIP28,.3	SOP28,.4	DIP28,.3	SOP28,.4	DIP28,.3	DIP28,.3	DIP28,.3	DIP28,.3	DIP28,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	YES	NO	YES	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
