05157
LC0404FC3.3C
thru
LC0404FC36C
LOW CAPACITANCE FLIP CHIP ARRAY
APPLICATIONS
✔
Cellular Phones
✔
Personal Digital Assistant (PDA)
✔
Notebook Computers
✔
SMART Cards
IEC COMPATIBILITY
(EN61000-4)
✔
61000-4-2 (ESD): Air - 15kV, Contact - 8kV
✔
61000-4-4 (EFT): 40A - 5/50ns
0402 CHIP SHOWN
FEATURES
✔
ESD Protection > 25 kilovolts
✔
Available in Voltages Ranging From 3.3V to 36V
✔
200 Watts Peak Pulse Power per Line (tp = 8/20µs)
✔
Low Clamping Voltage
✔
Bidirectional Configuration & Monolithic Structure
✔
Protects 1 to 3 Lines
✔
Low Capacitance
✔
Low Leakage Current
✔
RoHS Compliant
MECHANICAL CHARACTERISTICS
✔
Standard EIA Chip Size: 0404
✔
Weight 0.73 milligrams (Approximate)
✔
Available in Lead-Free Plating
✔
Solder Reflow Temperature:
Lead-Free - Sn/Ag/Cu, 96/3.5/0.5: 260-270°C
✔
Consult Factory for Leaded Device Availability
✔
Flammability Rating UL 94V-0
✔
8mm Plastic & Paper Tape and Reel Per EIA Standard 481
✔
Device Marking On Reel
✔
Top Contacts: Solder Bump 0.004” in Height (Nominal)

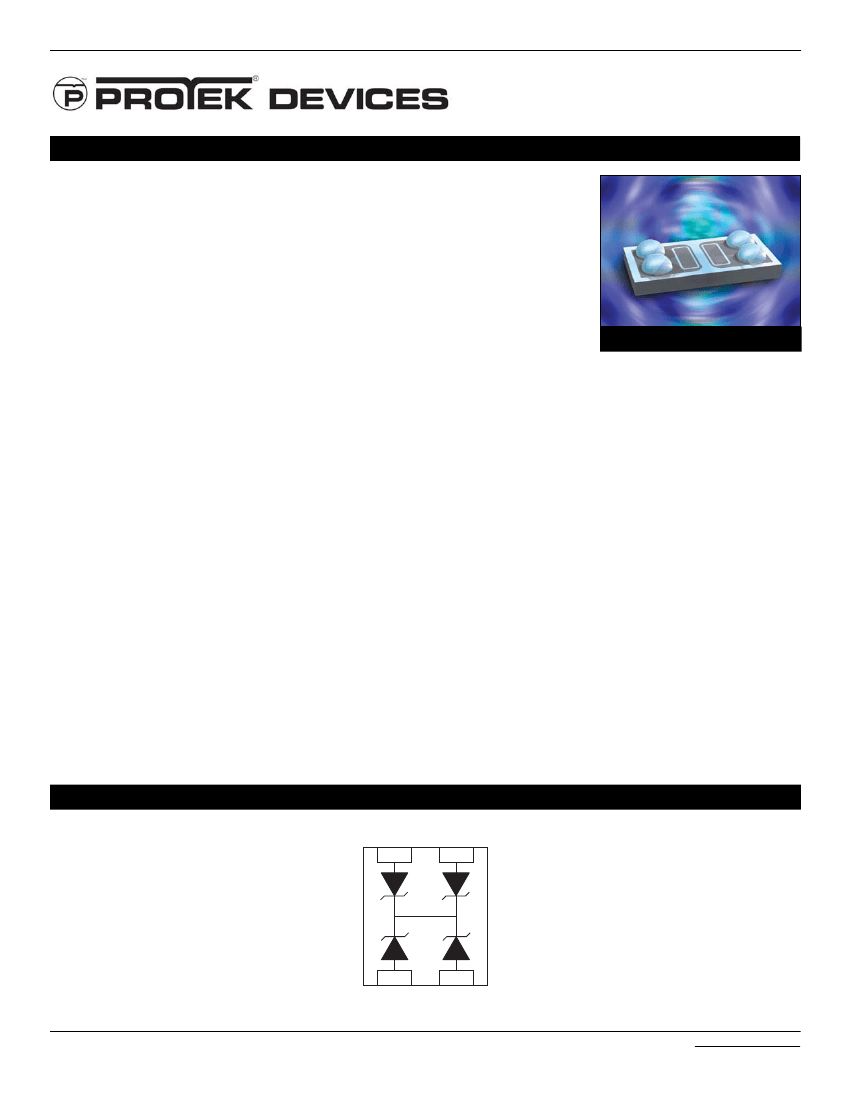

PIN CONFIGURATION
05157.R7 2/07
1
www.protekdevices.com
LC0404FC3.3C
thru
LC0404FC36C
DEVICE CHARACTERISTICS
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified
PARAMETER
Peak Pulse Power (tp = 8/20µs) - See Figure 1
Operating Temperature
Storage Temperature
SYMBOL
P
PP
T
A
T
STG
VALUE
200
-55 to 150
-55 to 150
UNITS
Watts
°C
°C
ELECTRICAL CHARACTERISTICS PER LINE
PART
NUMBER
(See Note 1)
RATED
STAND-OFF
VOLTAGE
MINIMUM
BREAKDOWN
VOLTAGE
MAXIMUM
CLAMPING
VOLTAGE
(See Fig. 2)
@ I
P
= 1A
V
C
VOLTS
7.0
11.0
13.2
19.8
25.4
37.2
70.0
@ 25°C Unless Otherwise Specified
MAXIMUM
CLAMPING
VOLTAGE
(See Fig. 2)
MAXIMUM
LEAKAGE
CURRENT
(See Note 2)
@V
WM
I
D
µA
75*
10**
1
1
1
1
1
TYPICAL
CAPACITANCE
V
WM
VOLTS
LC0404FC3.3C
LC0404FC05C
LC0404FC08C
LC0404FC12C
LC0404FC15C
LC0404FC24C
LC0404FC36C
3.3
5.9
8.0
12.0
15.0
24.0
36.0
@ 1mA
V
(BR)
VOLTS
4.0
6.0
8.5
13.3
16.7
26.7
40.0
@8/20µs
V
C
@ I
PP
12.5V @ 16A
13V @ 15A
18V @ 11A
26.9V @ 7.4A
34.5V @ 5.8A
50.6V @ 4A
80.0V @ 2.5A
@0V, 1 MHz
C
pF
70
35
32
30
25
20
18
Note 1:
All devices are bidirectional. Electrical characteristics apply in both directions.
Note 2:
*Maximum leakage current < 5µA @ 2.8V. **Maximum leakage current <500nA @ 3.3V.
FIGURE 1
PEAK PULSE POWER VS PULSE TIME
10,000
I
PP
- Peak Pulse Current - % of I
PP
P
PP
- Peak Pulse Current - Watts
120
100
80
60
40
20
0
t
f
FIGURE 2
PULSE WAVE FORM
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
f
= 8µs
t
d
= 20µs
1,000
200W, 8/20µs Waveform
100
e
-t
t
d
= t I /2
PP
10
0.01
1
10
100
t
d
- Pulse Duration - µs
1,000
10,000
0
5
10
15
t - Time - µs
20
25
30
05157.R7 2/07
2
www.protekdevices.com
LC0404FC3.3C
thru
LC0404FC36C
GRAPHS
100
80
% Of Rated Power
FIGURE 3
POWER DERATING CURVE
Peak Pulse Power
8/20µs
60
40
20
Average Power
0
0
25
50
75
100
125
T
A
- Ambient Temperature - °C
150
FIGURE 4
OVERSHOOT & CLAMPING VOLTAGE FOR LC0404FC05C
35
5 Volts per Division
25
15
5
-5
ESD Test Pulse - 25 kilovolt, 1/30ns (waveshape)
FIGURE 5
TYPICAL CLAMPING VOLTAGE VS PEAK PULSE CURRENT FOR LC0404FC05C
14
12
10
8
6
4
2
0
0
5
10
I
PP
- Peak Pulse Current - Amps
15
20
05157.R7 2/07
V
C
- Clamping Voltage - Volts
3
www.protekdevices.com
LC0404FC3.3C
thru
LC0404FC36C
APPLICATION INFORMATION
PRINTED CIRCUIT BOARD RECOMMENDATIONS
PARAMETER
Pad Size on PCB
Pad Shape
Pad Definition
Solder Mask Opening
Solder Stencil Thickness
Solder Stencil Aperture Opening (laser cut, 5% tapered walls)
Solder Paste Type
Pad Protective Finish
Tolerance - Edge To Corner Ball
Solder Ball Side Coplanarity
Maximum Dwell Time Above Liquidous (183°C)
Soldering Maximum Temperature
0.275mm
Round
Non-Solder Mask Defined Pads
0.325mm Round
0.150mm
0.330mm Round
No Clean
OSP(Entek Cu Plus 106A)
±50µm
±20µm
60 Seconds
270°C
VALUE
REQUIREMENTS
Temperature:
T
P
for Lead-Free (SnAgCu): 260-270°C
T
P
for Tin-Lead: 240-245°C
Preheat time and temperature depends on solder paste and flux
activation temperature, component size, weight, surface area &
plating.
RECOMMENDED NON-SOLDER MASK
DEFINED PAD ILLUSTRATION
Non-Solder Mask Defined Pad
0.275mm DIA.
Solder Mask Opening
0.325mm DIA.
Solder Stencil Opening
0.330mm DIA.
T
P
Ramp-up
Temperature - °C
Ramp-down
T
L
T
SMAX
155°
T
SMIN
140°
T
S
- Preheat
t 25°C to Peak
30-60 seconds
Ramp-up
15 seconds
Solder Time
15-20 seconds
Ramp-down
05157.R7 2/07
4
www.protekdevices.com
LC0404FC3.3C
thru
LC0404FC36C

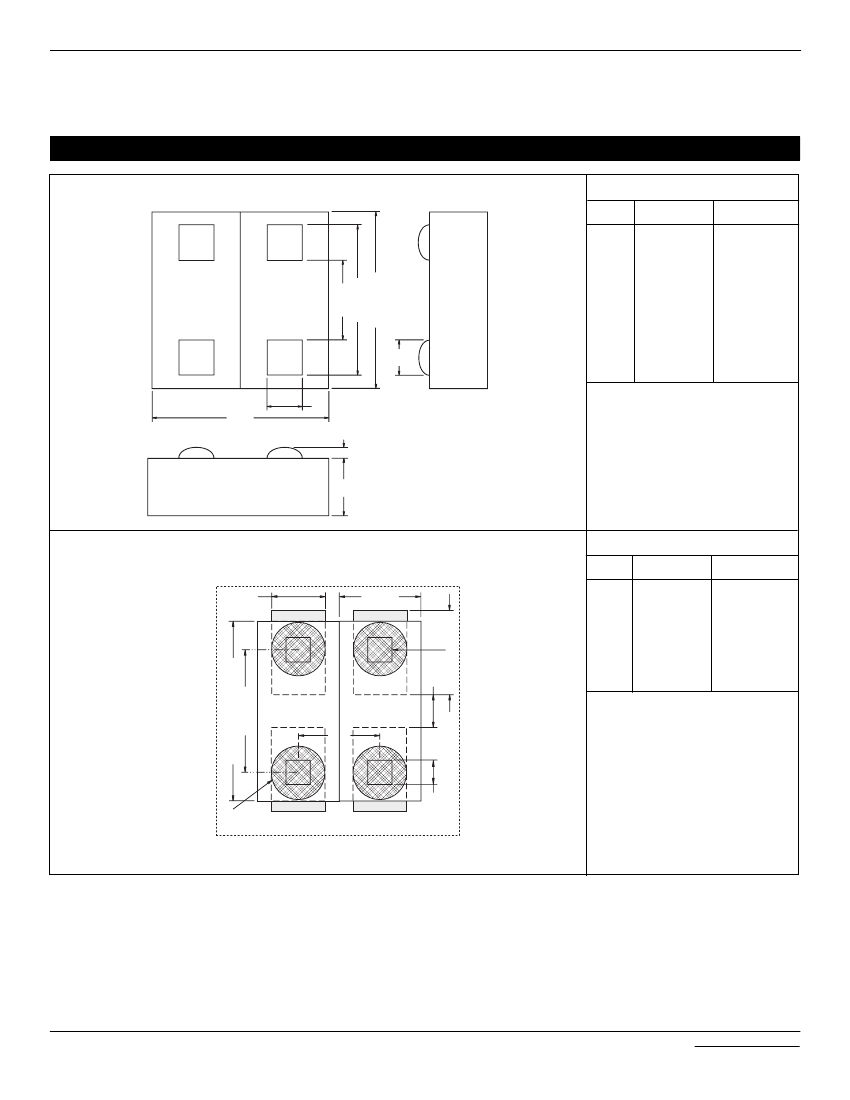

0404 PACKAGE OUTLINE & DIMENSIONS
PACKAGE OUTLINE
DIM
A
B
C
TOP
A B
C
PACKAGE DIMENSIONS
MILLIMETERS
0.56 NOM
0.86 NOM
1.0 ± 0.02
0.15 SQ
1.0 ± 0.0254
0.15 NOM
0.127 MAX
0.076 MIN
I
0.406 NOM
INCHES
0.022 NOM
0.034 NOM
0.039 ± 0.001
0.006 SQ
0.039 ± 0.001
0.006 NOM
0.005 MAX
0.003 MIN
0.016 NOM
E
F
G
H
G
F
E
H
NOTES:
1. Controlling dimensions in inches.
2. Decimal tolerances for mounting pad
and outline: .xxx ± 0.05mm (± 0.002”).
END
I
MOUNTING PAD LAYOUT - Option 1
DIM
PAD DIMENSIONS
MILLIMETERS
0.51
0.30
0.46
0.20
0.15 SQ
0.71
0.99
0.51
INCHES
0.020
0.012
0.018
0.008
0.006 SQ
0.028
0.039
0.020
C
A
D
DIE
SOLDER
BUMP
E
H G
I
A
C
D
E
F
G
H
I
NOTE:
1.
Preferred:
Using 0.1mm (0.004”) stencil.
SOLDER PRINT
0.010 - 0.012 DIA.
SOLDER PADS
F
SOLDER MASK
05157.R7 2/07
5
www.protekdevices.com
