PE-65832R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PE-65832R

PE-65832R: DescriptionTelecom Transformer; CategoryPower management transformer; File Size42KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

PE-65832R Overview

Telecom Transformer

PE-65832R Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DATA COUPLING
Manufacturer's serial number	PE
Installation features	THROUGH HOLE MOUNTED
method of packing	TRAY
surface mount	NO
Transformer type	TELECOM TRANSFORMER

Preview

Download Datasheet

View All

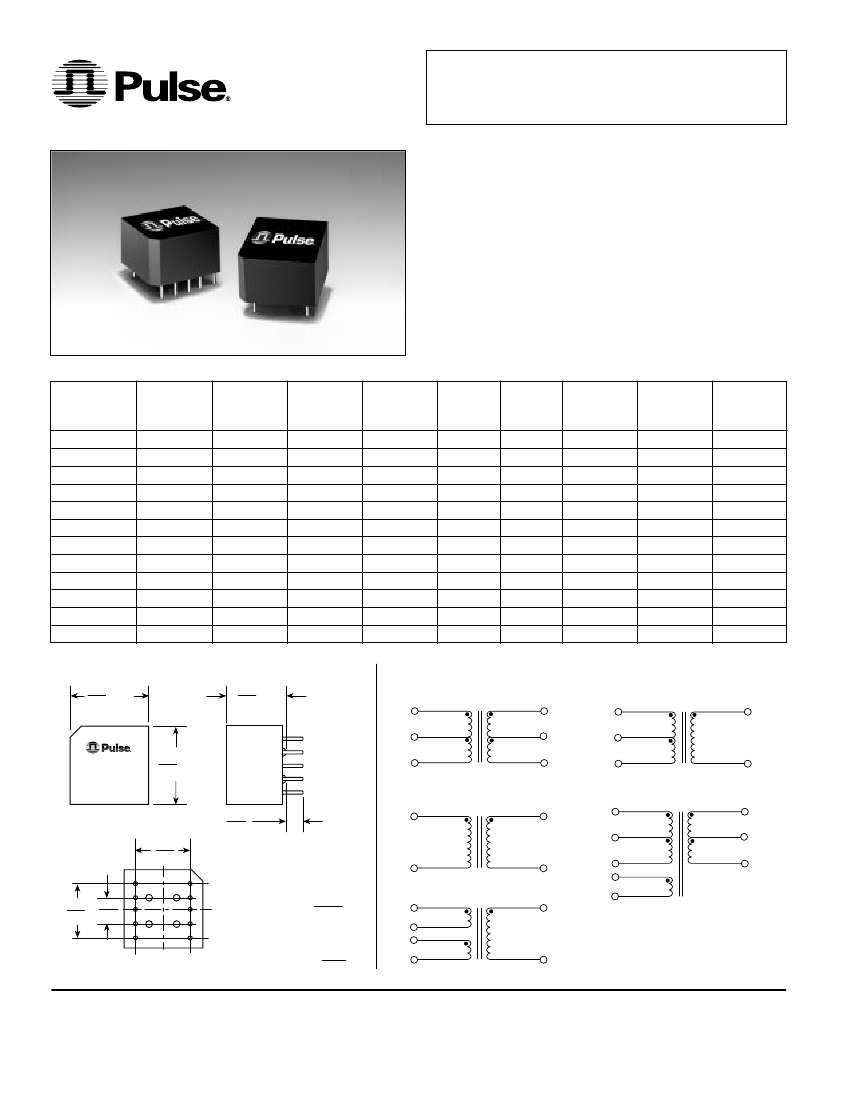

T1/CEPT/ISDN-PRI TRANSFORMERS

REINFORCED INSULATION, 3KV

RMS

•

ELECTRICAL SPECIFICATIONS @ 25°C

Pulse

Part Number

PE-65830

PE-65831

PE-65832

PE-65833

PE-65834

PE-65835

PE-65836

PE-65837

(E)

PE-65838

PE-65839

(E)

PE-68646

(E)

PE-68788

Turns

Ratio

(± 5%)

1:1:1.58

1:1:2

1:1.36CT

1CT:2CT

1:1

1CT:2CT

1CT:3CT:1

1:1.08/1.36

1:1.14

1:1/1.26

1:1.58/2

1CT:1.41CT

OCL

@ 25° C

(mH MIN)

.800

1.20

(1)

.600

(1)

1.50

(1)

1.50

(1)

1.50

(1)

1.50

(1)

.800

(1)

W/W

(pF MAX)

(µH MAX)

0.70

0.50

0.60

0.30-0.55

0.50

0.55

0.80

0.60

0.70

0.60

0.70

0.80

CERTIFIED FOR REINFORCED

INSULATION PER EN 41003/EN 60950

FOR T1/CEPT LINE INTERFACES

PROVIDE 3,000 Vrms ISOLATION

MATCHED TO LEADING

TRANSCEIVER ICs

DESIGNED TO MEET ITU-T G.703

DCR

pri

(Ω MAX)

0.70

DCR

sec

(Ω MAX)

0.50

0.70

0.90

1.10

0.70

1.10

1.70

0.90

1.10

1.20

0.90

Safety

(9)

Agency

Recognition

C,T,U,B

Package/

Schematic

IS-8/C

IS-8/D

IS-8/A

IS-8/B

IS-8/A

IS-8/E

IS-8/D

IS-8/A

Primary

Pins

1-5 (2, 4 SH)

10-6

1-5

1-3

10-6

MECHANICALS

.558 MAX

14,2

.400 MAX

10,2

SCHEMATICS

PE-XXXXX

DATE CODE

.558 MAX

14,2

.130

3,3

.400

10,2

.400

10,2

.200

5,1

Dimensions: Inches

Unless otherwise specified,

all tolerances are ± 0.010

0,254

Unused pins not provided

906-24

Pulse

12220 World Trade Drive, San Diego, CA 92128 • (619) 674-8100
