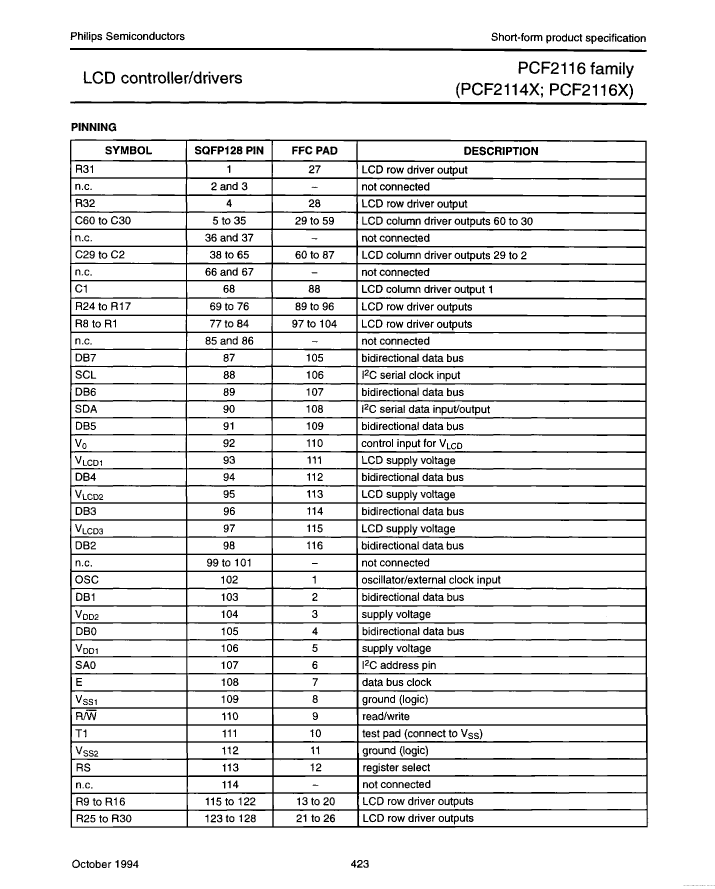

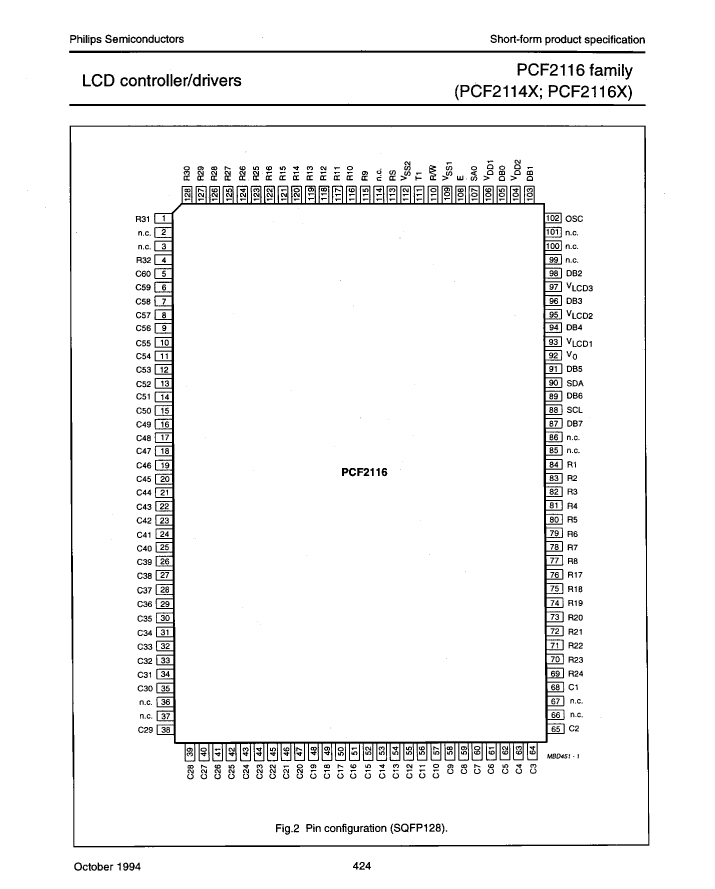

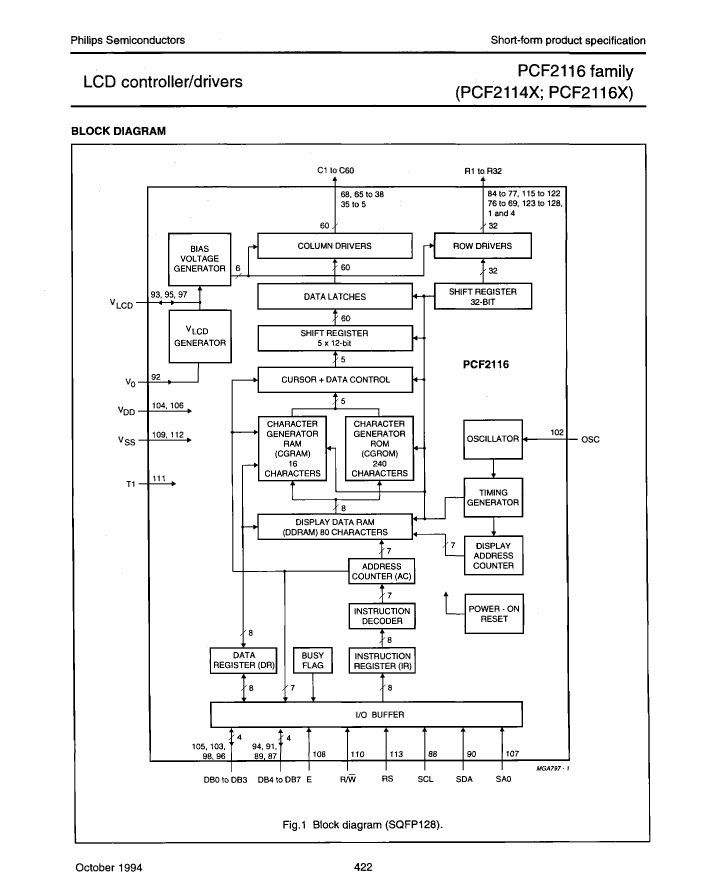

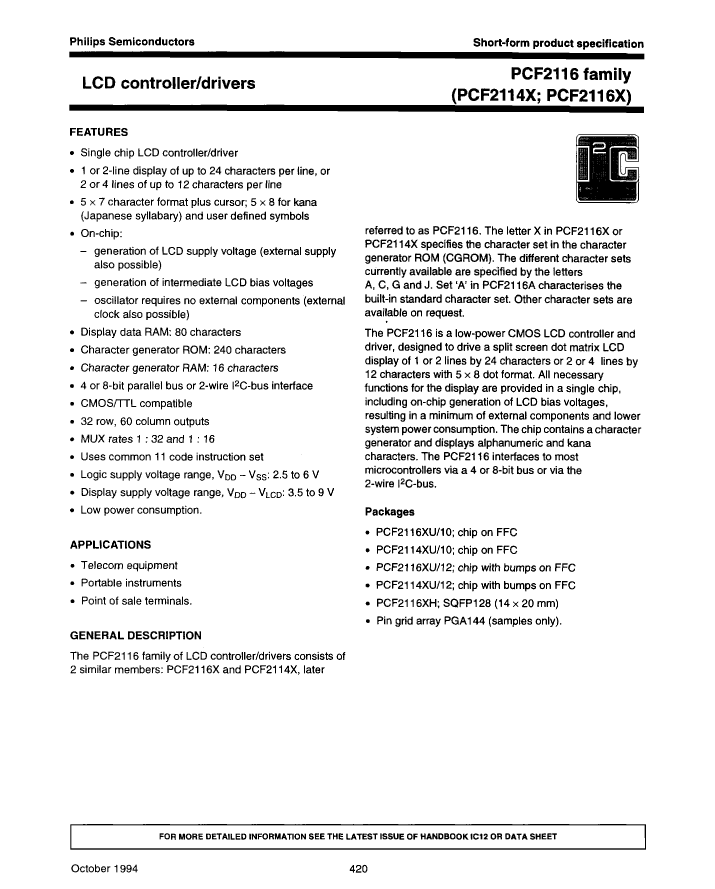

PCF2116AH-T Overview

IC 32 X 60 DOTS DOT MAT LCD DRVR AND DSPL CTLR, PQFP128, 14 X 20 MM, PLASTIC, SOT-387-1, SQFP-128, Display Controller

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
package instruction	FQFP,
Contacts	128
Reach Compliance Code	unknown
Address bus width	1
Bus compatibility	8051
maximum clock frequency	2 MHz
show configuration	32 X 60 DOTS
External data bus width	8
JESD-30 code	R-PQFP-G128
length	20 mm
Number of terminals	128
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Package shape	RECTANGULAR
Package form	FLATPACK, FINE PITCH
Certification status	Not Qualified
Maximum seat height	3.4 mm
Maximum slew rate	1.1 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, DOT MATRIX LCD DRIVER
