LC7942A datasheet, PDF - EEWORLD Datasheet

LC7942A: DescriptionLiquid Crystal Driver, 64-Segment, CMOS, PQFP80, PLASTIC, QFP-80; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size169KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

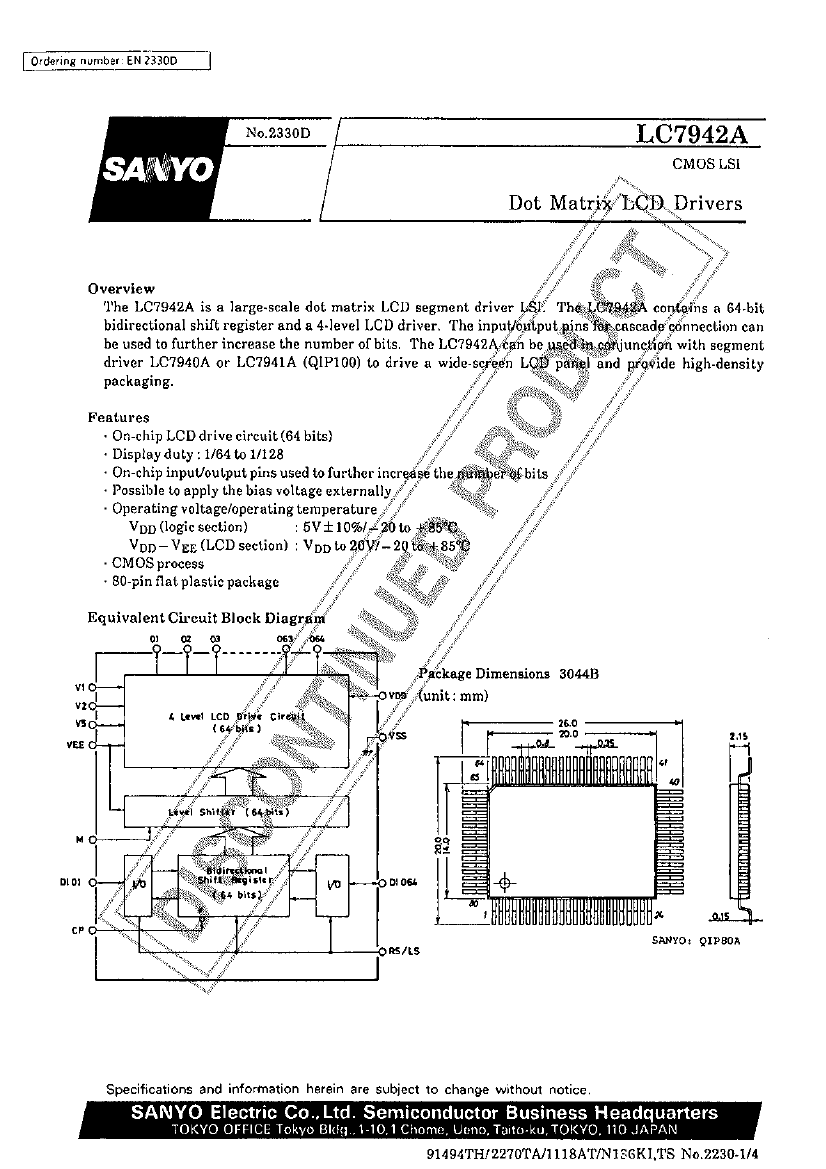

LC7942A Overview

Liquid Crystal Driver, 64-Segment, CMOS, PQFP80, PLASTIC, QFP-80

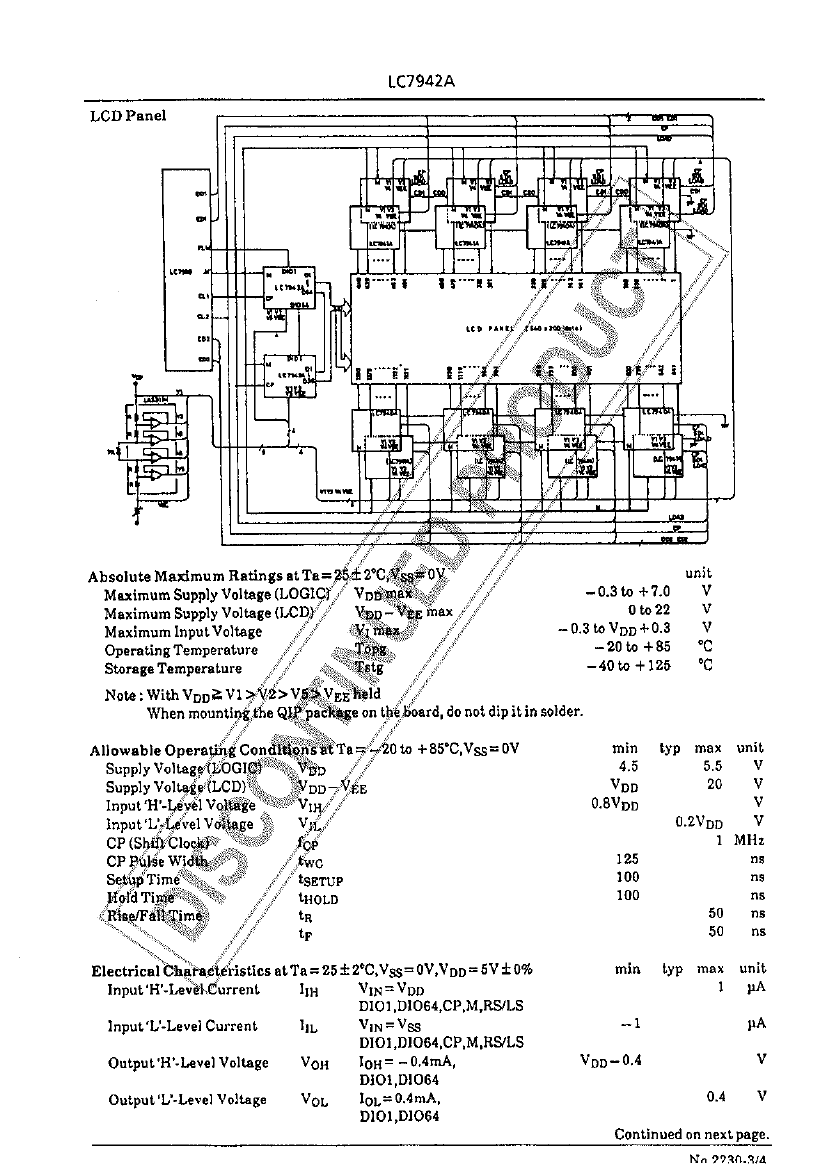

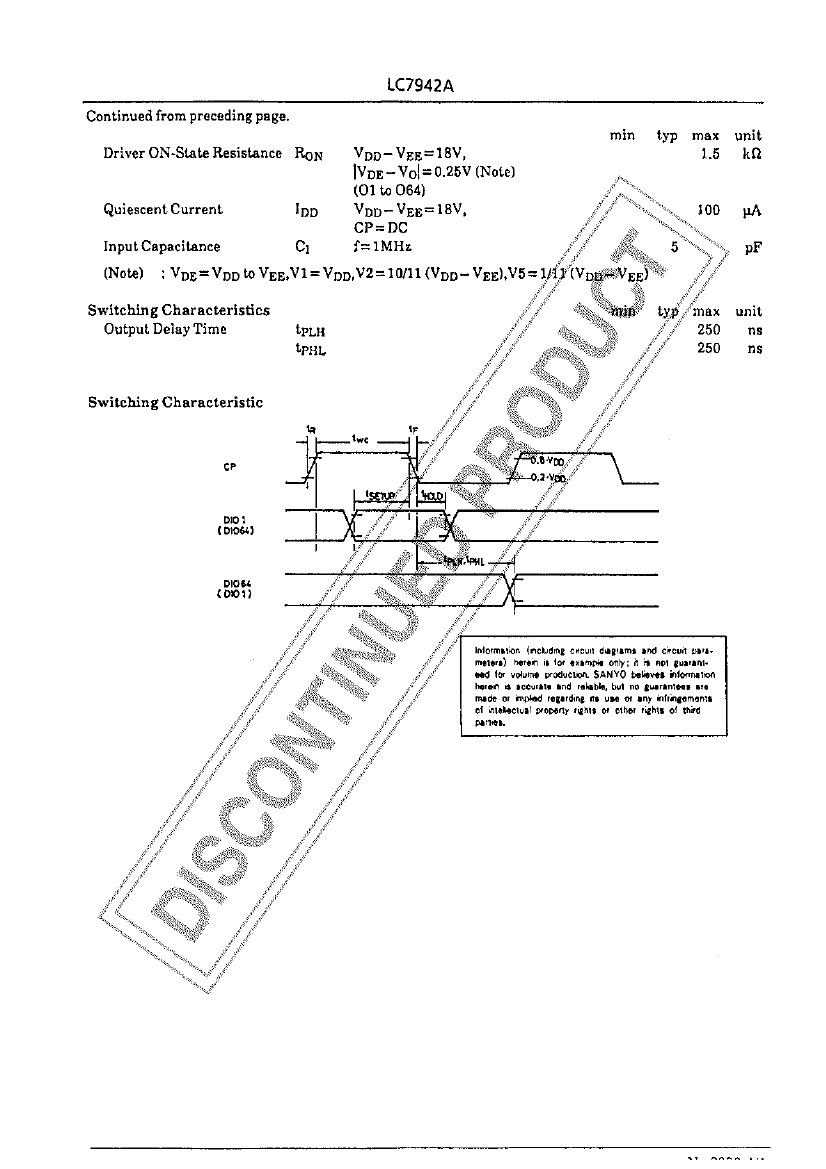

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	QFP
package instruction	QFP, QFP80,.7X.9,32

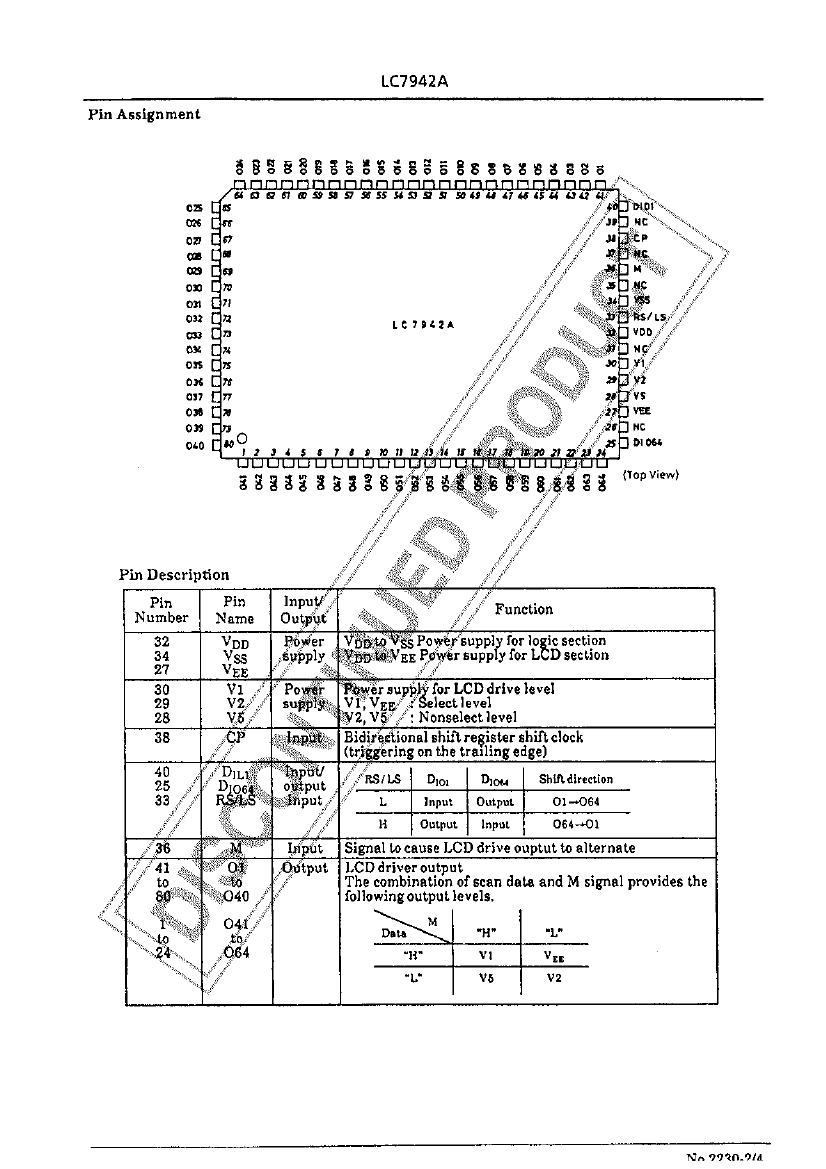

Contacts	80
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-PQFP-G80
JESD-609 code	e0
length	20 mm
Multiplex display function	NO
Number of base plates	64-BP
Number of functions	1
Number of segments	64
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.7X.9,32
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	20 V
Mains voltage 1-minute	4.5 V
Supply voltage1-Nom	18 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
minfmax	1 MHz
