GS8342D36AGE-300T: DescriptionDDR SRAM, 1MX36, 0.45ns, CMOS, PBGA165, 15 X 17 MM, 1 MM PITCH, ROHS COMPLIANT, FPBGA-165; Categorystorage storage; File Size1MB，36 Pages; ManufacturerGSI Technology; Websitehttp://www.gsitechnology.com/; Environmental Compliance

Download Datasheet Parametric View All

GS8342D36AGE-300T Overview

DDR SRAM, 1MX36, 0.45ns, CMOS, PBGA165, 15 X 17 MM, 1 MM PITCH, ROHS COMPLIANT, FPBGA-165

GS8342D36AGE-300T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	GSI Technology
Parts packaging code	BGA
package instruction	LBGA,
Contacts	165
Reach Compliance Code	compliant
ECCN code	3A991.B.2.B
Maximum access time	0.45 ns
Other features	PIPELINED ARCHITECTURE
JESD-30 code	R-PBGA-B165
JESD-609 code	e1
length	17 mm
memory density	37748736 bit
Memory IC Type	DDR SRAM
memory width	36
Humidity sensitivity level	3
Number of functions	1
Number of terminals	165
word count	1048576 words
character code	1000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX36
Package body material	PLASTIC/EPOXY
encapsulated code	LBGA
Package shape	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.5 mm
Maximum supply voltage (Vsup)	1.95 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15 mm

Preview

Download Datasheet

View All

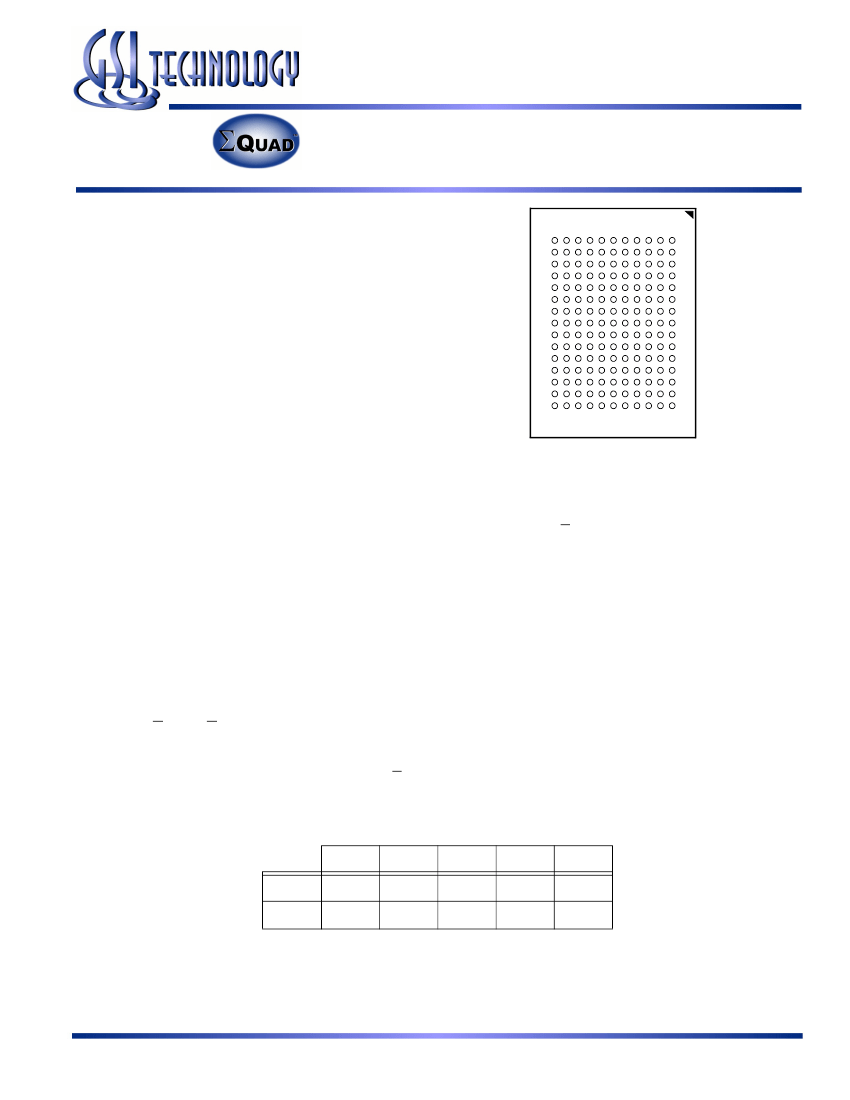

GS8342D08/09/18/36AE-333/300/250/200/167

165-Bump BGA

Commercial Temp

Industrial Temp

Features

• Simultaneous Read and Write SigmaQuad™ Interface

• JEDEC-standard pinout and package

• Dual Double Data Rate interface

• Byte Write (x36, x18, and x9) and Nybble Write (x8) function

• Burst of 4 Read and Write

• 1.8 V +100/–100 mV core power supply

• 1.5 V or 1.8 V HSTL Interface

• Pipelined read operation

• Fully coherent read and write pipelines

• ZQ pin for programmable output drive strength

• IEEE 1149.1 JTAG-compliant Boundary Scan

• 165-bump, 15 mm x 17 mm, 1 mm bump pitch BGA package

• RoHS-compliant 165-bump BGA package available

• Pin-compatible with present 9Mb and 18Mb and future 72Mb

and 144Mb devices

36Mb SigmaQuad-II

Burst of 4 SRAM

167 MHz–333 MHz

1.8 V V

1.8 V and 1.5 V I/O

Bottom View

165-Bump, 15 mm x 17 mm BGA

1 mm Bump Pitch, 11 x 15 Bump Array

clock inputs. C and C are also independent single-ended clock

inputs, not differential inputs. If the C clocks are tied high, the

K clocks are routed internally to fire the output registers

instead.

Because Separate I/O SigmaQuad-II B4 RAMs always transfer

data in four packets, A0 and A1 are internally set to 0 for the

first read or write transfer, and automatically incremented by 1

for the next transfers. Because the LSBs are tied off internally,

the address field of a SigmaQuad-II B4 RAM is always two

address pins less than the advertised index depth (e.g., the 2M

x 18 has a 512K addressable index).

SigmaQuad™ Family Overview

The GS8342D08/09/18/36AE are built in compliance with the

SigmaQuad-II SRAM pinout standard for Separate I/O

synchronous SRAMs. They are 37,748,736-bit (36Mb)

SRAMs. The GS8342D08/18/36AE SigmaQuad SRAMs are

just one element in a family of low power, low voltage HSTL

I/O SRAMs designed to operate at the speeds needed to

implement economical high performance networking systems.

Clocking and Addressing Schemes

The GS8342D08/09/18/36AE SigmaQuad-II SRAMs are

synchronous devices. They employ two input register clock

inputs, K and K. K and K are independent single-ended clock

inputs, not differential inputs to a single differential clock input

buffer. The device also allows the user to manipulate the

output register clock quasi independently with the C and C

Parameter Synopsis

- 333

tKHKH

tKHQV

3.0 ns

0.45 ns

-300

3.3 ns

0.45 ns

-250

4.0 ns

0.45 ns

-200

5.0 ns

0.45 ns

-167

6.0 ns

0.50 ns

Rev: 1.05 12/2007

1/36

Specifications cited are subject to change without notice. For latest documentation see http://www.gsitechnology.com.
