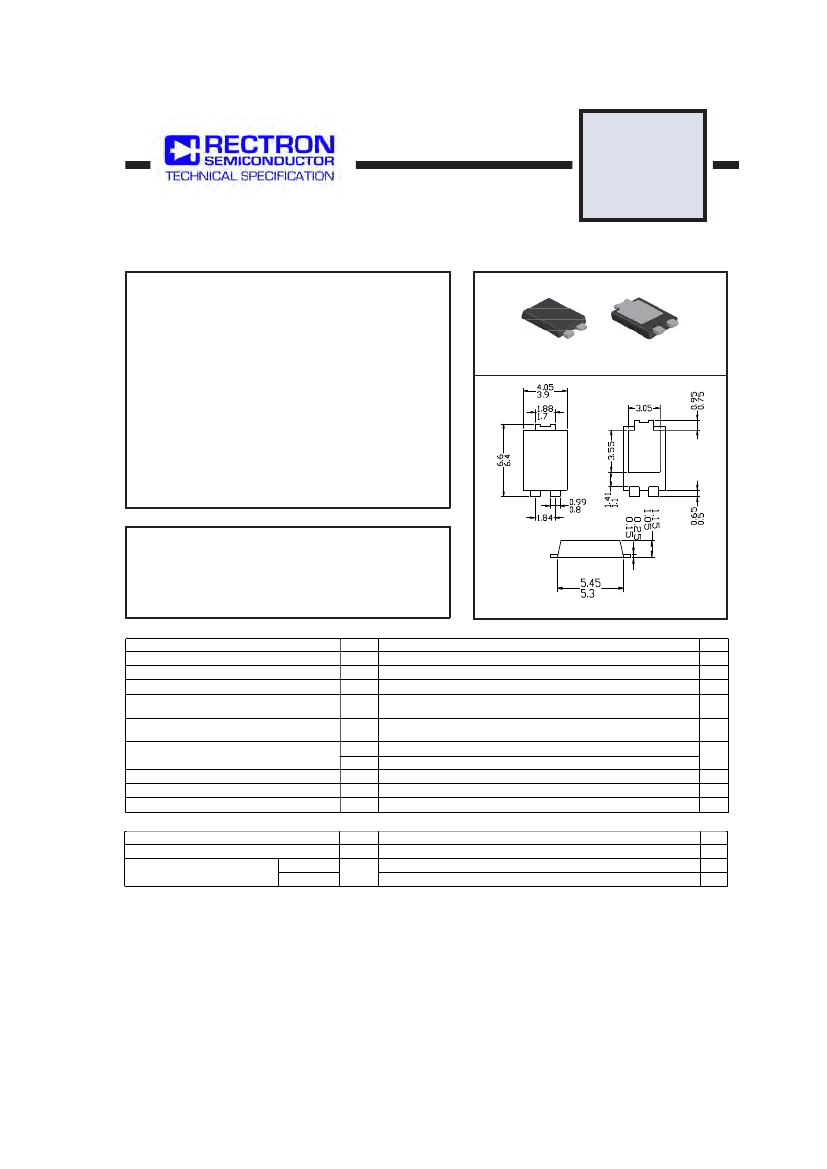

SR8100P
SCHOTTKY BARRIER RECTIFIER
VOLTAGE RANGE 100 Volts CURRENT 8.0 Amperes
FEATURES
*
*
*
*
*
*
Low switching noise
Low forward voltage drop
Low thermal resistance
High current capability
High surge capabitity
High reliability
Top View
Bottom View
DO277
MECHANICAL DATA
*
*
*
*
Case: DO277 molded plastic
Lead: MIL-STD-202E method 208C guaranteed
Mounting position: Any
Halogen free
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
C
=115
O
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 3)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
θ
JC
R
θ
JA
C
J
T
J
T
STG
SR8100P
100
70
100
8.0
150
2.5
60
450
175
-55 to + 175
UNITS
Volts
Volts
Volts
Amps
Amps
0
o
C/W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 8.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100
o
C
o
SYMBOL
V
F
I
R
SR8100P
.80
10
2.5
UNITS
Volts
uA
mA
2015-10
REV: O
NOTES : 1. Thermal Resistance : Heat-sink mounted.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant", "100% Sn plating (Pb-free)".
RATING AND CHARACTERISTICS CURVES ( SR8100P )
INSTANTANEOUS REVERSE CURRENT, (mA)
10
AVERAGE FORWARD CURRENT, (A)
8
6
4
2
0
10
1.0
T
A
= 100
O
C
0.1
0.01
Single Phase Half Wave
60Hz Inductive or
Resistive Load
T
A
= 25
O
C
0
50
100
O
150
175
0.001
0
20
40
60
80
100
120
140
CASE TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS FORWARD CURRENT, (A)
C
J
, JUNCTION CAPACITANCE, (pF)
50
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
4000
2000
1000
800
600
400
200
100
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
10
1.0
T
J
= 25
O
C
Pulse width=300mS
1% Duty Cycle
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.1
0.4
1.0
4
10
40
80100
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
155
150
145
140
135
130
125
1
2
5
8.3mS Single Half Sine-Wave
JEDEC Method
10
20
50
100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
Recommendation of Mounting Pad Layout
Z
C
X2
E1
X1
Y1
Dimensions
Z
X1
X2
Y1
Y2
C
E1
Value (in mm)
6.6
1.4
3.6
0.8
4.7
3.87
0.9
Y
Dimensions in millimeters
REEL TAPING SPECIFICATIONS FOR
SURFACE MOUNT DEVICES-FLAT MELF
( DO-277 )
P
0
P
1
d
E
F
B
W
A
P
D
2
D
1
T
MAX. 3
o
A
MAX. 3
o
D
W
1
R
C

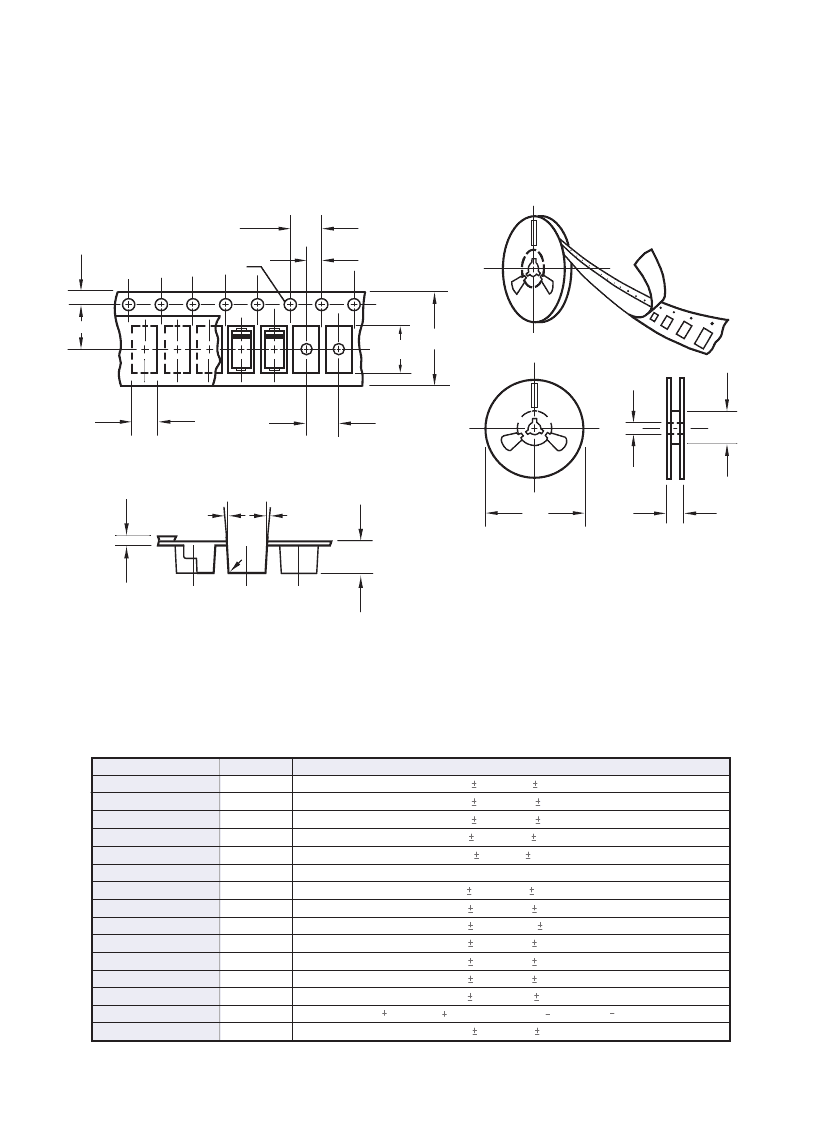

Fig.: Configuration of FLAT MELF TAPING
(DO-277)
ITEM
Carrier width
Carrier length
Carrier depth
Sprocket hole
Reel outside diameter
Reel inner diameter
Feed hole diameter
Strocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Totall tape thickness
Tape width
Reel width
SYMBOL
A
B
C
d
D
D
1
D
2
E
F
P
P
0
P
1
T
W
W
1
DO-277 mm(inch)
5.45 0.1(0.179 0.004)
6.80 0.1 (0.268 0.004)
1.33 0.1 (0.052 0.004)
1.5 0.1 (0.059 0.004)
178
2.0 (7.0
0.079)
0.020)
0.004)
0.002)
0.004)
0.004)
50 Min.
13 0.5 (0.512
1.75 0.1 (0.069
5.50 0.05 (0.217
8.0 0.1 (0.315
4.0
0.1 (0.157
2.00 0.05 (0.079 0.002)
0.28 0.02 (0.011 0.001)
12.00 0.1 (0.472
12.00 0.3 (0.472 0.012)
16.8 2.0 (0.661 0.079)
0.004)
Note: 1.Devices are packed in accordance with EIA standard RS-481-A and specification given above.
1. BOX
Packing
Code
-T/W
2. REEL
L
(mm)
338
W
(mm)
338
H
(mm)
40
D
Packing
Code
-T/W
3. CARTON
D
(mm)
330
Packing
Code
-T/W
L
(mm)
360
W
(mm)
355
H
(mm)
360
