74HC85PW,112: DescriptionHC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16; Categorylogic logic; File Size67KB，9 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

74HC85PW,112 Overview

HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16

74HC85PW,112 Parametric

Parameter Name	Attribute value
Brand Name	NXP Semiconduc
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP16,.25
Contacts	16
Manufacturer packaging code	SOT403-1
Reach Compliance Code	compli
Other features	CASCADABLE
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MAGNITUDE COMPARATOR
Humidity sensitivity level	1
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	2/6 V
propagation delay (tpd)	59 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

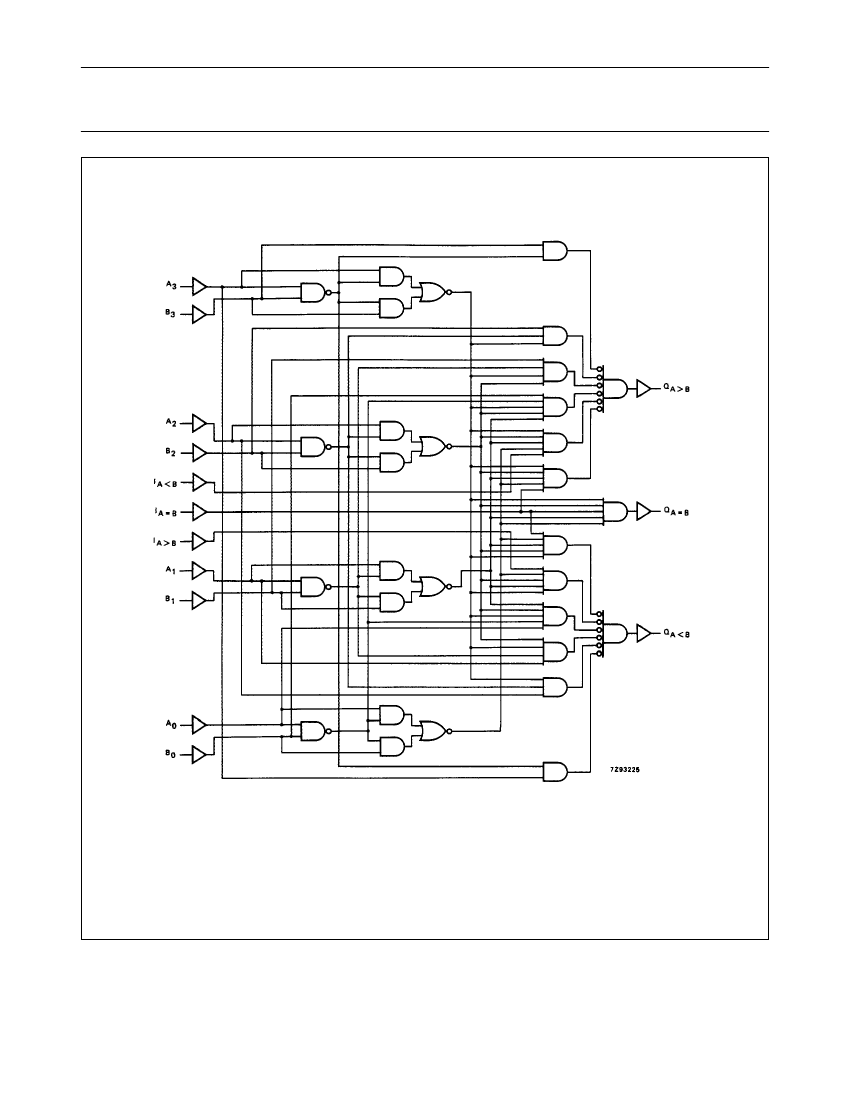

74HC/HCT85

4-bit magnitude comparator

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990

74HC85PW,112 Related Products

	74HC85PW,112	74HCT85DB,112	74HCT85DB,118	74HC85D,652	74HC85D,653	74HC85DB,112	74HC85DB,118	74HCT85D,652	74HCT85D,653	74HC85PW,118
Description	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16	HC/UH SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, PDSO16
Brand Name	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc	NXP Semiconduc
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	TSSOP	SSOP1	SSOP1	SOP	SOP	SSOP1	SSOP1	SOP	SOP	TSSOP
package instruction	TSSOP, TSSOP16,.25	SSOP, SSOP16,.3	SSOP,	SOP, SOP16,.25	PLASTIC, SO-16	SSOP, SSOP16,.3	SSOP, SSOP16,.3	SOP, SOP16,.25	SOP,	TSSOP,
Contacts	16	16	16	16	16	16	16	16	16	16
Manufacturer packaging code	SOT403-1	SOT338-1	SOT338-1	SOT109-1	SOT109-1	SOT338-1	SOT338-1	SOT109-1	SOT109-1	SOT403-1
Reach Compliance Code	compli	compli	unknow	compli	compli	compli	compli	compli	compli	compli
Other features	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE	CASCADABLE
series	HC/UH	HCT	HCT	HC/UH	HC/UH	HC/UH	HC/UH	HCT	HCT	HC/UH
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR	MAGNITUDE COMPARATOR
Humidity sensitivity level	1	1	1	1	1	1	1	1	1	1
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SSOP	SOP	SOP	SSOP	SSOP	SOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260	260
propagation delay (tpd)	59 ns	66 ns	66 ns	59 ns	59 ns	59 ns	59 ns	66 ns	66 ns	59 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6 V	5.5 V	5.5 V	6 V	6 V	6 V	6 V	5.5 V	5.5 V	6 V
Minimum supply voltage (Vsup)	2 V	4.5 V	4.5 V	2 V	2 V	2 V	2 V	4.5 V	4.5 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	Nickel/Palladium/Gold (Ni/Pd/Au)	NICKEL/PALLADIUM/GOLD (NI/PD/AU)	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30	30
Base Number Matches	1	1	1	1	1	1	1	1	1	1
JESD-609 code	e4	e4	e4	e4	-	e4	e4	e4	e4	e4
length	5 mm	6.2 mm	6.2 mm	-	-	6.2 mm	6.2 mm	-	-	5 mm
Encapsulate equivalent code	TSSOP16,.25	SSOP16,.3	-	SOP16,.25	-	SSOP16,.3	SSOP16,.3	SOP16,.25	-	-
power supply	2/6 V	5 V	-	2/6 V	-	2/6 V	2/6 V	5 V	-	-
Maximum seat height	1.1 mm	2 mm	2 mm	-	-	2 mm	2 mm	-	-	1.1 mm
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.27 mm	-	0.65 mm	0.65 mm	1.27 mm	-	0.65 mm
width	4.4 mm	5.3 mm	5.3 mm	-	-	5.3 mm	5.3 mm	-	-	4.4 mm
