specifications
™

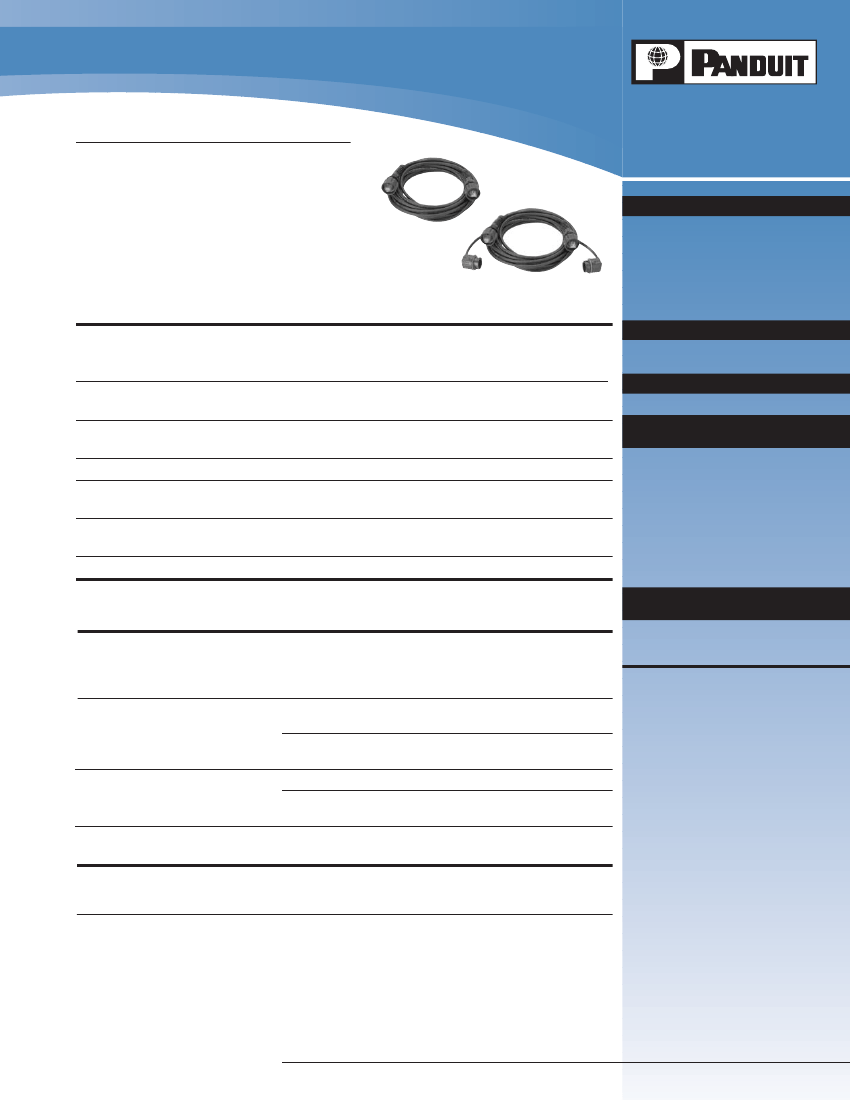

TX5e Patch Cords
™
®
SPECIFICATION SHEET
Industrial Ethernet patch cords shall be constructed of
Category 5e, industrial grade, solid, twisted pair cable
for UTP and STP installations. Each patch cord shall be
pre-terminated to include Category 5e industrial plugs
on each end which are wired according to the T568B
standard. Tethered caps shall be available to protect
connectivity in un-mated conditions. An IP67 rating shall
be achieved when mated with an IP67 bayonet style
industrial connector.
I
NDUSTRIAL
N
ET
™
TX5e
™
Patch Cords

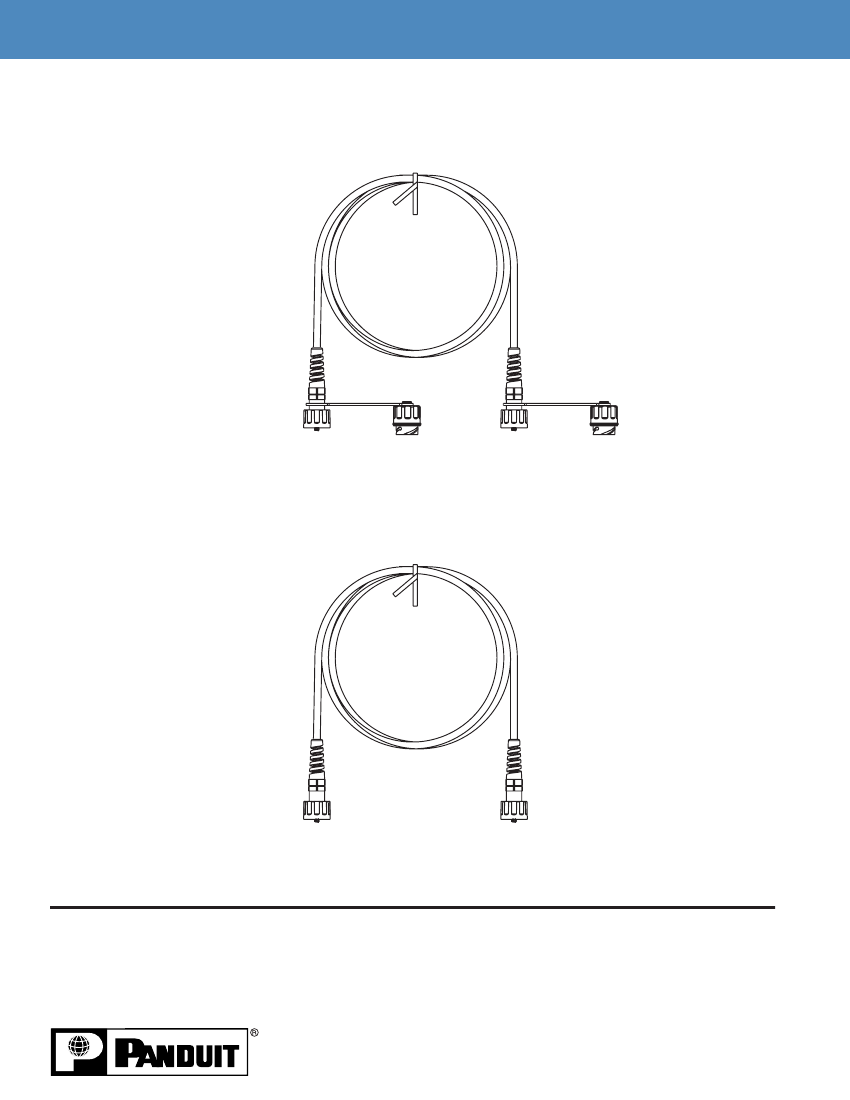

UTP with caps:
UTP
without caps:
STP with caps:
STP
without caps:
IUTPCH3BL*
IUTPCHNC3BL*
ISTPCH1MBL**
ISTPCHNC1MBL**
technical information
Performance:
Exceeds TIA/EIA-568-B.2 Category 5e standard
Meets ODVA Ethernet/IP cable requirements
Meets IP67 (IEC 60529) when mated to IP67 bayonet style bulkhead jack(s)
UL, cUL (UL 1863), CMR
Meets FCC part 68 Subpart F; contact plated with 50 microinches of gold
Meets IEC 60603-7
Constructed of 24 AWG UTP solid industrial grade cable, Industrial
TX5e
plugs and IP67 fittings
0 - 60°C operating temperature
Black
™
I
NDUSTRIAL
N
ET
™
TX5e
™
Connectors
UTP:
Shielded:
UTP:
IAEBH5E
IAEBH5ES
IAEBHC5E
Component
compliance:
FCC
compliance:
IEC compliance:
Materials:
Temperature
rating:
Cable color:
I
NDUSTRIAL
N
ET
™
TX5e
™
Coupler
I
NDUSTRIAL
N
ET
™
Enclosures
and Accessories
Enclosure:
Populated
gland plate:
Blank
gland plate:
Fan kit:
15" TX5e
patch cord:
™
IAEIP66
IAECGP
IAEBGP
IAEFK54
IUTPCHBH1.25BL
key features and benefits
Durability
Allows for 100-meter patch runs between automation devices and
controls in extremely harsh conditions or environments – common
in the automotive, food and beverage, petro-chemical, mining and
building automation markets
When patch cord plug fittings are mated to IP67
I
NDUSTRIAL
N
ET
™
TX5e
™
Connectors, the patch cords meet IP67 protection
Withstands harsh environments without loss of performance in
washdown and temporary submerged conditions
I
NDUSTRIAL
N
ET
™
Stainless
Steel Faceplates
Single gang:
Double gang:
IAEFP1
IAEFP2-2G
IP rated
*For lengths 5, 7, 10, 15, or 20 feet, change
the length designation in the part number to
the desired length. For example, the part
number for a 7 foot patch cord is IUTPCH7BL.
**For lengths 2, 3 or 5 meters, change the
length designation in the part number to the
desired length. For example, the part number
for a 5 meter patch cord is ISTPCH5MBL.
Bayonet-style termination
Provides quick installation for lowest installed cost
Mated bayonet tactile lock ensures positive mating between the
plug and connector
100% performance tested
Confidence that each patch cord delivers Category 5e
performance at the component level
applications
The
I
NDUSTRIAL
N
ET
™
TX5e
™
Patch Cords provide
reliability and high performance, as an integral
component to the end-to-end solution, for Industrial
Network applications. In the mated conditions, these
patch cords can withstand high temperature and
high vibration, commonly found in metal forming
or automotive manufacturing. The IP67 rating is
imperative in the food and beverage industries
where wash down is common. Pre-integrated
tethered caps allow for the plugs to be protected in
their unmated condition, such as during shipping,
storage, installation or maintenance.
