IDT72T51258L6-7BBG datasheet, PDF

Datasheet> All Categories > storage> storage> IDT72T51258L6-7BBG

IDT72T51258L6-7BBG: DescriptionFIFO, 64KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324; Categorystorage storage; File Size539KB，56 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

IDT72T51258L6-7BBG Overview

FIFO, 64KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324

IDT72T51258L6-7BBG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	BGA
package instruction	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324
Contacts	324
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	3.8 ns
period time	6.7 ns
JESD-30 code	S-PBGA-B324
JESD-609 code	e1
length	19 mm
memory density	2621440 bit
memory width	40
Humidity sensitivity level	3
Number of functions	1
Number of terminals	324
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX40
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.97 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN SILVER COPPER
Terminal form	BALL
Terminal pitch	1 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30
width	19 mm

Preview

Download Datasheet

View All

2.5V MULTI-QUEUE DDR FLOW-CONTROL DEVICES

40 BITS WIDE WITH FIXED 4 QUEUES

8,192 x 40 x 4, 16,384 x 40 x 4

and 32,768 x 40 x 4

IDT72T51248

IDT72T51258

IDT72T51268

FEATURES

•

The multi-queue DDR flow-control device contains 4 Queues

each queue has a fixed size of:

IDT72T51248 — 8,192 x 40 or 16,384 x 20 or 32,768 x 10

IDT72T51258 — 16,384 x 40 or 32,768 x 20 or 65,536 x 10

IDT72T51268 — 32,768 x 40 or 65,536 x 20 or 131,072 x 10

Write to and Read from the same queue or different queues

simultaneously via totally independent ports

Up to 200MHz operating frequency or 8Gbps throughput in SDR mode

Up to 100MHz operating frequency or 8Gbps throughput in DDR mode

User selectable Single Data Rate (SDR) or Double Data Rate

(DDR) modes on both the write port and read port

100% Bus Utilization, Read and Write on every clock cycle

Global Bus Matching - All Queues have same Input bus width

and same Output bus width

User Selectable Bus Matching options:

- x40in to x40out

- x40in to x20out

- x40in to x10out

- x20in to x40out

- x20in to x20out

- x20in to x10out

- x10in to x40out

- x10in to x20out

- x10in to x10out

All I/O is LVTTL/ HSTL/ eHSTL user selectable

3.3V tolerant inputs in LVTTL mode

ERCLK &

EREN

Echo outputs on read port

•

Write Chip Select

WCS

input for write port

Read Chip Select

RCS

input for read port

User Selectable IDT Standard mode (using

and

FF)

or FWFT

mode (using

and

OR)

All 4 Queues have dedicated flag outputs

FF/IR, EF/OR, PAF

and

PAE

A Composite Full/ Input Ready Flag gives status of the queue

selected on the write port

A Composite Empty/ Output Ready flag gives status of the

queue selected on the read port

Programmable Almost Empty and Almost Full flags per Queue

Dedicated Serial Port for flag programming

A Partial Reset is provided for each queue

Power Down pin minimizes power consumption

2.5V Supply Voltage

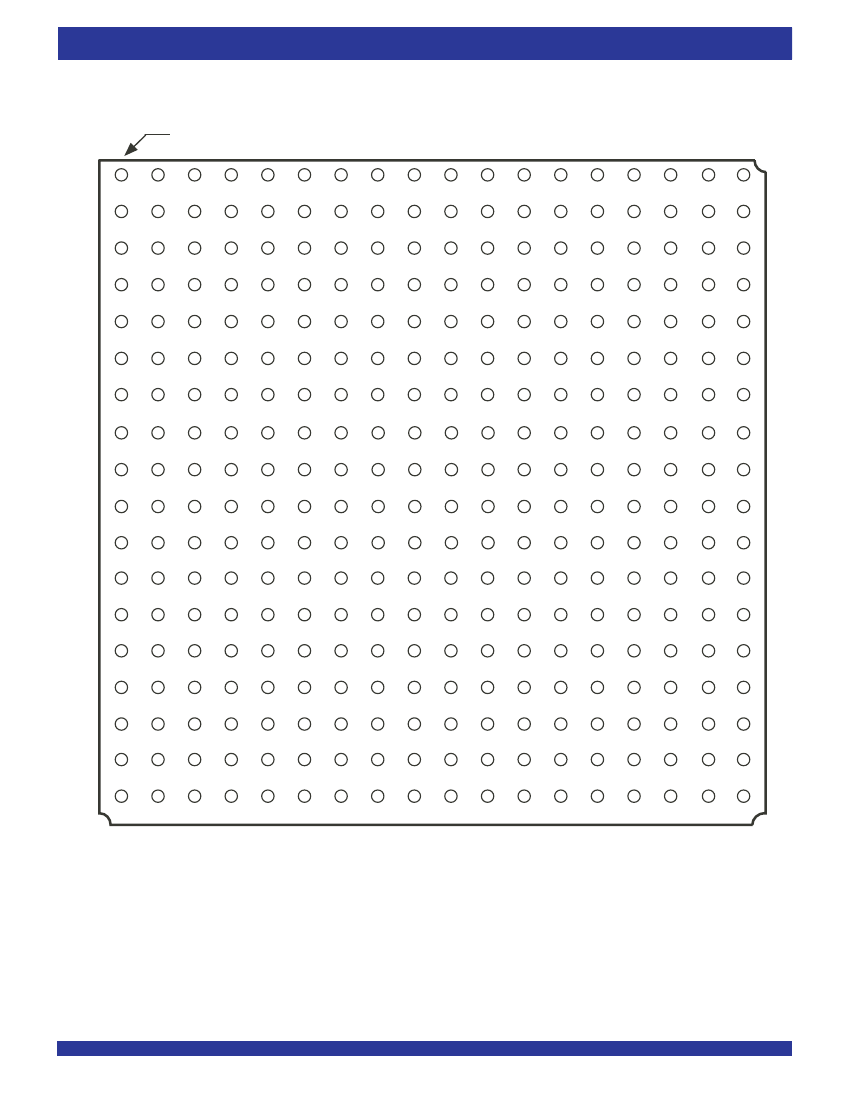

Available in a 324-pin Plastic Ball Grid Array (PBGA)

19mm x 19mm, 1mm Pitch

JTAG port provides boundary scan function and optional

programming mode

Low Power, High Performance CMOS technology

Industrial temperature range (-40°C to +85°C)

FUNCTIONAL BLOCK DIAGRAM

MULTI-QUEUE DDR FLOW-CONTROL DEVICE

WCLK

WEN

WCS

IS[1:0]

Read Control

Write Control

8,192 x 40

16,384 x40

32,768 x 40

Queue 0

8,192 x 40

16,384 x40

32,768 x 40

Queue 1

8,192 x 40

16,384 x40

32,768 x 40

Queue 2

8,192 x 40

16,384 x40

32,768 x 40

Queue 3

RCLK

REN

RCS

OS[1:0]

D[39:0]

Data In

x10,x20,x40

Q[39:0]

Data Out

x10,x20,x40

FF0/IR0

PAF0

FF1/IR1

PAF1

FF2/IR2

PAF2

FF3/IR3

PAF3

CFF/CIR

EF0/OR0

PAE0

EF1/OR1

PAE1

EF2/OR2

PAE2

EF3/OR3

PAE3

CEF/COR

Read Port

Flag Outputs

6159 drw01

IDT and the IDT logo are trademarks of Integrated Device Technology, Inc

Write Port

Flag Outputs

MARCH 2005

DSC-6159/4



2005

IDT72T51248/72T51258/72T51268 2.5V MULTI-QUEUE DDR FLOW-CONTROL DEVICES

8,192 x 40 x 4, 16,384 x 40 x 4 and 32,768 x 40 x 4

COMMERCIAL AND INDUSTRIAL

TEMPERATURE RANGES

Table of Contents

Features ......................................................................................................................................................................................................................... 1

Description ...................................................................................................................................................................................................................... 3

Pin Configuration ............................................................................................................................................................................................................. 5

Pin Descriptions ............................................................................................................................................................................................................ 6-8

Device Characteristics ..................................................................................................................................................................................................... 9

DC Electrical Characteristics .......................................................................................................................................................................................... 10

AC Electrical Characteristics ........................................................................................................................................................................................... 11

AC Test Conditions ........................................................................................................................................................................................................ 12

Functional Descriptions ............................................................................................................................................................................................. 14-22

Signal Descriptions ................................................................................................................................................................................................... 23-28

JTAG Timing Specifications ....................................................................................................................................................................................... 29-33

List of Tables

Table 1 — Device Configuration .................................................................................................................................................................................... 14

Table 2 — Default Programmable Flag Offsets ................................................................................................................................................................ 14

Table 3 — Status Flags for IDT Standard Mode ............................................................................................................................................................. 17

Table 4 — Status Flags for FWFT Mode ........................................................................................................................................................................ 17

Table 5 — I/O Voltage Level Configuration ..................................................................................................................................................................... 18

Table 6 — TSKEW Measurement .................................................................................................................................................................................. 27

List of Figures

Figure 1. Multi-Queue DDR Flow-Control Device Block Diagram .................................................................................................................................... 4

Figure 2a. AC Test Load ................................................................................................................................................................................................ 12

Figure 2b. Lumped Capacitive Load, Typical Derating ................................................................................................................................................... 12

Figure 3. Programmable Flag Offset Programming Methods ........................................................................................................................................... 15

Figure 4. Offset Registers Serial Bit Sequence ................................................................................................................................................................ 16

Figure 5. Bus-Matching Byte Arrangement ................................................................................................................................................................ 19-21

Figure 6. Echo Read Clock and Data Output Relationship .............................................................................................................................................. 28

Figure 7. Standard JTAG Timing ................................................................................................................................................................................... 29

Figure 8. JTAG Architecture ........................................................................................................................................................................................... 30

Figure 9. TAP Controller State Diagram ......................................................................................................................................................................... 31

Figure 10. Master Reset Timing ..................................................................................................................................................................................... 34

Figure 11. Partial Reset Timing ...................................................................................................................................................................................... 35

Figure 12. Write Cycle and Full Flag Timing (IDT Standard mode, SDR to SDR, x40 In to x40 Out) ............................................................................... 36

Figure 13. Write Cycle and Full Flag Timing in DDR mode ( IDT Standard mode, DDR to DDR, x40 In to x40 Out) ...................................................... 37

Figure 14. Write Cycle and Full Flag Timing with bus-matching and rate matching (IDT Standard mode, DDR to SDR, x10 In to x20 Out) ..................... 38

Figure 15. Write Cycle and Full Flag Timing with rate matching (IDT Standard mode, SDR to DDR, x40 In to x40 Out) ................................................. 39

Figure 16. Write Timing in FWFT mode (FWFT mode, SDR to SDR, x40 In to x40 Out) ................................................................................................. 40

Figure 17. Write Cycle and First Word Latency Timing in DDR mode (FWFT mode, DDR to DDR, x40 In to x40 Out) .................................................... 41

Figure 18. Read Cycle, Empty Flag & First Word Latency (IDT Standard mode, SDR to SDR, x40 In to x40 Out) .......................................................... 42

Figure 19. Read Cycle, Empty Flag & First Word Latency in DDR mode (IDT Standard mode, DDR to DDR, x40 In to x40 Out) ................................... 43

Figure 20. Read Cycle, Empty Flag & First Word Latency w/ bus-matching and rate-matching (IDT Standard mode, DDR to SDR, x40 In to x20 Out) ... 44

Figure 21. Read Cycle and Empty Flag Timing with bus-matching and rate-matching (IDT Standard mode, SDR to DDR, x10 In to x20 Out) ................ 45

Figure 22. Read Timing at Full Boundary (FWFT mode, SDR to SDR, x40 In to x40 Out) ............................................................................................. 46

Figure 23. Composite Empty Flag (IDT Standard mode, SDR to SDR, x40 In to x40 Out) .............................................................................................. 47

Figure 24. Composite Output Ready Flag (FWFT mode, SDR to SDR, x40 In to x40 Out) ............................................................................................. 47

Figure 25. Composite Full Flag (IDT Standard mode, SDR to SDR, x40 In to x40 Out) .................................................................................................. 48

Figure 26. Composite Input Ready Flag (FWFT mode, SDR to SDR, x40 In to x40 Out) ................................................................................................ 48

Figure 27. Queue Switch at Every Clock Cycle (IDT Standard mode, SDR to SDR, x40 In to x40 Out) .......................................................................... 49

Figure 28. Echo Read Clock and Read Enable Operation (IDT Standard mode, SDR to SDR, x40 In to x40 Out) .......................................................... 50

Figure 29. Echo RCLK and Echo Read Enable Operation (FWFT mode, SDR to SDR, x40 In to x40 Out) .................................................................... 51

Figure 30. Echo Read Clock and Read Enable Operation (IDT Standard mode, DDR to DDR, x10 In to x10 Out) ......................................................... 52

Figure 31. Loading of Programmable Flag Registers (IDT Standard and FWFT modes) ................................................................................................ 53

Figure 32. Reading of Programmable Flag Registers (IDT Standard and FWFT modes) ................................................................................................ 53

Figure 33. Synchronous Programmable Almost-Full Flag Timing (IDT Standard and FWFT mode, SDR to SDR, x40 In to x40 Out) .............................. 54

Figure 34. Synchronous Programmable Almost-Empty Flag Timing (IDT Standard and FWFT mode, SDR to SDR, x40 In to x40 Out) ........................... 54

Figure 35. Power Down Operation ................................................................................................................................................................................ 55

MARCH 22, 2005

IDT72T51258L6-7BBG Related Products

	IDT72T51258L6-7BBG	IDT72T51268L5BBG	IDT72T51268L6-7BBGI	IDT72T51248L6-7BBG	IDT72T51258L5BBG	IDT72T51248L5BBG	IDT72T51268L6-7BBG	IDT72T51258L6-7BBGI	IDT72T51248L6-7BBGI
Description	FIFO, 64KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 128KX40, 3.6ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 128KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 32KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 64KX40, 3.6ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 32KX40, 3.6ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 128KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 64KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	FIFO, 32KX40, 3.8ns, Synchronous, CMOS, PBGA324, 19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
package instruction	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324	19 X 19 MM, 1 MM PITCH, PLASTIC, BGA-324
Contacts	324	324	324	324	324	324	324	324	324
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	3.8 ns	3.6 ns	3.8 ns	3.8 ns	3.6 ns	3.6 ns	3.8 ns	3.8 ns	3.8 ns
period time	6.7 ns	5 ns	6.7 ns	6.7 ns	5 ns	5 ns	6.7 ns	6.7 ns	6.7 ns
JESD-30 code	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324	S-PBGA-B324
JESD-609 code	e1	e1	e1	e1	e1	e1	e1	e1	e1
length	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm
memory density	2621440 bit	5242880 bit	5242880 bit	1310720 bit	2621440 bit	1310720 bit	5242880 bit	2621440 bit	1310720 bit
memory width	40	40	40	40	40	40	40	40	40
Humidity sensitivity level	3	3	3	3	3	3	3	3	3
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	324	324	324	324	324	324	324	324	324
word count	65536 words	131072 words	131072 words	32768 words	65536 words	32768 words	131072 words	65536 words	32768 words
character code	64000	128000	128000	32000	64000	32000	128000	64000	32000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
organize	64KX40	128KX40	128KX40	32KX40	64KX40	32KX40	128KX40	64KX40	32KX40
Exportable	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.97 mm	1.97 mm	1.97 mm	1.97 mm	1.97 mm	1.97 mm	1.97 mm	1.97 mm	1.97 mm
Maximum supply voltage (Vsup)	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V	2.625 V
Minimum supply voltage (Vsup)	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V	2.375 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30	30
width	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm	19 mm
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Base Number Matches	-	1	1	1	1	1	1	-	-

Recommended Resources

Buck circuit diagram composed of AP3003

Prevent the circuit of B220 gantry planer from running over due to power outage

Crystal diode single-phase bridge resistive load rectifier circuit

Electronic doorbell that can speak and sing

Circuit that converts sine wave to square wave

AC contactor power-saving silent operation circuit (2)

Shortcut: 00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components
