IR21024PBF

Description
Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDIP14, PLASTIC, DIP-14
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size209KB,15 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

IR21024PBF Overview

Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDIP14, PLASTIC, DIP-14

IR21024PBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
Parts packaging codeDIP
package instructionDIP,
Contacts14
Reach Compliance Codecompliant
ECCN codeEAR99
high side driverYES
Interface integrated circuit typeHALF BRIDGE BASED MOSFET DRIVER
JESD-30 codeR-PDIP-T14
JESD-609 codee3
length19.305 mm
Number of functions1
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Nominal output peak current0.36 A
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height5.33 mm
Maximum supply voltage20 V
Minimum supply voltage10 V
Nominal supply voltage15 V
surface mountNO
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal surfaceMATTE TIN OVER NICKEL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
Disconnect time0.22 µs
connection time0.22 µs
width7.62 mm

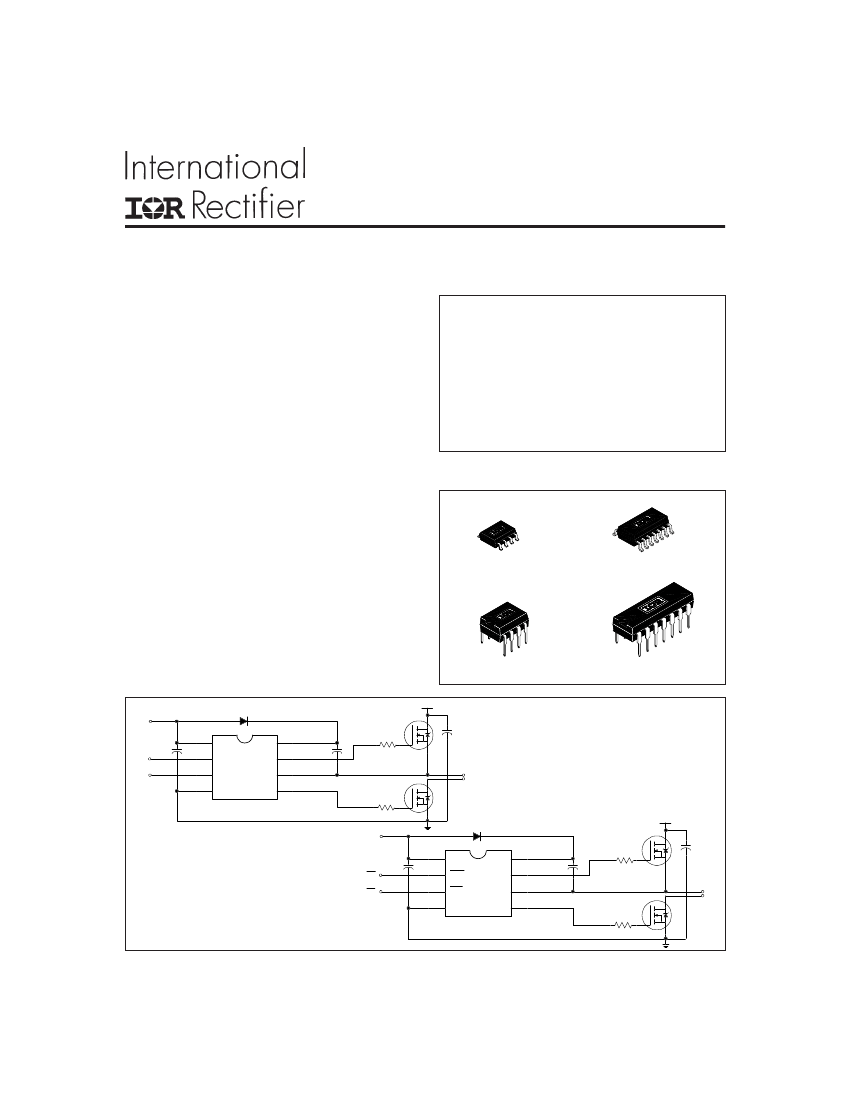

Data Sheet No. PD60043K
IR2101/IR21014
IR2102/IR21024
HIGH AND LOW SIDE DRIVER
Features
Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10 to 20V
Undervoltage lockout
5V Schmitt-triggered input logic
Matched propagation delay for both channels
Outputs in phase with inputs (IR2101/IR21014) or
out of phase with inputs (IR2102/IR21024)
Product Summary
V
OFFSET
I
O
+/-
V
OUT
t
on/off
(typ.)
Delay Matching
600V max.
130 mA / 270 mA
10 - 20V
160 & 150 ns
50 ns
Description
The IR2101/IR21014/IR2102/IR21024 are high voltage,
high speed power MOSFET and IGBT drivers with in-
dependent high and low side referenced output chan-
nels. Proprietary HVIC and latch immune CMOS tech-
nologies enable ruggedized monolithic construction. The
logic input is compatible with standard CMOS or LSTTL
output. The output drivers feature a high pulse current
buffer stage designed for minimum driver cross-conduc-
tion. The floating channel can be used to drive an N-
channel power MOSFET or IGBT in the high side con-
figuration which operates up to 600 volts.
Packages
8 Lead SOIC
14 Lead SOIC
8 Lead PDIP
14 Lead PDIP
Typical Connection
up to 600V
V
CC
V
CC
HIN
LIN
V
B
HO
V
S
LO
up to 600V
V
CC
TO
LOAD
HIN
LIN
COM
IR2101
V
CC
HIN
LIN
V
B
HO
V
S
LO
TO
LOAD
HIN
LIN
COM
IR2102

IR21024PBF Related Products

IR21024PBF IR21014PBF IR21014SPBF IR21014S IR21024S
Description Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDIP14, PLASTIC, DIP-14 Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDIP14, PLASTIC, DIP-14 Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO14, SOIC-14 Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO14, SOIC-14 Half Bridge Based MOSFET Driver, 0.36A, CMOS, PDSO14, SOIC-14
Is it Rohs certified? conform to conform to conform to incompatible incompatible
Parts packaging code DIP DIP SOIC SOIC SOIC
package instruction DIP, DIP, SOP, SOP, SOP14,.25 SOP, SOP14,.25
Contacts 14 14 14 14 14
Reach Compliance Code compliant compliant compliant compliant unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
high side driver YES YES YES YES YES
Interface integrated circuit type HALF BRIDGE BASED MOSFET DRIVER HALF BRIDGE BASED MOSFET DRIVER HALF BRIDGE BASED MOSFET DRIVER HALF BRIDGE BASED MOSFET DRIVER HALF BRIDGE BASED MOSFET DRIVER
JESD-30 code R-PDIP-T14 R-PDIP-T14 R-PDSO-G14 R-PDSO-G14 R-PDSO-G14
JESD-609 code e3 e3 e3 e0 e0
length 19.305 mm 19.305 mm 8.65 mm 8.65 mm 8.65 mm
Number of functions 1 1 1 1 1
Number of terminals 14 14 14 14 14
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Nominal output peak current 0.36 A 0.36 A 0.36 A 0.36 A 0.36 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP SOP SOP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260 NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 5.33 mm 5.33 mm 1.75 mm 1.75 mm 1.75 mm
Maximum supply voltage 20 V 20 V 20 V 20 V 20 V
Minimum supply voltage 10 V 10 V 10 V 10 V 10 V
Nominal supply voltage 15 V 15 V 15 V 15 V 15 V
surface mount NO NO YES YES YES
technology CMOS CMOS CMOS CMOS CMOS
Temperature level AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE
Terminal surface MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE GULL WING GULL WING GULL WING
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 40 40 30 NOT SPECIFIED NOT SPECIFIED
Disconnect time 0.22 µs 0.22 µs 0.22 µs 0.22 µs 0.22 µs
connection time 0.22 µs 0.22 µs 0.22 µs 0.22 µs 0.22 µs
width 7.62 mm 7.62 mm 3.9 mm 3.9 mm 3.9 mm
Is it lead-free? Lead free Lead free Lead free Contains lead -
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) -
Base Number Matches - 1 1 1 1
Humidity sensitivity level - - 1 3 3
