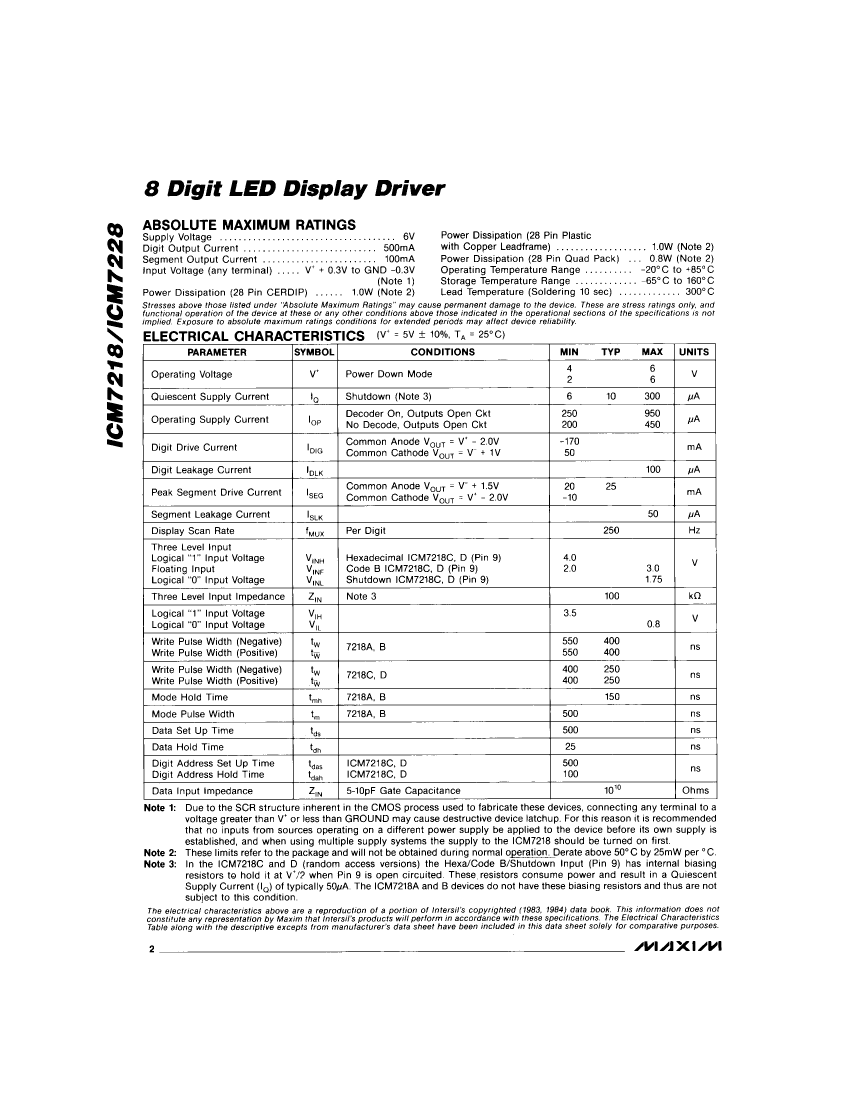

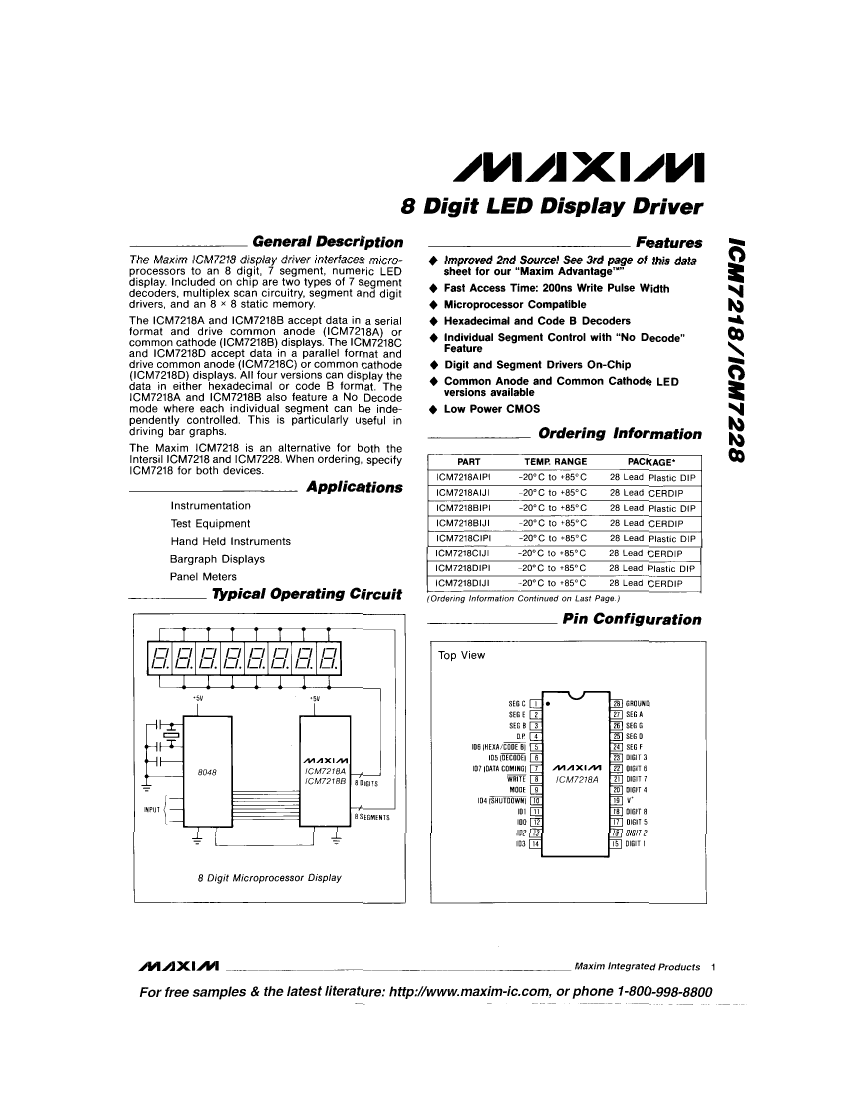

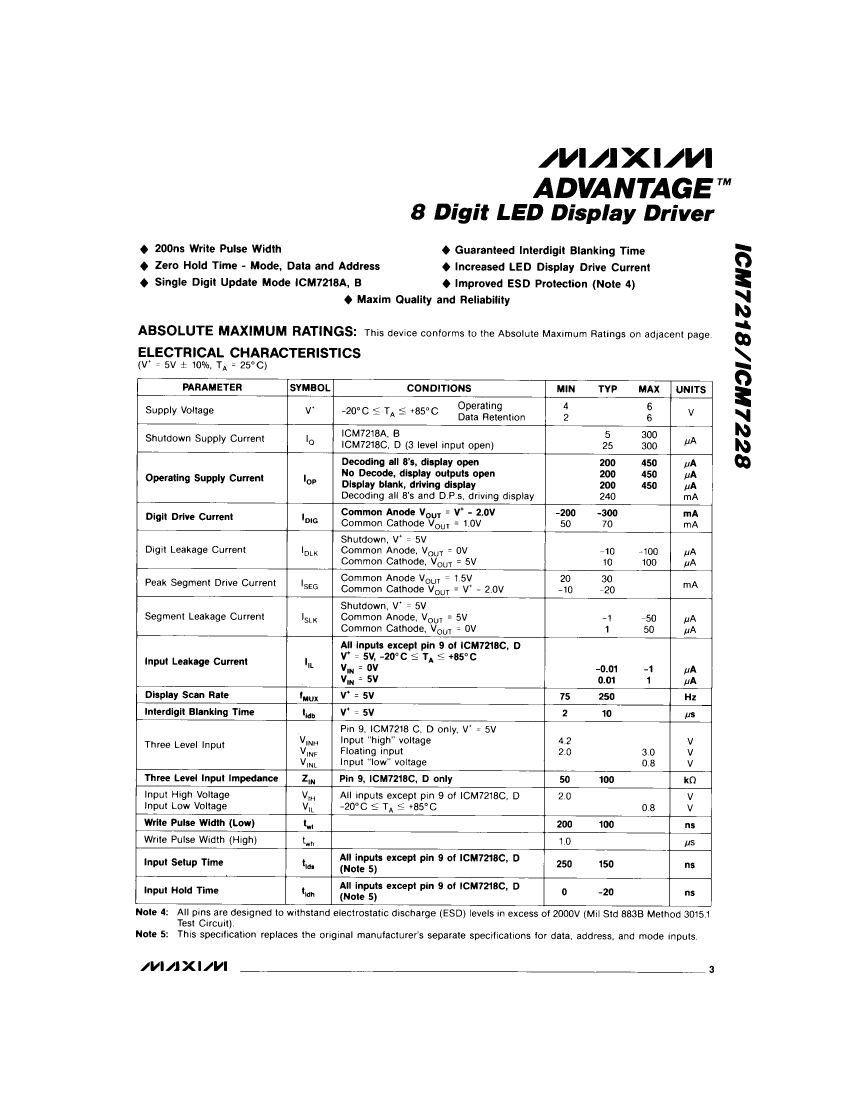

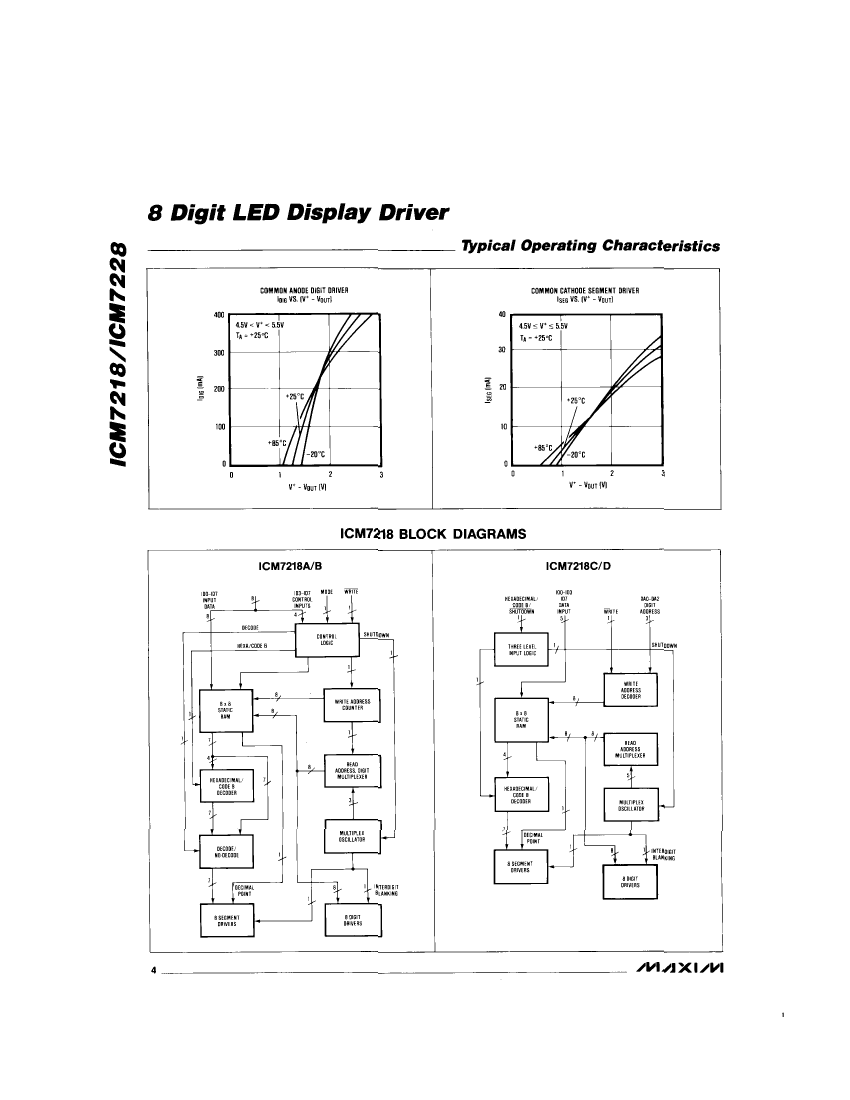

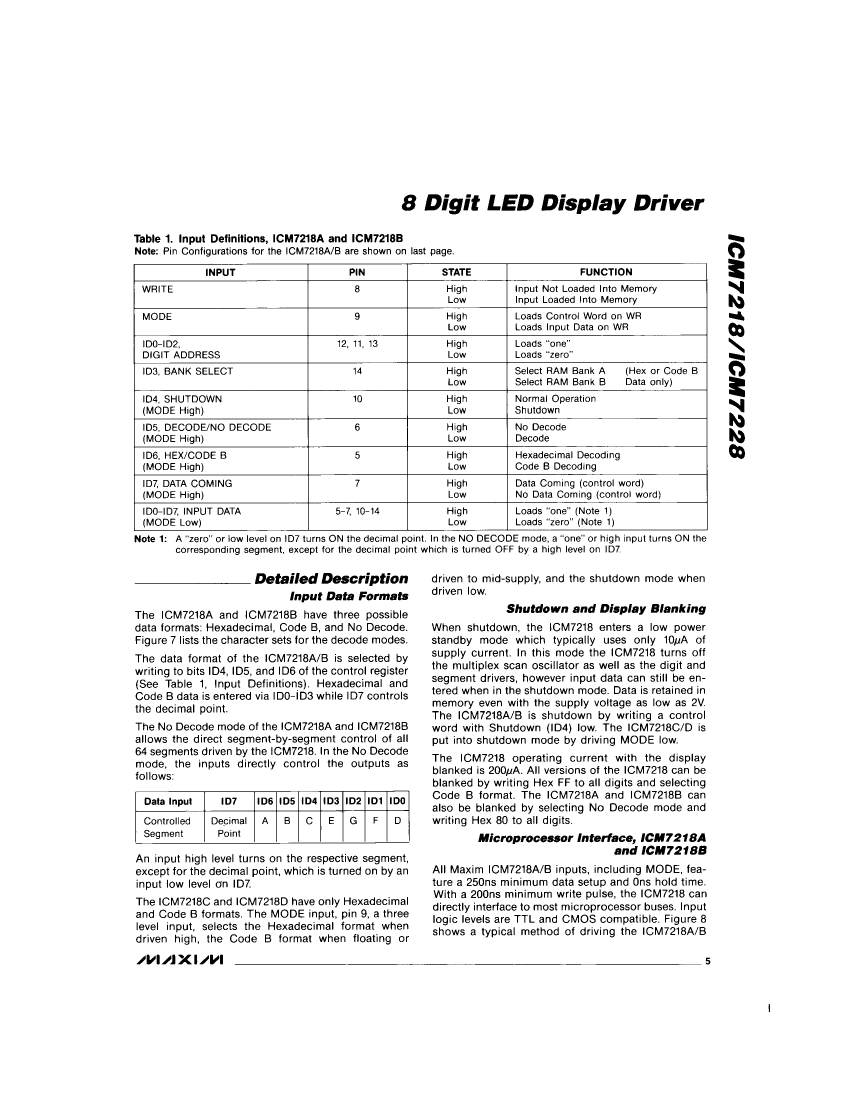

LED Driver, 8-Segment, CMOS, CDIP28, CERDIP-28
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 28 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| data entry mode | PARALLEL |
| display mode | SEGMENT |
| Input properties | STANDARD |
| Interface integrated circuit type | LED DISPLAY DRIVER |
| JESD-30 code | R-GDIP-T28 |
| JESD-609 code | e0 |
| length | 36.83 mm |
| Multiplex display function | YES |
| Number of digits/characters | 8-DIGIT |
| Number of functions | 1 |
| Number of segments | 8 |
| Number of terminals | 28 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| Output characteristics | TOTEM-POLE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.842 mm |
| surface mount | NO |
| technology | CMOS |
| Temperature level | OTHER |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| ICM7218DIJI-T | ICM7228CIQI-T | ICM7228DIQI-T | ICM7228BIQI-T | ICM7228AIQI-T | |
|---|---|---|---|---|---|
| Description | LED Driver, 8-Segment, CMOS, CDIP28, CERDIP-28 | LED Driver, 7-Segment, CMOS, PQFP28, QUAD PACK-28 | LED Driver, 7-Segment, CMOS, PQFP28, QUAD PACK-28 | LED Driver, 7-Segment, CMOS, PQFP28, QUAD PACK-28 | LED Driver, 7-Segment, CMOS, PQFP28, QUAD PACK-28 |
| Maker | Maxim | Maxim | Maxim | Maxim | Maxim |
| Parts packaging code | DIP | QFP | QFP | QFP | QFP |
| package instruction | DIP, | QFP, | QFP, | QFP, | QFP, |
| Contacts | 28 | 28 | 28 | 28 | 28 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| data entry mode | PARALLEL | PARALLEL | PARALLEL | SERIAL | SERIAL |
| display mode | SEGMENT | SEGMENT | SEGMENT | SEGMENT | SEGMENT |
| Interface integrated circuit type | LED DISPLAY DRIVER | LED DISPLAY DRIVER | LED DISPLAY DRIVER | LED DISPLAY DRIVER | LED DISPLAY DRIVER |
| JESD-30 code | R-GDIP-T28 | S-PQFP-G28 | S-PQFP-G28 | S-PQFP-G28 | S-PQFP-G28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Multiplex display function | YES | NO | NO | NO | NO |
| Number of digits/characters | 8-DIGIT | 8-DIGIT | 8-DIGIT | 8-DIGIT | 8-DIGIT |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of segments | 8 | 7 | 7 | 7 | 7 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C | -20 °C | -20 °C |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QFP | QFP | QFP | QFP |
| Package shape | RECTANGULAR | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | IN-LINE | FLATPACK | FLATPACK | FLATPACK | FLATPACK |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | OTHER | OTHER | OTHER | OTHER | OTHER |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | QUAD | QUAD | QUAD | QUAD |
| Maximum supply voltage | - | 6 V | 6 V | 6 V | 6 V |
| Minimum supply voltage | - | 4 V | 4 V | 4 V | 4 V |
| Nominal supply voltage | - | 5 V | 5 V | 5 V | 5 V |
| Base Number Matches | - | 1 | 1 | 1 | 1 |
