CMHSH-3TR: DescriptionRectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size367KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMHSH-3TR Overview

Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2

CMHSH-3TR Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V
JESD-30 code	R-PDSO-G2
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.6 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.4 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.01 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

CMHSH-3

SURFACE MOUNT

SILICON

SCHOTTKY DIODE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMHSH-3 type is

a Silicon Schottky diode, epoxy molded in a SOD-123

surface mount package, designed for fast switching

applications requiring a low forward voltage drop.

MARKING CODE: CH3

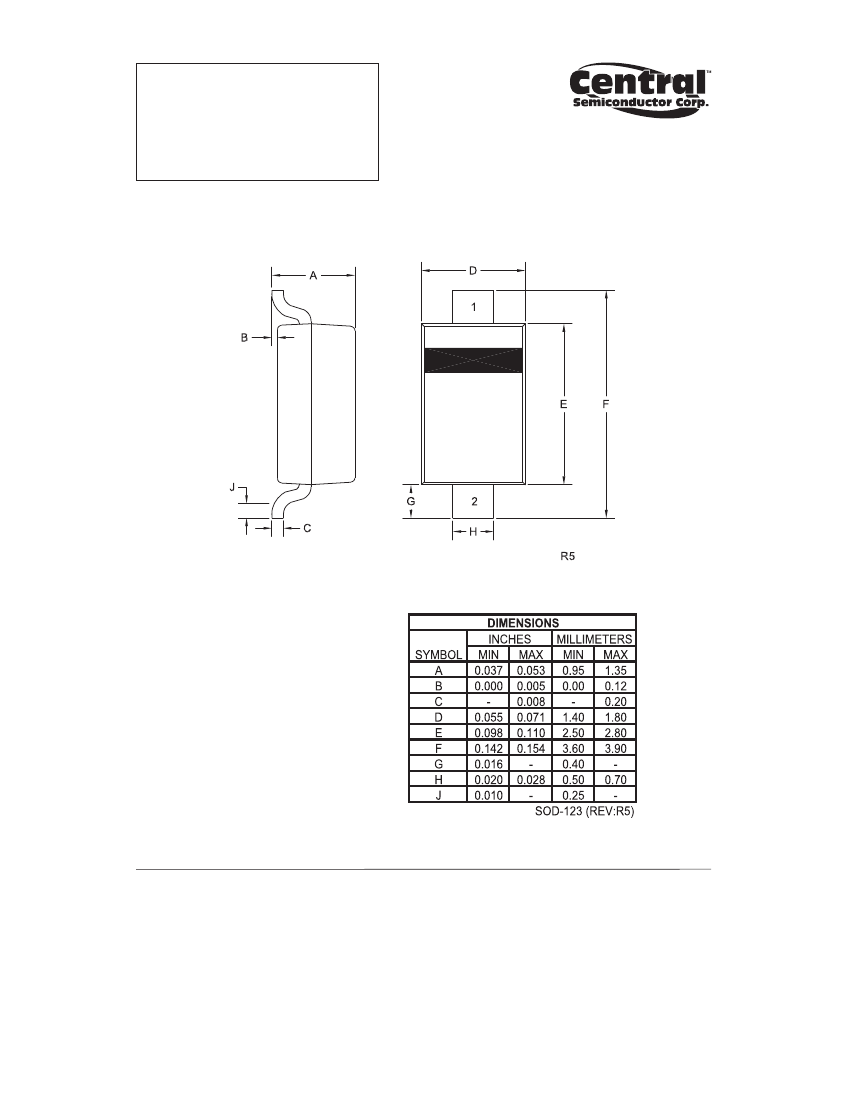

SOD-123 CASE

MAXIMUM RATINGS:

(TA=25°C)

Peak Repetitive Reverse Voltage

Continuous Forward Current

Peak Repetitive Forward Current

Peak Forward Surge Current, tp<1.0s

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VRRM

IF

IFRM

IFSM

PD

TJ, Tstg

Θ

JA

30

200

300

600

400

-65 to +150

312.5

UNITS

V

mA

mW

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

TYP

IR

BVR

VF

CT

trr

VR=25V

IR=100μA

IF=100μA

IF=1.0mA

IF=10mA

IF=30mA

IF=100mA

VR=1.0V, f=1.0MHz

IF=IR=10mA, RL=100Ω, Rec. to 1.0mA

7.0

30

MAX

2.0

240

320

400

500

1000

UNITS

μA

V

mV

pF

ns

R6 (5-August 2010)

CMHSH-3TR Related Products

	CMHSH-3TR	CMHSH-3BK	CMHSH-3TRLEADFREE	CMHSH-3LEADFREE
Description	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM),	Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Number of components	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A
Maximum repetitive peak reverse voltage	30 V	30 V	30 V	30 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	R-PDSO-G2
Contacts	2	2	-	2
Diode component materials	SILICON	SILICON	-	SILICON
Maximum forward voltage (VF)	0.24 V	0.24 V	0.24 V	-
JESD-30 code	R-PDSO-G2	R-PDSO-G2	-	R-PDSO-G2
JESD-609 code	e0	e0	-	e3
Maximum non-repetitive peak forward current	0.6 A	0.6 A	0.6 A	-
Number of terminals	2	2	-	2
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Maximum power dissipation	0.4 W	0.4 W	-	0.4 W
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Maximum reverse recovery time	0.01 µs	0.01 µs	-	0.01 µs
Terminal surface	TIN LEAD	TIN LEAD	-	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	-	GULL WING
Terminal location	DUAL	DUAL	-	DUAL
