GD54HCT163D datasheet, PDF - EEWORLD Datasheet

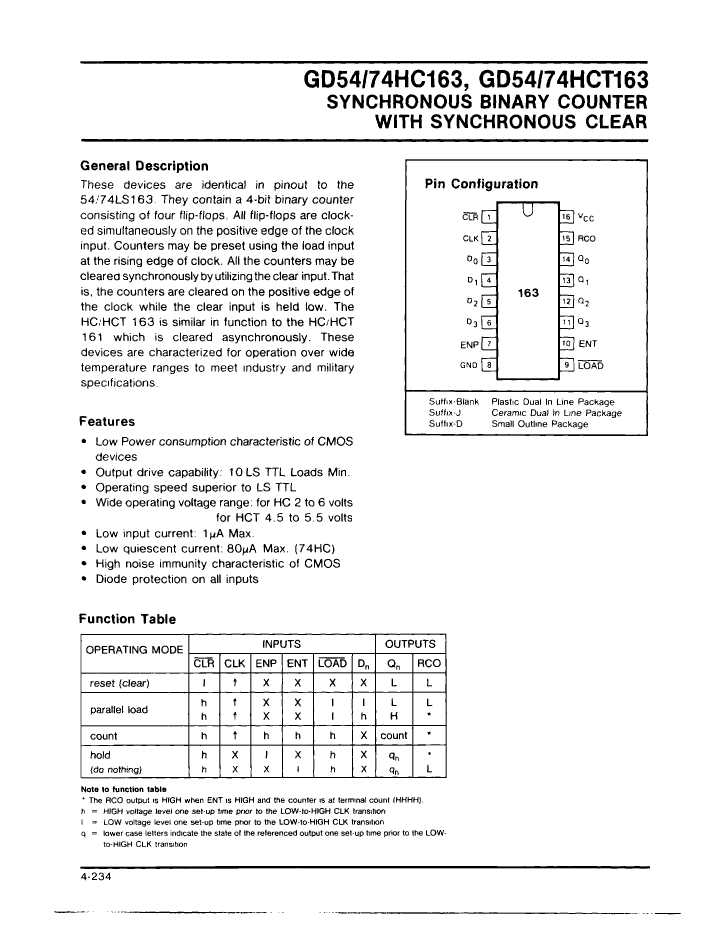

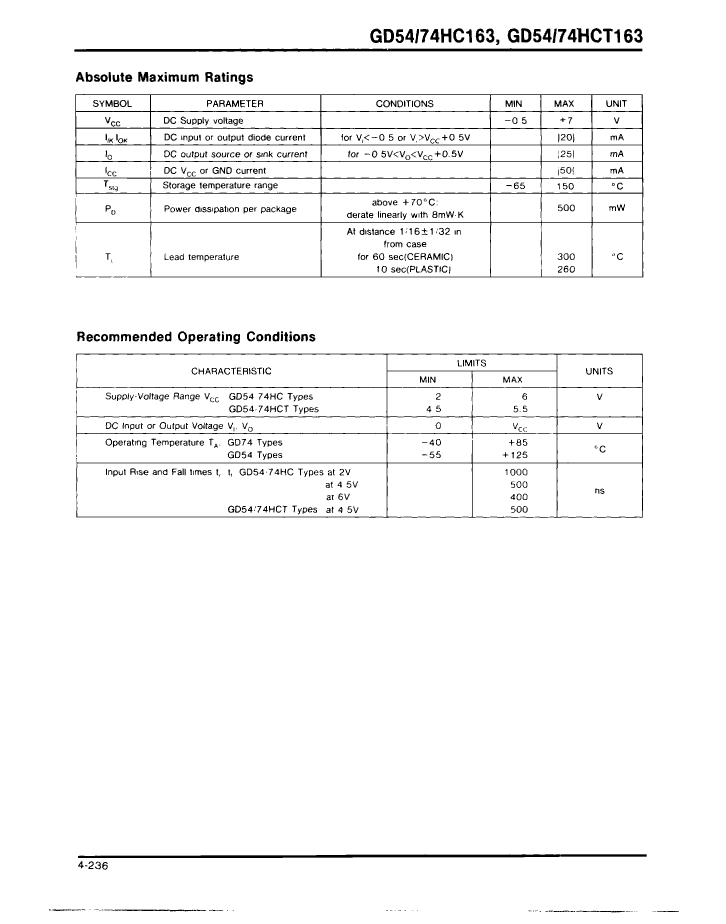

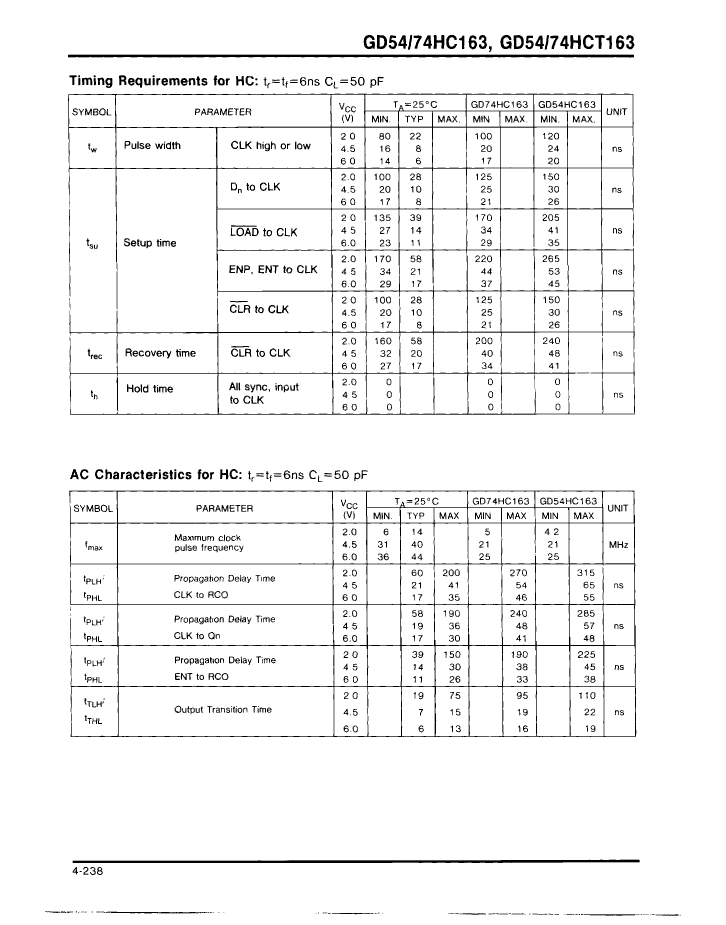

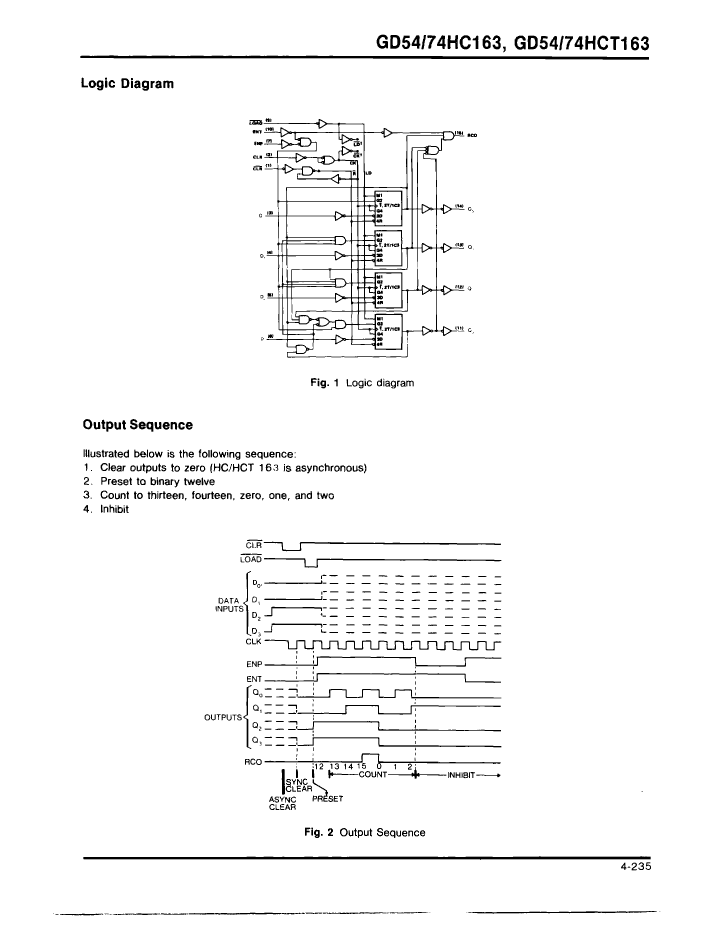

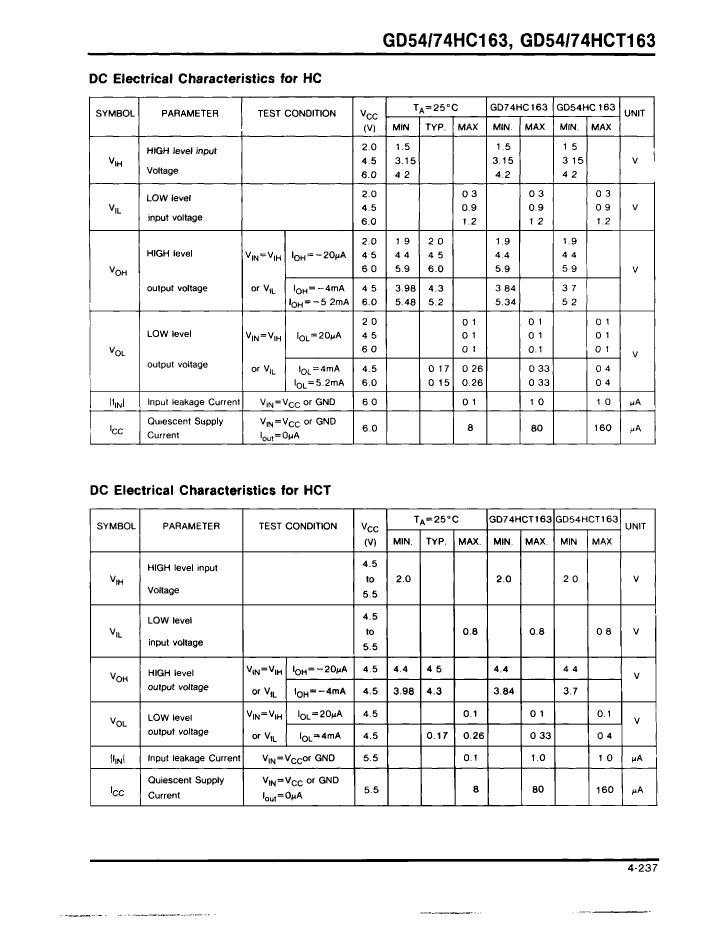

GD54HCT163D: DescriptionBinary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16,; Categorylogic logic; File Size164KB，7 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

GD54HCT163D Overview

Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	HCT
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	65 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	11 MHz
