TLHG/R/Y640.
Vishay Semiconductors
High Efficiency LED in
∅
5 mm Tinted Diffused Package
FEATURES
• Choice of three bright colors
• Standard T-1¾ package
• Small mechanical tolerances
e2
• Suitable for DC and high peak current
• Wide viewing angle
• Luminous intensity categorized
• Yellow and green color categorized
• TLH.64.. without stand-offs
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
19224
DESCRIPTION
The TLH.64.. series was developed for standard
applications like general indicating and lighting
purposes.
It is housed in a 5 mm tinted diffused plastic package.
The wide viewing angle of these devices provides a
high on-off contrast.
Several selection types with different luminous
intensities are offered. All LEDs are categorized in
luminous intensity groups. The green and yellow LEDs
are categorized additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
APPLICATIONS
• Status lights
• Off/on indicator
• Background illumination
• Readout lights
• Maintenance lights
• Legend light
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: 5 mm
• Product series: standard
• Angle of half intensity: ± 30°
PARTS TABLE
PART
TLHR6400
TLHR6401
TLHR6405
TLHY6400
TLHY6401
TLHY6405
TLHG6400
TLHG6401
TLHG6405
COLOR, LUMINOUS INTENSITY
Red, I
V
= 3.5 mcd (typ.)
Red, I
V
= 7 mcd (typ.)
Red, I
V
= 10 mcd (typ.)
Yellow, I
V
= 3.5 mcd (typ.)
Yellow, I
V
= 7 mcd (typ.)
Yellow, I
V
= 10 mcd (typ.)
Green, I
V
= 4 mcd (typ.)
Green, I
V
= 7 mcd (typ.)
Green, I
V
> 15 mcd (typ.)
TECHNOLOGY
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaAsP on GaP
GaP on GaP
GaP on GaP
GaP on GaP
Document Number 83219
Rev. 1.6, 24-Sep-07
www.vishay.com
1
TLHG/R/Y640.
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
1)
TLHR64.. , TLHY64.. , TLHG64.. ,
PARAMETER
Reverse voltage
DC Forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/
ambient
Note:
1)
T
amb
= 25 °C, unless otherwise specified
t
≤
5 s, 2 mm from body
T
amb
≤
65 °C
t
p
≤
10 µs
T
amb
≤
65 °C
TEST CONDITION
SYMBOL
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
VALUE
6
30
1
100
100
- 20 to + 100
- 55 to + 100
260
350
UNIT
V
mA
A
mW
°C
°C
°C
°C
K/W
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLHR64.., RED
PARAMETER
Luminous intensity
2)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmin
/I
Vmax
≤
0.5
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 µA
V
R
= 0, f = 1 MHz
PART
TLHR6400
TLHR6401
TLHR6405
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
6
MIN
1.6
4
6.3
612
635
± 30
2
15
50
3
TYP.
3.5
7
10
625
MAX
UNIT
mcd
mcd
mcd
nm
nm
deg
V
V
pF
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLHY64.., YELLOW
PARAMETER
Luminous intensity
2)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note:
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmin
/I
Vmax
≤
0.5
1)
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 µA
V
R
= 0, f = 1 MHz
PART
TLHY6400
TLHY6401
TLHY6405
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
MIN
1.6
4
6.3
581
TYP.
3.5
7
10
MAX
UNIT
mcd
mcd
mcd
594
585
± 30
2.4
3
nm
nm
deg
V
V
pF
6
15
50
www.vishay.com
2
Document Number 83219
Rev. 1.6, 24-Sep-07
TLHG/R/Y640.
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLHG64.., GREEN
PARAMETER
Luminous intensity
2)
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
In one packing unit I
Vmin
/I
Vmax
≤
0.5
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 20 mA
I
R
= 10 µA
V
R
= 0, f = 1 MHz
PART
TLHG6400
TLHG6401
TLHG6405
SYMBOL
I
V
I
V
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
6
MIN
1.6
4
6.3
562
565
± 30
2.4
15
50
3
TYP.
4
7
15
575
MAX
UNIT
mcd
mcd
mcd
nm
nm
deg
V
V
pF

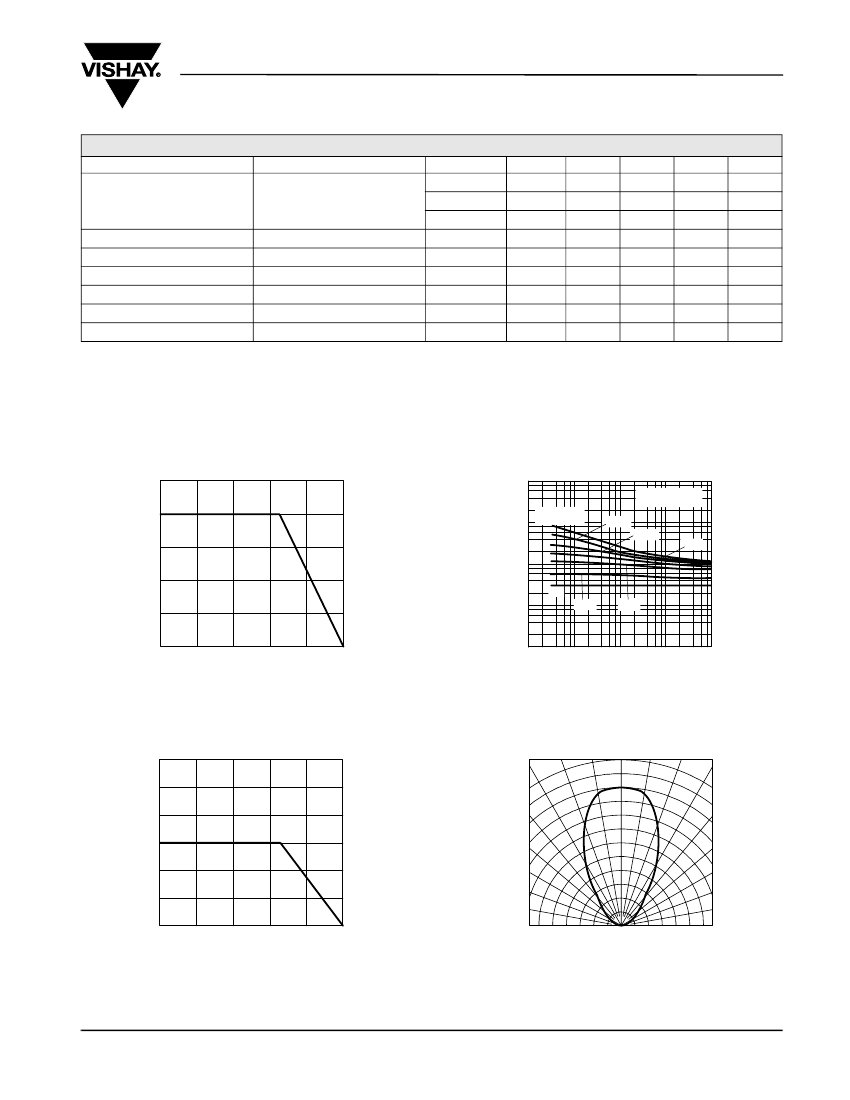

TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
125
P
V
- Power Dissipation (mW)
10000
T
amb
≤
85
°
C
I
F
- Forward Current (mA)
100
1000
t
p
/T = 0.01
0.02
0.05
0.1
75
100
1
10
0.5
0.2
50
25
0
0
20
40
60
80
100
1
0.01
95 10025
0.1
1
10
100
95 10918
T
amb
- Ambient Temperature (°C)
t
P
- Pulse Length (ms)
Figure 1. Power Dissipation vs. Ambient Temperature
Figure 3. Forward Current vs. Pulse Length
60
50
40
30
20
10
0
0
95 10046
0°
10°
20°
30°
I
Vrel
- Relative Luminous Intensity
I
F
- Forward Current (mA)
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.2
0.4
0.6
20
40
60
80
100
95 10042
T
amb
- Ambient Temperature (°C)
Figure 2. Forward Current vs. Ambient Temperature
Figure 4. Rel. Luminous Intensity vs. Angular Displacement
Document Number 83219
Rev. 1.6, 24-Sep-07
www.vishay.com
3
TLHG/R/Y640.
Vishay Semiconductors
red
I
F
- Forward Current (mA)
100
t
p
/T = 0.001
t
p
= 10
µs
I
v
rel
- Relative Luminous Intensity
1000
10
red
1
10
0.1
1
0.1
0
95 10026
0.01
2
4
6
8
V
F
- Forward
Voltage
(V)
10
95 10029
1
10
I
F
- Forward Current (mA)
100
Figure 5. Forward Current vs. Forward Voltage
Figure 8. Relative Luminous Intensity vs. Forward Current
1.6
I
v
rel
- Relative Luminous Intensity
I
V
re l
- Relative Luminous Intensity
red
1.2
1.2
red
1.0
0.8
0.6
0.4
0.2
0
590
95 10040
0.8
0.4
0
0
95 10027
I
F
= 10 mA
20
40
60
80
100
610
630
650
670
690
T
amb
- Ambient Temperature (°C)
λ
-
Wavelength
(nm)
Figure 6. Rel. Luminous Intensity vs. Ambient Temperature
Figure 9. Relative Intensity vs. Wavelength
2.4
I
V
rel
- Relative Luminous Intensity
red
I
F
- Forward Current (mA)
1000
yellow
100
t
p
/T = 0.001
t
p
= 10
µs
10
2.0
1.6
1.2
0.8
0.4
0
1
0.1
95 10321
10
1
20
0.5
50
0.2
100
0.1
200
0.05
500 I
F
(mA)
0.02 t
P
/T
0
95 10030
2
4
6
8
10
V
F
- Forward
Voltage
(V)
Figure 7. Rel. Lumin. Intensity vs. Forw. Current/Duty Cycle
Figure 10. Forward Current vs. Forward Voltage
www.vishay.com
4
Document Number 83219
Rev. 1.6, 24-Sep-07
TLHG/R/Y640.
Vishay Semiconductors
1.6
I
v
rel
- Relative Luminous Intensity
I
V
rel
- Relative Luminous Intensity
1.2
yellow
yellow
1.0
0.8
0.6
0.4
0.2
0
550
1.2
0.8
0.4
0
0
95 10031
I
F
= 10 mA
20
40
60
80
100
570
590
610
630
650
T
amb
- Ambient Temperature (°C)
95 10039
λ
-
Wavelength
(nm)
Figure 11. Rel. Luminous Intensity vs. Ambient Temperature
Figure 14. Relative Intensity vs. Wavelength
2.4
I
v
rel
- Relative Luminous Intensity
yellow
2.0
1.6
1.2
0.8
0.4
0
95 10260
1000
I
F
- Forward Current (mA)
green
100
t
p
/T = 0.001
t
p
= 10
µs
10
1
0.1
10
1
20
0.5
50
0.2
100
0.1
200
0.05
500 I
F
(mA)
0.02 t
p
/T
0
95 10034
2
4
6
8
10
V
F
- Forward
Voltage
(V)
Figure 12. Rel. Lumin. Intensity vs. Forw. Current/Duty Cycle
Figure 15. Forward Current vs. Forward Voltage
I
v
rel
- Relative Luminous Intensity
10
I
v
rel
- Relative Luminous Intensity
yellow
1
1.6
green
1.2
0.8
0.1
0.4
I
F
= 10 mA
0
0.01
1
95 10033
10
I
F
- Forward Current (mA)
100
0
95 10035
20
40
60
80
100
T
amb
- Ambient Temperature (°C)
Figure 13. Relative Luminous Intensity vs. Forward Current
Figure 16. Rel. Luminous Intensity vs. Ambient Temperature
Document Number 83219
Rev. 1.6, 24-Sep-07
www.vishay.com
5
