OP284CHIPS

Description
Op Amp Dual Precision Amplifier R-R I/O ±18V/36V 10-Pin Die Tray
File Size228KB,5 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Parametric View All

OP284CHIPS Overview

Op Amp Dual Precision Amplifier R-R I/O ±18V/36V 10-Pin Die Tray

OP284CHIPS Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
TypePrecision Amplifier
Manufacturer TypePrecision Amplifier
Number of Channels per Chip2
Rail to RailRail to Rail Input/Output
Maximum Input Offset Voltage (mV)0.175@±15V
Minimum Single Supply Voltage (V)3
Typical Single Supply Voltage (V)5|9|12|15|18|28|24
Maximum Single Supply Voltage (V)36
Minimum Dual Supply Voltage (V)±1.5
Typical Dual Supply Voltage (V)±9|±12|±15|±3|±5
Maximum Dual Supply Voltage (V)±18
Typical Low Level Output Voltage (V)-14.875(Max)
Typical High Level Output Voltage (V)14.8(Min)
Maximum Input Offset Current (uA)0.05@±15V
Maximum Input Bias Current (uA)0.15@±15V
Maximum Supply Current (mA)4@±15V
Power Supply TypeSingle|Dual
Typical Slew Rate (V/us)4@±15V
Typical Input Noise Voltage Density (nV/rtHz)3.9@±15V
Input Offset Voltage Drift (uV/°C)0.3(Typ)
Typical Voltage Gain (dB)120
Typical Noninverting Input Current Noise Density (pA/rtHz)0.4@±15V
Minimum PSRR (dB)90
Minimum CMRR (dB)80
Minimum CMRR Range (dB)80 to 85
Typical Gain Bandwidth Product (MHz)4.25
Shut Down SupportNo
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)125
PackagingTray
Supplier PackageDie
Pin Count10
Standard Package NameDie
Package Height0.48
Package Length2.3
Package Width1.62
PCB changed10

OP284CHIPS Preview

Data Sheet
FEATURES
Rail-to-rail output
Gain bandwidth product: 4 MHz typical
Low offset voltage: 175 μV
Unity-gain stable
High slew rate: 4.0 V/μs typical
Low noise: 3.9 nV/√Hz typical
Precision Rail-to-Rail
Input and Output Operational Amplifier
OP284CHIPS
OP284

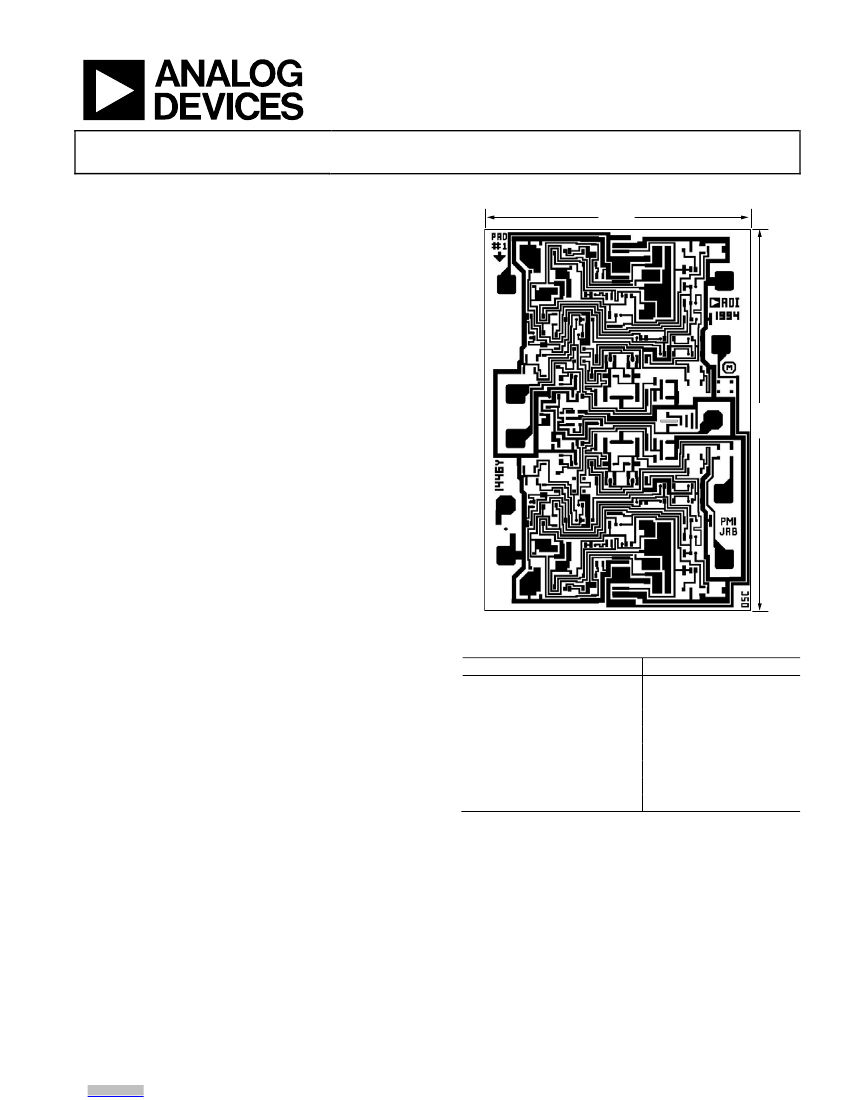

CHIP DIMENSIONS AND PAD LAYOUT
63.9 mils
OUT A
V+
GENERAL DESCRIPTION
The
OP284
die is available only through this specification.
The
OP284
is a dual operational amplifier, featuring a 4 MHz
bandwidth and rail-to-rail inputs and outputs. It is guaranteed
to operate in single-supply from 3 V to 36 V, or dual-supply
from ±1.5 V to ±18 V.
This amplifier is superb for single-supply applications requiring
both ac and precision dc performance. The combination of
wide bandwidth, low noise, and precision makes the
OP284
useful in a wide variety of applications, including filters and
instrumentation.
For application information, please refer to the
OP284
package
product data sheet and webpage.
The
OP284CHIPS
die is specified for 25°C operations only.
V–
–IN A
OUT B
90.6 mils
+IN A
–IN B
+IN B
Figure 1.
OP284
Metal Mask Die Image
Table 1. Die Physical Characteristics
Parameter
Die Size
Back Grind Thickness
Bond Pad Opening Size
Top Metal Composition
Passivation
Polyimide
Die Marker
Substrate Bias
Value
63.9 mils × 90.6 mils
19 mils
104 μm × 104 μm
AlCu
OxyNitride
21 μm
1446Y
V-
Rev. A
Document Feedback
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
©2014 Analog Devices, Inc. All rights reserved.
Technical Support
www.analog.com
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibilityis assumedby Analog Devices for its use, nor for anyinfringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice.
No license is granted by implication or otherwise under any patent or patent rights of Analog
Devices.Trademarks and registered trademarks are the property of their respective owners.
12642-001
OP284CHIPS
TABLE OF CONTENTS
Features .............................................................................................. 1
General Description ......................................................................... 1
OP284 Chip Dimensions and Pad Layout..................................... 1
Revision History ............................................................................... 2
Specifications..................................................................................... 3
Electrical Characteristics, V
SY
= ±15.0 V................................... 3
Data Sheet
Absolute Maximum Ratings ............................................................4
ESD Caution...................................................................................4
Outline Dimensions ..........................................................................5
Die Pad Descriptions ....................................................................5
Ordering Guide .............................................................................5
REVISION HISTORY
12/14—Rev. 0 to Rev. A
Changes to Table 4 ............................................................................ 5
9/14—Revision 0: Initial Version
Rev. A | Page 2 of 5
Data Sheet
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS, V
SY
= ±15.0 V
V
SY
= ±15.0 V, V
CM
= 0 V, V
OUT
= 0 V, T
A
= +25°C, unless otherwise noted.
Table 2.
Parameter
INPUT CHARACTERISTICS
Offset Voltage
Offset Voltage Drift
Input Bias Current
Input Offset Current
Input Voltage Range
Common-Mode Rejection Ratio
Large Signal Voltage Gain
OUTPUT CHARACTERISTICS
Output Voltage High
Output Voltage Low
Short-Circuit Current
POWER SUPPLY
Power Supply Rejection Ratio
Supply Current per Amplifier
DYNAMIC PERFORMANCE
Slew Rate
Gain Bandwidth Product
Phase Margin
NOISE PERFORMANCE
Voltage Noise
Voltage Noise Density
Current Noise Density
Symbol
V
OS
ΔV
OS
/ΔT
I
B
I
OS
CMRR
A
VO
V
OH
V
OL
I
OUT
PSRR
I
SY
SR
GBP
ΦM
e
n
p-p
e
n
i
n
V
CM
= −15.0 V to +15.0 V
−10.0 V ≤ V
O
≤ +10.0 V, R
L
= 2 kΩ
I
L
= 1.0 mA
I
L
= 1.0 mA
−15
80
150
14.8
−10
V
SY
= ±2 V to ±18 V
V
O
= 0 V
R
L
= 2 kΩ
90
2.0
2.4
4.0
4.25
50
0.3
3.9
0.4
Test Conditions/Comments
Min
Typ
Max
175
0.3
150
50
+15
90
1000
OP284CHIPS
Unit
μV
μV/°C
nA
nA
V
dB
V/mV
V
V
mA
dB
mA
V/µs
MHz
Degrees
µV p-p
nV/√Hz
pA/√Hz
−14.875
+10
0.1 Hz to 10 Hz
f = 1 kHz
Rev. A | Page 3 of 5
OP284CHIPS
ABSOLUTE MAXIMUM RATINGS
Table 3.
Parameter
Supply Voltage
Input Voltage
Differential Input Voltage
1
Output Short-Circuit Duration to GND
Functional Temperature Range
1
Data Sheet
Stresses at or above those listed under Absolute Maximum
Ratings may cause permanent damage to the product. This is a
stress rating only; functional operation of the product at these
or any other conditions above those indicated in the operational
section of this specification is not implied. Operation beyond
the maximum operating conditions for extended periods may
affect product reliability.
Rating
±18 V
V− ≤ V
IN
≤ V+
±0.6 V
Indefinite
−40°C to +125°C
Limit the input current to less than 5 mA to prevent degradation or
destruction of the input devices.
ESD CAUTION
Rev. A | Page 4 of 5
Data Sheet
OUTLINE DIMENSIONS
DIE PAD DESCRIPTIONS
OP284CHIPS
Die center is the reference location at 0.0 μm × 0.0 μm. Pad coordinates are to the center of each pad. Waffle pack orientation is the
chamfer corner to the OUTA pad.
Table 4. Pad Mnemonics, Function Descriptions, and Coordinates
Mnemonic
OUTA
−INA
+INA
V− Pad
+INB
−INB
OUTB
V+
NC
NC
Description
Output of Channel A.
Negative Input Channel A.
Positive Input Channel A.
Negative Power Supply. Substrate is connected to V−.
Positive Input Channel B.
Negative Input Channel B.
Output Channel B.
Positive Power Supply.
No Connect—Factory Use Only.
No Connect—Factory Use Only.
Pad Coordinates (μm)
−660 × +780
−608 × +149
−608 × −107
−662 × −780
+590 × −800
+586 × −424
570 × 437
590 × 802
−664 × −490
524 × 0
ORDERING GUIDE
Model
OP284CHIPS
Functional Temperature Range
−40°C to +125°C
Package Option/Count
Waffle Pack/221
Package Option
DIE
©2014 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D12642-0-12/14(A)
Rev. A | Page 5 of 5
