LPCH-600

Description
Ceramic LPF, 9 Section(s) Min, 9 Section(s) Max, 890MHz
CategoryAnalog mixed-signal IC    filter
File Size91KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric View All

LPCH-600 Overview

Ceramic LPF, 9 Section(s) Min, 9 Section(s) Max, 890MHz

LPCH-600 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresATTENUATION MIN 20 DB AT 1080 MHZ; ATTENUATION MAX 35 DB AT 3000 MHZ
average input power10 W
Center frequency or cutoff frequency (fo/fc)890 MHz
filter typeCERAMIC LPF
Maximum insertion loss3 dB
JESD-609 codee0
Manufacturer's serial numberLPCH-600
Installation typeSURFACE MOUNT
Number of partitions-max9
Number of partitions - minimum9
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Terminal surfaceTin/Lead (Sn/Pb)
voltage standing wave ratio1.2

LPCH-600 Preview

Ceramic
Low Pass Filter
DC to 575 MHz
Features
excellent rejection, 40 dB at 1.4 f
3
dB
excellent power handling, 10W
low height
9 sections
!
New
LPCH-600
Applications
• harmonic rejection
• VHF/UHF transmitters/receivers
• lab use
CASE STYLE: BJ850
PRICE: $5.95 ea. QTY.: (10-49)
(Patent pending)
Electrical Specifications (T
AMB
=-55°C to 100°C)
MODEL
NO.
PASSBAND
(MHz)
(loss<1 dB)
Min.
fco, MHz
Nom.
(loss 3 dB)
Typ.
STOP BAND (MHz)
(loss>20dB)
Min.
(loss>35dB)
Min.
VSWR (:1)
Passband
Typ.
Stopband
Typ.
LPCH-600
DC-575
890
1080-1175
1175-3000
1.2
20
Pin Connections
IN
OUT
GROUND
DEMO BOARD
1
5
2,3,4,6,7,8
TB-189
Maximum Ratings
Operating Temperature
Storage Temperature
RF Power Input
*derate linearly to 3W at 100°C
-55°C to 100°C
-55°C to 100°C
10W* max. at 25°C

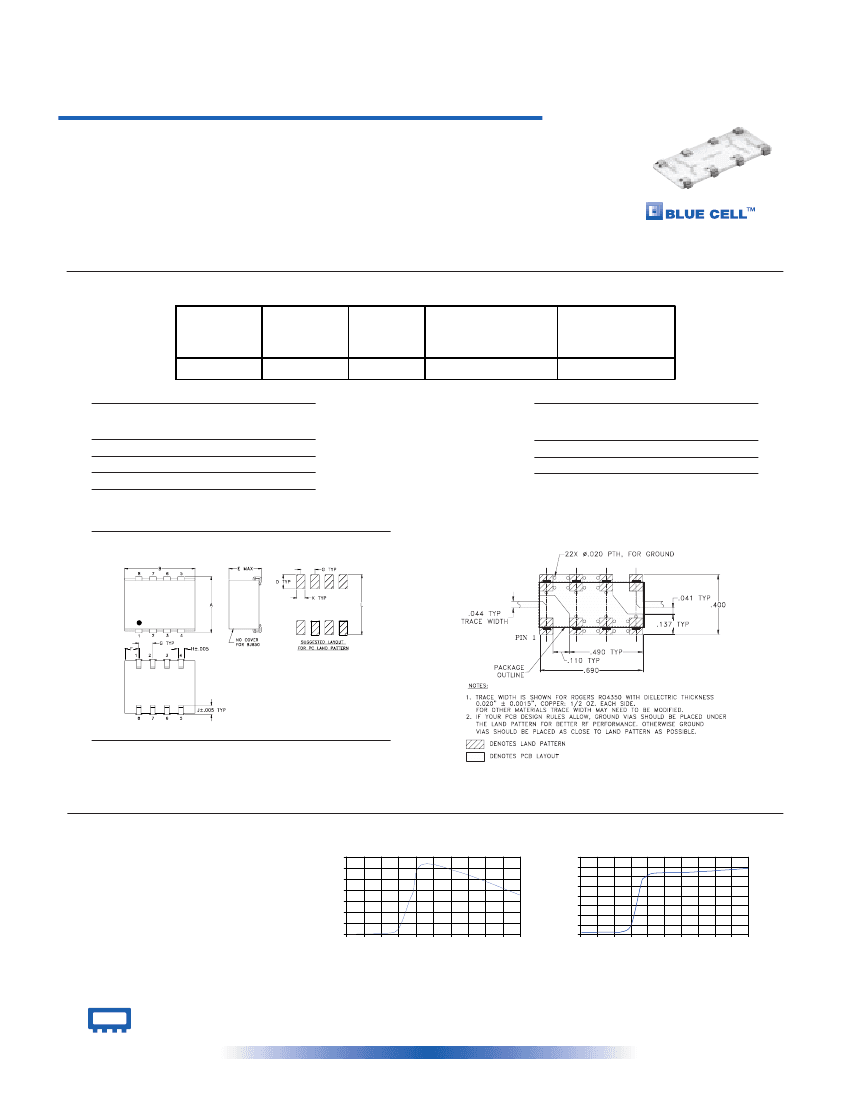

Outline Drawing
Suggested PCB Layout (PL-047)
Outline Dimensions (
inch
)
mm
A
B
.320 .700
8.13 17.87
C
D
.110
2.79
E
.070
1.78
F
.050
1.27
G
.200
5.08
H
.047
1.19
J
.065
1.65
K
L
.090 .400
2.29 10.16
wt.
grams
1.0
Typical Performance Data at 25°C
20.00
100.00
575.00
700.00
900.00
1100.00
1150.00
1300.00
2000.00
3000.00
0.13
0.23
0.66
0.84
5.12
31.97
37.71
62.75
55.18
35.32
1.04
1.09
1.17
1.06
4.45
28.03
29.46
31.60
32.18
34.07
INSERTION LOSS (dB)
Freq.
(MHz)
Ins. Loss
(dB)
VSWR
(:1)
LPCH-600
INSERTION LOSS
70
60
50
40
30
20
10
0
1200
1500
1800
2100
2400
2700
3000
300
600
900
0
40.0
35.0
30.0
25.0
20.0
15.0
10.0
5.0
0.0
LPCH-600
VSWR
VSWR
1200
1500
1800
2100
2400
2700
FREQUENCY (MHz)
FREQUENCY (MHz)
Mini-Circuits
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
3000
REV. B
M82241
ED-8923/12
LPCH-600
AD/RS/CP
020716
300
600
Distribution Centers
NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010
ISO 9001 CERTIFIED
900
0
