Surface Mount EMI Filters
LC & LZ Type Chips
LC Features
s
s
s
s

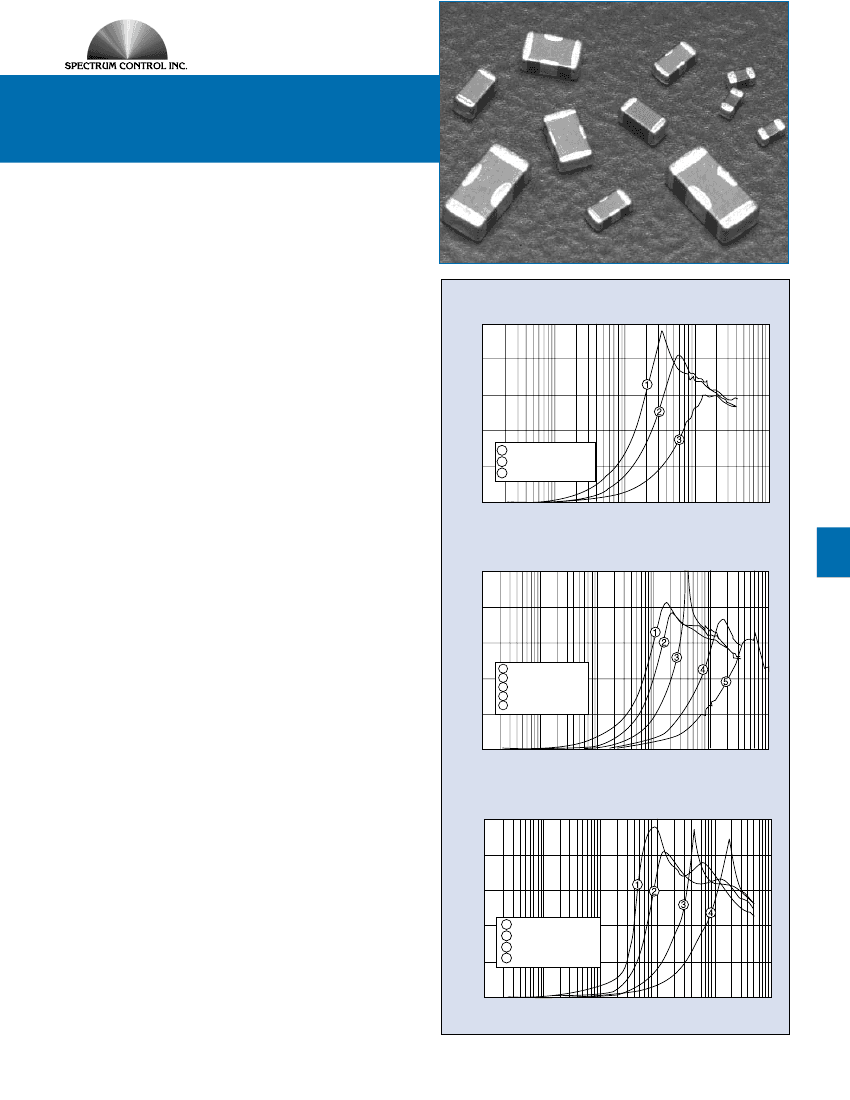

High efficiency EMI surface mount filter
Ideally suited for high frequency signal lines
Steep insertion loss (IL) characteristics
Available in 0603, 0805 and 1206 body sizes
50
LC0603 Style
Insertion loss (Reference)
LC Typical Electrical Characteristics
Cut-off
Frequency Ranges
. . . . . . . . 10 MHz to 220 MHz ± 20%
Rated Voltage
. . . . . . . . . . . 25 Volt
Rated Current
. . . . . . . . . . . 100 mA
IR
. . . . . . . . . . . . . . . . . . . 10 MΩ min.
Operating
Temperature Range
. . . . . . . -40°C to +85°C
Insertion Loss (dB)
40
30
20
10
1 LC0603M223MANA
2 LC0603M473MANA
3 LC0603M104MANA
0
100K
10M
100M
Frequency (MHz)
1G
10G
LZ Features
s
s
s
s
Monolithic construction of dielectric and ferrite materials
Band stop filter with a choice of rejected frequency band
Little delay and distortion from original signal wave
LC0805 Style
Insertion loss (Reference)
50
40
Insertion Loss (dB)
Available in the 0402 and 0603 body sizes
30
LZ Typical Electrical Characteristics
Center
Frequency Ranges
. . . . . . . . 10 MHz to 2,000 MHz ± 20%
Rated Current
. . . . . . . . . . . 50 mA and 100 mA
Rejected Bandwidth
. . . . . . . 0.5 dec. to 1.5 dec.
Operating
Temperature Range
. . . . . . . -25°C to +85°C
20
1
2
3
4
5
LC0805M103MANA
LC0805M223MANA
LC0805M473MANA
LC0805M104MANA
LC0805M224MANA
10
0
100K
1M
10M
100M
1G
10G
Frequency (MHz)
LC1206 Style
Insertion loss (Reference)
50
LC/LZ Applications
s
s
s
s
Telecommunication equipment, fax, modem, and ADSL
Computer and peripheral equipment
Digital AV equipment, such as TV, VCR and DVD
Digital circuit equipment noise countermeasure
Insertion Loss (dB)
40
30
20
10
1
2
3
4
LC1206M103MANA
LC1206M223MANA
LC1206M473MANA
LC1206M104MANA
0
100K
1M
10M
100M
1G
10G
Frequency (MHz)
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.specemc.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
41
LC & LZ Type Chips
Surface Mount EMI Filters
LC & LZ Type Chips

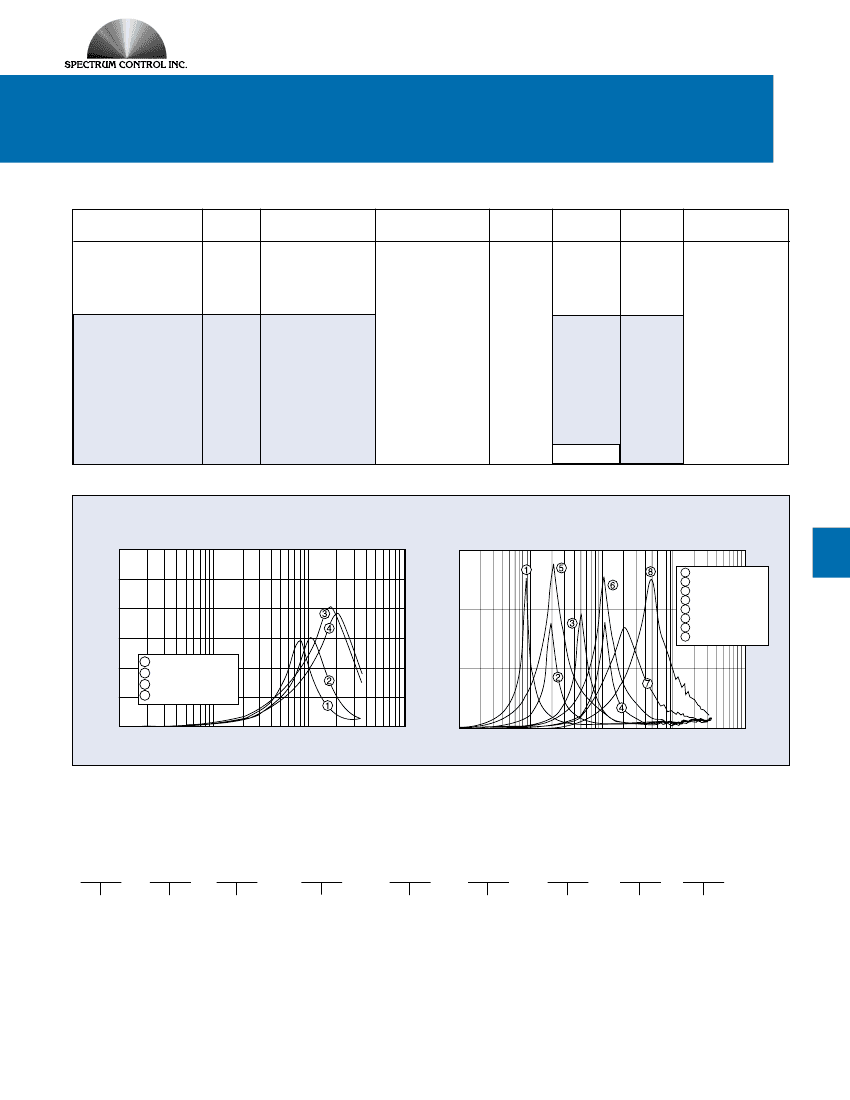

Specifications
Part Number
LC0603M223MANA-*
LC0603M473MANA-*
LC0603M104MANA-*
LC0805M103MANA-*
LC0805M223MANA-*
LC0805M473MANA-*
LC0805M104MANA-*
LC0805M224MANA-*
LC1206M103MANA-*
LC1206M223MANA-*
LC1206M473MANA-*
1206
0805
0603
Body
Size
Cut-off Frequency
(MHz)
22
47
100
10
22
47
100
220
10
22
47
± 20%
25 V
100 mA
10 MΩ
-40°C – +85°C
Cut-off Frequency
Tolerance
Rated
Voltage
Rated
Current
I.R.
(Min.)
Temperature
Range
100
LC1206M104MANA-*
-*
Denotes packaging style, replace with T for tape and reel or B for bulk
Ordering Information
Example:
LC1206M223MANAT
LC & LZ Type Chips
This part number represents an LC EMI filter chip with a body size of 1206. The cut-off frequency is 22 MHz with a tolerance
of ± 20%, voltage rating is 25 Volts DC. It has nickel barrier, solder plated termination and a current rating of 0.1 Amp (100
milliamps). The parts are taped and reeled.
LC
Style
LC
1206
Size
0603
0805
1206
M223
Cut-off
Frequency
M223
= 22 MHz
M
Cut-off
Tolerance
M =
± 20%
A
Rated
Voltage
A =
25 VDC
N
Termination
N =
Ni Barrier,
Solder Plated
A
Rated
Current
A =
0.1 A
(100 mA)
T
Packaging
T =
Tape
and Reel
B
= Bulk
42
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.specemc.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
Surface Mount EMI Filters
LC & LZ Type Chips
Specifications
Part Number
LZ0402Z824MBNB-*
LZ0402B105MBNB-*
LZ0402Y155MBNB-*
LZ0402Y205MBNB-*
LZ0603A103MCNA-*
LZ0603A223MCNA-*
LZ0603A473MCNA-*
LZ0603A104MCNA-*
LZ0603B223MCNA-*
LZ0603B104MCNA-*
LZ0603B224MCNA-*
LZ0603C474MDNA-*
0603
0402
Body
Size
Cut-off Frequency
(MHz)
820
1,000
1,500
2,000
10
22
47
100
22
100
220
470
± 20%
Cut-off Frequency
Tolerance
Rejected
Bandwidth
(dec.)
0.75
1.0
1.25
1.25
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.5
≥
20 dB
≥
15 dB
100 mA
-25°C – +85°C
≥
10 dB
50 mA
Max.
Insertion
Loss
Rated
Current
Operating
Temperature
Range
-*
Denotes packaging style, replace with T for tape and reel or B for bulk
LZ0402 Style
Insertion loss (Reference)
30
25
Insertion Loss (dB)
20
LZ0603 Style
Insertion loss (Reference)
30
20
15
10
5
1
2
3
4
LZ0402B824M0NB
LZ0402B105M0NB
LZ0402B155M0NB
LZ0402B205M0NB
10
0
10M
100M
Frequency (MHz)
1G
10G
0
1M
10M
100M
Frequency (MHz)
1G
10G
Ordering Information
Example:
LZ0402B824MBNBT
LZ
Style
LZ
0402
Size
0402
0603
B
Rejected
Bandwidth
A
= 0.5 dec.
Z
= 0.75 dec.
B
= 1.0 dec.
Y
= 1.25 dec.
C
= 1.5 dec.
824
Center
Frequency
Tolerance
820 MHz
M
Center
Frenquency
Loss
M =
±20%
B
Max.
Insertion
B =
≥10
dB
C =
≥15
dB
D =
≥20
dB
N
Termination
N =
Ni
Barrier,
Solder
Plated
A
T
Rated Packaging
Current
A=0.1A
(100mA)
B
= 0.5A
(50mA)
T =
Tape
and Reel
B
= Bulk
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.specemc.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
43
LC & LZ Type Chips
Insertion Loss (dB)
1
2
3
4
5
6
7
8
LZ0603A103M0NA
LZ0603A223M0NA
LZ0603A473M0NA
LZ0603A104M0NA
LZ0603B223M0NA
LZ0603B104M0NA
LZ0603B224M0NA
LZ0603A103M0NA
LC 0603, 0805 & 1206
LE
LM
LE
Surface Mount EMI Filters
T
LC & LZ Type Chips
Circuit Schematic
LC 0603
A
A
L
W
LZ 0402 & 0603
LE
0.25±0.1
B
B
0.25±0.1
0.5±0.05
L
1.0±0.05
LC 0805 & 1206
T
0.5±0.05
W
A
A
Dimensions in inches
(mm)
LZ 0402 & 0603
A
A
LC & LZ Type Chips
Mechanical Dimensions
Body
Style/Size
LZ0402
LZ0603
LC0603
LC0805
LC1206
Body
Length
(L)
0.039±0.002
(1.0±0.05)
0.063±0.008
(1.60±0.20)
0.063±0.004
(1.60±0.10)
0.079±0.007
(2.0±0.18)
0.126±0.008
(3.20±0.20)
Body
Width
(W)
0.020±0.002
(0.5±0.05)
0.031±0.008
(0.80±0.20)
0.031±0.004
(0.80±0.10)
0.049±0.004
(1.25±0.10)
0.063±0.008
(1.60±0.20)
Body
Thickness
(T)
0.020±0.002
(0.5±0.05)
0.031±0.008
(0.80±0.20)
0.024±0.004
(0.60±0.10)
0.031±0.008
(0.80±0.20)
0.039±0.008
(1.0±0.20)
End Terminal
Length
(LE)
0.010±0.004
(0.25±0.10)
0.012±0.008
(0.30±0.20)
0.010±0.008
(0.25±0.20)
0.012±0.010
(0.30±0.25)
0.016±0.012
(0.40±0.30)
Middle Terminal
Length
(LM)
0.016±0.008
(0.40±0.20)
0.024±0.012
(0.60±0.30)
0.043±0.012
(1.10±0.30)
Dimensions in inches
(mm)
Package Quantities
Body Style/Size
LZ0402
LZ0603
LC0603
LC0805
LC1206
Tape and Reel
10,000 units/reel
4,000 units/reel
4,000 units/reel
4,000 units/reel
2,000 units/reel
44
SPECTRUM CONTROL INC.
• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.specemc.com
SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
