CD74HCT161E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD74HCT161E

CD74HCT161E: DescriptionBinary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDIP16,; Categorylogic logic; File Size880KB，10 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

CD74HCT161E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74HCT161E	-	-	View	Buy Now

CD74HCT161E Overview

Binary Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDIP16,

CD74HCT161E Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	HCT
JESD-30 code	R-PDIP-T16
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	49 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	30 MHz

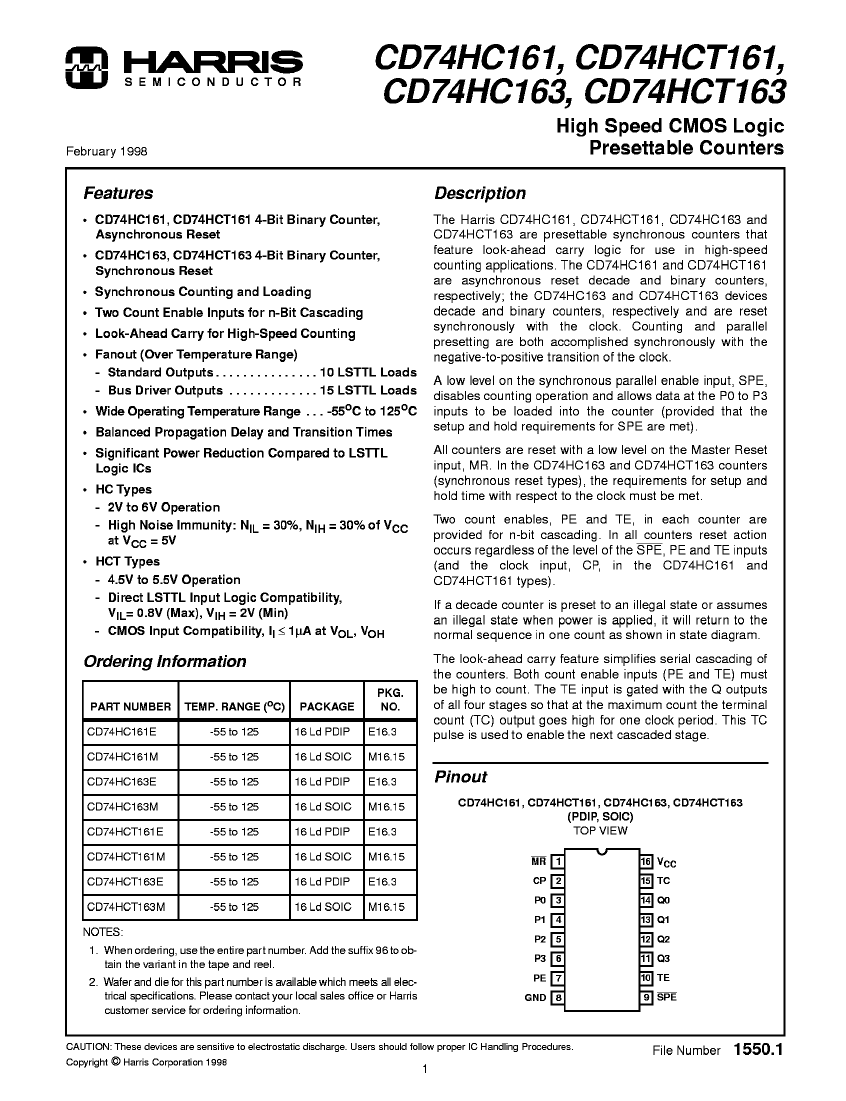

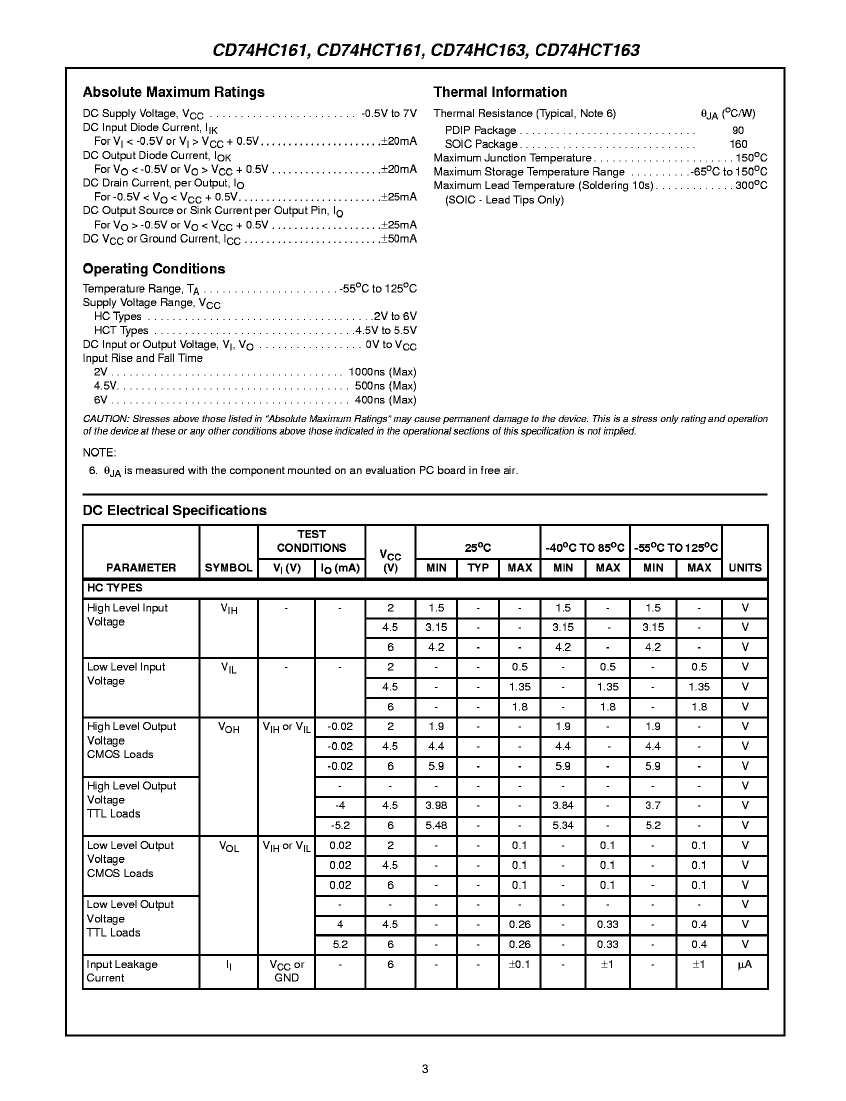

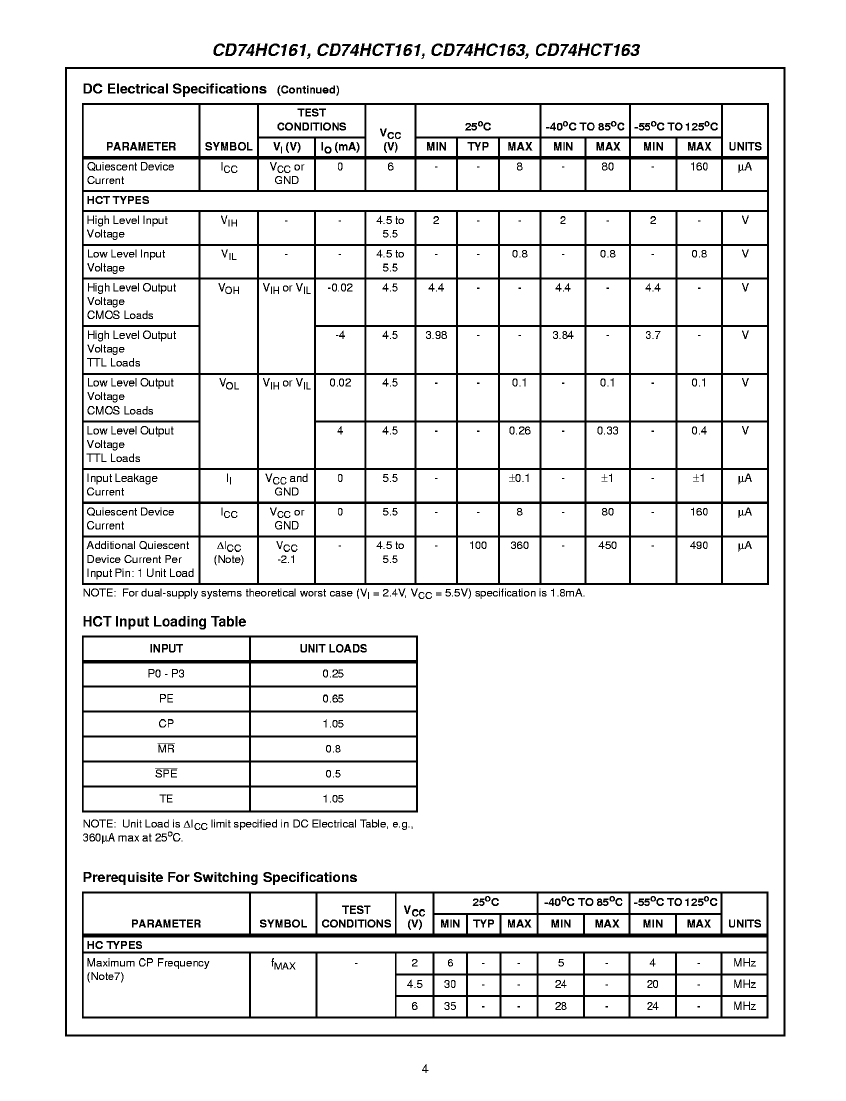

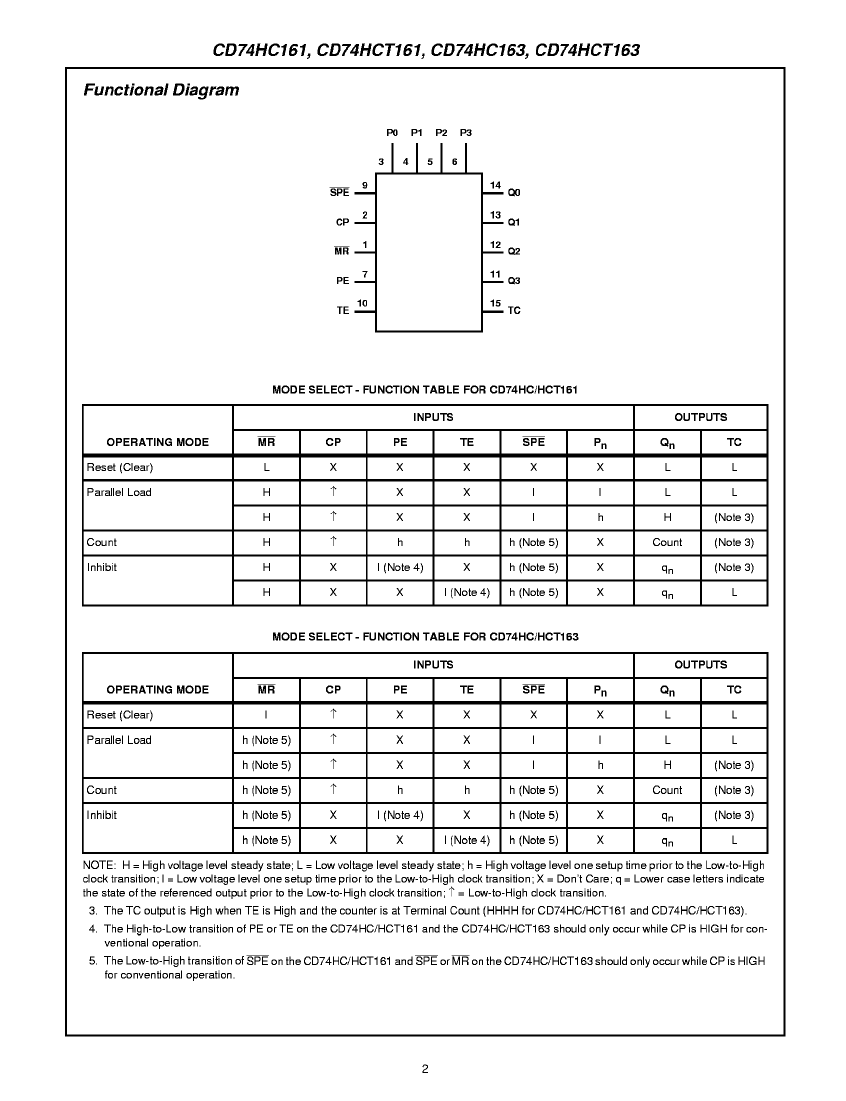

Preview
