LTM455IT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LTM455IT

LTM455IT: DescriptionCeramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size237KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

LTM455IT Overview

Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4

LTM455IT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Other features	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE
Center frequency or cutoff frequency (fo/fc)	0.455 MHz
filter type	CERAMIC BPF
high	6.3 mm
Input/output impedance	2000 OHM
Maximum insertion loss	6 dB
length	6.5 mm
Installation type	THROUGH HOLE MOUNT
physical size	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)
width	6.5 mm

Preview

Download Datasheet

View All

EURO

QUARTZ

Leaded Types LTU / LTM_U / LTUM

Ultra-small-size, 6-element (LTM)

Mini-resin-molded, 4-element (LTU)

Ultra-small-size, 4-element (LTM_U)

CERAMIC FILTERS

450/455kHz

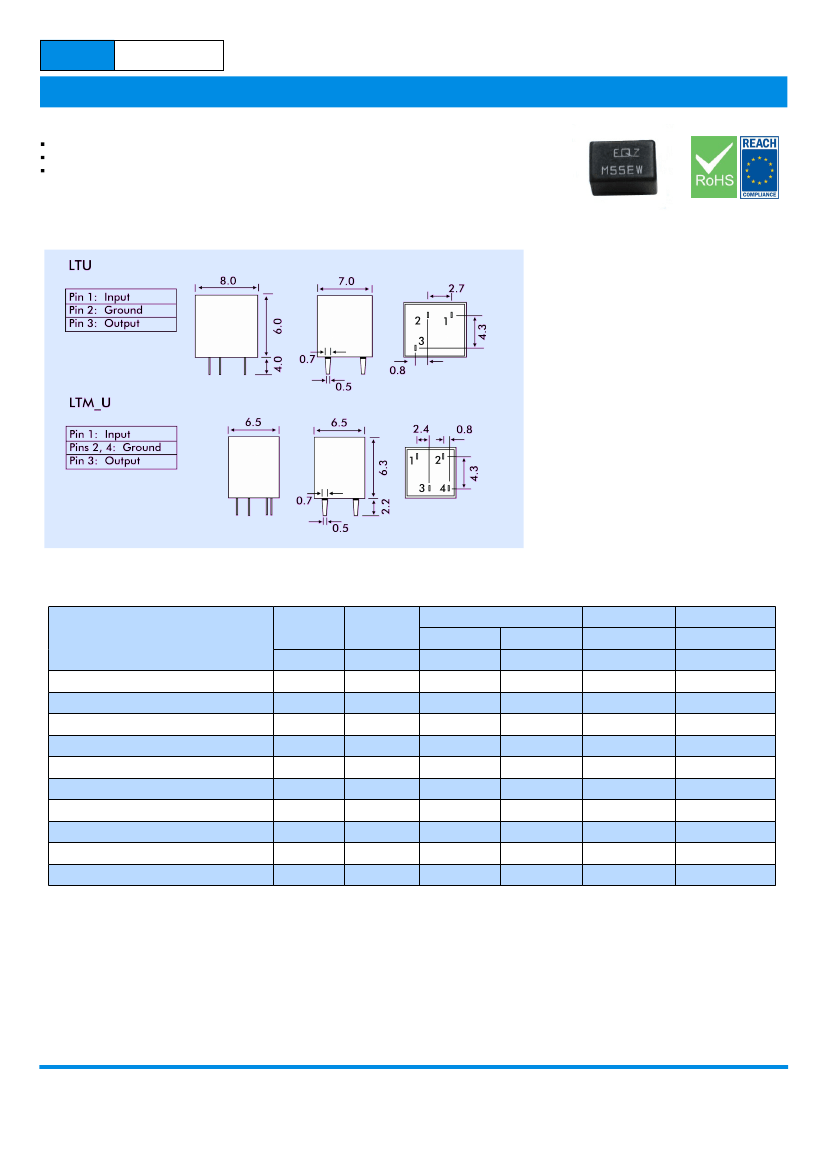

OUTLINES & DIMENSIONS

ELECTRICAL SPECIFICATION OF LTU / LTM_U / LTUM

Insertion

Loss

dB max.

LTU455B / LTM455BU

LTU455C / LTM455CU

LTU455D / LTM455DU

LTU455E / LTM455EU

LTU455F / LTM455FU

LTU455G / LTM455GU

LTU455H / LTM455HU

LTU455I / LTM455IU

LTU455HT / LTM455HT

LTU455IT / LTM455IT

Pass Band

Ripple

dB max.

Bandwidth

6dB

kHz max.

±15.0

±12.5

±10.0

±7.5

±6.0

±4.5

±3.0

±2.0

±3.0

±2.0

50dB

kHz max.

±30.0

±24.0

±20.0

±15.0

±12.5

±10.0

±9.0

±7.5

±9.0

±7.5

Stop Band Att.

±100kHz

dB max.

27.0

25.0

35.0

Input/Output

Impedance

1500

2000

Part Number

Other frequencies and specifications are available upon request

Centre frequency 450kHz is also available.

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

LTM455IT Related Products

	LTM455IT	LTM455DU	LTM455BU	LTM455CU	LTM455EU	LTM455FU	LTM455GU	LTM455HU	LTM455IU	LTM455HT
Description	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4	Ceramic BPF, 0.455MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE	CENTRE FREQUENCY 450KHZ IS ALSO AVAILABLE
Center frequency or cutoff frequency (fo/fc)	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz	0.455 MHz
filter type	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF	CERAMIC BPF
high	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm
Input/output impedance	2000 OHM	1500 OHM	1500 OHM	1500 OHM	1500 OHM	2000 OHM	2000 OHM	2000 OHM	2000 OHM	2000 OHM
Maximum insertion loss	6 dB	4 dB	4 dB	4 dB	6 dB	6 dB	6 dB	6 dB	6 dB	6 dB
length	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
physical size	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)	L6.5XB6.5XH6.3 (mm)/L0.256XB0.256XH0.248 (inch)
width	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm
Base Number Matches	-	1	1	1	1	1	1	1	1	-
