LFO24V02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LFO24V02

LFO24V02: DescriptionData Line Filter, 2 Function(s), 0.6A,; CategoryAnalog mixed-signal IC filter; File Size185KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

LFO24V02 Overview

Data Line Filter, 2 Function(s), 0.6A,

LFO24V02 Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	1.43 Ω
filter type	DATA LINE FILTER
high	26 mm
inductance	30000 µH
length	25 mm
Manufacturer's serial number	LFO24V
Installation type	THROUGH HOLE MOUNT
Number of functions	2
physical size	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)
Rated current	0.6 A
width	17 mm

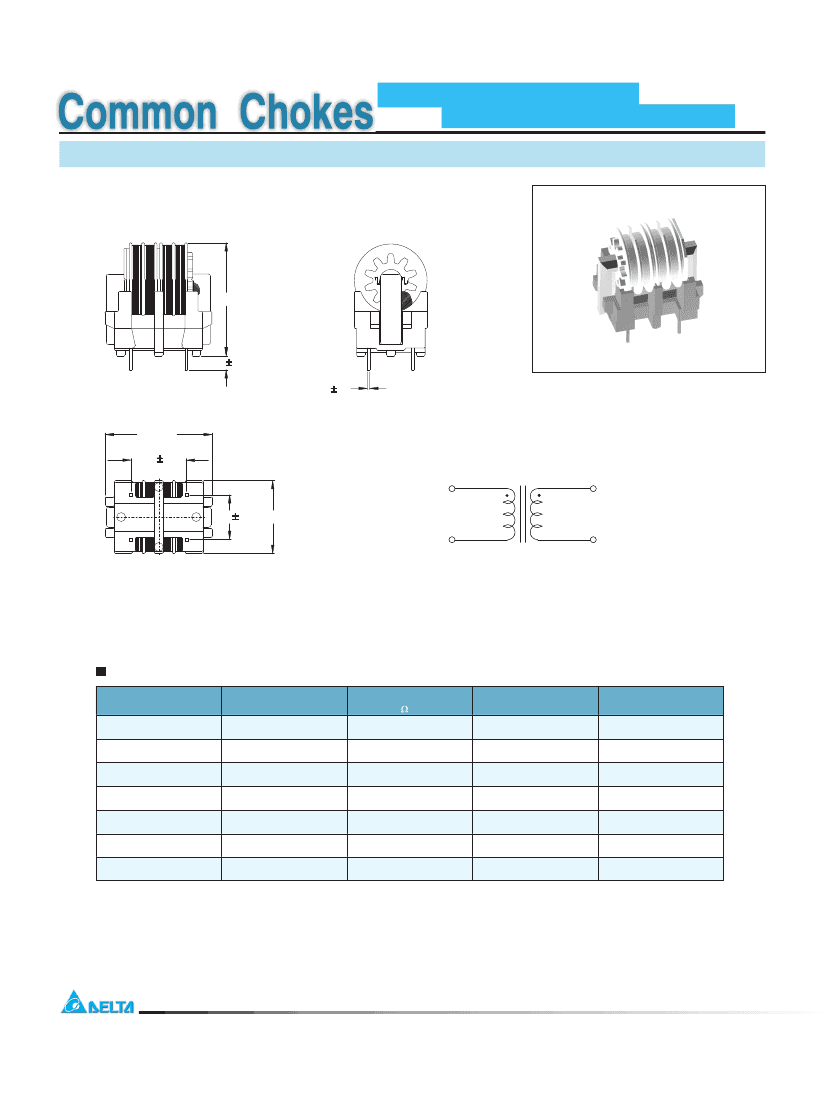

LFO24V02 Preview

EMI Common-Mode

Suppression Inductors

LFO24V Type

Mechanical Dimension:

Unit: mm

26.0 Max.

4.0 0.5

SQ0.64 0.1

25.0 Max.

12.5 0.5

Schematic :

10.0 0.5 17.0 Max.

Electrical Characteristics:

AT 25

C, 40KHz/1V Tested:

PART NO.

INDUCTANCE

(mH) MIN

DCR

(m ) MAX

RATED CURRENT

(Aac)

TEMPERATURE

RISE (

C) MAX

LFO24V01

LFO24V02

LFO24V03

LFO24V04

LFO24V05

LFO24V06

LFO24V07

44.2

30.0

15.3

9.8

7.4

5.5

3.8

2450

1430

740

500

380

275

190

0.4

0.6

0.8

1.0

1.2

1.6

2.0

* WITHSTANDING VOLTAGE BETWEEN L1 & L2 1.5KV 1 MINUTE

* GOOD DIFFERENCE IN WINDING L1 & L2 INDUCTANCE

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LFO24V02 Related Products

	LFO24V02	LFO24V01	LFO24V03	LFO24V04	LFO24V05	LFO24V06	LFO24V07
Description	Data Line Filter, 2 Function(s), 0.6A,	Data Line Filter, 2 Function(s), 0.4A,	Data Line Filter, 2 Function(s), 0.8A,	Data Line Filter, 2 Function(s), 1A,	Data Line Filter, 2 Function(s), 1.2A,	Data Line Filter, 2 Function(s), 1.6A,	Data Line Filter, 2 Function(s), 2A,
Maker	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	1.43 Ω	2.45 Ω	0.74 Ω	0.5 Ω	0.38 Ω	0.275 Ω	0.19 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	26 mm	26 mm	26 mm	26 mm	26 mm	26 mm	26 mm
inductance	30000 µH	44200 µH	15300 µH	9800 µH	7400 µH	5500 µH	3800 µH
length	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm
Manufacturer's serial number	LFO24V	LFO24V	LFO24V	LFO24V	LFO24V	LFO24V	LFO24V
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	2	2	2	2	2	2	2
physical size	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)	L25.0XB17.0XH26.0 (mm)/L0.984XB0.669XH1.024 (inch)
Rated current	0.6 A	0.4 A	0.8 A	1 A	1.2 A	1.6 A	2 A
width	17 mm	17 mm	17 mm	17 mm	17 mm	17 mm	17 mm
