MSM6810GS-VK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> MSM6810GS-VK

MSM6810GS-VK: DescriptionPCM Codec, A/MU-Law, 1-Func, PDSO24, 0.430 INCH, PLASTIC, SOP-24; CategoryWireless rf/communication Telecom circuit; File Size326KB，17 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM6810GS-VK Overview

PCM Codec, A/MU-Law, 1-Func, PDSO24, 0.430 INCH, PLASTIC, SOP-24

MSM6810GS-VK Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknown
Law of compression and extension	A/MU-LAW
filter	YES
JESD-30 code	R-PDSO-G24
length	16 mm
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	24
Operating mode	SYNCHRONOUS/ASYNCHRONOUS
Maximum operating temperature	80 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum slew rate	10 mA
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	PCM CODEC
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.9 mm

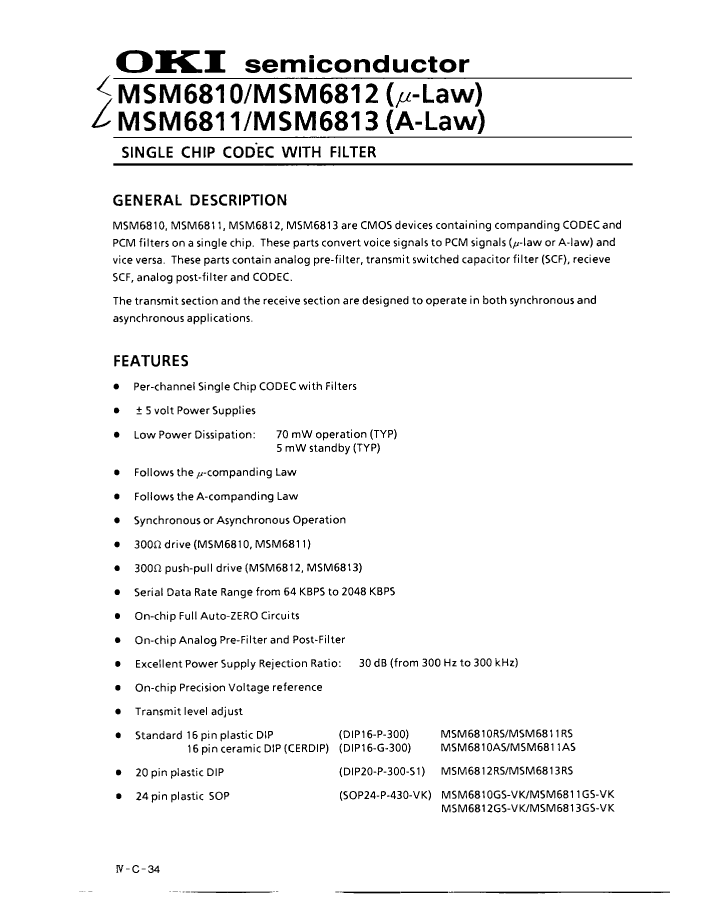

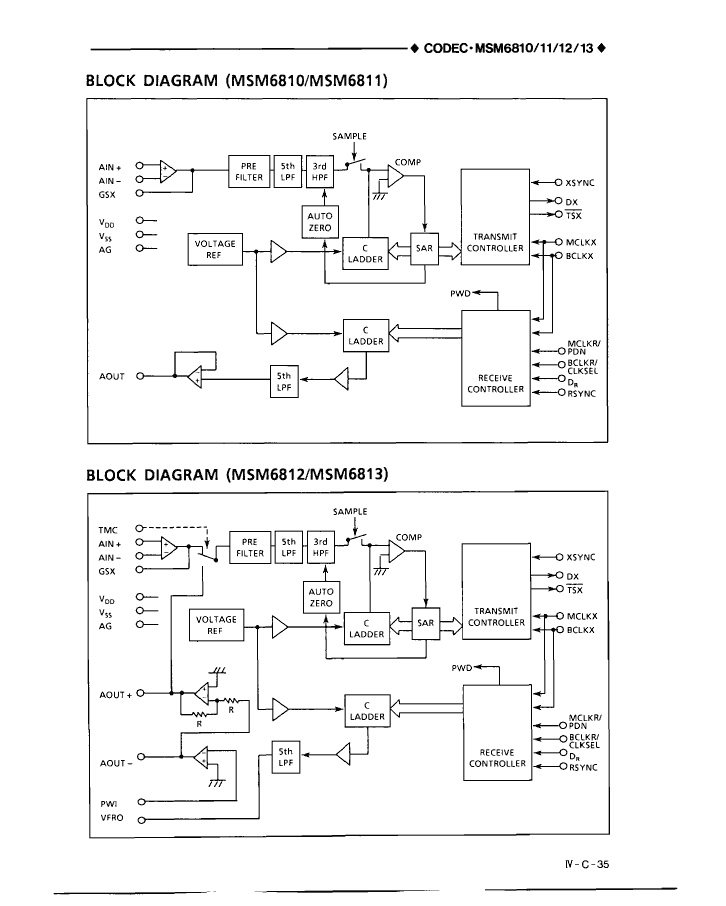

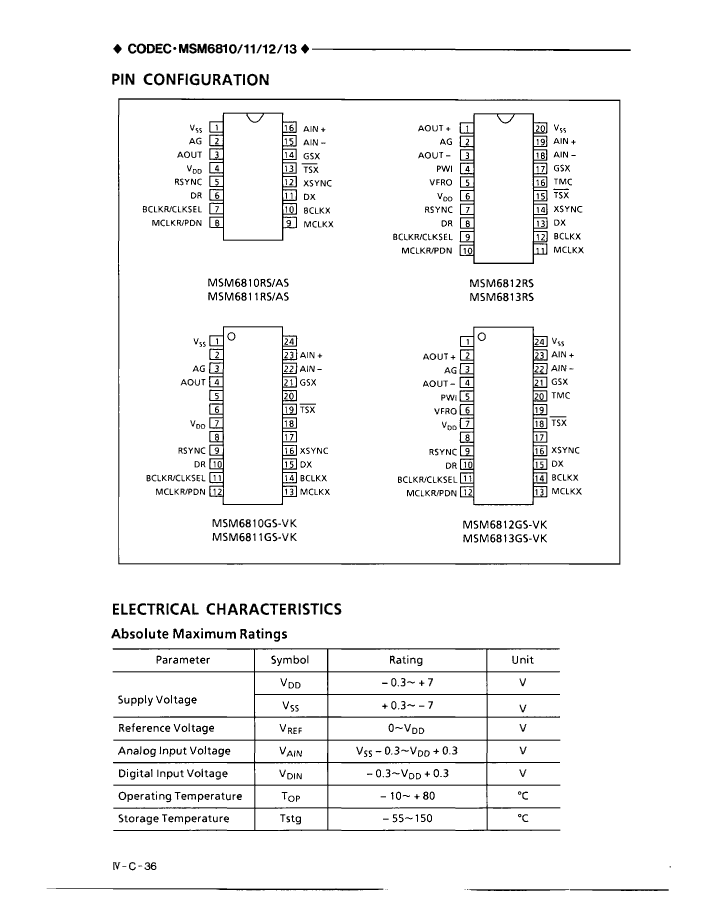

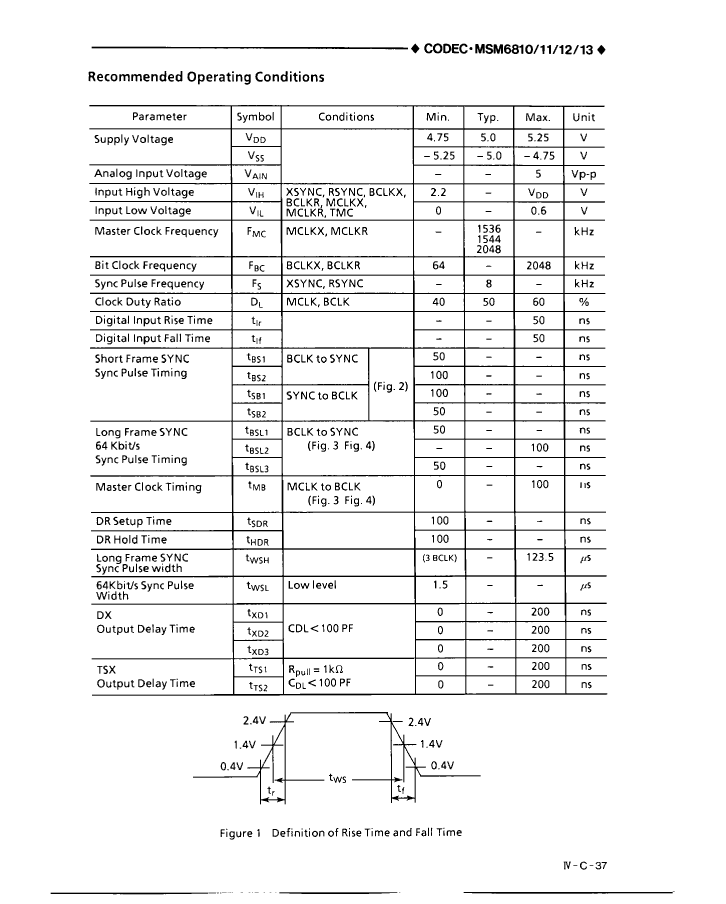

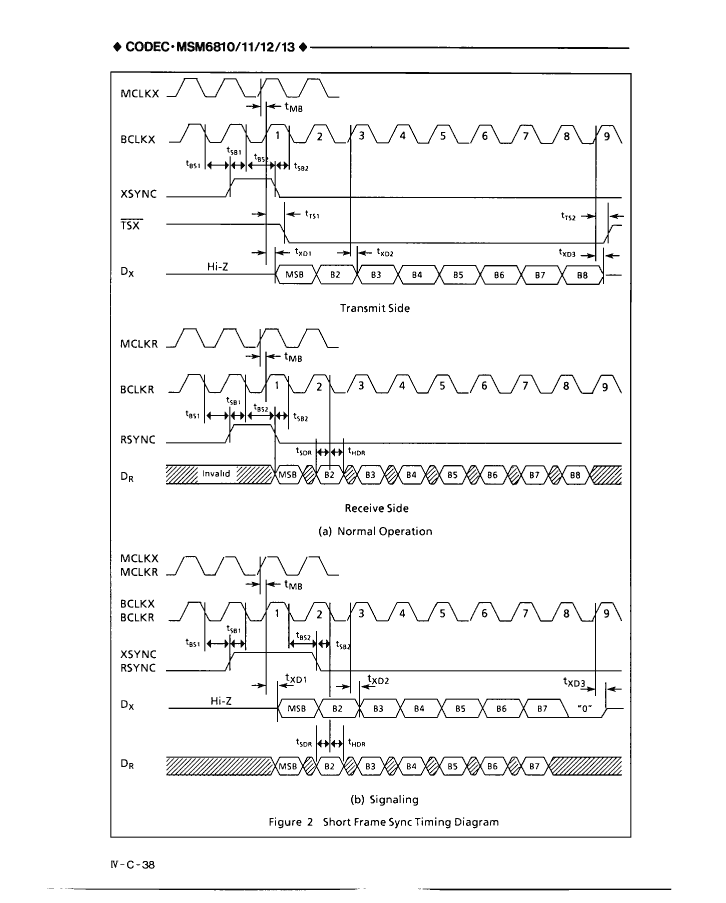

MSM6810GS-VK Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MSM6810GS-VK Related Products

	MSM6810GS-VK	MSM6813GS-VK	MSM6810AS	MSM6810RS	MSM6811AS	MSM6811RS	MSM6811GS-VK	MSM6813RS
Description	PCM Codec, A/MU-Law, 1-Func, PDSO24, 0.430 INCH, PLASTIC, SOP-24	PCM Codec, A/MU-Law, 1-Func, PDSO24, 0.430 INCH, PLASTIC, SOP-24	PCM Codec, A/MU-Law, 1-Func, CDIP16, 0.300 INCH, CERDIP-16	PCM Codec, A/MU-Law, 1-Func, PDIP16, 0.300 INCH, PLASTIC, DIP-16	PCM Codec, A/MU-Law, 1-Func, CDIP16, 0.300 INCH, CERDIP-16	PCM Codec, A/MU-Law, 1-Func, PDIP16, 0.300 INCH, PLASTIC, DIP-16	PCM Codec, A/MU-Law, 1-Func, PDSO24, 0.430 INCH, PLASTIC, SOP-24	PCM Codec, A/MU-Law, 1-Func, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Maker	OKI	OKI	OKI	OKI	OKI	OKI	OKI	OKI
Parts packaging code	SOIC	SOIC	DIP	DIP	DIP	DIP	SOIC	DIP
package instruction	SOP,	SOP,	DIP,	DIP,	DIP,	DIP,	SOP,	DIP,
Contacts	24	24	16	16	16	16	24	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Law of compression and extension	A/MU-LAW	A/MU-LAW	A/MU-LAW	A/MU-LAW	A/MU-LAW	A/MU-LAW	A/MU-LAW	A/MU-LAW
filter	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-GDIP-T16	R-PDIP-T16	R-GDIP-T16	R-PDIP-T16	R-PDSO-G24	R-PDIP-T20
Negative supply voltage rating	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	24	24	16	16	16	16	24	20
Operating mode	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS	SYNCHRONOUS/ASYNCHRONOUS
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	2.5 mm	5.1 mm	4.55 mm	5.1 mm	4.55 mm	2.5 mm	4.55 mm
Maximum slew rate	10 mA	14 mA	10 mA	10 mA	10 mA	10 mA	10 mA	14 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	NO	YES	NO
Telecom integrated circuit types	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC	PCM CODEC
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.9 mm	7.9 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.9 mm	7.62 mm
length	16 mm	16 mm	-	19.1 mm	-	19.1 mm	16 mm	26.9 mm
