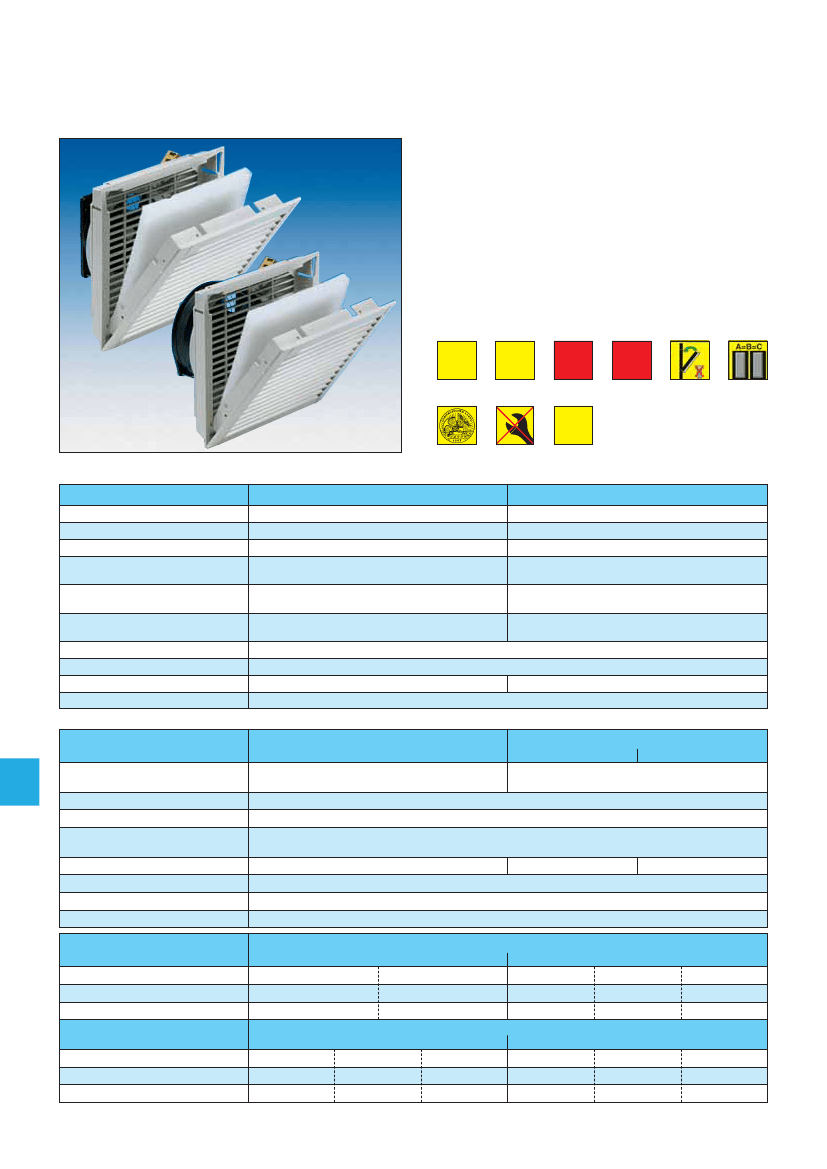

Filterfan
®
PF2.500, PF3.000
PF 2.500
For medium range applications in plant and machine equipment.
PF 3.000
The same size PF 2.500 but with a more powerful fan.
●
with integrated foamed on seal
(PF 2.500, PF 3.000)
IP 54
System of
protection
IP 55
System of
protection
(see page 92)
AC
RAL
DC
click and fit!
Cutout-
compability
Germanischer
Lloyd (PF 3000)
Installation
without tools
Colour
Airflow data:
Filter material
*
Unimpeded airflow
Capacity free-flow
Airflow in combination
(Filterfan
®
+ Exhaust Filter)
Capacity in combination
(Filterfan
®
+ Exhaust Filter)
Max. static pressure
(Airflow = 0 m
3
/h)
Filtration efficiency
Filter material grade (DIN EN 779)
Noise level (DIN 45 635)
Duty cycle
*
standard filter mat 150 g/m
2
(alternative filter mat in 350 g/m
2
, 500 g/m
2
)
PF 2.500
150 g/m
2
155 m
3
/h; 50 Hz / 170 m
3
/h; 60 Hz
52 W/K / 57 W/K
108 m
3
/h; 50 Hz / 118 m
3
/h; 60 Hz
(PF 2.500 + PFA 3.000)
36 W/K / 39 W/K
(PF 3.000 + PFA 3.000)
62 Pa
73%
G2
53 dB (A)
100%
PF 3.000
150 g/m
2
255 m
3
/h; 50 Hz / 292 m
3
/h; 60 Hz
85 W/K / 97 W/K
231 m
3
/h; 50 Hz / 265 m
3
/h; 60 Hz
(PF 3.000 + PFA 3.000)
77 W/K / 88 W/K
(PF 3.000 + PFA 3.000)
115 Pa
55 dB (A)
Technical data:
Outside dimensions in mm
(Height x Width x Installation depth)
Bearing type
Fitting position
Construction
Weight
Safety protection
Colour
Connections
PF 2.500
AC / DC
250 x 250 x 111
ball bearings
PF 3.000
AC
250 x 250 x 121
DC
any, horizontal airflow preferred
housing and guard of sprayed thermoplastic (ABS-FR)
self-extinguishing, UL 94 VO
1,75 kg
1,75 kg
in accordance with DIN 31 001
RAL 7035, RAL 7032 or black, other colours on request
terminal strip
PF 2.500
AC 50 Hz / 60 Hz
230 V
187 V … 253 V
18 W / 17 W
AC 50 Hz / 60 Hz
230 V
187 V … 253 V
45 W / 39 W
115 V
97 V … 127 V
18 W / 17 W
PF 3.000
12 V
8 V … 14 V
5W
DC
24 V
18 V … 30 V
4,7 W
DC
24 V
18 V … 30 V
18 W
48 V
36 V … 56 V
4,6 W
1,50 kg
We reserve the right to technical alterations.Subject to correction. 075000031
Electrical data:
Rated voltage
Range of operation
Power consumption
Rated voltage
Range of operation
Power consumption
400 V / 440 V
369 V … 484 V
41 W / 38 W
115 V
97 V … 127 V
40 W
12 V
8 V … 15 V
12 W
48 V
36 V … 56 V
17 W

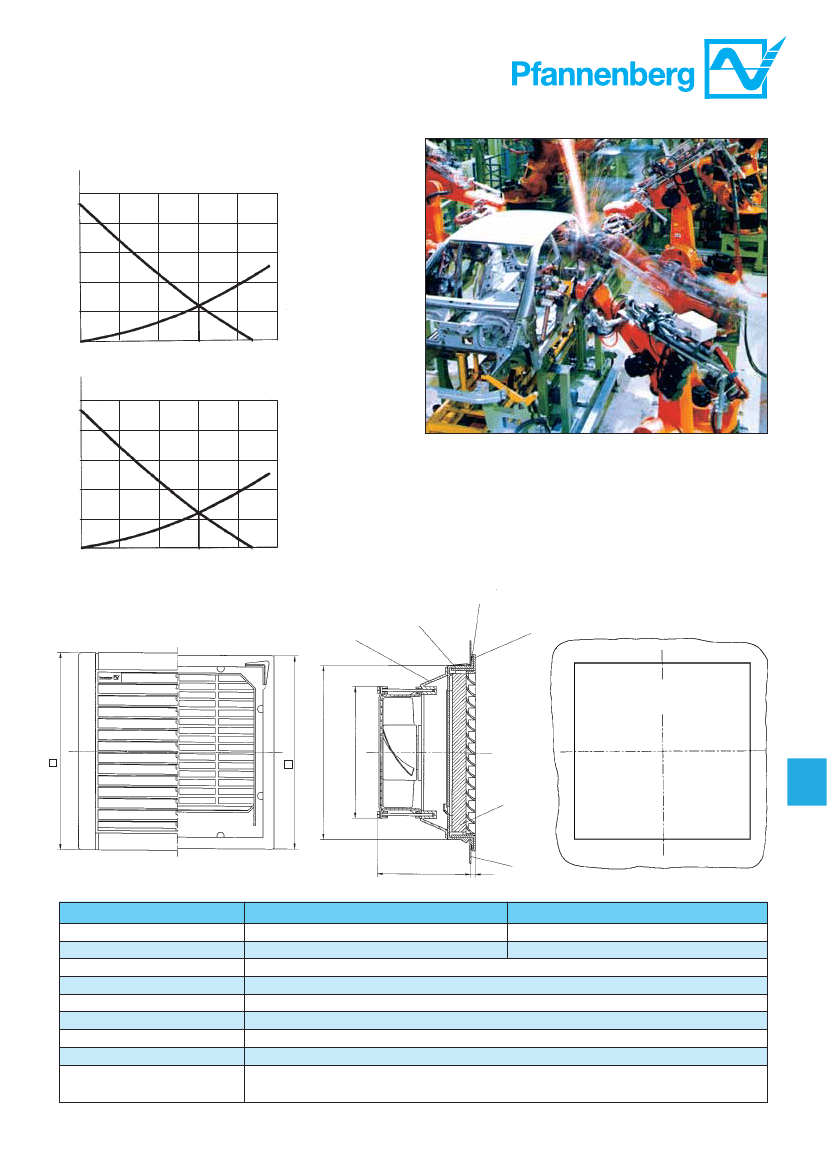

80
ELECTRO-TECHNOLOGY FOR INDUSTRY
Airflow data:
[Pa]
62
PF 2.500
Static pressure increase
PF 2.500
PFA 3.000
Airflow
[Pa]
115
PF 3.000
Static pressure increase
108
155 [m
3
/h]
PF 3.000
PFA 3.000
Airflow
231
255 [m
3
/h]
sealing
basic enclosure
Mechanical data:
(PF 2.500 + PF 3.000)
fan frame
Installation cutout
design frame
PF 2.500 = 127
PF 3.000 = Ø 171,5
Installation cutout
223 mm x 223 mm
*
250
245
221
filter mat
PF 2.500 = 111
PF 3.000 = 121
fan
6
mounting
wall
DC
–20°C (- 4 °F) to +55°C (+ 131 °F)
90%
Supplementary data:
Climatic data
Operating temperature
Storage temperature
Max. relative humidity
System of protection
Basic parts kit
Accessories
Approvals
AC
– 10 °C (+ 14 °F) to + 55 °C (+ 131 °F)
– 20 °C (- 4 °F) to + 70 °C (+ 158 °F)
IP 54 (EN 60 529), when installed as specified, not for outdoor-application
standard filter, mounting- and user manual
radiant heater, fan heater, thermostat, see Thermal Management
PF 3.000 Germanischer Lloyd (GL), UL approval see overview filter fans
1
223
+ 0
thickness of material to 2mm
–
1
224
+ 0
thickness of material > 2mm
≤
<
3mm
–
–
*
Tolerance installation cutout
81
