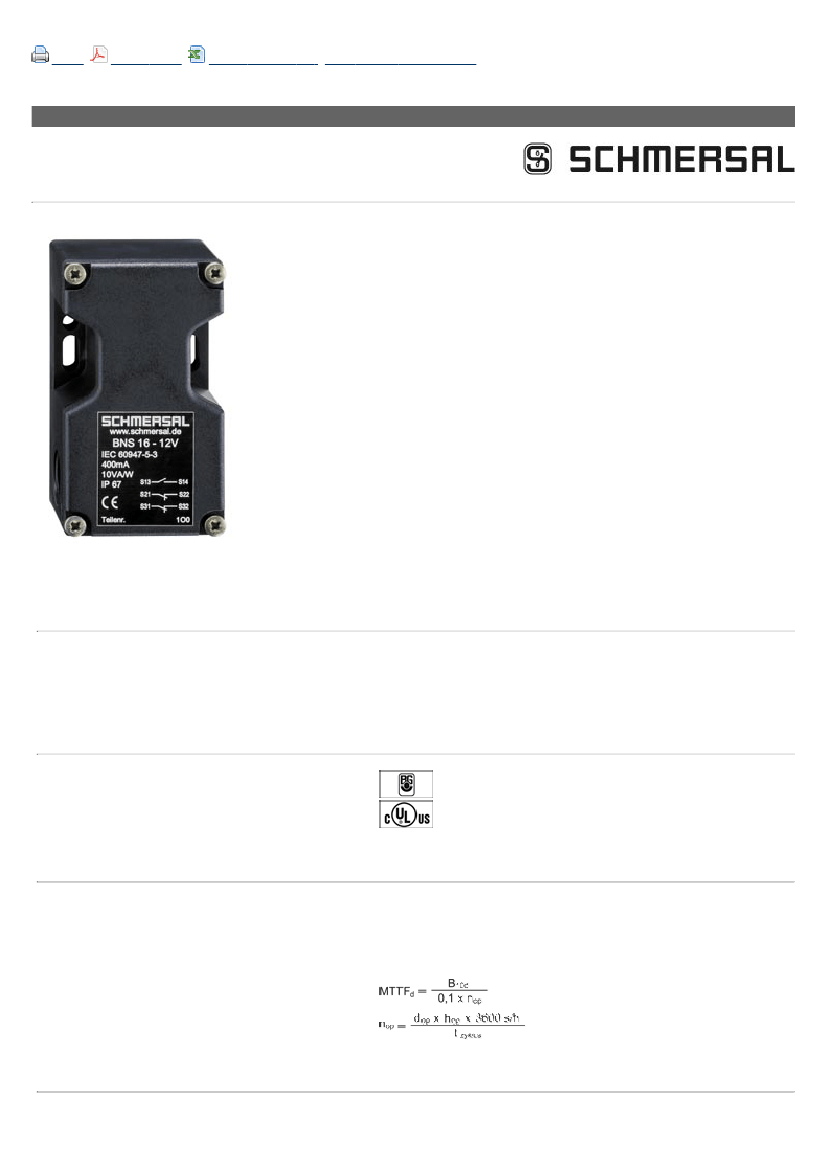

Datasheet - BNS 16-12ZD
Safety sensors / BNS 16
• thermoplastic enclosure
• Suitable for food processing industry
• Concealed mounting possible
• 52 mm x 90 mm x 32 mm
• Long life
• Insensitive to transverse misalignment
• no mechanical wear
• Insensitive to soiling
• 3 cable entries M 20 x 1.5
• Wiring compartment
(Minor differences between the printed image and the original product
may exist!)
Ordering details
Product type description
Article number
EAN code
BNS 16-12ZD
1172563
4030661301167
Approval
Approval
BG
USA/CAN
Classification
Standards
B
10d
Opener/Normally open contact (NC/NO)
- notice
Mission time
notice
EN ISO 13849-1
25.000.000
at max. 20% contact load
20 Years
Global Properties
Product name
BNS 16
Standards
Compliance with the Directives (Y/N)
Materials
- Material of the housings
Weight
Coding available (Y/N)
Monitoring function of downstream devices (Y/N)
Prerequisite evaluation unit
Recommended safety-monitoring module
IEC 60947-5-3, BG-GS-ET-14
Yes
Plastic, glass-fibre reinforced thermoplastic
150 g
Yes
No
Yes
AES 1135, AES 1136, AES 1165, AES 1166, AES 1165-2250, AES 1185, AES
1235, AES 1236, AES 1265, AES 1266, AES 1337, AES 2135, AES 2136, AES
2335, AES 2336, AES 2535, AES 2536, AES 2365, AES 2366, AES 2565, AES
2566, AES 2285, AES 3075, SRB 202C., SRB 400C.
BPS 16
Recommended actuator
Mechanical data
Design of electrical connection
Cable section
- Min. Cable section
- Max. Cable section
AWG-Number
mechanical installation conditions
Active area
Ensured switch distance ON
Ensured switch distance OFF
Type of actuation
Direction of motion
restistance to shock
Resistance to vibration
notice
0,25 mm²
1.5 mm²
15
not flush
cover-side
8 mm
18 mm
Magnet
head-on with regard to the active surface
30 g / 11 ms
10 ... 55 Hz, Amplitude 1 mm
All indications about the cable section are including the conductor ferrules.
Screw connection
Ambient conditions
Ambient temperature
- Min. environmental temperature
- Max. environmental temperature
Storage and transport temperature
- Min. Storage and transport temperature
- Max. Storage and transport temperature
Protection class
−25 °C
+70 °C
IP67
−25 °C
+70 °C
Electrical data
Integrated Safety monitoring module available (Y/N)
Cross circuit/short circuit recognition possible (Y/N)
Voltage type
Switch frequency
Switching voltage
Switching current
Switching capacity
No
Yes
VAC/DC
max. 5 Hz
max. 100 VAC/DC
max. 400 mA
max. 10 W
Outputs
Design of control output
Number of shutters
Other, Reed contakts
1 piece
Number of openers
2 piece
Electrical data - Safety outputs
Number of secure semi-conductor outputs
Number of secure outputs with contact
0 piece
0 piece
Electrical data - Diagnostic output
Number of semi-conductor outputs with signaling function
Number of outputs with signaling function that already have a
contact
0 piece
0 piece
LED switching conditions display
LED switching conditions display (Y/N)
No
ATEX
Explosion protection categories for gases
Explosion protected category for dusts
None
None
Dimensions
Dimensions of the sensor
- Width of sensor
- Height of sensor
- Length of sensor
52 mm
90 mm
39 mm
notice
Contact symbols shown for the closed condition of the guard device.
Included in delivery
Actuators must be ordered separately.
Indication legend
5 different directions of actuation: cover, front and below, right and left
Diagram
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact
Ordering code
BNS 16-(1)Z(2)-(3)
(1)
11
12
(2)
V
R
L
D
U
Actuating planes front side
Actuating planes right-hand side
Actuating planes left-hand side
Actuating planes cover-side
Actuating planes bottom
1 Normally open contact (NO) / 1 Opener (NC) (Only for Plug-in connection)
1 Normally open contact (NO) / 2 Opener (NC)
LR
Actuating planes left-hand side/right-hand side
(3)
ST1
Connector Middle
ST2
Connector right
ST3
Connector left
Documents
Operating instructions and Declaration of conformity
(es) 788 kB, 07.12.2009
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/es/mrl_bns16_es.pdf
Operating instructions and Declaration of conformity
(jp) 792 kB, 12.08.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/jp/mrl_bns16_jp.pdf
Operating instructions and Declaration of conformity
(fr) 980 kB, 10.12.2009
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/fr/mrl_bns16_fr.pdf
Operating instructions and Declaration of conformity
(it) 977 kB, 21.01.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/it/mrl_bns16_it.pdf
Operating instructions and Declaration of conformity
(de) 1 MB, 21.01.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/de/mrl_bns16_de.pdf
Operating instructions and Declaration of conformity
(en) 1 MB, 21.01.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/en/mrl_bns16_en.pdf
Operating instructions and Declaration of conformity
(nl) 791 kB, 10.12.2009
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns16/bedien/nl/mrl_bns16_nl.pdf
Images

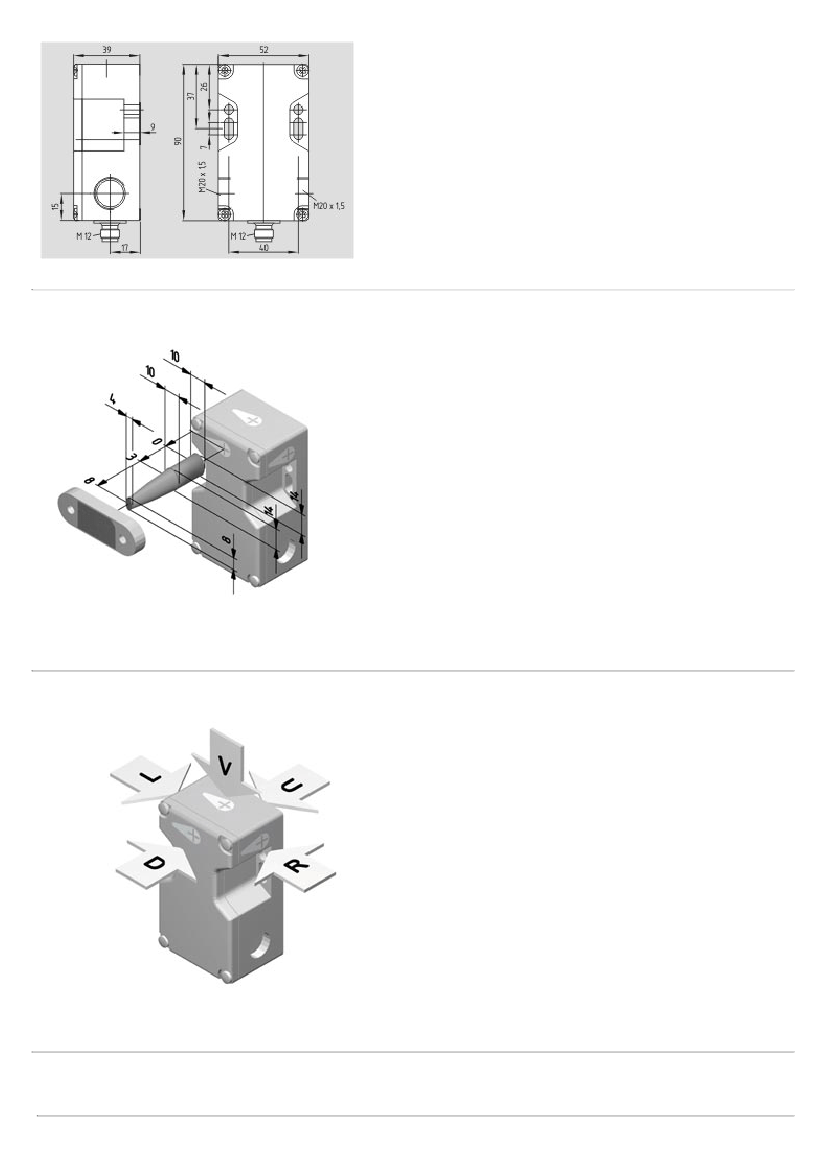

Dimensional drawing (basic component)
Dimensional drawing (miscellaneous)
Operating principle
System components
