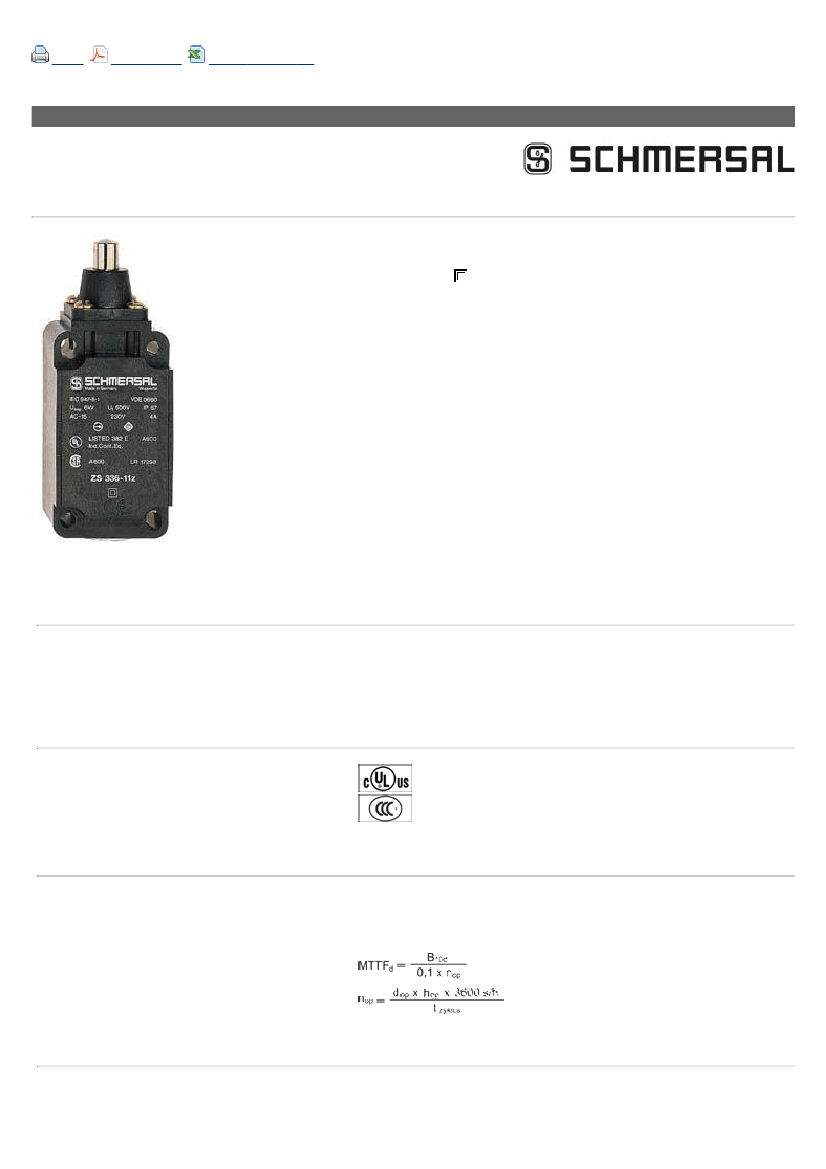

Datasheet - ZS 336-11z
Position switch / 336 thermoplastic enclosure - DIN EN
50041 with Actuator / 336 Plunger S
• Snap action with constant contact pressure up to switching point
• thermoplastic enclosure
• Double-insulated
• Good resistance to oil and petroleum spirit
• 40,5 mm x 76 mm x 38 mm
• Wide range of alternative actuators
• Actuator heads can be repositioned by 4 x 90°
• 1 Cable entry M 20 x 1.5
• Design to EN 50041
(Minor differences between the printed image and the original
product may exist!)
Ordering details
Product type description
Article number
EAN code
ZS 336-11Z
1156136
4030661177458
Approval
Approval
USA/CAN
CCC
Classification
Standards
B
10d
Normally-closed contact (NC)
Mission time
notice
EN ISO 13849-1
20.000.000
20 Years
Global Properties
Product name
Standards
336 Druckbolzen S
EN 60947-5-1 BG-GS-ET-15
Compliance with the Directives (Y/N)
Suitable for safety functions (Y/N)
Actuator type
Materials
- Material of the housings
- Material of the contacts
Housing coating
Housing construction form
Weight
Yes
Yes
B to EN 50041
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Silver
None
Norm construction design
105 g
Mechanical data
Design of actuating element
Design of electrical connection
Cable section
- Min. Cable section
- Max. Cable section
Mechanical life
Switching frequency
Actuating force
Bounce duration
Switchover time
Actuating speed for vertical actuation
- Min. Actuating speed
- Max. Actuating speed
notice
0,5 m/s
All indications about the cable section are including the conductor ferrules.
0,75 mm²
2.5 mm²
30.000.000 operations
max. 5000 /h
min. 12 N
in accordance with actuating speed
< 2 ms
Plunger
Screw connection
Ambient conditions
Ambient temperature
- Min. environmental temperature
- Max. environmental temperature
Protection class
- 30°C
+ 80°C
IP67
Electrical data
Design of control element
Switching principle
- positive break NC contact
Number of auxiliary contacts
Number of safety contacts
Rated impulse withstand voltage U
imp
Rated insulation voltage U
i
Thermal test current I
the
Utilisation category
Max. fuse rating
1 piece
1 piece
6 kV
500 V
10 A
AC-15: 230 V / 4 A,
DC-13: 24 V / 1 A
6 A gG D-fuse
Normally open contact (NO), Opener (NC)
Snap switch element
Dimensions
Dimensions of the sensor
- Width of sensor
- Height of sensor
- Length of sensor
40.5 mm
103.5 mm
38 mm

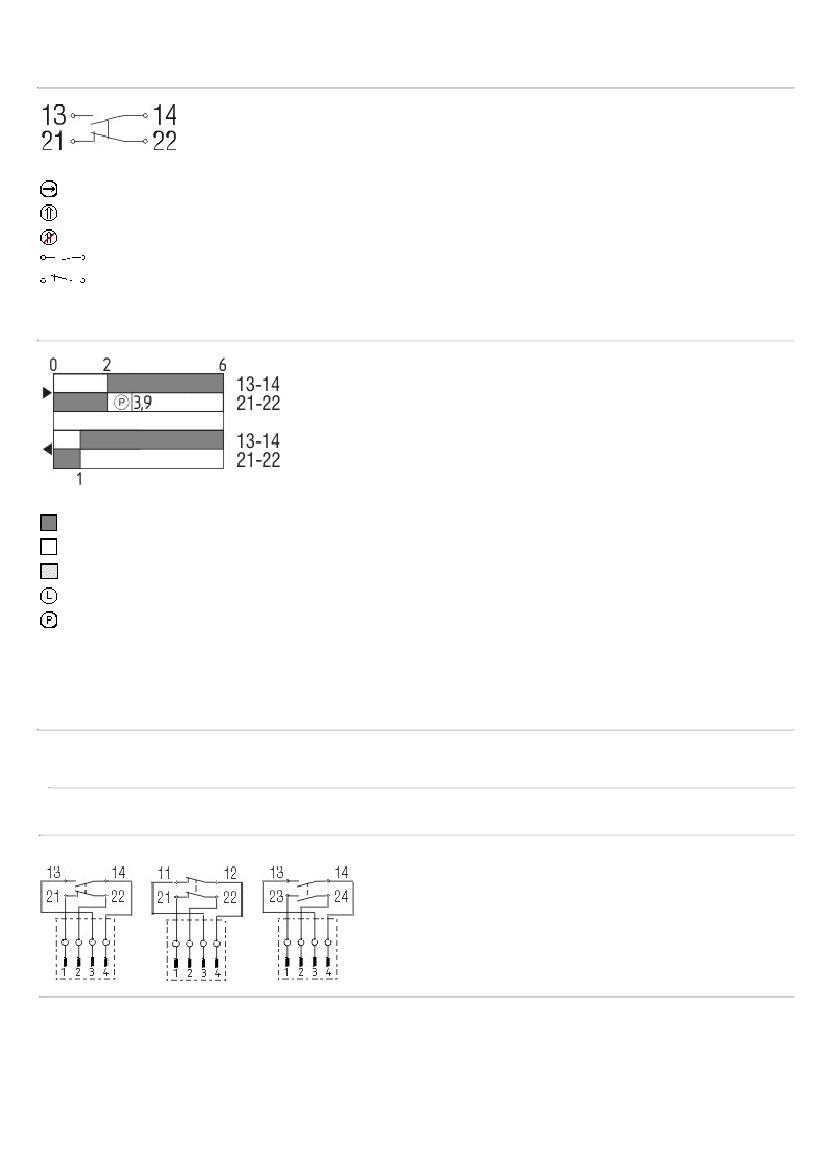

Diagram
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact
Switch travel diagram
Notes Switch travel diagram
Contact closed
Contact open
Setting range
Break point
Positive opening sequence/- angle
VS
adjustable range of NO contact
VÖ
adjustable range of NC contact
N
after travel
Ordering suffix
The applicable ordering suffix is added at the end of the part number of the safety switch.
Order example: ZS 336-11z-NPT
...-NPT

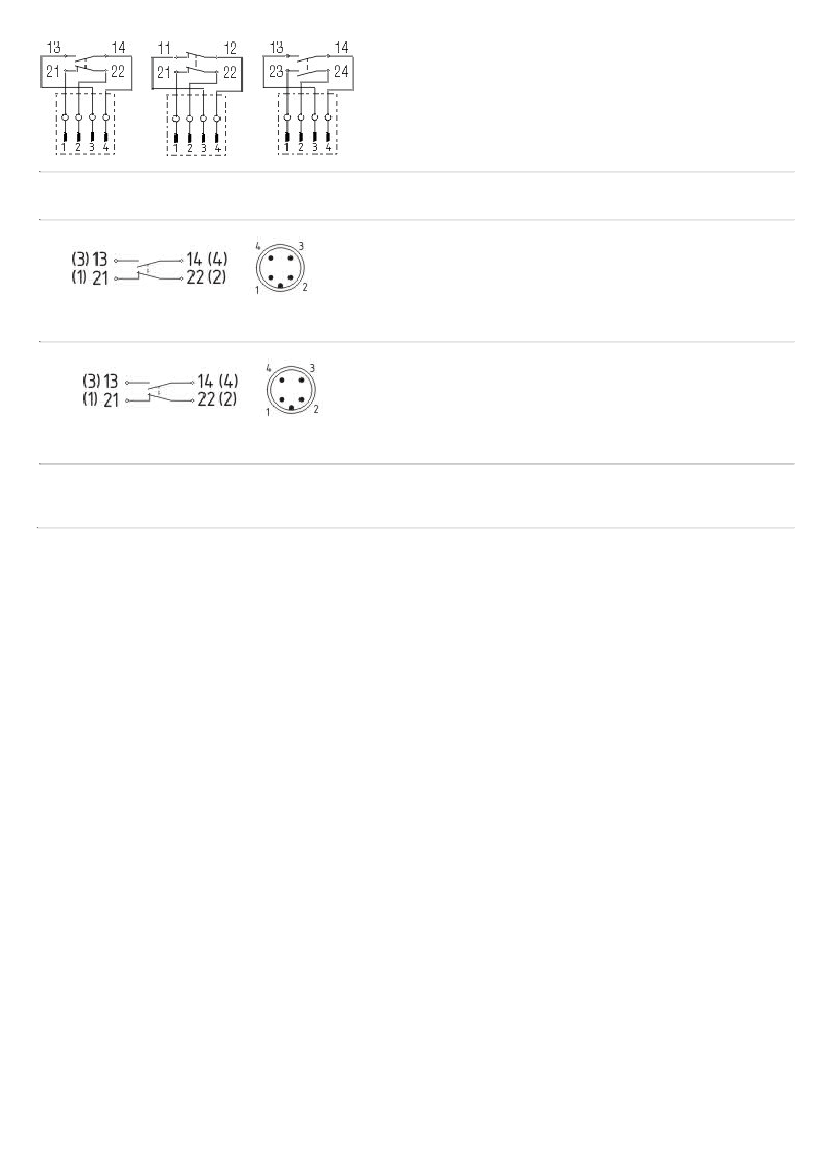

Cable entry NPT 1/2“
...-ST
M12 connector with A-coding
...-
2310
M12 connector with B-coding
...-1637
0,3 µm gold-plated contacts
...-ST
M12 connector with A-coding
Rated impulse withstand voltage U
imp
: 0,8 kV
Rated insulation voltage U
i
: 50 V
Operating current I
e
: AC-15: 50 V / 4 A
Caution! The versions with connector may only be used in PELV circuits to EN
60204-1.
...-2310
M12 connector with B-coding
Rated impulse withstand voltage U
imp
: 0,8 kV
Rated insulation voltage U
i
: 50 V
Operating current I
e
: AC-15: 50 V / 4 A
Caution! The versions with connector may only be used in PELV circuits to EN
60204-1.
Ordering code
(1)(2)
336-(3)Z(4)-(5)-(6)-(7)
(1)
Z
T
(2)
S
R
H
10H
7H
1K
3K
(3)
11
02
20
01/01
(4)
H
UE
(5)
without
Cable entry M20
NPT
ST
2310
(6)
2138
(7)
Roller lever 7H for Position switches with safety function
cable entry NPT 1/2"
M12 connector with A-coding
M12 connector with B-coding
Slow action with staggered contacts
Slow action with overlapping contacts
1 Normally open contact (NO) / 1 Opener (NC)
2 Opener (NC)
2 Normally open contact (NO),
(Switch with 2 NO contacts are not for security tasks)
1 Opener (NC) left / 1 Opener (NC) right
Plunger S
Roller plunger R
Roller lever H
Rod lever 10H
Roller lever 7H
Offset roller lever 1K
Angle roller lever 3K
Snap action
Slow action
1637
gold-plated contacts
Documents
Operating instructions and Declaration of conformity
(pt) 586 kB, 01.03.2010
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/PT/mrl_zt332-335-336-355_pt.pdf
Operating instructions and Declaration of conformity
(nl) 710 kB, 01.12.2009
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/NL/mrl_zt332-335-336-355_nl.pdf
Operating instructions and Declaration of conformity
(cn) 797 kB, 02.03.2010
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/CN/mrl_zt332-335-336-355_cn.pdf
Operating instructions and Declaration of conformity
(de) 581 kB, 27.11.2009
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/DE/mrl_zt332-335-336-355_de.pdf
Operating instructions and Declaration of conformity
(en) 605 kB, 22.03.2010
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/EN/mrl_zt332-335-336-355_en.pdf
Operating instructions and Declaration of conformity
(es) 516 kB, 27.11.2009
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/ES/mrl_zt332-335-336-355_es.pdf
Operating instructions and Declaration of conformity
(jp) 1 MB, 22.11.2010
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/JP/mrl_zt332-335-336-355_jp.pdf
Operating instructions and Declaration of conformity
(fr) 525 kB, 01.12.2009
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/FR/mrl_zt332-335-336-355_fr.pdf
Operating instructions and Declaration of conformity
(it) 513 kB, 01.12.2009
http://127.0.0.1/Bilddata/Si_f1/Pdf/Z332/bedien/IT/mrl_zt332-335-336-355_it.pdf
CCC certification
(cn) 605 kB, 12.12.2006
http://127.0.0.1/Bilddata/Si_f1/Pdf/Zt235/zertifikat/q_347p03.pdf
CCC certification
(en) 584 kB, 12.12.2006
http://127.0.0.1/Bilddata/Si_f1/Pdf/Zt235/zertifikat/q_347p02.pdf
Images

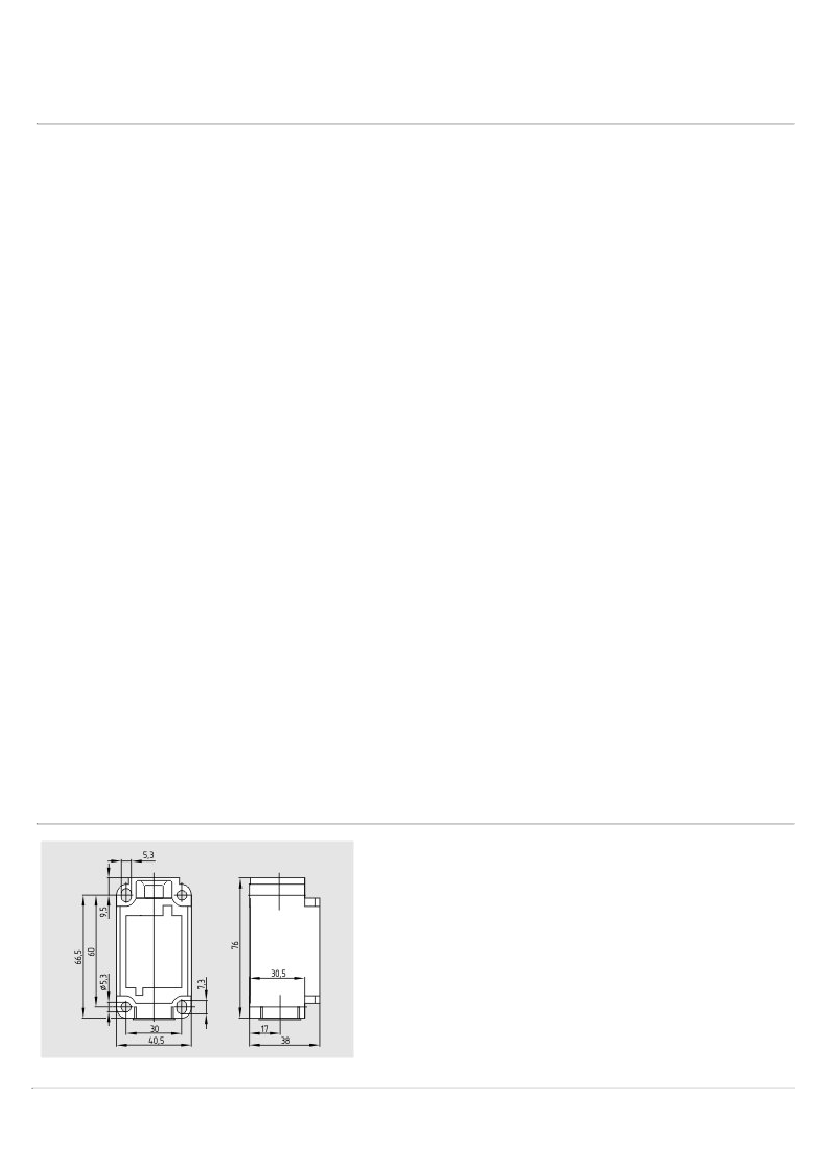

Dimensional drawing (basic component)
