CS82C37A96 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CS82C37A96

CS82C37A96: DescriptionDMA Controller, 4 Channel(s), 8MHz, CMOS, PQCC44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size985KB，22 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CS82C37A96 Overview

DMA Controller, 4 Channel(s), 8MHz, CMOS, PQCC44

CS82C37A96 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown
Address bus width	16
Bus compatibility	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800
maximum clock frequency	8 MHz
External data bus width	8
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
Number of DMA channels	4
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	16 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER

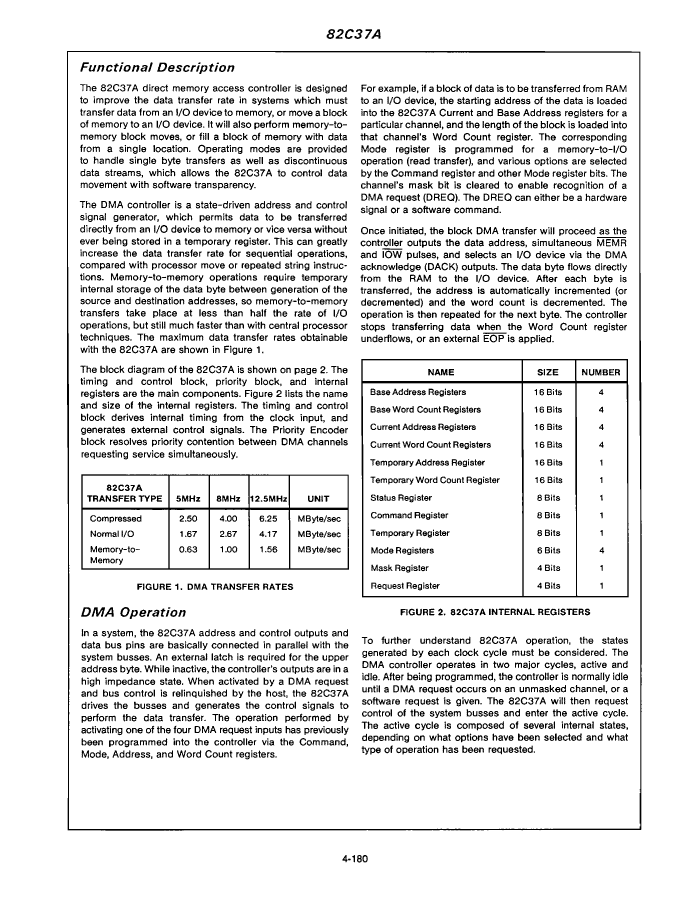

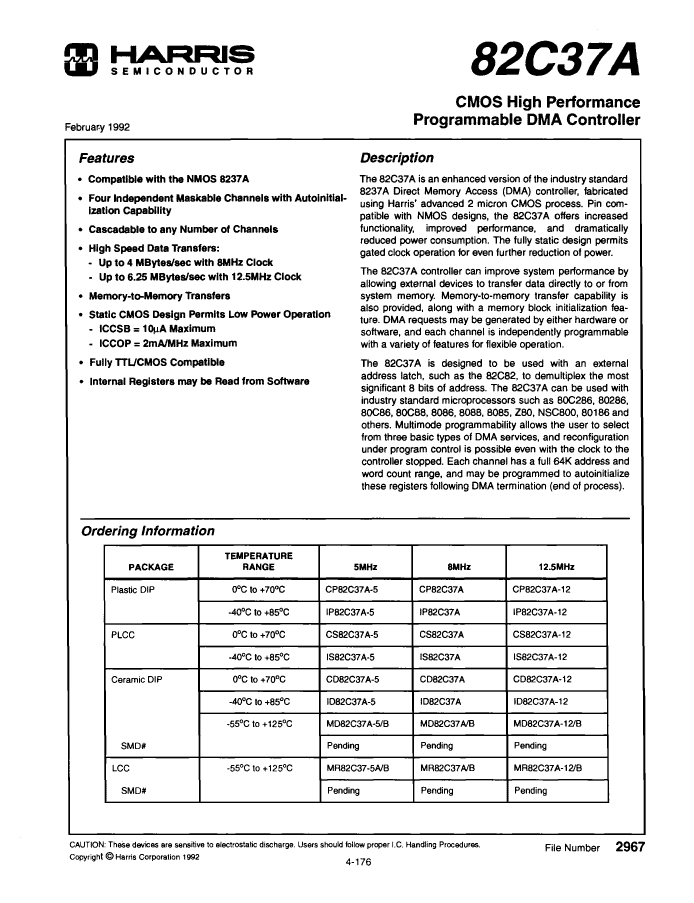

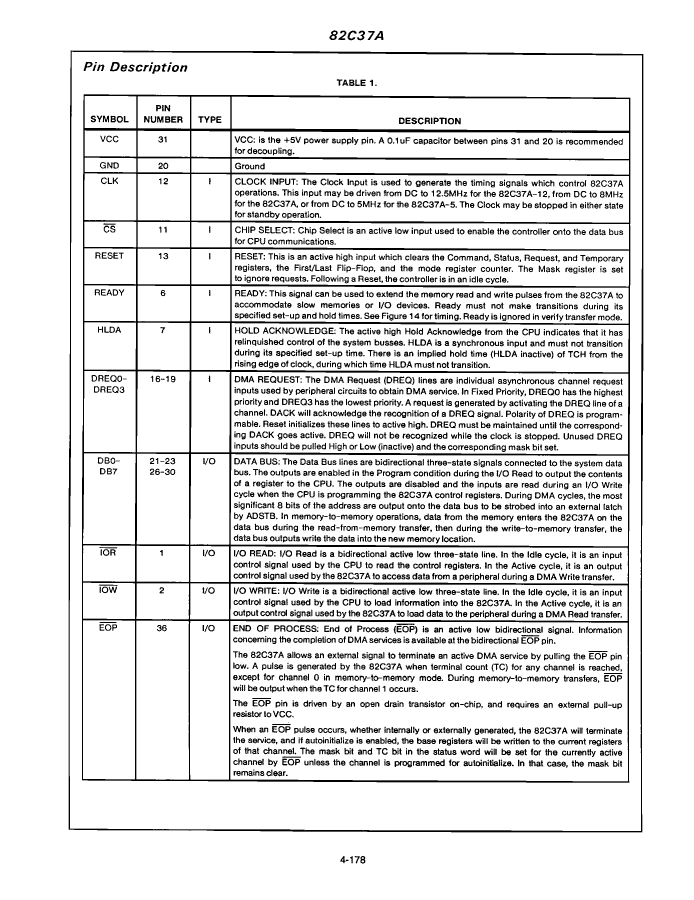

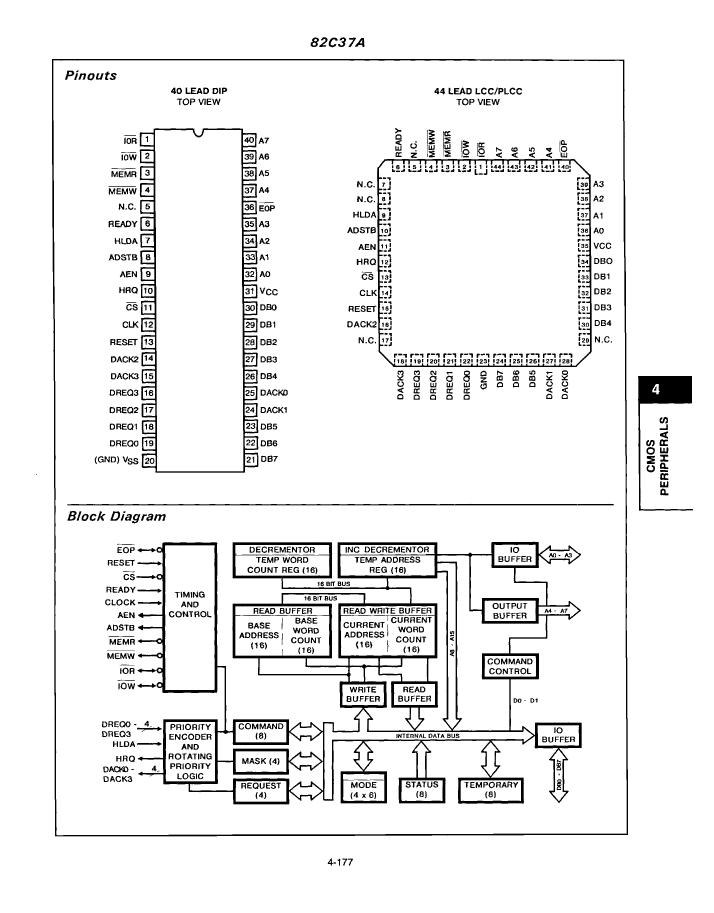

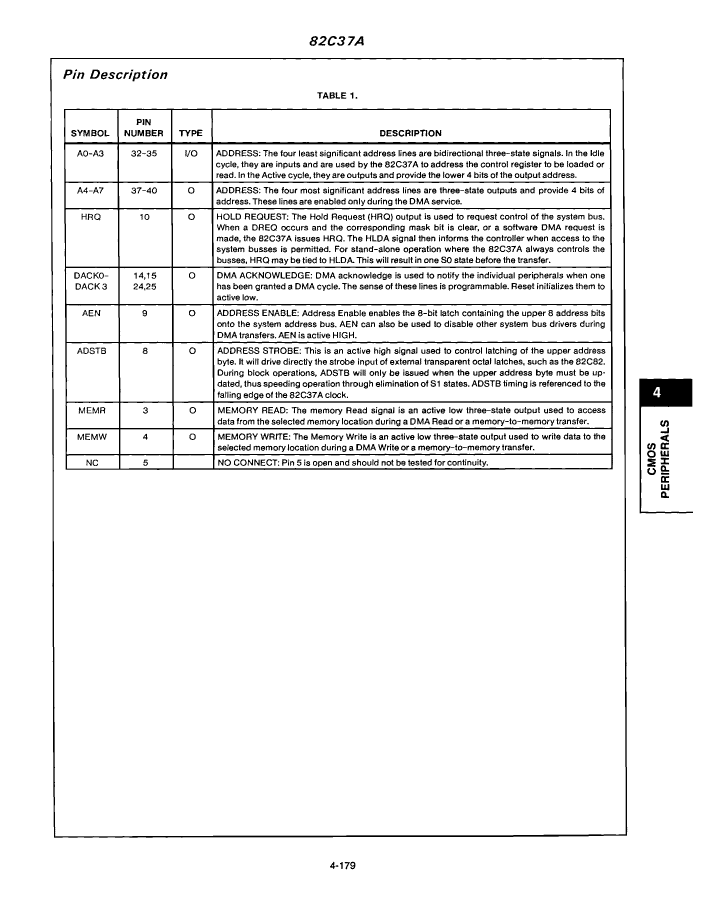

Preview

Download Datasheet

View All

CS82C37A96 Related Products

	CS82C37A96	CS82C37A-1296	CS82C37A-596	MR82C37A	MD82C37A
Description	DMA Controller, 4 Channel(s), 8MHz, CMOS, PQCC44	DMA Controller, 4 Channel(s), 12.5MHz, CMOS, PQCC44	DMA Controller, 4 Channel(s), 5MHz, CMOS, PQCC44	DMA Controller, 4 Channel(s), 8MHz, CMOS, CQCC44	DMA Controller, 4 Channel(s), 8MHz, CMOS, CDIP40
Maker	Harris	Harris	Harris	Harris	Harris
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	,	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Address bus width	16	16	16	8	8
Bus compatibility	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800
maximum clock frequency	8 MHz	12.5 MHz	5 MHz	8 MHz	8 MHz
External data bus width	8	8	8	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-CQCC-N44	R-CDIP-T40
Number of DMA channels	4	4	4	4	4
Number of terminals	44	44	44	44	40
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY
Terminal form	J BEND	J BEND	J BEND	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	QUAD	QUAD	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-
JESD-609 code	e0	e0	e0	-	-
encapsulated code	QCCJ	QCCJ	QCCJ	-	-
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	-	-
power supply	5 V	5 V	5 V	-	-
Maximum slew rate	16 mA	25 mA	10 mA	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	-
