KSA1220A-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> KSA1220A-R

KSA1220A-R: DescriptionPower Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin; CategoryDiscrete semiconductor The transistor; File Size119KB，3 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KSA1220A-R Overview

Power Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin

KSA1220A-R Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	1.2 A
Collector-emitter maximum voltage	160 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-126
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power consumption environment	20 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	175 MHz
VCEsat-Max	0.7 V

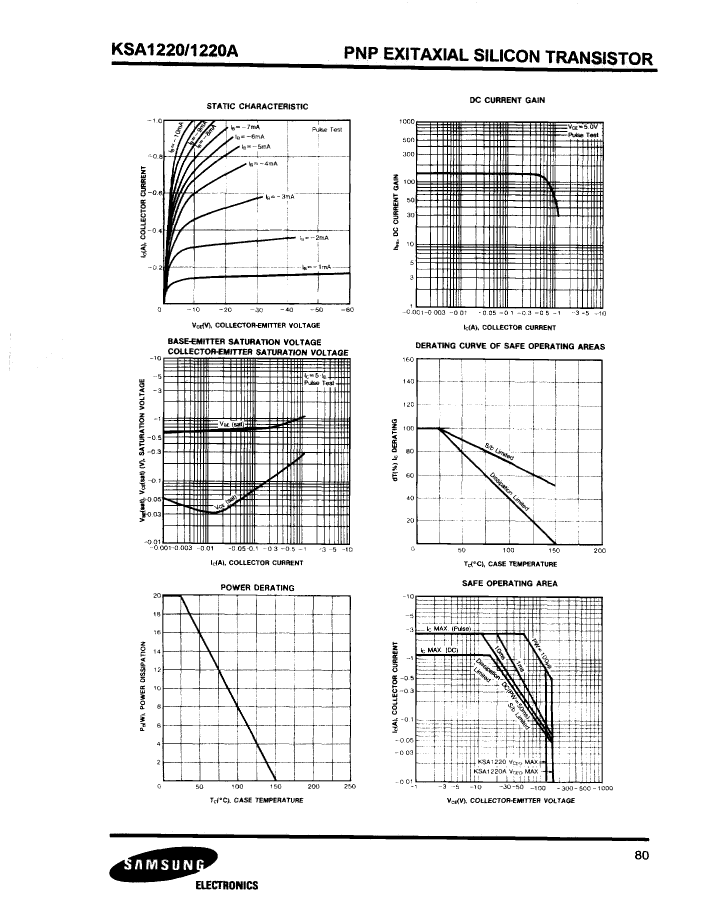

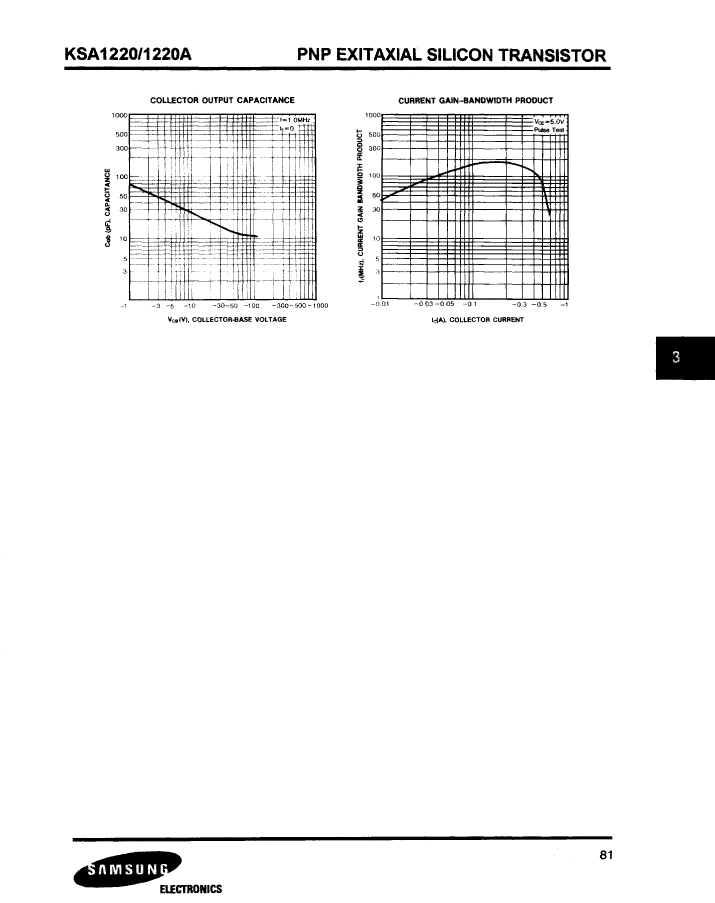

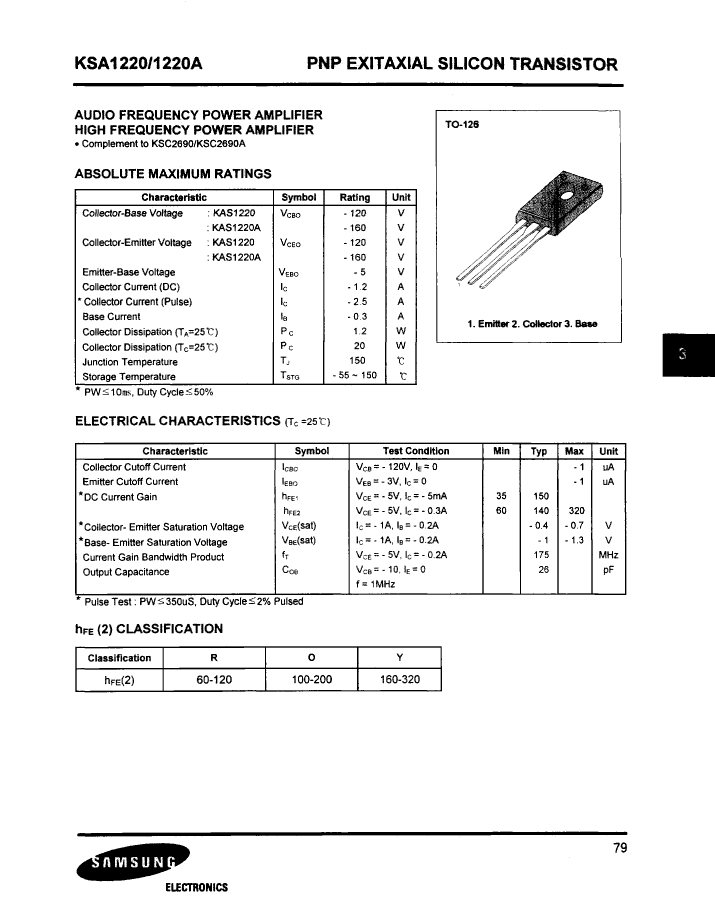

Preview

Download Datasheet

View All

KSA1220A-R Related Products

	KSA1220A-R	KSA1220-O	KSA1220A-O	KSA1220	KSA1220A	KSA1220A-Y	KSA1220-Y	KSA1220-R
Description	Power Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 160V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin	Power Bipolar Transistor, 1.2A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A	1.2 A
Collector-emitter maximum voltage	160 V	120 V	160 V	120 V	160 V	160 V	120 V	120 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	100	100	60	60	160	160	60
JEDEC-95 code	TO-126	TO-126	TO-126	TO-126	TO-126	TO-126	TO-126	TO-126
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	175 MHz	175 MHz	175 MHz	175 MHz	175 MHz	175 MHz	175 MHz	175 MHz
Maker	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
Maximum power consumption environment	20 W	20 W	20 W	-	-	20 W	20 W	20 W
VCEsat-Max	0.7 V	0.7 V	0.7 V	-	-	0.7 V	0.7 V	0.7 V
