AEE00B12-49 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AEE00B12-49

AEE00B12-49: Description1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE, 2 X 1 INCH, 0.330 INCH HEIGHT, MODULE-6; CategoryPower/power management The power supply circuit; File Size1MB，2 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric View All

AEE00B12-49 Overview

1-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE, 2 X 1 INCH, 0.330 INCH HEIGHT, MODULE-6

AEE00B12-49 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Emerson Embedded Power
Parts packaging code	MODULE
package instruction	, MODULE,6LEAD,0.8
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	R-XDMA-P6
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Maximum output current	0.84 A
Maximum output voltage	13.2 V
Minimum output voltage	10.8 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,6LEAD,0.8
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	10 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

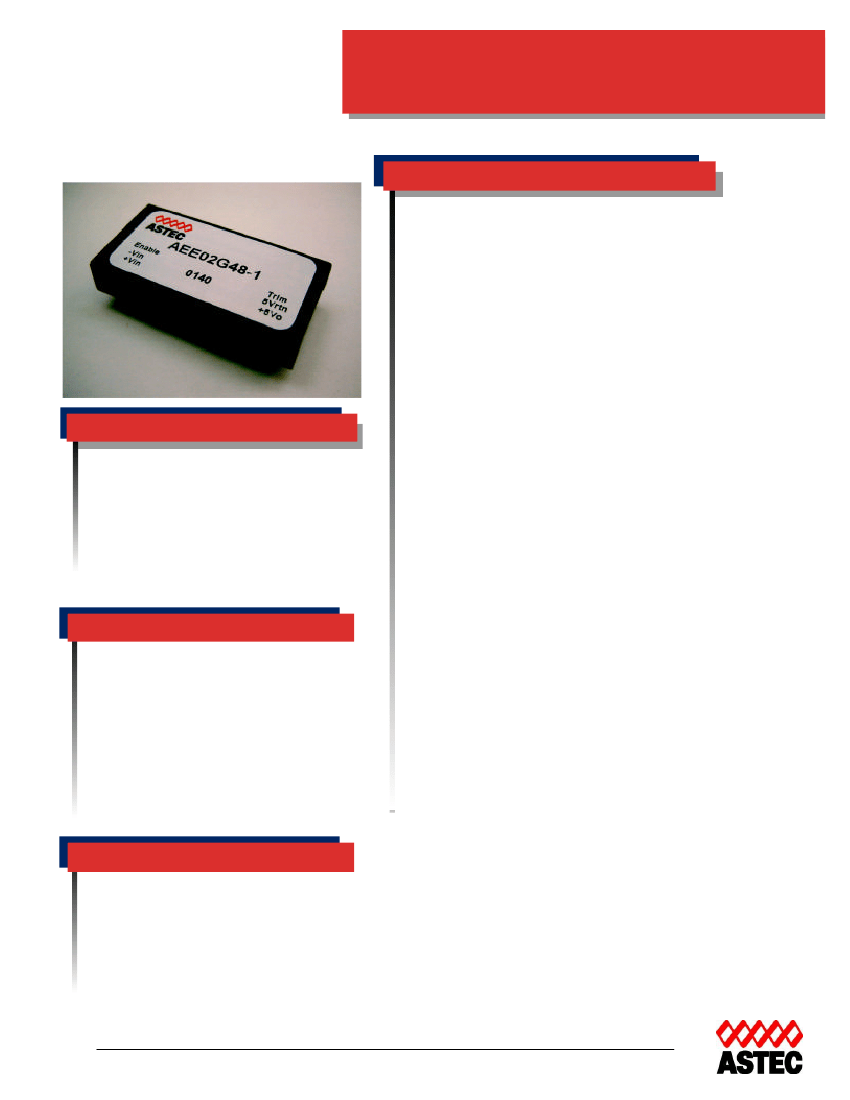

10 Watts

AEE00-12Vin

Total Power:

Input Voltages:

No. of Outputs:

10 Watts

12V

Single and Dual

Electrical Specs

Input

Input range

Efficiency

9 to 18 VDC

78% typical (3.3V)

Voltage tolerance

Overall regulation

Noise/ripple

Transient response

Temperature Regulation

Output

±1.0%

±1% max

1% Typ, 2% Max

300 usec typical (50% step load

change to within 3%Vo)

±0.02 %Vo/°C

330kHz

Special Features

•

10 W, Dual output

2:1 Input range

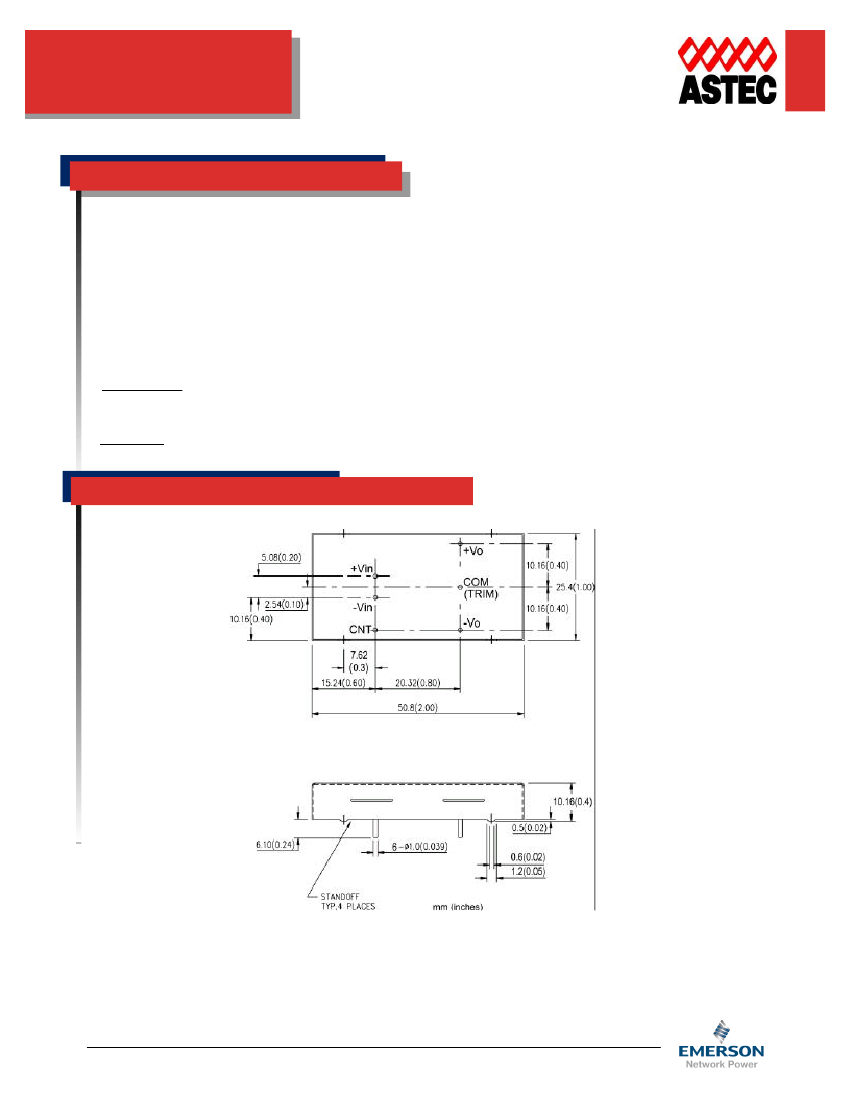

1.0" x 2.0" x 0.33 case

Industry standard package

Low Profile

Low Cost

Switching frequency

Isolation

I/O isolation

1500 VDC Input to Output

1000 VDC Input to Case

1000 VDC Output to Case

300 Mohms

Isolation Resistance

Environmental

Operating base temperature range:

-25°C to +100°C

Storage temperature: -40°C to +125°C

MTBF: 3 Million Hours (Belcore TR332)

Safety

CSA

TUV

UL1950 Recognition

CSA22.2-950 Recognition

EN60950 Recognition

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
